Bosch 24614

Bosch 24614 impact wrench: exploded parts diagram, 1 sheet, 42 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 24614: 42 positions on 1 sheet

Bosch 24614 parts list (1 sheet)

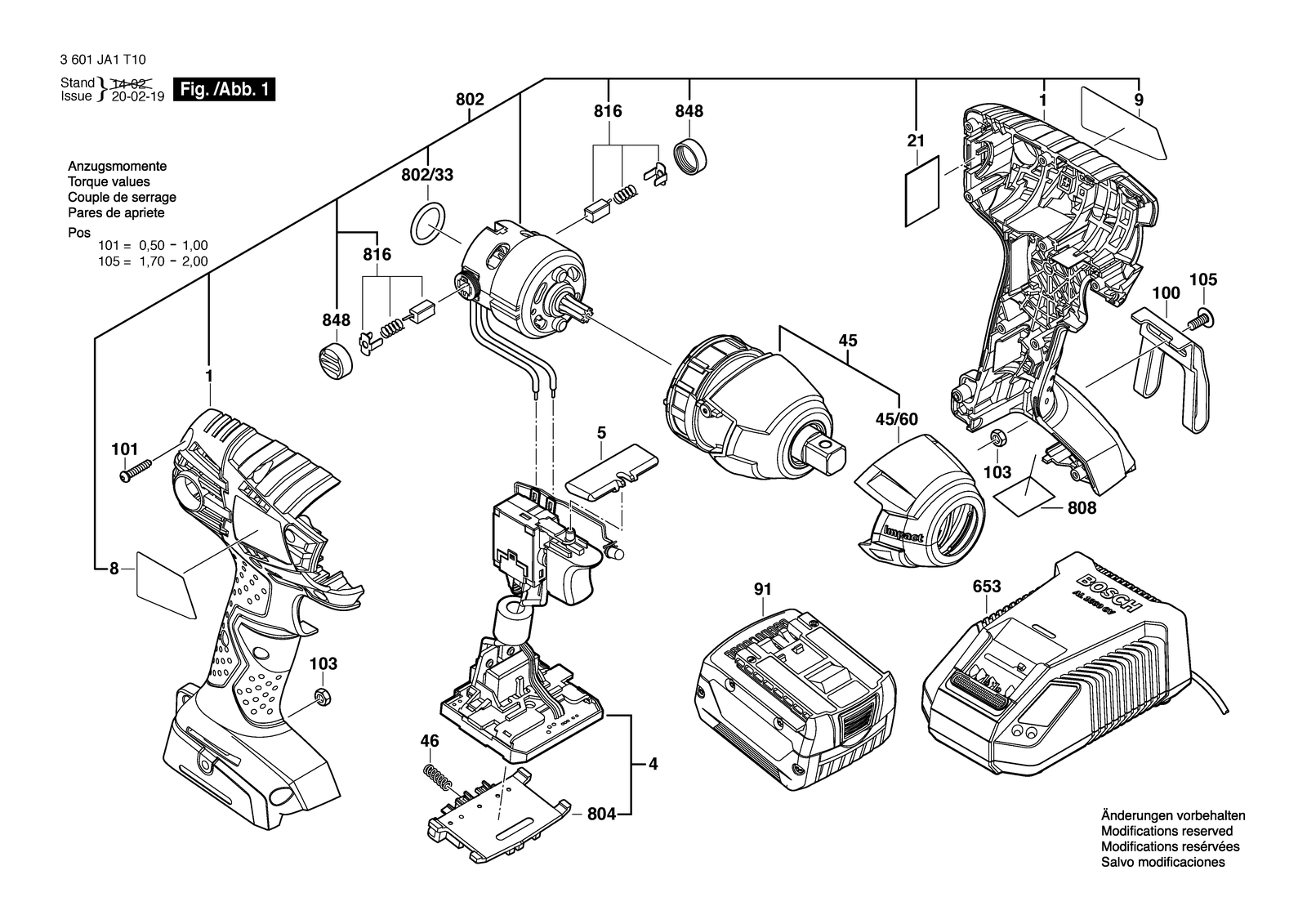

Bosch 24614 parts diagram, sheet 1
No.Part numberPart name
12609101136Housing
12609101136Housing
1002609110833Clip
1002609110833Clip
1012609110201Torx Flat-Head Screw 3X16
1012609110201Torx Flat-Head Screw 3X16
1032609110835Nut
1032609110835Nut
1052609110834Screw
1052609110834Screw
212609111485Wire Mesh
212609111485Wire Mesh
41607233479Electronics Module
41607233479Electronics Module
452609199696Gear Box
452609199257Gear Box
45/602609170128Cap
45/602609170128Cap
461609280477Compression Spring
461609280477Compression Spring
52609100698Button
52609100698Button
82609131989Warning Label
82609131989Warning Label
8022609199312DC motor
8022609199312DC motor
802/332609170104O-Ring
802/332609170104O-Ring
8041609280474Contact retainer
8041609280474Contact retainer
8082609131972Label 24614
8082609132401Nameplate IWH141
8162609199169Carbon-Brush Set
8162609199169Carbon-Brush Set
8482609199190Brush-Cover
8482609199190Brush-Cover
92609132045Nameplate Impactor 14,4V
92609132045Nameplate Impactor 14,4V
912607336079Battery Set 14,4V, 2,6AH, Li, Ms
912607336153Battery Set 14,4V, 1,3AH, Li, Ms
912607336079Battery Set 14,4V, 2,6AH, Li, Ms
912607336153Battery Set 14,4V, 1,3AH, Li, Ms
