Makita 2414K
Makita 2414K: exploded parts diagram, 2 sheets, 93 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 2414K: 93 positions on 2 sheets

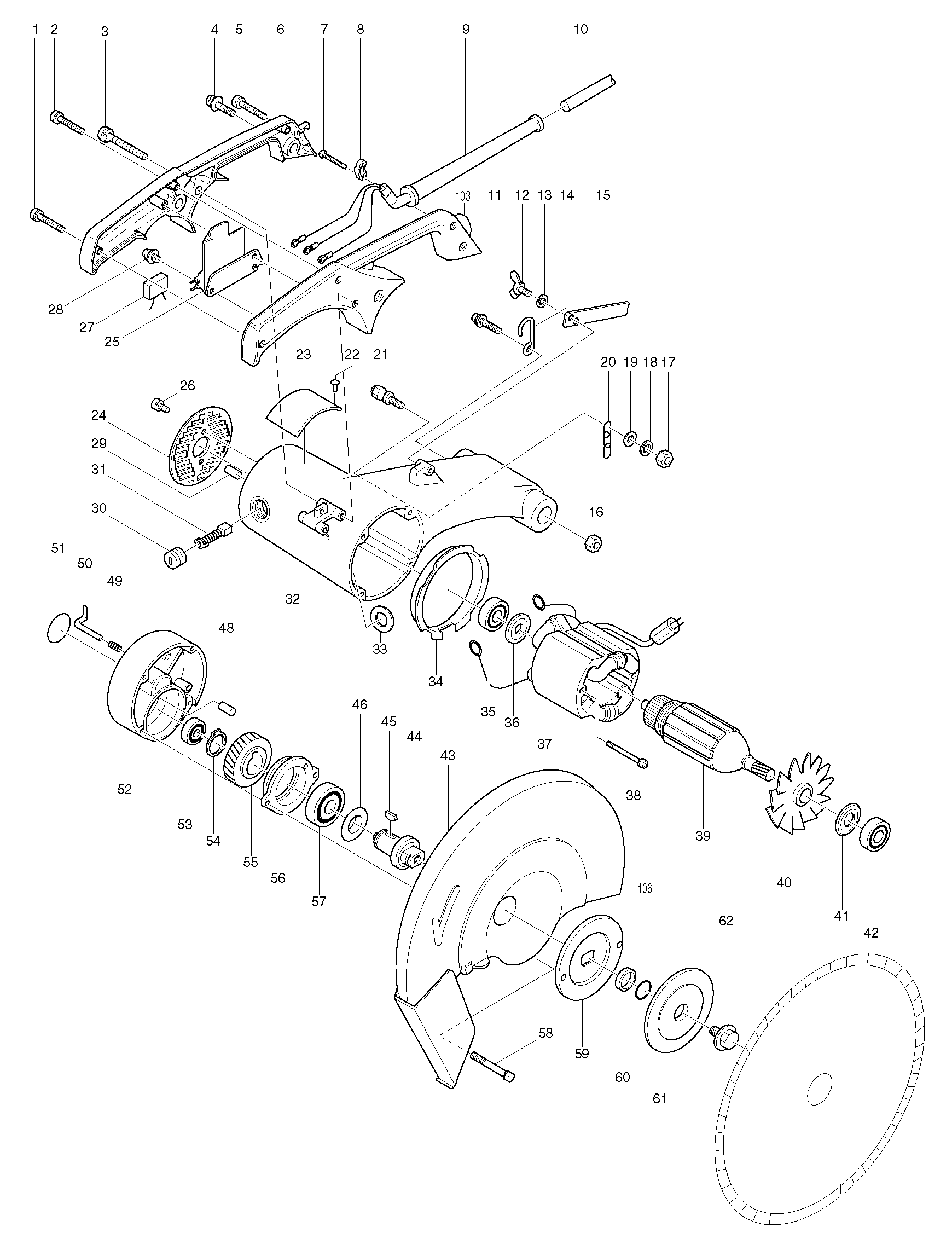

Sheet 1: Makita 2414K parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 911148-2 | Makita 911148-2 PAN H.SCREW M4*25 WITH WR, AN611 |
| 2 | 911148-2 | Makita 911148-2 PAN H.SCREW M4*25 WITH WR, AN611 |
| 3 | 911273-9 | Makita 911273-9 PAN HEAD SCREW M5X50 WR, 2414NB |
| 4 | 911253-5 | Makita 911253-5 PANHEAD SCREW M5*30, EBH252L |
| 5 | 911148-2 | Makita 911148-2 PAN H.SCREW M4*25 WITH WR, AN611 |
| 6 | 181149-6 | Makita 181149-6 KAHVA 2414 |
| 7 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 8 | 687001-1 | Makita 687001-1 STRAIN RELIEF B04510 |
| 9 | 682507-4 | Makita 682507-4 CORD GUARD 12-200 |
| 10 | 665231-4 | Makita 665231-4 POWER SUPPLY CORD 1.00-3- |
| 11 | 911334-5 | Makita 911334-5 PAN HEAD SCREW M6X20 |
| 12 | 322049-3 | Makita 322049-3 HOOK |
| 13 | 924206-5 | Makita 924206-5 WING M5X10, 4100NH |
| 14 | 942101-7 | Makita 942101-7 SPRING WASHER 5, 4100NH |
| 15 | 341395-5 | Makita 341395-5 STOPPER PLATE |
| 16 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 17 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 18 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 19 | 253011-6 | Makita 253011-6 FLAT WASHER 6, 3500 |
| 20 | 282013-5 | |
| 21 | 265380-3 | |
| 22 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 23 | 857005-9 | Makita 857005-9 NAME PLATE 2414K |
| 24 | 284010-7 | Makita 284010-7 REAR COVER |
| 25 | 651018-0 | Makita 651018-0 Switch HPAHR2-3S HL1800L 9217SPC 9207SPB |
| 26 | 911211-1 | Makita 911211-1 PAN HEAD SCREW M5X12 |
| 27 | 645182-7 | Makita 645182-7 NOICE SUPPRESSOR |
| 28 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 29 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 30 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 31 | 181044-0 | Makita 181044-0 Carbon Brush CB-153 |
| 32 | 156446-9 | Makita 156446-9 MOTOR HOUSING |
| 33 | 681002-1 | Makita 681002-1 INSULATION WASHER |
| 34 | 343299-7 | Makita 343299-7 BAFFLE PLATE |
| 35 | 211066-7 | Makita 211066-7 BALL BEARING 6200LLB, BO4510 |
| 36 | 213051-6 | Makita 213051-6 DUST SEAL 10 |
| 37 | 524878-2 | Makita 524878-2 FIELD ASS'Y 220V |
| 38 | 911938-3 | Makita 911938-3 PAN HEAD SCREW M5X85 |
| 39 | 514918-4 | Makita 514918-4 ARMATURE ASS'Y 220V |
| 40 | 241515-0 | Makita 241515-0 FAN 92, 2414NB |
| 41 | 213202-1 | Makita 213202-1 DUST SEAL 15 |
| 42 | 211206-7 | Makita 211206-7 BALL BEARING 6202LLB, LS1040 |
| 43 | 168128-1 | |
| 44 | 325517-5 | Makita 325517-5 SPINDLE |
| 45 | 254032-1 | Makita 254032-1 WOODRUFF KEY 5 |
| 46 | 211306-3 | Makita 211306-3 BALL BEARING 6204LLB |
| 48 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 49 | 231240-1 | Makita 231240-1 COMPRESSION SPRING 7, 2412N |
| 50 | 325518-3 | Makita 325518-3 STOPPER |
| 51 | 213460-9 | Makita 213460-9 O RING 35, LF1000 |
| 52 | 157331-9 | Makita 157331-9 GEAR HOUSING |
| 53 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 54 | 961060-6 | Makita 961060-6 RETANING RING S-20, HM1800 |
| 55 | 221774-2 | |
| 56 | 157026-4 | Makita 157026-4 BEARING HOUSING |
| 57 | 253755-8 | Makita 253755-8 FLAT WASHER 20 |
| 58 | 911276-3 | Makita 911276-3 PAN HEAD SCREW M5X55 |
| 59 | 224141-0 | Makita 224141-0 INNER FLANGE 120 2414 |
| 60 | 257054-0 | Makita 257054-0 RING 20 |
| 61 | 224142-8 | Makita 224142-8 OUTER FLANGE 120 2414 |
| 62 | 251680-7 | Makita 251680-7 Hex.Bolt M10*25, 2414NB |
| 103 | 181149-6 | Makita 181149-6 KAHVA 2414 |
| 106 | 213218-6 | Makita 213218-6 O-RING 16, HR281FT |

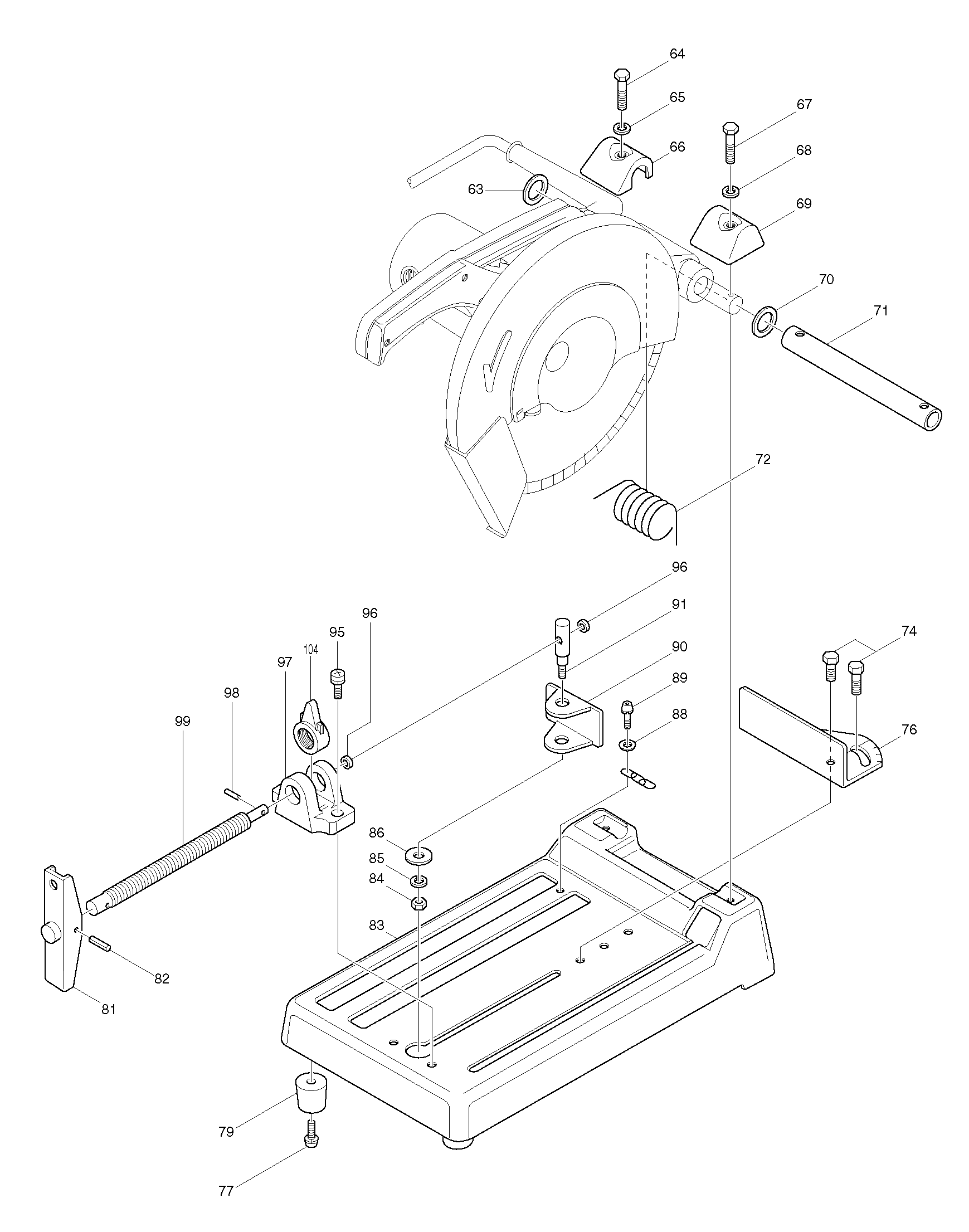

Sheet 2: Makita 2414K parts diagram
| No. | Part number | Part name |
|---|---|---|
| 63 | 253751-6 | Makita 253751-6 FLAT WASHER 24 |
| 64 | 251683-1 | Makita 251683-1 HEX. BOLT M8X40 |
| 65 | 942201-3 | Makita 942201-3 SPRING WASHER 8, 2414NB |
| 66 | 345141-8 | Makita 345141-8 PIPE COVER (L) |
| 67 | 251683-1 | Makita 251683-1 HEX. BOLT M8X40 |
| 68 | 942201-3 | Makita 942201-3 SPRING WASHER 8, 2414NB |
| 69 | 345142-6 | Makita 345142-6 PIPE COVER (R) |
| 70 | 253751-6 | Makita 253751-6 FLAT WASHER 24 |
| 71 | 331087-4 | Makita 331087-4 PIPE 24 |
| 72 | 231526-3 | Makita 231526-3 TORSION SPRING 26, 2414N |
| 74 | 265201-9 | Makita 265201-9 HEX.BOLT M10*25, 2414NB |
| 76 | 345145-0 | |
| 77 | 911349-2 | Makita 911349-2 PAN HEAD SCREW M6X28 |
| 79 | 421277-8 | |
| 81 | 272021-4 | Makita 272021-4 HANDLE 120, 2414NB |
| 82 | 951163-4 | Makita 951163-4 SPRING PIN 5-20 |
| 83 | 132385-7 | Makita 132385-7 BASE ASS'Y |
| 84 | 931402-8 | Makita 931402-8 Hex Nut M8 5037Nb |
| 85 | 942201-3 | Makita 942201-3 SPRING WASHER 8, 2414NB |
| 86 | 253752-4 | Makita 253752-4 FLAT WASHER 8, 2414NB |
| 88 | 253011-6 | Makita 253011-6 FLAT WASHER 6, 3500 |
| 89 | 911316-7 | Makita 911316-7 PAN HEAD SCREW M6X14 |
| 90 | 343546-6 | Makita 343546-6 VICE PLATE |
| 91 | 265922-3 | Makita 265922-3 SCREW M8 |
| 95 | 911451-1 | Makita 911451-1 PAN HEAD SCREW M8*30 W, 2414NB |
| 96 | 253731-2 | Makita 253731-2 FLAT WASHER 8, 2414NB |
| 97 | 311830-7 | Makita 311830-7 SCREW GUIDE |
| 98 | 951066-2 | Makita 951066-2 SPRING PIN 3-18 |
| 99 | 134548-1 | Makita 134548-1 Vice Ass'y for 2414K |
| 104 | 322209-7 | Makita 322209-7 VISE NUT, 2414NB |
