Makita 2414B
Makita 2414B: exploded parts diagram, 2 sheets, 84 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 2414B: 84 positions on 2 sheets
Sheet 1: Makita 2414B parts diagram
| No. | Part number | Part name |
|---|---|---|
| 3 | 251680-7 | Makita 251680-7 Hex.Bolt M10*25, 2414NB |
| 4 | 224300-6 | Makita 224300-6 OUTER FLANGE 90 |
| 5 | 911333-7 | Makita 911333-7 PAN HEAD SCREW M6X20 WR, 2414NB |
| 6 | 265020-3 | Makita 265020-3 + FLAT HEAD SCREW M6 |
| 7 | 213162-7 | Makita 213162-7 O RING 14 |
| 8 | 257185-5 | Makita 257185-5 RING 17 |
| 9 | 224299-5 | Makita 224299-5 INNER FLANGE 90, 2414NB |
| 10 | 257185-5 | Makita 257185-5 RING 17 |
| 11 | 165085-4 | Makita 165085-4 SAFETY COVER |
| 12 | 211256-2 | Makita 211256-2 BALL BEARING 6203LLB, LS1040 |
| 13 | 316527-3 | Makita 316527-3 BEARING BOX, 2414NB |
| 14 | 226415-5 | Makita 226415-5 Helical Gear 41 for 2414NB 2414B |
| 15 | 322633-4 | Makita 322633-4 SPINDLE, 2414NB |
| 16 | 211064-1 | Makita 211064-1 BALL BEARING 6000, 2414NB |
| 17 | 182628-7 | Makita 182628-7 HANDLE SET, 2414NB |
| 18 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 19 | 651922-3 | Makita 651922-3 Switch TG71B for 2414B PC5001C HR4000C GA7011C |
| 20 | 231397-8 | Makita 231397-8 COMPRESSION SPRING 4, 2414NB |
| 21 | 411478-6 | Makita 411478-6 Switch Button LS1040 LS1214 LS1040F |
| 22 | 281207-9 | Makita 281207-9 HANGER |
| 23 | 256012-3 | Makita 256012-3 PIN 6, 2414NB |
| 24 | 182628-7 | Makita 182628-7 HANDLE SET, 2414NB |
| 25 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 26 | 911273-9 | Makita 911273-9 PAN HEAD SCREW M5X50 WR, 2414NB |
| 27 | 152463-7 | Makita 152463-7 SWITCH LEVER COMPLETE 2414NB, 2414NB |
| 28 | 415366-9 | Makita 415366-9 SWITCH LOCK |
| 29 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 30 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 31 | 687063-9 | Makita 687063-9 CORD CLAMP, 6410 |
| 32 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 33 | 322049-3 | Makita 322049-3 HOOK |
| 34 | 231240-1 | Makita 231240-1 COMPRESSION SPRING 7, 2412N |
| 35 | 322665-1 | Makita 322665-1 SIOPPER, 2414NB |
| 36 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 37 | 159672-9 | Makita 159672-9 GEAR HOUSING COMPLETE |
| 38 | 211206-7 | Makita 211206-7 BALL BEARING 6202LLB, LS1040 |
| 39 | 267714-6 | Makita 267714-6 WASHER 15, 2414NB |
| 40 | 516563-1 | Makita 516563-1 Armature with Fan for 2414NB 2414B |
| 41 | 681633-6 | Makita 681633-6 INSULATION WASHER |
| 42 | 211056-0 | Makita 211056-0 BALL BEARING 629LLB |
| 43 | 415369-3 | Makita 415369-3 BAFFLE PLATE |
| 44 | 911944-8 | Makita 911944-8 PAN HEAD SCREW M5X80 |
| 45 | 636008-4 | Makita 636008-4 Field 70T for 2414NB 2414B |
| 46 | 159673-7 | Makita 159673-7 MOTOR HOUSING COMPLETE |
| 47 | 911273-9 | Makita 911273-9 PAN HEAD SCREW M5X50 WR, 2414NB |
| 48 | 857417-6 | Makita 857417-6 Name Plate 2414B |
| 49 | 191953-5 | Old code 191953-5 |
| 50 | 643700-5 | Makita 643700-5 BRUSH HOLDER CAP *, 2414NB |
| 85 | 911258-5 | Makita 911258-5 PAN HEAD SCREW M5X35 WR, 2414NB |
| 900 | 168275-8 | Makita 168275-8 SAFTY GUIDE |

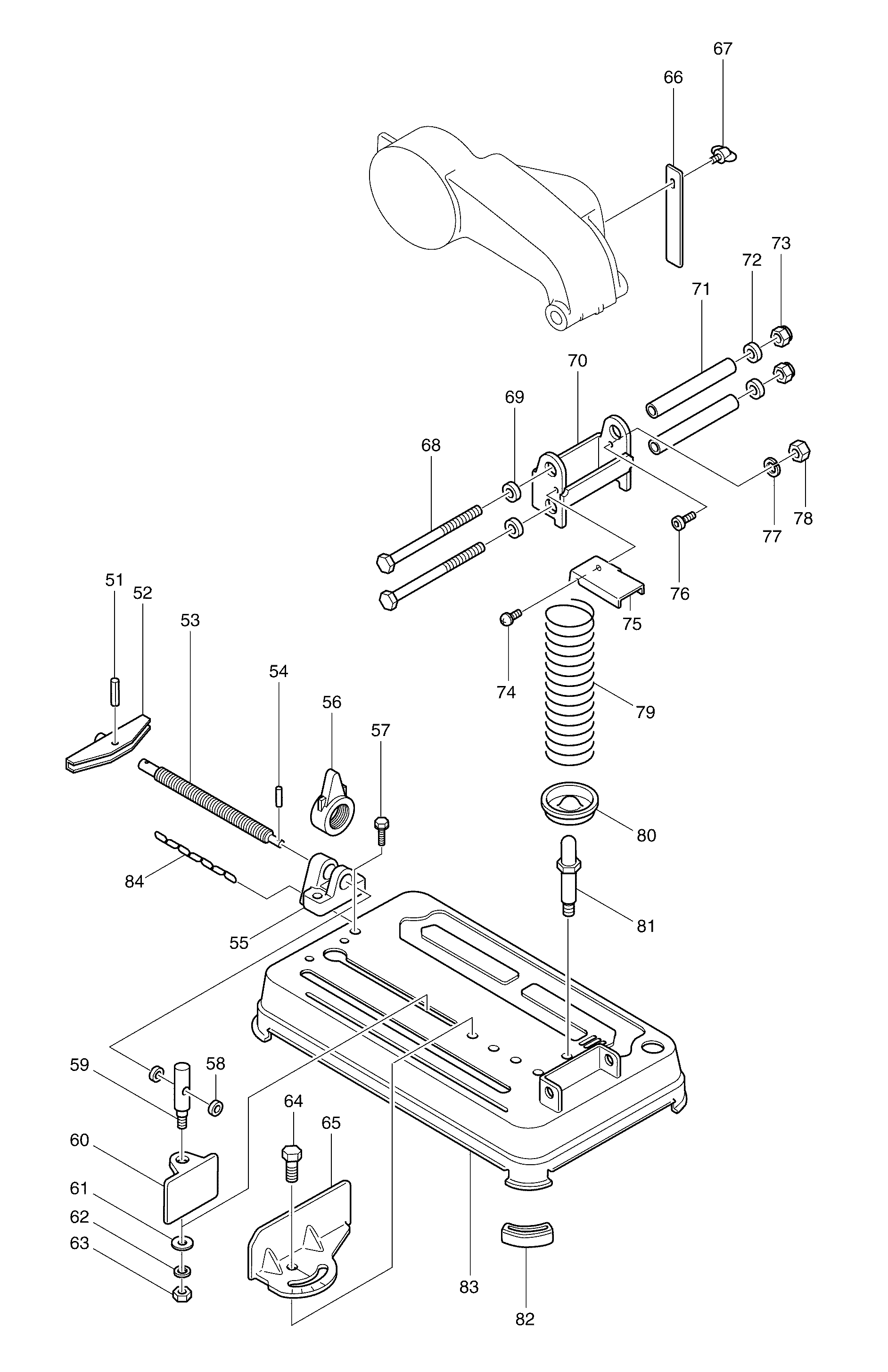

Sheet 2: Makita 2414B parts diagram
| No. | Part number | Part name |
|---|---|---|
| 51 | 951163-4 | Makita 951163-4 SPRING PIN 5-20 |
| 52 | 272021-4 | Makita 272021-4 HANDLE 120, 2414NB |
| 53 | 322239-8 | Makita 322239-8 VISE SCREW, 2414NB |
| 54 | 951066-2 | Makita 951066-2 SPRING PIN 3-18 |
| 55 | 134733-6 | Makita 134733-6 VICE ASS'Y |
| 56 | 322209-7 | Makita 322209-7 VISE NUT, 2414NB |
| 57 | 911451-1 | Makita 911451-1 PAN HEAD SCREW M8*30 W, 2414NB |
| 58 | 253731-2 | Makita 253731-2 FLAT WASHER 8, 2414NB |
| 59 | 321680-2 | Makita 321680-2 SCREW M8, 2414NB |
| 60 | 342679-4 | Makita 342679-4 VISE PLATE, 2414NB |
| 61 | 253752-4 | Makita 253752-4 FLAT WASHER 8, 2414NB |
| 62 | 942201-3 | Makita 942201-3 SPRING WASHER 8, 2414NB |
| 63 | 931402-8 | Makita 931402-8 Hex Nut M8 5037Nb |
| 64 | 265201-9 | Makita 265201-9 HEX.BOLT M10*25, 2414NB |
| 65 | 344087-5 | Makita 344087-5 GUIDE PLATE, 2414NB |
| 66 | 344089-1 | Makita 344089-1 STOPPER PLATE, 2414NB |
| 67 | 251887-5 | Makita 251887-5 Thumb Screw M6x10 for LS1013 LS1016 |
| 68 | 265406-1 | Makita 265406-1 HEX.BOLT M10*130, 2414NB |
| 69 | 267713-8 | Makita 267713-8 CUP WASHER 10, 2414NB |
| 70 | 344086-7 | Makita 344086-7 ARM, 2414B |
| 71 | 331428-4 | Makita 331428-4 PIPE 16-113, 2414NB |
| 72 | 267713-8 | Makita 267713-8 CUP WASHER 10, 2414NB |
| 73 | 252130-5 | Makita 252130-5 HEX LOCK NUT M10-17, 2414NB |
| 74 | 911308-6 | Makita 911308-6 PAN HEAD SCREW M6X10 WR, 2414NB |
| 75 | 344088-3 | Makita 344088-3 SPARK GUARD |
| 76 | 922312-0 | Makita 922312-0 Hex Socket Head Bolt M6X12 for 2414NB |
| 77 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 78 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 79 | 233113-4 | Makita 233113-4 COMPRESSION SPRING 45, 2414NB |
| 80 | 165066-8 | Makita 165066-8 SPRING HOLDER, 2414NB |
| 81 | 265407-9 | Makita 265407-9 HEX. BOLT M10, 2414NB |
| 82 | 421487-7 | Makita 421487-7 CUSHION, 2414NB |
| 83 | 165064-2 | Makita 165064-2 BASE |
| 84 | 282010-1 | Makita 282010-1 CHAIN |
