Bosch 23618

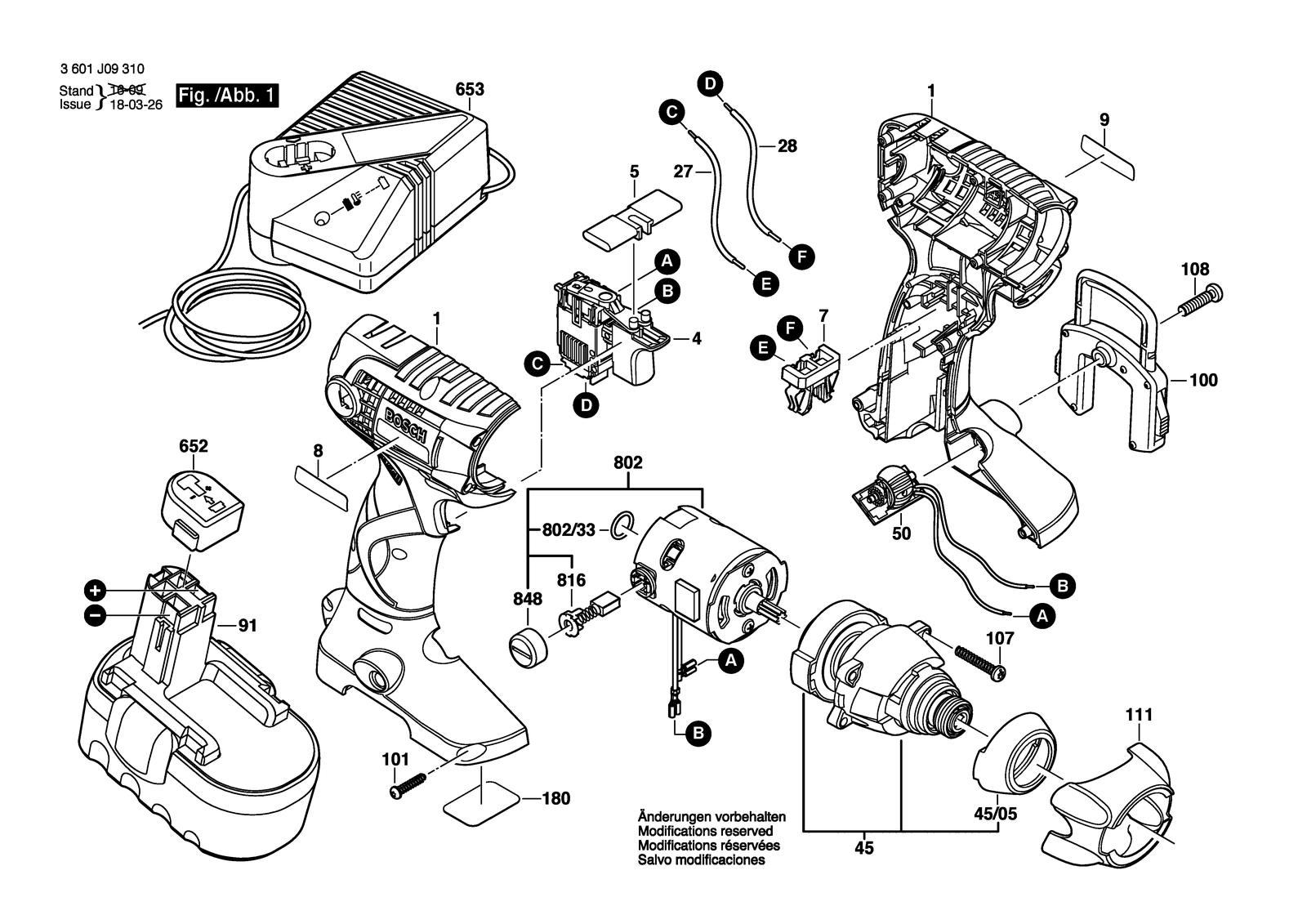

Bosch 23618 impact wrench: exploded parts diagram, 1 sheet, 24 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 23618: 24 positions on 1 sheet
Bosch 23618 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609100461 | Housing Blue |
| 100 | 2609199027 | Holder |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 107 | 2609110327 | Screw |
| 108 | 2609110309 | Screw |
| 111 | 2609100298 | Cover Flap Black |
| 180 | 2609130992 | Nameplate |
| 27 | 2609120146 | Connecting Cable Black 50 MM |
| 28 | 2609120147 | Connecting Cable Red 60 MM |
| 4 | 2607200489 | On-Off Switch |
| 45 | 2609199195 | Gear Box |
| 45/05 | 2609170025 | Protective Ring |
| 5 | 2609100273 | Button |
| 50 | 2609199091 | Light-Emitting-Diode |
| 652 | 2609100101 | Protective Cap |
| 653 | 2607225033 | Fast Charger USA 120/7,2-24V, 30 Min. |
| 7 | 2609100297 | Contact retainer |
| 8 | 2609130720 | Warning Plate 9,6V |
| 802 | 2609199089 | Motor 18V |
| 802/33 | 2609170030 | O-Ring |
| 816 | 2609199048 | Carbon-Brush Set |
| 848 | 2609199049 | Sealing cap |
| 9 | 2609130991 | Manufacturer's nameplate |
| 91 | 2607335717 | Accumulator package 18V,2,4AH, Hd |
