Bosch 2300 M

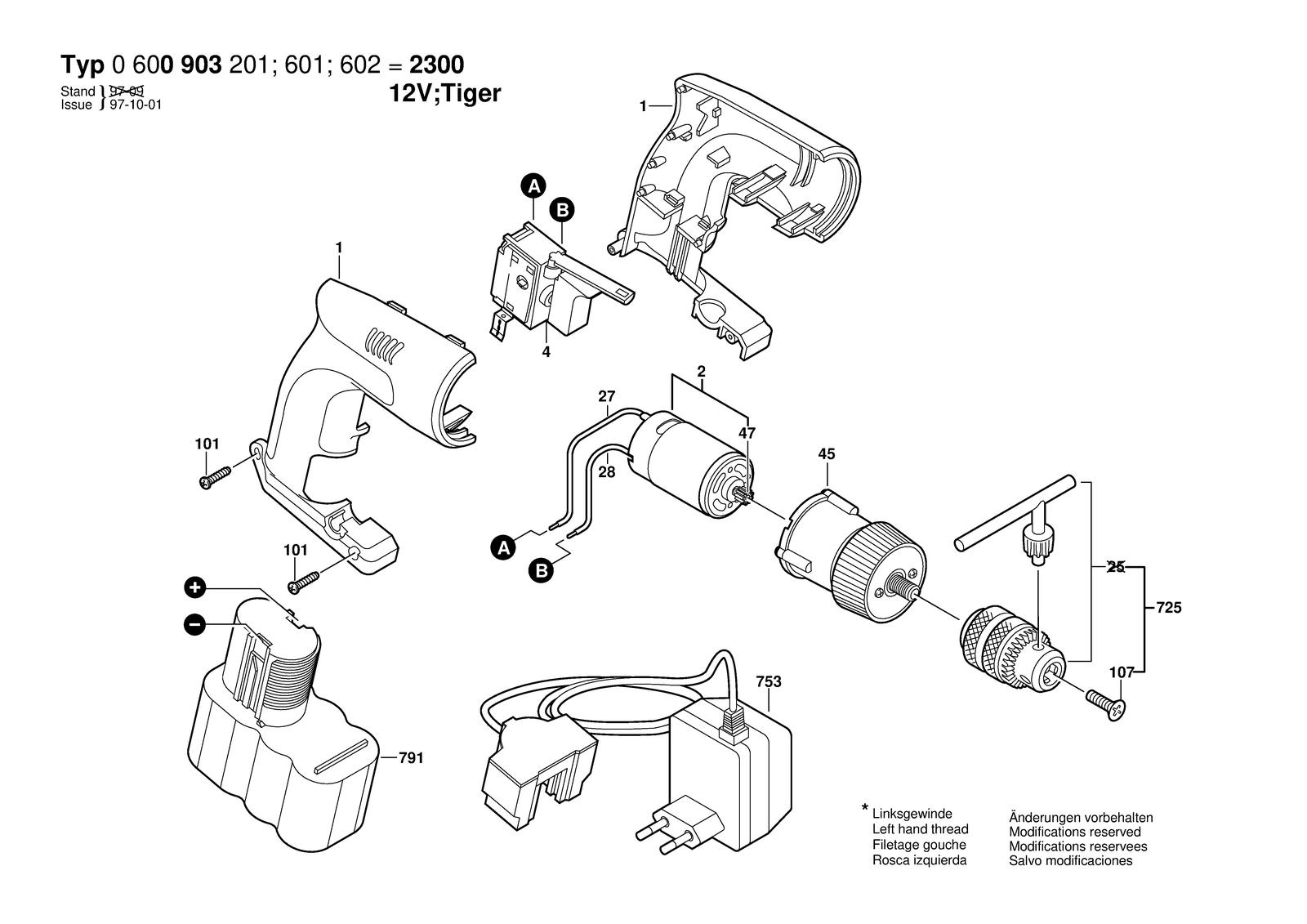

Bosch 2300 M cordless drill: exploded parts diagram, 1 sheet, 13 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 2300 M: 13 positions on 1 sheet
Bosch 2300 M parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104532 | Housing Section Black |
| 101 | 2603435065 | Tapping Screw |
| 107 | 2609110721 | Countersunk-Head Screw M5X20 |
| 2 | 2607022039 | DC motor 12V |
| 27 | 2604448192 | Connecting Cable |
| 28 | 2604448193 | Connecting Cable |
| 4 | 2607200379 | On-Off Switch |
| 45 | 2606200048 | Gear Housing |
| 47 | 2606316164 | Pinion Z=9 |
| 725 | 2607950034 | Chuck Wrench |
| 725 | 2608571049 | Charger |
| 753 | 2607224262 | Fast Charger EU 230/12V, 3H |
| 791 | 2607335129 | Accumulator package 12V, 1,3AH, Nicd |
