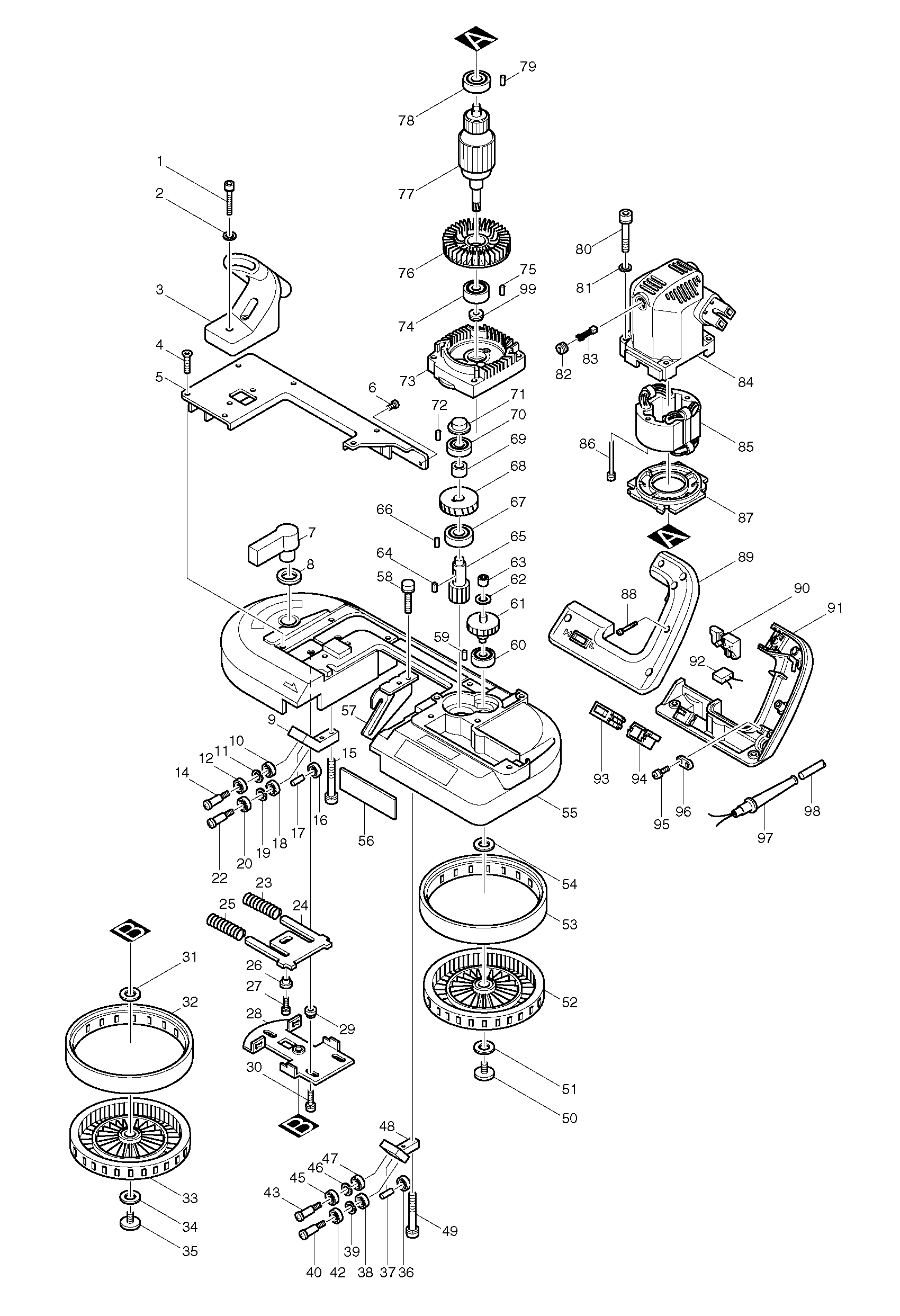

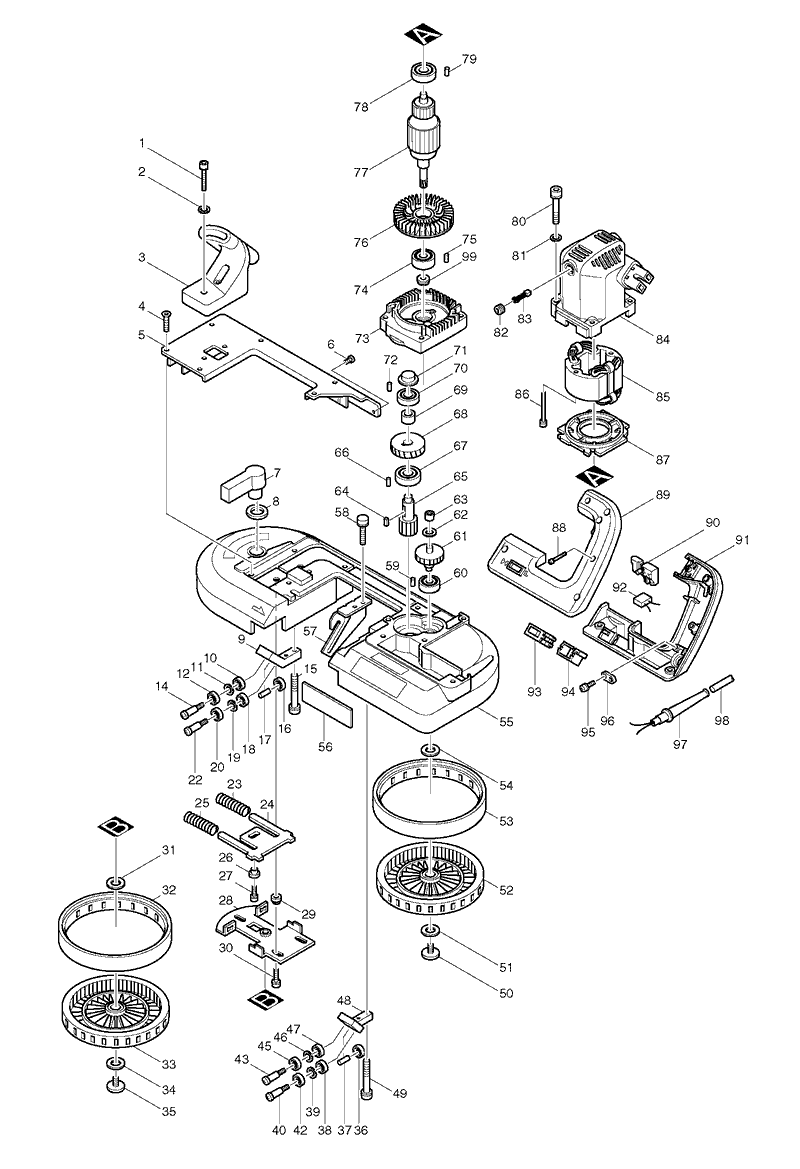

Sheet 1: Makita 2106 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 922361-7 | Makita 922361-7 HEX. SOCKET HEAD BOLT M6X |
| 2 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 3 | 273624-7 | Makita 273624-7 GRIP 80 |
| 4 | 265899-2 | Makita 265899-2 HEX. SOCKET HEAD BOLT M5X |
| 5 | 164933-4 | |
| 6 | 251951-2 | Makita 251951-2 HEX. SOCKET HEAD BOLT M5X |
| 7 | 272223-2 | Makita 272223-2 Tensioning Lever 60, 2107 F |
| 8 | 267041-1 | Makita 267041-1 FLAT WASHER 20 |
| 9 | 316025-7 | |
| 10 | 210006-2 | Makita 210006-2 BALL BEARING 696ZZ, 9557NB |
| 11 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 12 | 210006-2 | Makita 210006-2 BALL BEARING 696ZZ, 9557NB |
| 14 | 251337-0 | Makita 251337-0 + PAN HEAD SCREW M5 |
| 15 | 911248-8 | Makita 911248-8 PAN HEAD SCREW M5X28 |
| 16 | 210006-2 | Makita 210006-2 BALL BEARING 696ZZ, 9557NB |
| 17 | 256033-5 | Makita 256033-5 PIN 6 |
| 18 | 210006-2 | Makita 210006-2 BALL BEARING 696ZZ, 9557NB |
| 19 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 20 | 210006-2 | Makita 210006-2 BALL BEARING 696ZZ, 9557NB |
| 22 | 251337-0 | Makita 251337-0 + PAN HEAD SCREW M5 |
| 23 | 231449-5 | Makita 231449-5 COMPRESSION SPRING 11 |
| 24 | 343489-2 | Makita 343489-2 TENSION PLATE |
| 25 | 231449-5 | Makita 231449-5 COMPRESSION SPRING 11 |
| 26 | 343494-9 | Makita 343494-9 SLEEVE 5 |
| 27 | 911221-8 | Makita 911221-8 PAN HEAD SCREW M5X16 |
| 28 | 163276-1 | Makita 163276-1 SLIDE PLATE |
| 29 | 343494-9 | Makita 343494-9 SLEEVE 5 |
| 30 | 911244-6 | |
| 31 | 253749-3 | Makita 253749-3 FLAT WASHER 16 |
| 32 | 421333-4 | Makita 421333-4 Rubber Wheel Tire for BPB180 2106 2107F |
| 33 | 152325-9 | Makita 152325-9 WHEEL COMPLETE |
| 34 | 253749-3 | Makita 253749-3 FLAT WASHER 16 |
| 35 | 265900-3 | |
| 36 | 210006-2 | Makita 210006-2 BALL BEARING 696ZZ, 9557NB |
| 37 | 256033-5 | Makita 256033-5 PIN 6 |
| 38 | 210006-2 | Makita 210006-2 BALL BEARING 696ZZ, 9557NB |
| 39 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 40 | 251337-0 | Makita 251337-0 + PAN HEAD SCREW M5 |
| 42 | 210006-2 | Makita 210006-2 BALL BEARING 696ZZ, 9557NB |
| 43 | 251337-0 | Makita 251337-0 + PAN HEAD SCREW M5 |
| 45 | 210006-2 | Makita 210006-2 BALL BEARING 696ZZ, 9557NB |
| 46 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 47 | 210006-2 | Makita 210006-2 BALL BEARING 696ZZ, 9557NB |
| 48 | 316026-5 | |
| 49 | 911248-8 | Makita 911248-8 PAN HEAD SCREW M5X28 |
| 50 | 265900-3 | |
| 51 | 253749-3 | Makita 253749-3 FLAT WASHER 16 |
| 52 | 152325-9 | Makita 152325-9 WHEEL COMPLETE |
| 53 | 421333-4 | Makita 421333-4 Rubber Wheel Tire for BPB180 2106 2107F |
| 54 | 253749-3 | Makita 253749-3 FLAT WASHER 16 |
| 55 | 151323-0 | |
| 56 | 856050-1 | |
| 57 | 343490-7 | |
| 58 | 922241-7 | Makita 922241-7 Bolt M5X25 for JR300VT |
| 59 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 60 | 211034-0 | Makita 211034-0 BALL BEARING 608 |
| 61 | 226080-0 | |
| 62 | 253139-0 | Makita 253139-0 FLAT WASHER 8, 6823 |
| 63 | 212004-2 | Makita 212004-2 NEEDLE BEARING 810 |
| 64 | 254202-2 | Makita 254202-2 KEY 4 LS1013 |
| 65 | 221980-9 | |
| 66 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 67 | 211108-7 | |
| 68 | 221765-3 | |
| 69 | 257619-8 | |
| 70 | 211064-1 | Makita 211064-1 BALL BEARING 6000, 2414NB |
| 71 | 286028-4 | |
| 72 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 73 | 157916-1 | |
| 74 | 211092-6 | Makita 211092-6 Ball Bearing for 629DDW UB1101 |
| 75 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 76 | 241841-7 | |
| 77 | 512948-9 | |
| 78 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 79 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 80 | 922381-1 | Makita 922381-1 HEX. SOCKET HEAD BOLT M6X |
| 81 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 82 | 643600-9 | Makita 643600-9 Holder Cup for DA6300 |
| 83 | 181030-1 | Makita 181030-1 Carbon Brushes CB-100 for 6906 9005B 9901 PC1100 |
| 84 | 157915-3 | Makita 157915-3 MOTOR HOUSING COMPLETE |
| 85 | 527416-9 | Makita 527416-9 FIELD ASS Y 220V |
| 86 | 911275-5 | Makita 911275-5 PAN HEAD SCREW M5X50 |
| 87 | 414067-6 | Makita 414067-6 BAFFLE PLATE |
| 88 | 911248-8 | Makita 911248-8 PAN HEAD SCREW M5X28 |
| 89 | 182034-6 | |
| 90 | 651235-2 | Makita 651235-2 Switch 2106 9900 9924 9030 JN3200 JR3000 8419 4302 |
| 91 | 182034-6 | |
| 92 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 93 | 651562-7 | |
| 94 | 421338-4 | |
| 95 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 96 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 97 | 682516-3 | Makita 682516-3 CORD GUARD 9.3-85, HR2410 |
| 98 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 99 | 331328-8 | Makita 331328-8 SEAL |

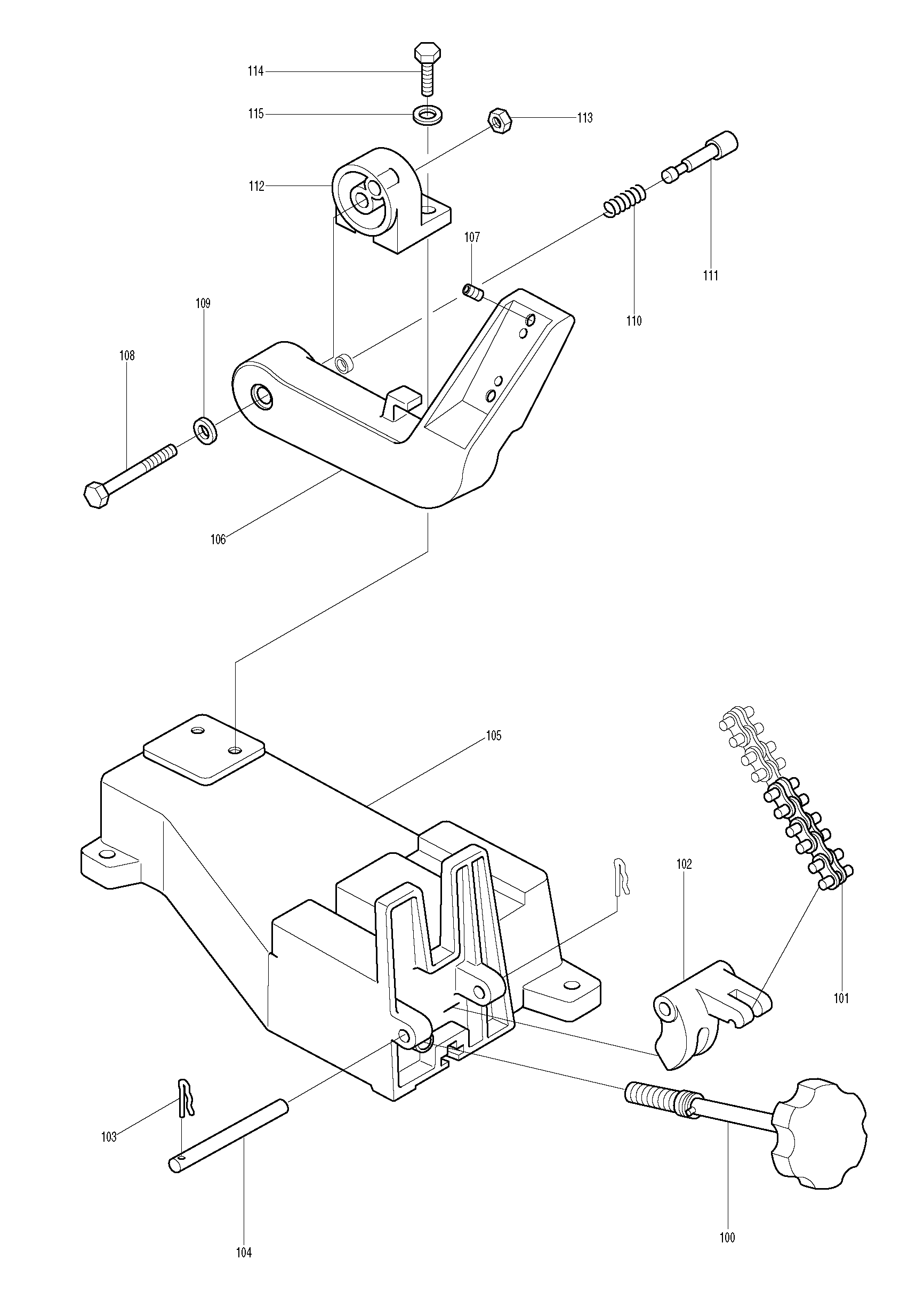

Sheet 2: Makita 2106 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 100 | 151305-2 | Makita 151305-2 HANDLE COMPLETE |
| 101 | 225514-0 | |
| 102 | 311826-8 | Makita 311826-8 CHAIN HOOK |
| 103 | 259012-2 | Makita 259012-2 SNAP PIN 10 |
| 104 | 256926-6 | Makita 256926-6 ROD 10-105 |
| 105 | 311827-6 | Makita 311827-6 BASE |
| 106 | 150144-7 | |
| 107 | 251966-9 | Makita 251966-9 HEX. SOCKET HEAD BOLT M10 X12 |
| 108 | 265396-8 | |
| 109 | 941252-3 | Makita 941252-3 FLAT WASHER, LF1000 |
| 110 | 231297-2 | Makita 231297-2 COMPRESSION SPRING 9, 5007MG |
| 111 | 322199-4 | Makita 322199-4 STOPPER PIN |
| 112 | 311909-4 | Makita 311909-4 BRACKET |
| 113 | 252130-5 | Makita 252130-5 HEX LOCK NUT M10-17, 2414NB |
| 114 | 921451-3 | Makita 921451-3 HEX. BOLT M8X30 |
| 115 | 941202-8 | Makita 941202-8 FLAT WASHER 8 |
