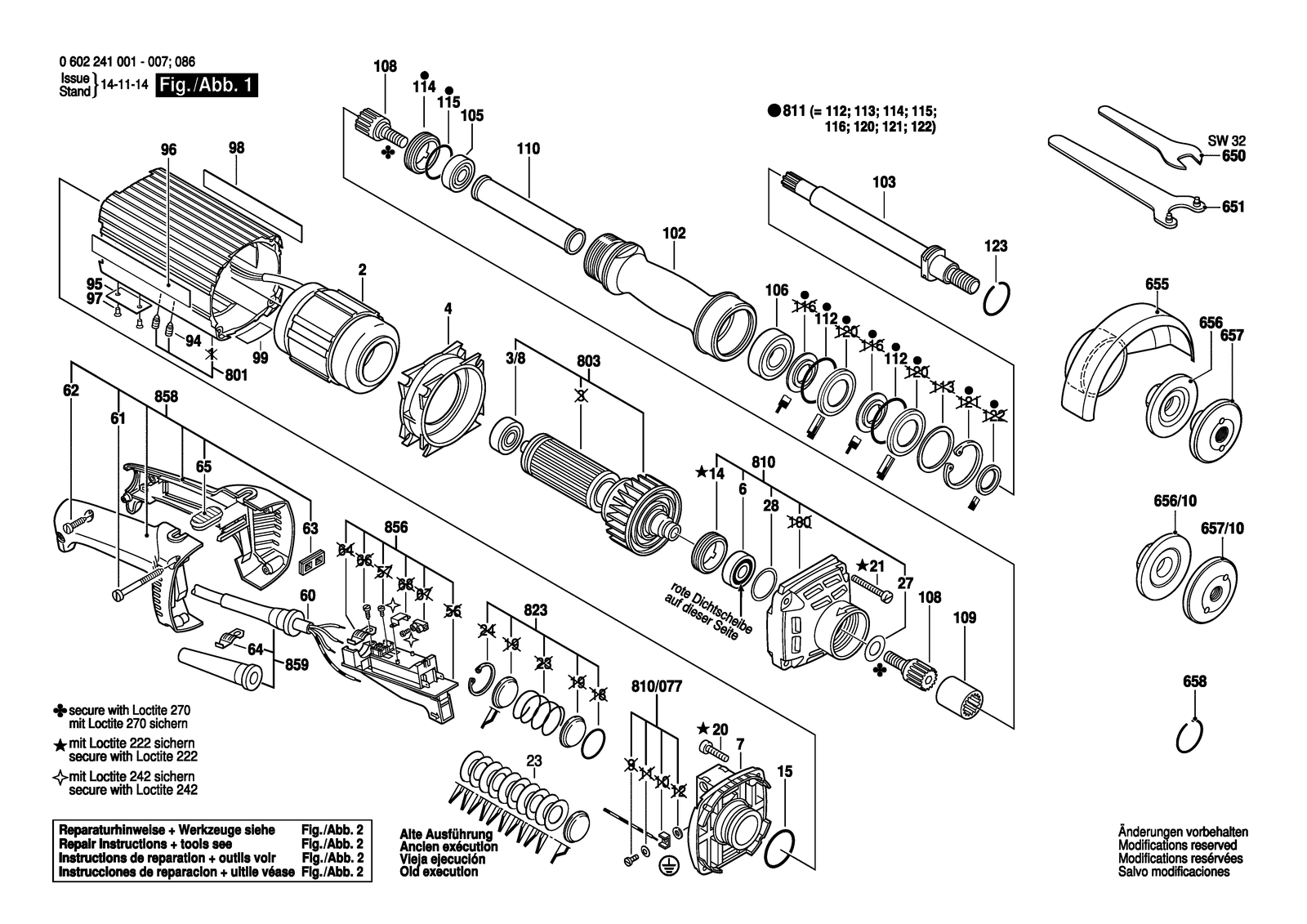

Bosch 2 239 straight grinders: exploded parts diagram, 1 sheet, 61 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 2 239: 61 positions on 1 sheet
Bosch 2 239 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 102 | 3605806075 | Spindle Housing |
| 102 | 3605806131 | Spindle Housing |
| 103 | 3606120003 | Grinding Spindle |
| 103 | 3606120039 | Grinding Spindle |
| 105 | 3600905060 | Groove ball bearing |
| 106 | 3600905057 | Groove ball bearing |
| 108 | 3606300074 | Pinion Z=21 |
| 109 | 3606491000 | Clutch Element Z=21 |
| 110 | 3600700056 | Spacer Sleeve |
| 112 | 3600210058 | O-Ring 43,0X2,0 MM |
| 114 | 3603344024 | Threaded Ring |
| 115 | 3600210050 | O-Ring 33,0X2,5 MM |
| 123 | 2916609112 | Retaining ring 24X2 DIN9045-24 |
| 14 | 3603344024 | Threaded Ring |
| 15 | 1600210037 | O-Ring 38,1X2,2 MM |
| 2 | 3604229057 | Stator 265V/200HZ |
| 2 | 3604229064 | Stator 200V/300HZ |
| 2 | 3604229065 | Stator 72V/200HZ |
| 2 | 3604229112 | Stator 220V/360HZ |
| 20 | 2914451079 | Thread-forming tap. Screw |
| 21 | 3603410007 | Thread-forming tap. Screw AM 6X80-ST |
| 27 | 3600100049 | Sealing Disc |
| 28 | 3600100048 | Sealing Disc |
| 3/8 | 3600905119 | Groove ball bearing 12X32X10 |
| 4 | 3600209006 | Air-Deflector Ring |
| 6 | 3600905095 | Groove ball bearing |
| 60 | 3604462017 | Elec. Cable W/Connection |
| 60 | 3604462018 | Elec. Cable W/Connection |
| 61 | 1603435008 | Tapping Screw BZ4,8X63 MM |
| 62 | 2910211020 | Tapping Screw DIN 7971-BZ3,9X19 |
| 63 | 1602388027 | Cable routing |
| 64 | 3601303002 | Fastening Clamp |
| 64 | 3601303004 | Fastening Clamp |
| 65 | 1602388029 | Storage Ledge Black |
| 650 | 3607950010 | Single-Head Eng. Wrench SW32 |
| 651 | 1607950061 | Pin-Type Face-Wrench |
| 655 | 3605510030 | Protective Cover Ø 125 MM |
| 656 | 3605703112 | Clamping-Flange |
| 656/10 | 3605703071 | Clamping-Flange |
| 657 | 3605703077 | Clamping Ring |
| 657/10 | 3605703075 | Clamping Ring |
| 658 | 2916609112 | Retaining ring 24X2 DIN9045-24 |
| 7 | 3605805009 | Bearing Flange |
| 801 | 3605108160 | Motor Housing GR.88 |
| 803 | 3604080025 | Rotor |
| 803 | 3604080052 | Rotor |
| 810 | 3607020109 | Bearing Flange |
| 810/077 | 3607031299 | Set Of Eartling Material |
| 811 | 3607031290 | Fastening parts kit |
| 823 | 3607031296 | Spring set |
| 856 | 3607031294 | Switch Kit |
| 856 | 3607031295 | Switch Kit |
| 856 | 3607031298 | Switch Kit |
| 858 | 3607031297 | Handle |
| 859 | 3607031550 | Grommet |
| 94 | 2912081116 | Set screw DIN 915-M4X6-45H |
| 95 | 3601106053 | Nameplate |
| 96 | 3601110047 | Manufacturer's nameplate |
| 97 | 3603133001 | Grooved Nail DIN 1476-2X5 MM |
| 98 | 3601110235 | Sticker |
| 99 | 3601119236 | Reference Plate |
