Bosch 1974-8D
Bosch 1974-8D angle grinder: exploded parts diagram, 2 sheets, 202 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

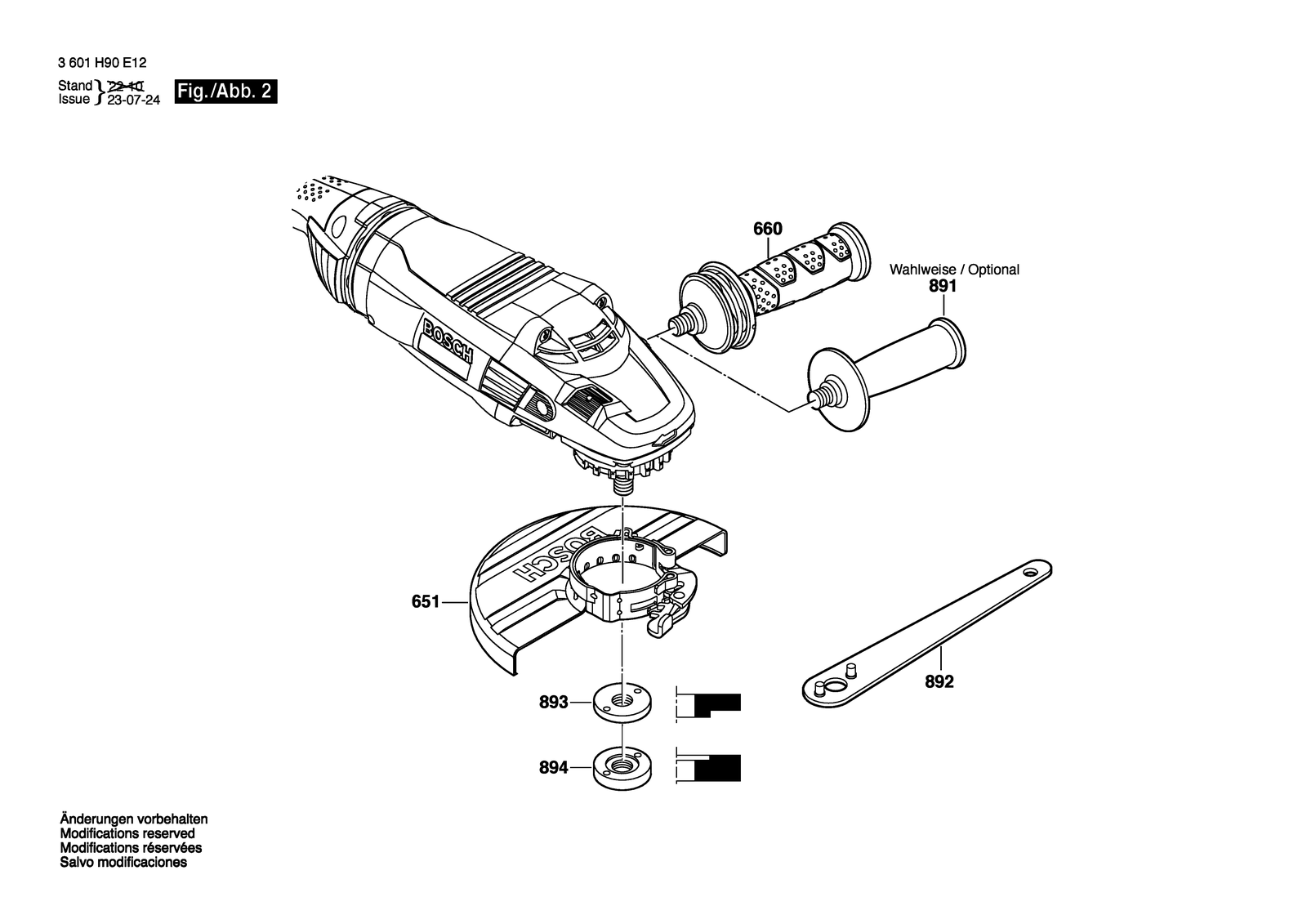

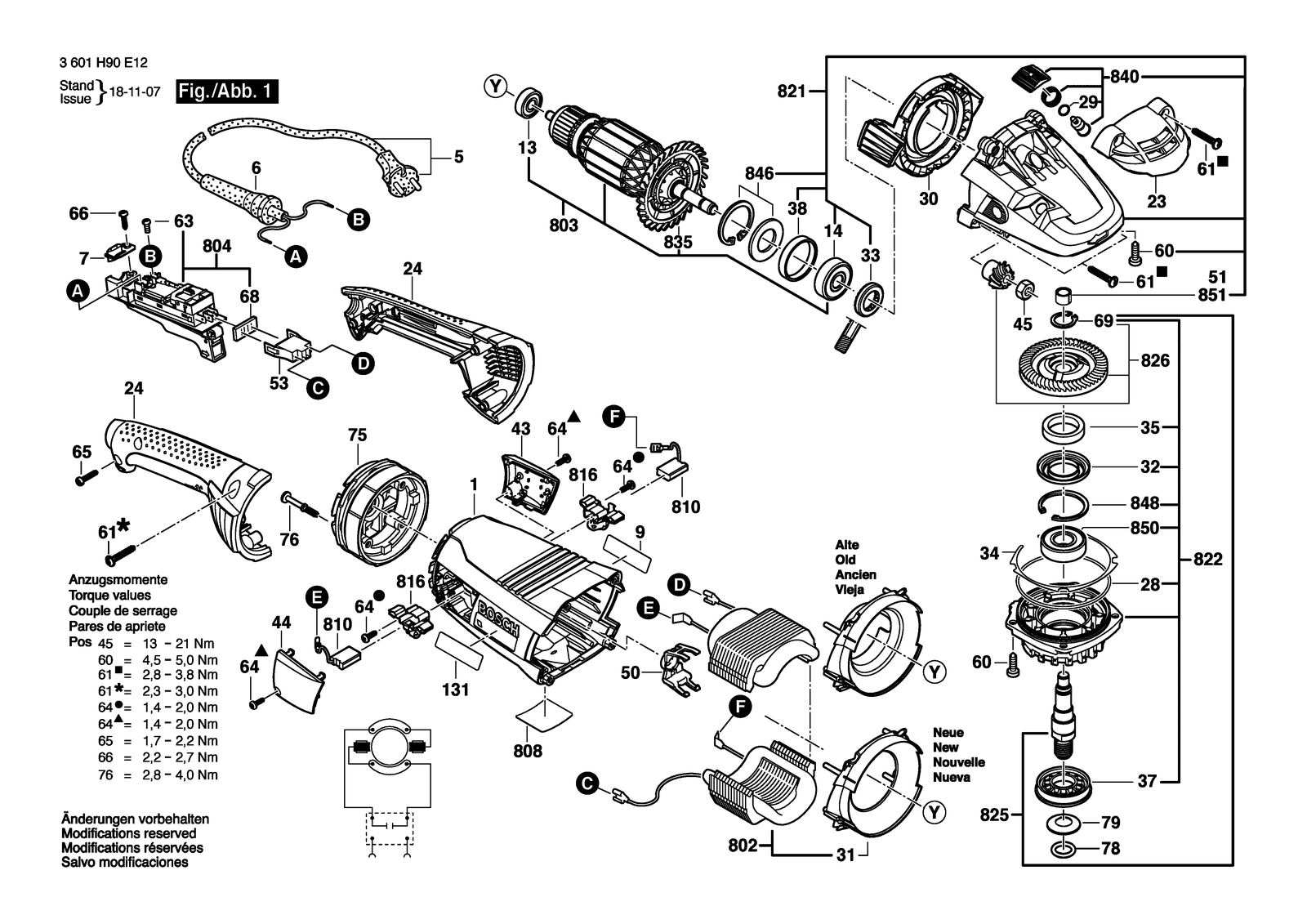

All parts of Bosch 1974-8D: 202 positions on 2 sheets
Bosch 1974-8D parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108264 | Motor Housing Blue |
| 1 | 1605108264 | Motor Housing Blue |
| 1 | 1605108264 | Motor Housing Blue |
| 13 | 1600905034 | Groove ball bearing 9X26X8 |
| 13 | 1600905034 | Groove ball bearing 9X26X8 |
| 13 | 1600905034 | Groove ball bearing 9X26X8 |
| 131 | 1601118R92 | Manufacturer's nameplate |
| 131 | 1601118R92 | Manufacturer's nameplate |
| 131 | 1601118R92 | Manufacturer's nameplate |
| 14 | 1600905035 | Groove ball bearing 12X37X12 |
| 14 | 1600905035 | Groove ball bearing 12X37X12 |
| 14 | 1600905035 | Groove ball bearing 12X37X12 |
| 23 | 1605500266 | Cover Black |
| 23 | 1605500266 | Cover Black |
| 23 | 1605500266 | Cover Black |
| 24 | 160513219K | Handle |
| 24 | 160513219J | Handle |
| 24 | 160513219J | Handle |
| 24 | 160513219K | Handle |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 29 | 1600210045 | O-Ring 8,0X1,0 MM |
| 29 | 1600210045 | O-Ring 8,0X1,0 MM |
| 29 | 1600210045 | O-Ring 8,0X1,0 MM |
| 30 | 1600591041 | Air Distributor |
| 30 | 1600591041 | Air Distributor |
| 30 | 1600591041 | Air Distributor |
| 31 | 160059105U | Air-Deflector Ring |
| 31 | 160059105U | Air-Deflector Ring |
| 31 | 160059105U | Air-Deflector Ring |
| 32 | 1600290019 | Retaining snap ring |
| 32 | 1600290019 | Retaining snap ring |
| 32 | 1600290019 | Retaining snap ring |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190037 | Shim Thick 0,2 MM |
| 34 | 1600190038 | Shim Thick 0,25 MM |
| 34 | 1600190039 | Shim Thick 0,35 MM |
| 34 | 1600190040 | Shim Thick 0,4 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190037 | Shim Thick 0,2 MM |
| 34 | 1600190038 | Shim Thick 0,25 MM |
| 34 | 1600190039 | Shim Thick 0,35 MM |
| 34 | 1600190040 | Shim Thick 0,4 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190037 | Shim Thick 0,2 MM |
| 34 | 1600190038 | Shim Thick 0,25 MM |
| 34 | 1600190039 | Shim Thick 0,35 MM |
| 34 | 1600190040 | Shim Thick 0,4 MM |
| 35 | 1600205034 | Felt Washer |
| 35 | 1600205034 | Felt Washer |
| 35 | 1600205034 | Felt Washer |
| 37 | 1618B00903 | Seal Ring |
| 37 | 1618B00903 | Seal Ring |
| 37 | 1618B00903 | Seal Ring |
| 38 | 1600206037 | Rubber Ring |
| 38 | 1600206037 | Rubber Ring |
| 38 | 1600206037 | Rubber Ring |
| 43 | 1605500264 | Sealing cap Black |
| 43 | 1605500264 | Sealing cap Black |
| 43 | 1605500264 | Sealing cap Black |
| 44 | 1605500265 | Sealing cap Black |
| 44 | 1605500265 | Sealing cap Black |
| 44 | 1605500265 | Sealing cap Black |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 5 | 1604460133 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 5 | 1604460133 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 5 | 1604460133 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 50 | 1602388036 | Cable routing |
| 50 | 1602388036 | Cable routing |
| 50 | 1602388036 | Cable routing |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 53 | 1605190068 | Socket Housing |
| 53 | 1605190068 | Socket Housing |
| 53 | 1605190068 | Socket Housing |
| 6 | 1600703036 | Grommet Ø10,5-Ø11,0X100 MM |
| 6 | 1619P14369 | Grommet |
| 6 | 1619P14369 | Grommet |
| 60 | 1603435023 | Thread-forming tap. Screw Tt M5X18 MM |
| 60 | 1603435076 | Thread-forming tap. Screw |
| 60 | 1603435023 | Thread-forming tap. Screw Tt M5X18 MM |
| 60 | 1603435076 | Thread-forming tap. Screw |
| 61 | 1603490005 | Torx Oval-Head Screw |
| 61 | 1603490005 | Torx Oval-Head Screw |
| 61 | 1603490005 | Torx Oval-Head Screw |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 64 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 64 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 64 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 65 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 65 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 65 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 651 | 1605510410 | Protective Cover 7" |
| 651 | 1600A01R97 | Protective Cover |
| 651 | 1605510410 | Protective Cover 7" |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 660 | 1602025051 | Auxiliary Handle Black M14 |
| 660 | 1602025051 | Auxiliary Handle Black M14 |
| 660 | 1602025051 | Auxiliary Handle Black M14 |
| 68 | 1601006011 | Sealing Plate |
| 68 | 1601006011 | Sealing Plate |
| 68 | 1601006011 | Sealing Plate |
| 69 | 2916650905 | Spring retaining ring |
| 69 | 2916650905 | Spring retaining ring |
| 69 | 2916650905 | Spring retaining ring |
| 7 | 1601302018 | Fastening Clamp |
| 7 | 1601302018 | Fastening Clamp |
| 7 | 1601302018 | Fastening Clamp |
| 75 | 1600290060 | Damper |
| 75 | 1600290060 | Damper |
| 75 | 1600290060 | Damper |
| 76 | 1603414025 | Collar Screw |
| 76 | 1603414025 | Collar Screw |
| 76 | 1603414025 | Collar Screw |
| 78 | 1619P09476 | O-Ring |
| 78 | 1619P09476 | O-Ring |
| 78 | 1619P09476 | O-Ring |
| 79 | 1600A01KK9 | Locking washer |
| 79 | 1600A01KK9 | Locking washer |
| 79 | 1600A01KK9 | Locking washer |
| 802 | 1600A01ZG6 | Field assembly |
| 802 | 1600A01ZG6 | Field assembly |
| 802 | 1600A01ZG6 | Field assembly |
| 803 | 1604010BG9 | Armature |
| 803 | 1604010BG9 | Armature |
| 803 | 1604010BG9 | Armature |
| 804 | 1607000748 | Switch |
| 804 | 1601006011 | Sealing Plate |
| 804 | 1607000748 | Switch |
| 804 | 1607000704 | On-Off Switch |
| 808 | 160111A6RF | Nameplate |
| 808 | 160111A9YF | Nameplate |
| 808 | 160111A6RG | Nameplate |
| 808 | 160111A9YG | Nameplate |
| 810 | 1607014194 | Carbon-Brush Set |
| 810 | 1607014194 | Carbon-Brush Set |
| 810 | 1607014194 | Carbon-Brush Set |
| 816 | 1604336053 | Brush Holder |
| 816 | 1604336053 | Brush Holder |
| 816 | 1604336053 | Brush Holder |
| 821 | 1607000C17 | Gear Housing |
| 821 | 1607000C17 | Gear Housing |
| 821 | 1607000C17 | Gear Housing |
| 822 | 1607000CP1 | Bearing Flange |
| 822 | 1607000CP1 | Bearing Flange |
| 822 | 1607000CP1 | Bearing Flange |
| 825 | 1607000CU6 | Grinding Spindle |
| 825 | 1607000CU6 | Grinding Spindle |
| 825 | 1607000CU6 | Grinding Spindle |
| 826 | 1600A024YV | Bevel Gear Set |
| 826 | 1600A024YV | Bevel Gear Set |
| 826 | 1600A024YV | Bevel Gear Set |
| 835 | 1606610150 | Fan |
| 835 | 1606610150 | Fan |
| 835 | 1606610150 | Fan |
| 840 | 1607000431 | Push-Button |
| 840 | 1607000431 | Push-Button |
| 840 | 1607000431 | Push-Button |
| 846 | 1607000432 | Retaining Washer |
| 846 | 1607000432 | Retaining Washer |
| 846 | 1607000432 | Retaining Washer |
| 848 | 1600119010 | Spring retaining ring |
| 848 | 1600119010 | Spring retaining ring |
| 848 | 1600119010 | Spring retaining ring |
| 850 | 1600905026 | Groove ball bearing 17X40X12 |
| 850 | 1600900079 | Groove ball bearing 17 X 40 X 12 |
| 850 | 1600905026 | Groove ball bearing 17X40X12 |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 891 | 16020250A1 | Auxiliary Handle |
| 891 | 16020250A1 | Auxiliary Handle |
| 891 | 16020250A1 | Auxiliary Handle |
| 892 | 1607950062 | Pin-Type Face-Wrench |
| 892 | 1607950062 | Pin-Type Face-Wrench |
| 892 | 1607950062 | Pin-Type Face-Wrench |
| 893 | 3603340501 | Clamping-Flange 5/8"-FL+B |
| 893 | 3603340501 | Clamping-Flange 5/8"-FL+B |
| 893 | 3603340501 | Clamping-Flange 5/8"-FL+B |
| 894 | 3603340503 | Round Nut 5/8" |
| 894 | 3603340503 | Round Nut 5/8" |
| 894 | 3603340503 | Round Nut 5/8" |
| 9 | 1601118R96 | Manufacturer's nameplate 1974-8D |
| 9 | 1601118R96 | Manufacturer's nameplate 1974-8D |
| 9 | 1601118R97 | Manufacturer's nameplate 1974-8 |
