Makita 194515-8
Makita 194515-8: exploded parts diagram, 1 sheet, 106 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 194515-8: 106 positions on 1 sheet

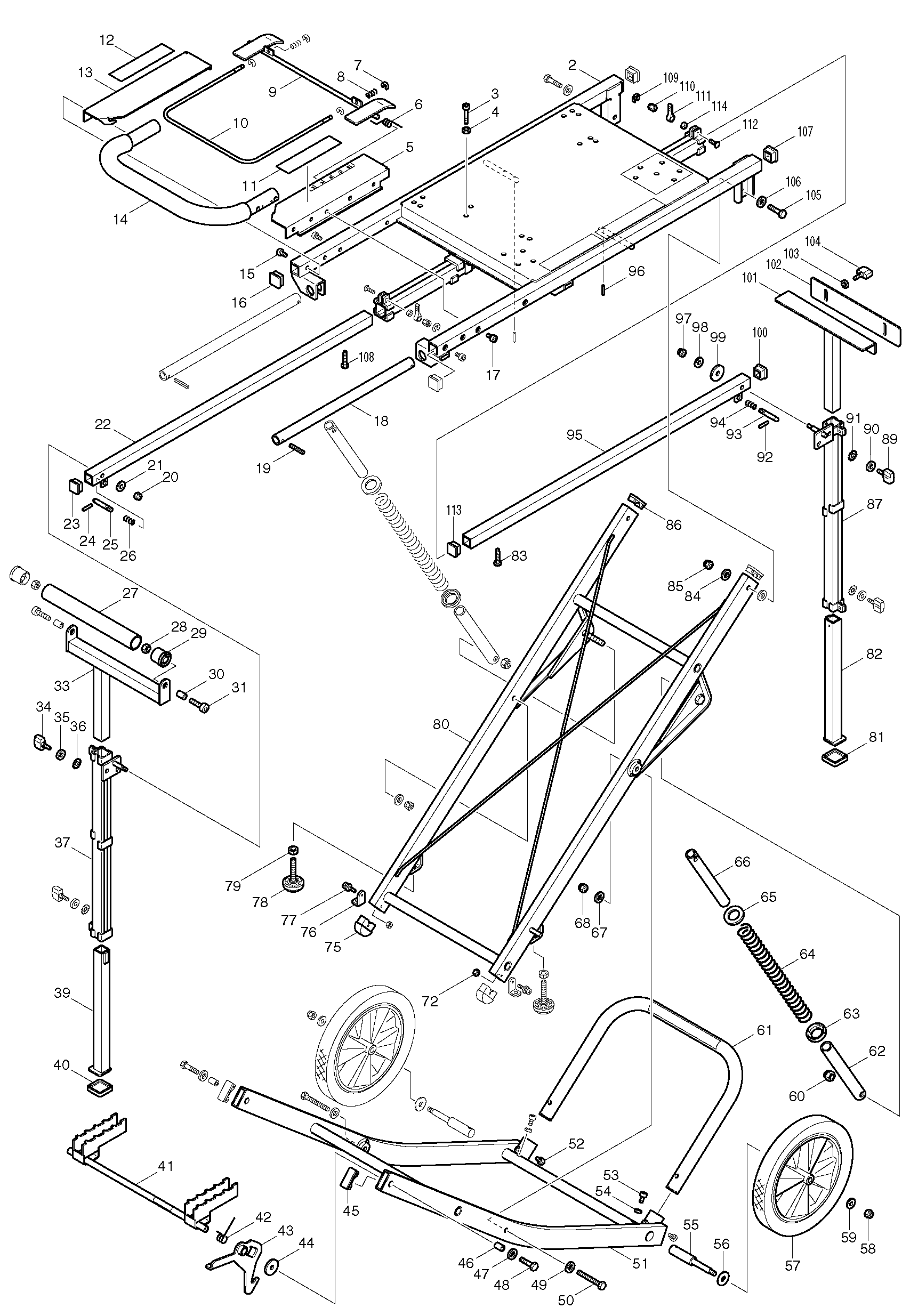

Sheet 1: Makita 194515-8 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 2 | 158395-6 | Makita 158395-6 FRAME COMPLETEWST01 |
| 3 | 922467-1 | |
| 4 | 267371-0 | |
| 5 | 158396-4 | Makita 158396-4 RATCHET COVER A COMPLETE, LS1040 |
| 6 | 233517-0 | Makita 233517-0 TORSION SPRING 15, LS1040 |
| 7 | 259044-9 | Makita 259044-9 STOP RING E-9, LS1040 |
| 8 | 231418-6 | Makita 231418-6 COMPRESSION SPRING 9, LS0714 |
| 9 | 165474-3 | Makita 165474-3 STOPPER, LS1040 |
| 10 | 324827-7 | Makita 324827-7 DOWN SHIFT LEVER, LS1040 |
| 11 | 819173-6 | Makita 819173-6 MAKITA LOGO LABEL, LS1214 |
| 12 | 819173-6 | Makita 819173-6 MAKITA LOGO LABEL, LS1214 |
| 13 | 158605-1 | Makita 158605-1 RATCHET COVER B COMPLETE, LS1040 |
| 14 | 158394-8 | Makita 158394-8 HANDLE COMPLETE, LS1040 |
| 15 | 266447-0 | |
| 16 | 450197-9 | Makita 450197-9 CAP 31, LS1040 |
| 17 | 266447-0 | |
| 18 | 331787-6 | Makita 331787-6 PIPE 25-458, LS1040 |
| 19 | 951225-8 | Makita 951225-8 SPRING PIN 6-40, 5007NB |
| 20 | 931402-8 | Makita 931402-8 Hex Nut M8 5037Nb |
| 21 | 267367-1 | |
| 22 | 165473-5 | Makita 165473-5 EXTENSION ARM, LS1040 |
| 23 | 450196-1 | Makita 450196-1 CAP 28, LS1040 |
| 24 | 951113-9 | Makita 951113-9 SPRING PIN 4-18 |
| 25 | 324831-6 | Makita 324831-6 PIN 10-60, LS1040 |
| 26 | 231226-5 | Makita 231226-5 COMPRESSION SPRING 11, LC1230 |
| 27 | 331791-5 | Makita 331791-5 PIPE 38-300, LS1040 |
| 28 | 264015-3 | Makita 264015-3 HEX.NUT M10, LS1040 |
| 29 | 450195-3 | Makita 450195-3 CAP 38, LS1040 |
| 30 | 257589-1 | Makita 257589-1 SLEEVE 10, LS1040 |
| 31 | 266434-9 | Makita 266434-9 HEX.SOCKET HEAD BOLT M10*40, LS1040 |
| 33 | 165471-9 | Makita 165471-9 Roller Supporter for LS1040 |
| 34 | 265777-6 | Makita 265777-6 THUMB SCREW M8*20, LS1040 |
| 35 | 253752-4 | Makita 253752-4 FLAT WASHER 8, 2414NB |
| 36 | 267808-7 | Makita 267808-7 TOOTHED LOCK WASHER8, LS1040 |
| 37 | 165467-0 | Makita 165467-0 PIPE 31-540, LS1040 |
| 39 | 158668-7 | Makita 158668-7 FOOT PIPE 28 COMPLETE, LS1040 |
| 40 | 424054-7 | Makita 424054-7 CUSHZON, LS1040 |
| 41 | 158397-2 | Makita 158397-2 TOP GUIDE COMPLETE, LS1040 |
| 42 | 233518-8 | Makita 233518-8 TORSION SPRING 16, LS1040 |
| 43 | 165497-1 | Makita 165497-1 LOCK LEVER, LS1040 |
| 44 | 253134-0 | Makita 253134-0 FLAT WASHER 11, LS1040 |
| 45 | 418846-4 | Makita 418846-4 CAP, LS1214 |
| 46 | 257589-1 | Makita 257589-1 SLEEVE 10, LS1040 |
| 47 | 267372-8 | Makita 267372-8 FLAT WASHER 10, LS1040 |
| 48 | 265574-0 | Makita 265574-0 HEX.BOLT M10*40, LS1040 |
| 49 | 267372-8 | Makita 267372-8 FLAT WASHER 10, LS1040 |
| 50 | 265575-8 | Makita 265575-8 HEX.BOLT M10*75, LS1040 |
| 51 | 165477-7 | Makita 165477-7 LEG B, LS1040 |
| 52 | 266438-1 | Makita 266438-1 HEX.SOCKET HEAD BOLT, LS1040 |
| 53 | 266438-1 | Makita 266438-1 HEX.SOCKET HEAD BOLT, LS1040 |
| 54 | 267371-0 | |
| 55 | 324830-8 | Makita 324830-8 WHEEL SHAFT, LS1040 |
| 56 | 253004-3 | Makita 253004-3 FLAT WASHER 13, LS1040 |
| 57 | 168448-3 | Makita 168448-3 WHEEL 300, LS1040 |
| 58 | 252130-5 | Makita 252130-5 HEX LOCK NUT M10-17, 2414NB |
| 59 | 267367-1 | |
| 60 | 264012-9 | |
| 61 | 158519-4 | Makita 158519-4 FOOT ARM COMPLETE, LS1040 |
| 62 | 331789-2 | Makita 331789-2 PIPE 28-230, LS1040 |
| 63 | 345849-4 | Makita 345849-4 SPRING HILDER, LS1040 |
| 64 | 234033-5 | Makita 234033-5 COMPRESSION SPRING 29, LS1040 |
| 65 | 345849-4 | Makita 345849-4 SPRING HILDER, LS1040 |
| 66 | 331790-7 | Makita 331790-7 PIPE 25-230, LS1040 |
| 67 | 267372-8 | Makita 267372-8 FLAT WASHER 10, LS1040 |
| 68 | 252130-5 | Makita 252130-5 HEX LOCK NUT M10-17, 2414NB |
| 69 | ||
| 72 | 264014-5 | |
| 75 | 418847-2 | Makita 418847-2 FOOT, LS1214 |
| 76 | 345695-5 | Makita 345695-5 FIX PLATE, 2704-A |
| 77 | 265183-5 | |
| 78 | 266353-9 | Makita 266353-9 ADJUST BOLT M12, LS1214 |
| 79 | 252651-7 | Makita 252651-7 NUT M12, LS1214 |
| 80 | 158615-8 | Makita 158615-8 LEG A COMPLETE, LS1040 |
| 81 | 424054-7 | Makita 424054-7 CUSHZON, LS1040 |
| 82 | 158668-7 | Makita 158668-7 FOOT PIPE 28 COMPLETE, LS1040 |
| 83 | 266448-8 | |
| 84 | 267372-8 | Makita 267372-8 FLAT WASHER 10, LS1040 |
| 85 | 252130-5 | Makita 252130-5 HEX LOCK NUT M10-17, 2414NB |
| 86 | 418846-4 | Makita 418846-4 CAP, LS1214 |
| 87 | 165467-0 | Makita 165467-0 PIPE 31-540, LS1040 |
| 89 | 265777-6 | Makita 265777-6 THUMB SCREW M8*20, LS1040 |
| 90 | 253752-4 | Makita 253752-4 FLAT WASHER 8, 2414NB |
| 91 | 267808-7 | Makita 267808-7 TOOTHED LOCK WASHER8, LS1040 |
| 92 | 951113-9 | Makita 951113-9 SPRING PIN 4-18 |
| 93 | 324831-6 | Makita 324831-6 PIN 10-60, LS1040 |
| 94 | 231226-5 | Makita 231226-5 COMPRESSION SPRING 11, LC1230 |
| 95 | 165473-5 | Makita 165473-5 EXTENSION ARM, LS1040 |
| 96 | 951113-9 | Makita 951113-9 SPRING PIN 4-18 |
| 97 | 931402-8 | Makita 931402-8 Hex Nut M8 5037Nb |
| 98 | 267367-1 | |
| 99 | 253134-0 | Makita 253134-0 FLAT WASHER 11, LS1040 |
| 100 | 450196-1 | Makita 450196-1 CAP 28, LS1040 |
| 101 | 165470-1 | Makita 165470-1 CONSTANT DIMENSIONS SUPPORTER, LS1040 |
| 102 | 345851-7 | Makita 345851-7 CONSTANT DIMENSION SPLATE, LS1040 |
| 103 | 267371-0 | |
| 104 | 265777-6 | Makita 265777-6 THUMB SCREW M8*20, LS1040 |
| 105 | 265574-0 | Makita 265574-0 HEX.BOLT M10*40, LS1040 |
| 106 | 267372-8 | Makita 267372-8 FLAT WASHER 10, LS1040 |
| 107 | 450197-9 | Makita 450197-9 CAP 31, LS1040 |
| 108 | 266448-8 | |
| 109 | 259043-1 | Makita 259043-1 RETAINING RING TYPE 8, LS1040 |
| 110 | 252133-9 | Makita 252133-9 HEX NUT M6, SS610D |
| 111 | 272259-1 | Makita 272259-1 LEVER 40, LS1040 |
| 112 | 266435-7 | Makita 266435-7 PAN HEAD SQUARE NECK BOLT, LS1040 |
| 113 | 450196-1 | Makita 450196-1 CAP 28, LS1040 |
| 114 | 257293-2 | Makita 257293-2 RING 7, LS1040 |
