Bosch 1944 LCD hot air gun: exploded parts diagram, 1 sheet, 16 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1944 LCD: 16 positions on 1 sheet

Bosch 1944 LCD parts list (1 sheet)

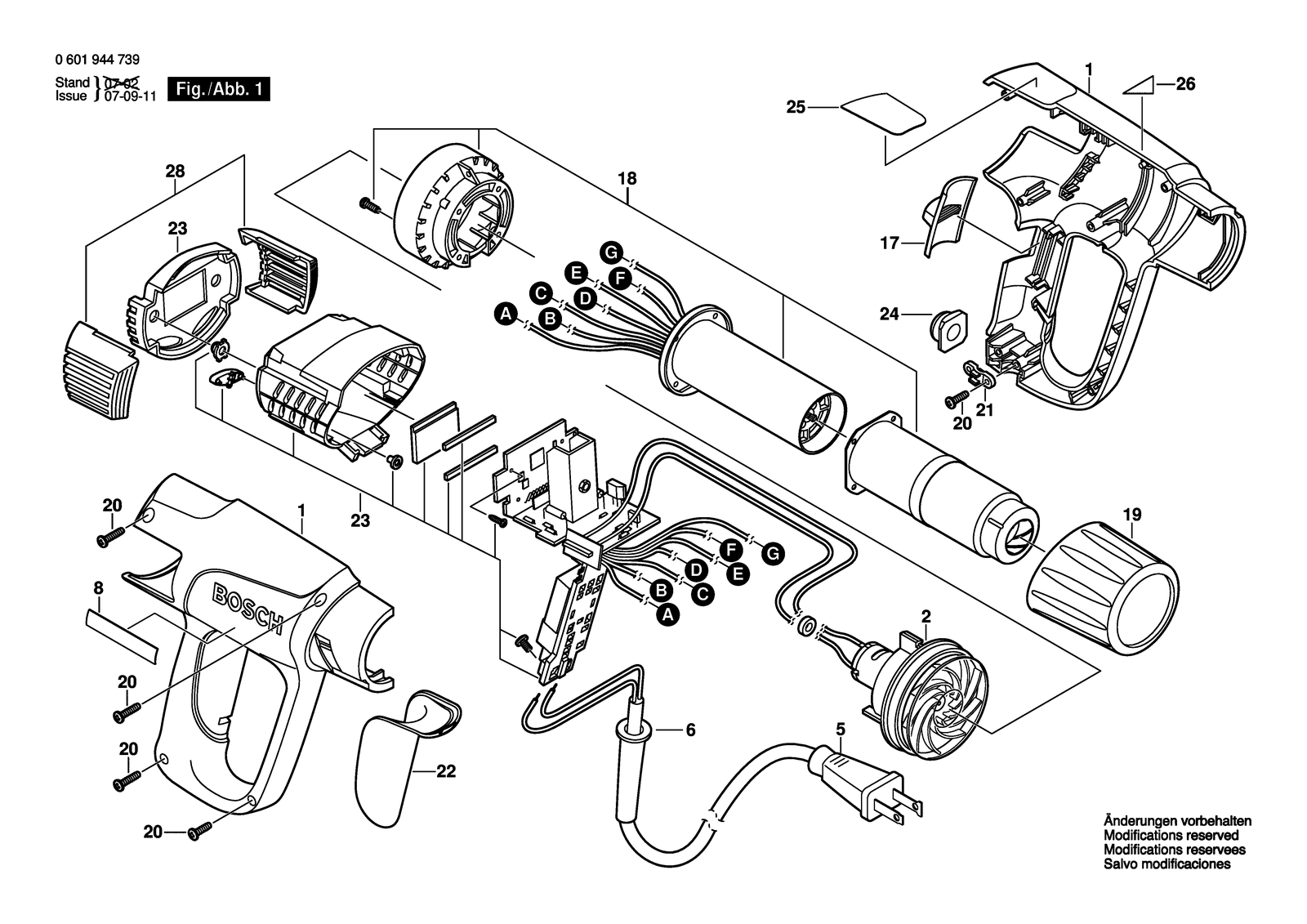

Bosch 1944 LCD parts diagram, sheet 1
No.Part numberPart name
11609203K50Housing Section
171609203H72Switch Button
181609203M60Heating Element 120V
192610953711Protective Tube
21609202611DC motor 115-240V
202910615407Tapping Screw DIN 7981-ST2,9X16-F-H
211609203102Fastening Clamp
221609203H62Cap-Handle
231609203L52Connecting Block 100-240V
241609203H65Rubber Base
251609203U40Warning Plate
262610953710Warning Plate
281609203H78Filter Element
51609203U36Power supply cord
61609203U37Grommet
81609203U38Nameplate
