Bosch 1942 soldering gun: exploded parts diagram, 1 sheet, 42 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

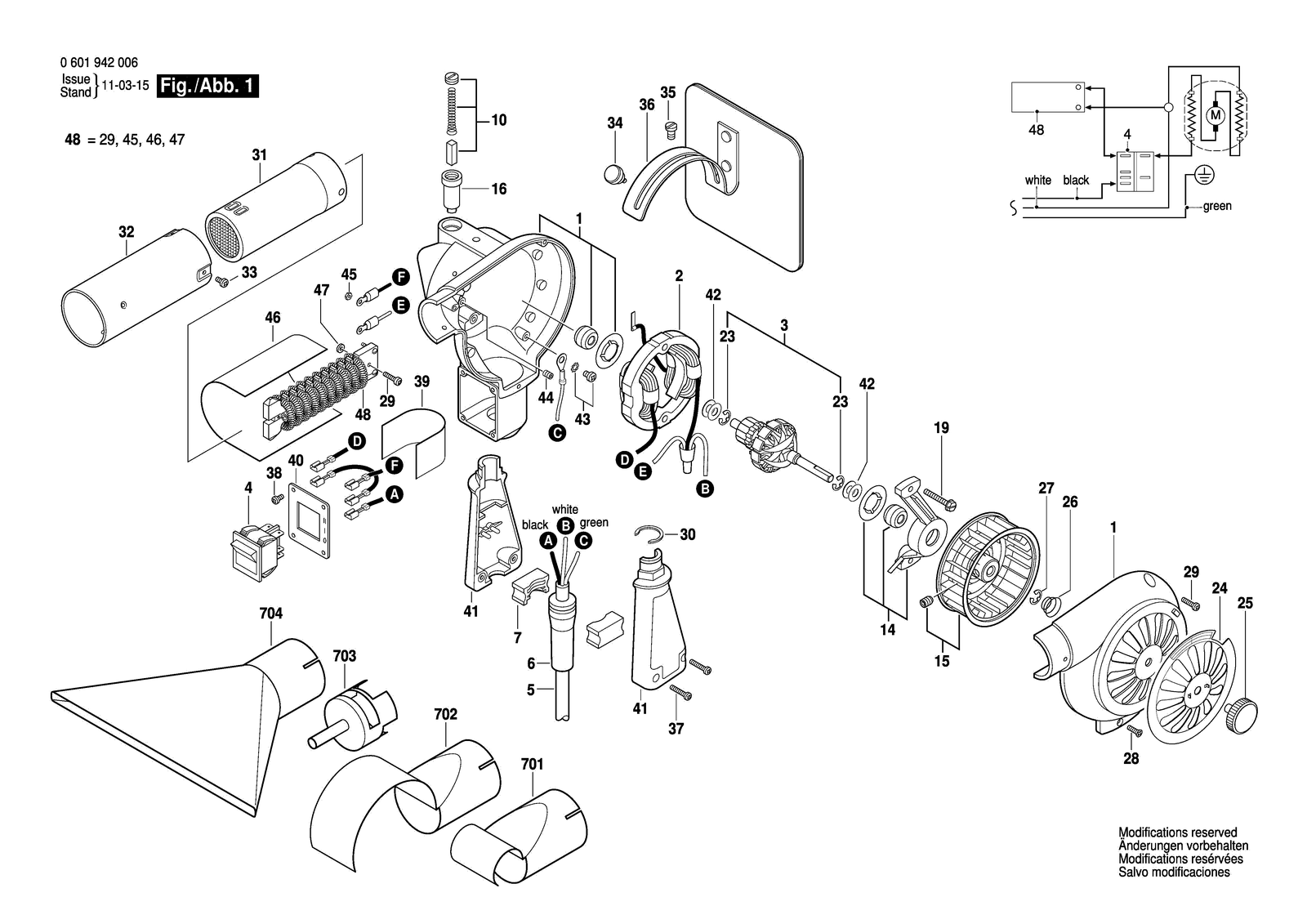

All parts of Bosch 1942: 42 positions on 1 sheet
Bosch 1942 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3609351500 | Housing Set |
| 10 | 2610015670 | Carbon-Brush Set |
| 14 | 3609358500 | Bearing Bracket |
| 15 | 3609366500 | Fan |
| 16 | 3609370507 | Holder 2 Piece |
| 19 | 3609370501 | Screw 2 Piece |
| 2 | 3609341500 | Stator 115V |
| 23 | 3609370503 | Retaining snap ring 2 Piece |
| 24 | 3609355500 | Shutter |
| 25 | 3609332500 | Knob |
| 26 | 3609346500 | Spring |
| 27 | 3609302500 | Retaining snap ring |
| 28 | 3609334500 | Screw |
| 29 | 3609334501 | Screw |
| 3 | 3609340500 | Armature 115V |
| 30 | 3609302503 | Retaining snap ring |
| 31 | 3609370512 | Sleeve |
| 32 | 3609307500 | Sleeve |
| 33 | 3609370513 | Screw 2 Piece |
| 34 | 3609334502 | Screw |
| 35 | 3609334503 | Screw |
| 36 | 3609380500 | Base |
| 37 | 3609370516 | Screw 2 Piece |
| 38 | 3609310500 | Plate |
| 39 | 3609314501 | Screw |
| 4 | 3609372500 | Toggle Switch |
| 40 | 3609370514 | Screw 2 Piece |
| 41 | 3609351501 | Handle |
| 42 | 3609370504 | Washer |
| 43 | 3609370505 | Screw |
| 44 | 3609370506 | Screw 2 Piece |
| 45 | 3609370511 | Dummy 2 Piece |
| 46 | 3609314500 | Heat-Shield |
| 47 | 3609302501 | Washer |
| 48 | 3609390504 | Heating Assembly |
| 5 | 3609344500 | Cord |
| 6 | 3609307501 | Grommet |
| 7 | 3609370515 | Clamp |
| 701 | 3609390500 | Shrinkable Tube |
| 702 | 3609390501 | Shrinkable Tube |
| 703 | 3609390502 | Deflector |
| 704 | 3609390503 | Dummy |
