Bosch 1925

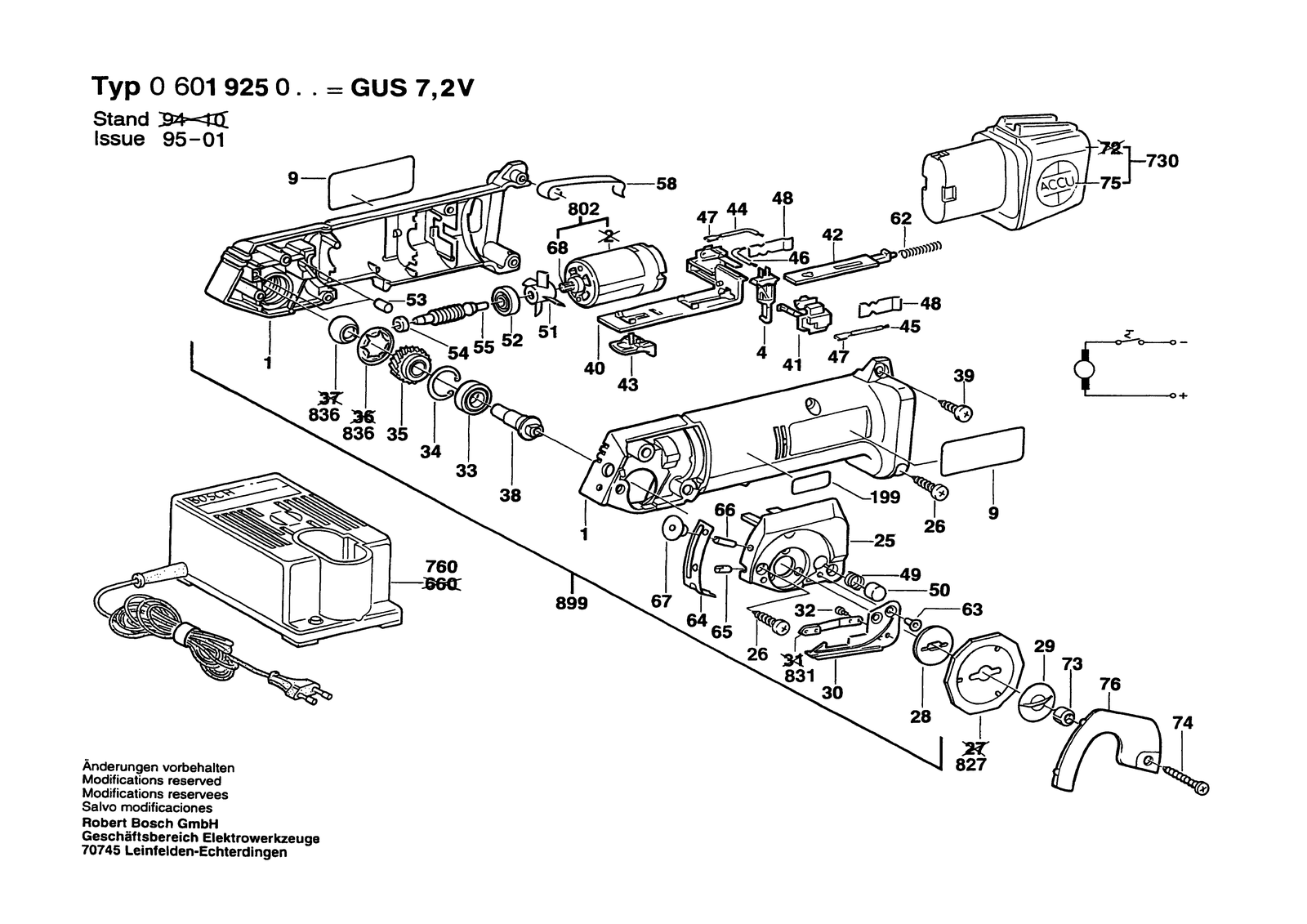

Bosch 1925 cordless fabric shear: exploded parts diagram, 1 sheet, 59 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1925: 59 positions on 1 sheet
Bosch 1925 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104227 | Housing Section Blue |
| 199 | 1601110265 | Reference Plate |
| 25 | 2605806394 | Bearing Housing |
| 26 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 28 | 2606440000 | Driver Disc |
| 29 | 2603490000 | Pan head screw |
| 30 | 2608042013 | Blade Holder |
| 32 | 2603430002 | Round-Head Screw |
| 33 | 3600905039 | Groove ball bearing 9X24X7 MM |
| 34 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 35 | 2606329001 | Cylindrical Gear Z=33 |
| 38 | 2603124043 | Output Shaft |
| 39 | 2603490022 | Screw 4X16 |
| 4 | 2607200196 | On-Off Switch |
| 40 | 2608018003 | Contact retainer |
| 41 | 2608018001 | Contact retainer |
| 42 | 2601099028 | Adjusting Slide Blue |
| 43 | 1602026060 | Switch Handle Gray |
| 44 | 2604412019 | Connecting Cable |
| 45 | 2604412020 | Cable |
| 46 | 2604412021 | Connecting Cable White L = 52 MM |
| 48 | 2601324012 | Contact Spring |
| 49 | 2604616003 | Compression Spring |
| 50 | 2603212001 | Lubricating Felt |
| 51 | 2606610052 | Fan |
| 52 | 1900905019 | Groove ball bearing 6X19X6 |
| 53 | 1603100036 | Rubber Buffer |
| 54 | 1900301403 | Sintered-Metal Bushing 4X8X4 MM |
| 55 | 2606338001 | Drive Shaft |
| 58 | 2601251002 | Holding Spring Ø8,7 MM |
| 62 | 2604610024 | Compression Spring |
| 63 | 2910541118 | Countersunk-Head Screw DIN 7991-M4X8-8.8 |
| 64 | 2605510057 | Protecting Cover |
| 65 | 2912031120 | Set screw DIN 551-M4X10-5.8 |
| 66 | 2912031128 | Set screw DIN 551-M4X18-5.8 |
| 67 | 2915111004 | Knurled Nut DIN 466-M4X5MM |
| 68 | 2606316112 | Pinion Z=11 |
| 73 | 2600320001 | Spacer Bushing |
| 730 | 2607300001 | Slide-In Accu Package 7,2V, 1,4AH, Nicd |
| 74 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 75 | 2601110461 | Sticker Rechargable Batery |
| 76 | 2605510058 | Guard Plate |
| 760 | 2607224425 | Fast Charger EU 230/7,2-24V, 1H |
| 760 | 2607224427 | Fast Charger GB 230/7,2-24V, 1H |
| 760 | 2607224431 | Fast Charger USA 120/7,2-24V, 1H |
| 760 | 2607224435 | Fast Charger J 100/7,2-24V, 1H |
| 760 | 2607224443 | Fast Charger AUS 240/7,2-14,4V, 1H |
| 760 | 2607224701 | Fast Charger EU 230/7,2-14,4V, 30 Min. |
| 760 | 2607224703 | Fast Charger GB 230/7,2-14,4V, 30 Min. |
| 760 | 2607224705 | Fast Charger AUS 240/7,2-14,4V, 30 Min. |
| 760 | 2607224708 | Fast Charger USA 120/7,2-14,4V, 30 Min. |
| 760 | 2607224711 | Fast Charger J 100/7,2-14,4V, 30 Min. |
| 802 | 2607022903 | DC motor 7,2V |
| 827 | 2608635126 | Upper Blade |
| 831 | 2608635125 | Lower Blade |
| 836 | 2607001084 | Parts Set |
| 899 | 0601925023 | Cordless Fabric Shear Battery Without Charger |
| 899 | 0601925061 | Cordless Fabric Shear Battery Without Charger |
| 9 | 2601110816 | Sticker |
