Makita 1901
Makita 1901: exploded parts diagram, 1 sheet, 54 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 1901: 54 positions on 1 sheet

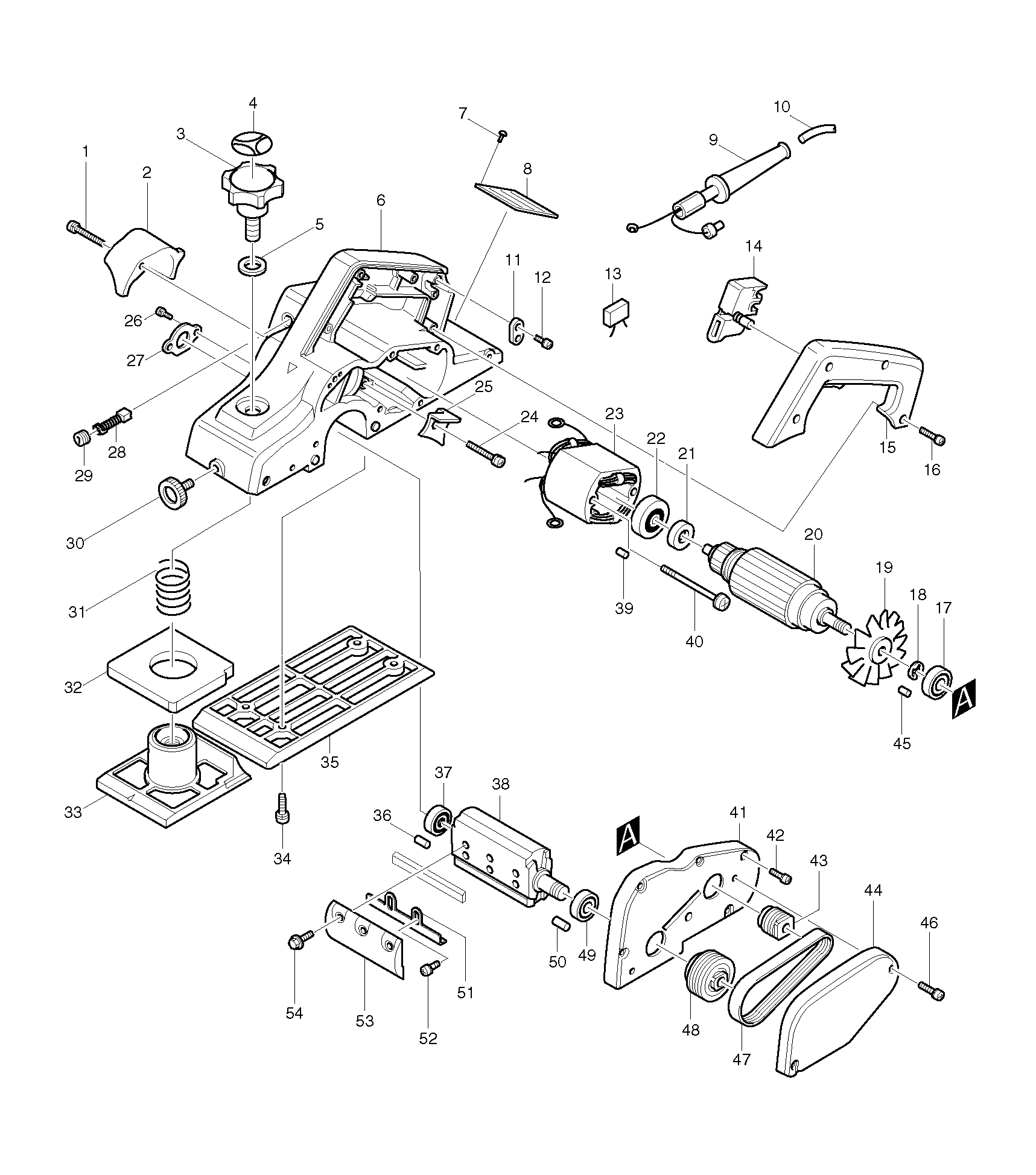

Sheet 1: Makita 1901 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 2 | 415479-6 | Makita 415479-6 CHIP COVER |
| 3 | 271231-0 | Makita 271231-0 KNOB 46 |
| 4 | 812004-8 | Makita 812004-8 SCALE LABEL |
| 5 | 253796-4 | Makita 253796-4 FLAT WASHER 10 |
| 6 | 156931-2 | Makita 156931-2 MAIN FRAME |
| 7 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 8 | 854704-4 | Makita 854704-4 NAME PLATE 1901 |
| 9 | 682504-0 | Makita 682504-0 CORD GUARD 10-85, 5606B |
| 10 | 665516-8 | Makita 665516-8 POWER SUPPLY CORD 1.00-2- |
| 11 | 687001-1 | Makita 687001-1 STRAIN RELIEF B04510 |
| 12 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 13 | 645208-5 | |
| 14 | 651234-4 | DISC 651234-4 |
| 15 | 411987-5 | Makita 411987-5 HANDLE COVER |
| 16 | 911158-9 | Makita 911158-9 PAN HEAD SCREW M4*30, MT960 |
| 17 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 18 | 961015-1 | Makita 961015-1 STOP RING E-9, 6220D |
| 19 | 241510-0 | Makita 241510-0 FAN 52 FOR M101 |
| 20 | 511663-2 | Makita 511663-2 ARMATURE ASS'Y 220V |
| 21 | 681614-0 | Makita 681614-0 INSULATION WASHER |
| 22 | 211028-5 | Makita 211028-5 BALL BEARING 627LB, 1900B |
| 23 | 521125-2 | Makita 521125-2 FIELD ASS Y 220V |
| 24 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 25 | 411153-4 | Makita 411153-4 AUXILIARY BAFFLE PLATE |
| 26 | 911111-5 | Makita 911111-5 PAN HEAD SCREW M4*10, M926 |
| 27 | 285012-6 | Makita 285012-6 BEARING COVER 30 |
| 28 | 181021-2 | Makita 181021-2 Carbon Brushes CB-51 1901 1902 1923B N1932B 4014B 6300L 9030 |
| 29 | 643550-8 | Makita 643550-8 HOLDER CAP 5-8, 6300L |
| 30 | 251812-6 | Makita 251812-6 Thumb Screw M5*10 for HP451D |
| 31 | 231004-3 | Makita 231004-3 COMPRESSION SPRING 18, 1900B |
| 32 | 421007-7 | Makita 421007-7 RUBBER PACKING FOR M101 |
| 33 | 312566-1 | Makita 312566-1 FRONT BASE |
| 34 | 911226-8 | Makita 911226-8 PAN HEAD SCREW M5X18 |
| 35 | 312023-9 | Makita 312023-9 BASE, 1900B |
| 36 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 37 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 38 | 161061-6 | Makita 161061-6 DRUM, 1900B |
| 39 | 263014-2 | Makita 263014-2 RUBBER PIN 4, 3703 |
| 40 | 911586-8 | Makita 911586-8 PAN HEAD SCREW M4X60 |
| 41 | 152368-1 | |
| 42 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 43 | 222008-6 | Makita 222008-6 VETOPYÖRÄ 4-20L 1923B |
| 44 | 410051-9 | Makita 410051-9 BELT COVER |
| 45 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 46 | 911148-2 | Makita 911148-2 PAN H.SCREW M4*25 WITH WR, AN611 |
| 47 | 225071-8 | Makita Drive Belt for 1901 1902 1923H Elektric Planer 225071-8 |
| 48 | 222009-4 | |
| 49 | 211062-5 | Makita 211062-5 BALL BEARING 6000ZZ, 9524NB |
| 50 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 51 | 342430-2 | |
| 52 | 251246-3 | Makita 251246-3 + PAN HEAD SCREW M4X5 |
| 53 | 345007-2 | Makita 345007-2 DRUM PLATE, 1900B |
| 54 | 251609-3 | Makita 251609-3 Flange Hex.Bolt M6X17 for 2012NB 1100 1125 |
