Bosch 1821

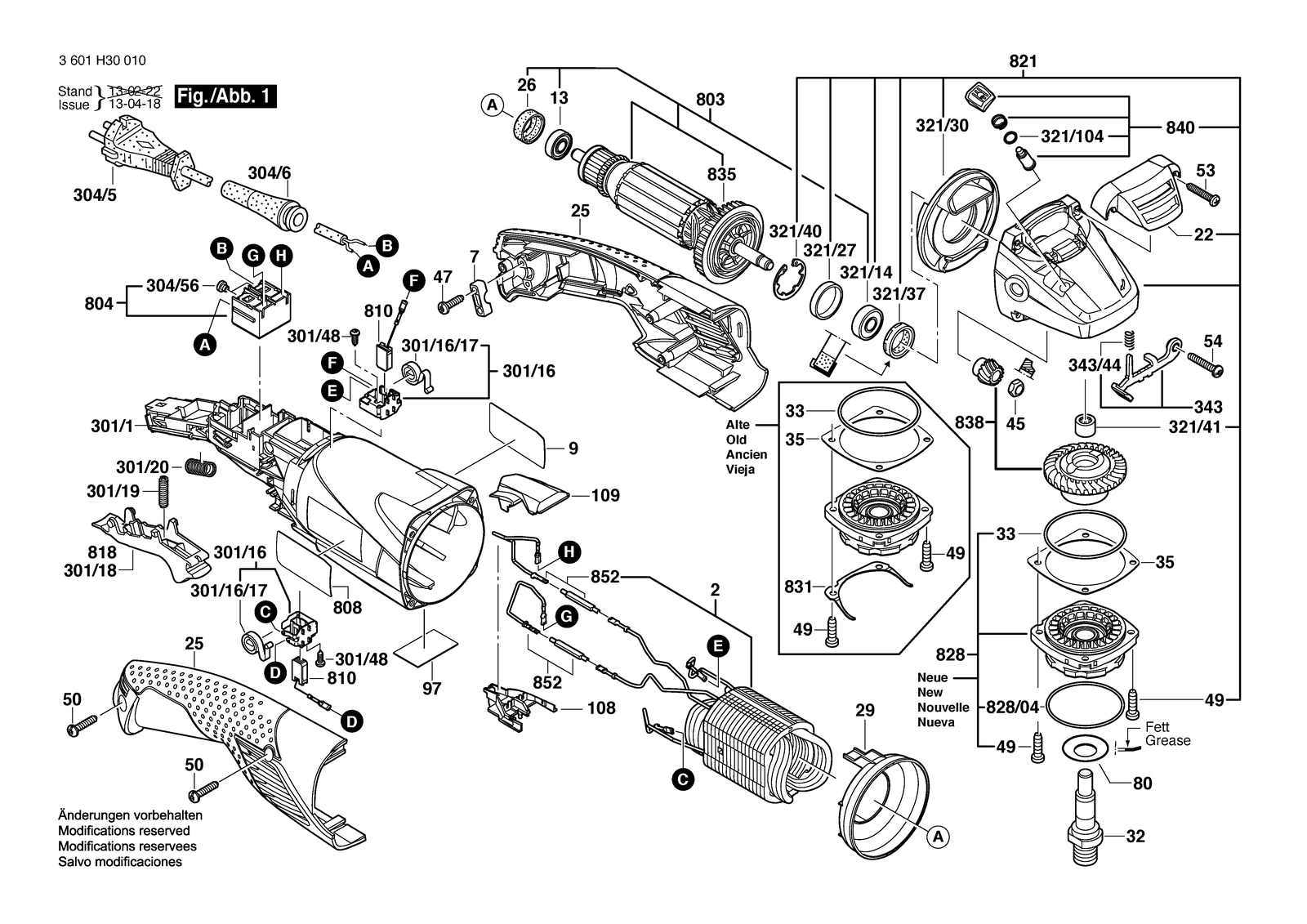

Bosch 1821 angle grinder: exploded parts diagram, 2 sheets, 119 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1821: 119 positions on 2 sheets
Bosch 1821 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 108 | 1600A00XC4 | Cover |
| 108 | 1605500258 | Cover Black |
| 109 | 1605500263 | Cover Black |
| 109 | 1605500263 | Cover Black |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 2 | 1604220433 | Field 100-120V |
| 2 | 1604220433 | Field 100-120V |
| 22 | 1605500260 | Covering hood |
| 22 | 1605500260 | Covering hood |
| 25 | 1605132146 | Handle Cover Blue |
| 25 | 1605132146 | Handle Cover Blue |
| 26 | 1600206036 | Rubber Ring |
| 26 | 1600206036 | Rubber Ring |
| 29 | 1600591025 | Air-Deflector Ring |
| 29 | 1600591025 | Air-Deflector Ring |
| 301/1 | 1605108255 | Motor Housing Blue |
| 301/1 | 1605108276 | Motor Housing Blue |
| 301/16 | 1601323025 | Brush Holder |
| 301/16 | 1601323025 | Brush Holder |
| 301/16/17 | 1604652013 | Spiral Spring |
| 301/16/17 | 1604652013 | Spiral Spring |
| 301/18 | 1602319024 | Adjusting Slide |
| 301/19 | 1604611041 | Compression Spring |
| 301/19 | 1604611041 | Compression Spring |
| 301/20 | 3604611039 | Compression Spring |
| 301/20 | 3604611039 | Compression Spring |
| 301/48 | 1613435034 | Lens Head Screw 3X10 St |
| 301/48 | 1613435034 | Lens Head Screw 3X10 St |
| 304/5 | 1604460341 | Power supply cord Usa/can/sma 2,68M 2 X 1,31MM SJ 16/2 |
| 304/5 | 1604460341 | Power supply cord Usa/can/sma 2,68M 2 X 1,31MM SJ 16/2 |
| 304/56 | 1603415004 | Lens Head Screw |
| 304/56 | 1603415004 | Lens Head Screw |
| 304/6 | 1600703040 | Grommet |
| 304/6 | 1600703031 | Grommet Ø7,3-Ø8,6X67 MM |
| 32 | 1607000D6B | Grinding Spindle |
| 32 | 1607000D6B | Grinding Spindle |
| 321/104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 321/104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 321/14 | 1600905032 | Groove ball bearing 8X22X7 |
| 321/14 | 1600905032 | Groove ball bearing 8X22X7 |
| 321/27 | 1600206025 | Rubber Ring |
| 321/27 | 1600206025 | Rubber Ring |
| 321/30 | 1600591014 | Air-Deflector Ring |
| 321/30 | 1600591014 | Air-Deflector Ring |
| 321/37 | 1600290016 | Rotary shaft lip seal |
| 321/37 | 1600290016 | Rotary shaft lip seal |
| 321/40 | 1600119011 | Retaining clip |
| 321/40 | 1600119011 | Retaining clip |
| 321/41 | 1600200029 | Plain bearing |
| 321/41 | 1600200029 | Plain bearing |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 343 | 1607000742 | Catch Lever |
| 343 | 1607000742 | Catch Lever |
| 343/44 | 1604611042 | Compression Spring |
| 343/44 | 1604611042 | Compression Spring |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 2603490022 | Screw 4X16 |
| 47 | 2603490022 | Screw 4X16 |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 49 | 1603435026 | Thread-forming tap. Screw |
| 50 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 50 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 53 | 1603435078 | Torx Oval-Head Screw |
| 53 | 1603435078 | Torx Oval-Head Screw |
| 54 | 1603414026 | Torx Oval-Head Screw 4X30 |
| 54 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 651 | 1600A00XL5 | Protective Cover |
| 651 | 1600A00XL5 | Protective Cover |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 80 | 1619P09390 | Cover Disc |
| 80 | 1619P09390 | Cover Disc |
| 803 | 1604010A44 | Armature With Fan 115V |
| 803 | 1604010A44 | Armature With Fan 115V |
| 804 | 1607000A85 | On-Off Switch |
| 804 | 1607000A85 | On-Off Switch |
| 808 | 1601118K80 | Nameplate |
| 808 | 1601118K81 | Nameplate |
| 810 | 1607014176 | Carbon-Brush Set |
| 810 | 1607014176 | Carbon-Brush Set |
| 818 | 1602319021 | Adjusting Slide |
| 821 | 1607000D1F | Gear Housing |
| 821 | 1607000D1F | Gear Housing |
| 828 | 1607000D6C | Bearing Flange |
| 828 | 1607000D6C | Bearing Flange |
| 828/04 | 3600210109 | O-Ring 47,0X1,5 MM |
| 828/04 | 3600210109 | O-Ring 47,0X1,5 MM |
| 831 | 1601290013 | Spring Element |
| 831 | 1601290013 | Spring Element |
| 835 | 1606610132 | Fan |
| 835 | 1606610132 | Fan |
| 838 | 1607000D4Y | Gear Unit |
| 838 | 1607000D4Y | Gear Unit |
| 840 | 1603231032 | Push-Button |
| 840 | 1603231032 | Push-Button |
| 852 | 1604448025 | Connecting Cable |
| 852 | 1604448025 | Connecting Cable |
| 891 | 16020250A0 | Auxiliary Handle |
| 891 | 16020250A0 | Auxiliary Handle |
| 892 | 3603340503 | Round Nut 5/8" |
| 892 | 3603340503 | Round Nut 5/8" |
| 893 | 1607950052 | Pin-Type Face-Wrench |
| 893 | 1607950052 | Pin-Type Face-Wrench |
| 895 | 3603340501 | Clamping-Flange 5/8"-FL+B |
| 895 | 3603340501 | Clamping-Flange 5/8"-FL+B |
| 9 | 1601118K54 | Manufacturer's nameplate |
| 9 | 1601118K56 | Manufacturer's nameplate |
| 97 | 1601118T27 | Warning Plate |
| 97 | 1601118T27 | Warning Plate |
