Bosch 180W DWAS 8-670

Bosch 180W DWAS 8-670 pn-screwdriver - ind.: exploded parts diagram, 1 sheet, 117 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 180W DWAS 8-670: 117 positions on 1 sheet

Bosch 180W DWAS 8-670 parts list (1 sheet)

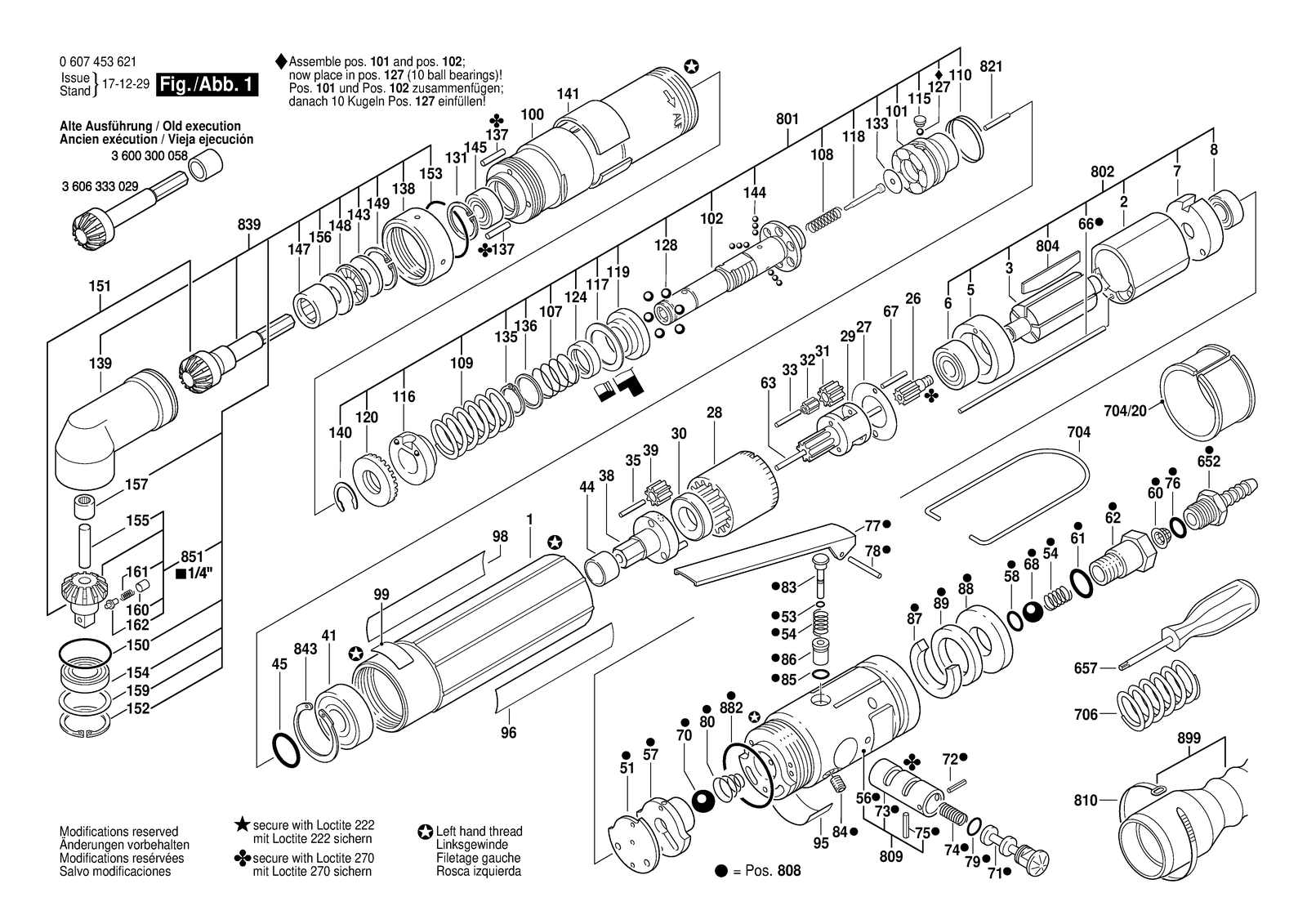

Bosch 180W DWAS 8-670 parts diagram, sheet 1
No.Part numberPart name
116051082JDMotor Housing
1003605125055Housing
1013606445043Clutch Element
1023603124022Output Shaft
1073604615004Compression Spring
1083604610057Compression Spring
1093604619003Compression Spring
1103600224053Retaining ring
1153601023011Sealing plate
1163600134014Setting Ring
1171600101023Plain Washer Thick 0,5 MM
1183603003005Rod
1193600190038Support Disc
1203603344047Catch Disk
1243600250004Ring
1271903230006Ball DIN 5401-3,5 Mm-Iii-St
1281903230008Ball 4,5 MM III DIN 5401-ST
1312916660003Spring retaining ring 16X1 Mm, DIN 472
1333600190024Washer
1353600224059Retaining ring
1362600101513Plain Washer
1372917530057Straight Pin DIN 6325-5M2,5X12
1383603342002Union Nut
1393605106071Spindle Housing
1402916080012Locking washer DIN 6799-9-FST
1413600400022Protection Sleeve
1433600100094Support Disc
1441903230002Ball 2 MM III DIN 5401 St
1451280905004Groove ball bearing
1473600917019Needle bearing
1483600929003Roller Thrust Bearing
1492916660004Spring retaining ring 18X1MM, DIN 472
1503600210127O-Ring 21,0X1,0 MM
1513606333591Bevel Gear Set
1522916660045Spring retaining ring DIN 472-21X1MM
1532916600013Retaining ring DIN 9045-24
1543600900018Groove ball bearing
1553603201031Needle Roller
1563600100095Support Disc
1579001140359Needle bearing
1591600101648Shim Thick 0,1 MM
1591600101650Shim Thick 0,05 MM
1603600400014Guide Sleeve
1612604613003Compression Spring
1623603124015Detent Pin
23604090050Stator 180W
263606300166Pinion
273600101047Stop Disc
283606334085Ring Gear Ø19,5 MM
293606337181Planetary-Gear Carrier
33604220081Rotor
303600209013Spacer Ring Black
313606316115Cylindrical Gear
323600913000Needle-Roller Assembly Ina K3X5X7
333603201000Needle Roller
351903201042Needle Roller DIN 5402-A3X11,8-G2
383606337191Planetary-Gear Carrier
393606316114Cylindrical Gear
413600905015Groove ball bearing
443600400029Sleeve
451900210105O-Ring 8X2,5 MM
53605700107Bearing Flange
513605700116Plate
533600210092O-Ring
543604611017Compression Spring
563605190176Valve Housing
573605700126Intermediate Piece
583600210084O-Ring 4,3X2,4 MM
61900905044Groove ball bearing 7X19X6
603600002000Strainer
612600210021O-Ring 9,0X1,5 MM
623603458016Fitting
633603201081Straight Pin
6523603386066Hose fitting
6573607950027Screwdriver
663603201077Straight Pin
672917690036Half-Length Grooved Pin ISO 8741-2X10-ST
681903230014Ball DIN 5401-8 MM Iii-St
73605700108Bearing Flange
701903230528Ball DIN 5401-9,5MM-III-ST
7043601310016Suspension Loop
704/203600421005Reduction Sleeve
7063604618003Compression Spring White
713608750038Control Piston
722917800016Coiled Spring Pin DIN 7343-1,5X10
733600340008Valve Bushing
743604611007Compression Spring
752917550034Straight Pin DIN6325-2M6X6
763600210094O-Ring
773601902001Control Lever
782917700040Grooved Pin DIN 1475-2X18-ST
793600210093O-Ring
81900905028Groove ball bearing 7X17X5
803604643005Compression Spring
8013607031518Cutoff Coupling Sp Set
8023607031217Assembly Of Service Parts
8043607031304Assembly Of Service Parts 5 Piece
8083607031361Assembly Of Service Parts
8093607031419Valve Housing
8103604710062Holding Belt Black
8213603201080Assembly Of Service Parts
833608750048Control Pin
8393607020161Angle Screwdriver Head 1/4"
842912041147Set screw M 5X5-DIN 913-45H
8433607010010Parts Set 2 Piece
853600210015O-Ring 4,0X1,0 MM
8513607030149Parts Set
863600300064Bushing
873601010010Silencer
883601010037Silencer
8823607010006O-Ring 10 Piece
893601010044Silencer
8993607000064Air Hose
95160111A3HFNameplate
963601119055Manufacturer's nameplate
983601110204Sticker
993601119236Reference Plate
