Makita 1805B
Makita 1805B: exploded parts diagram, 1 sheet, 63 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita 1805B: 63 positions on 1 sheet

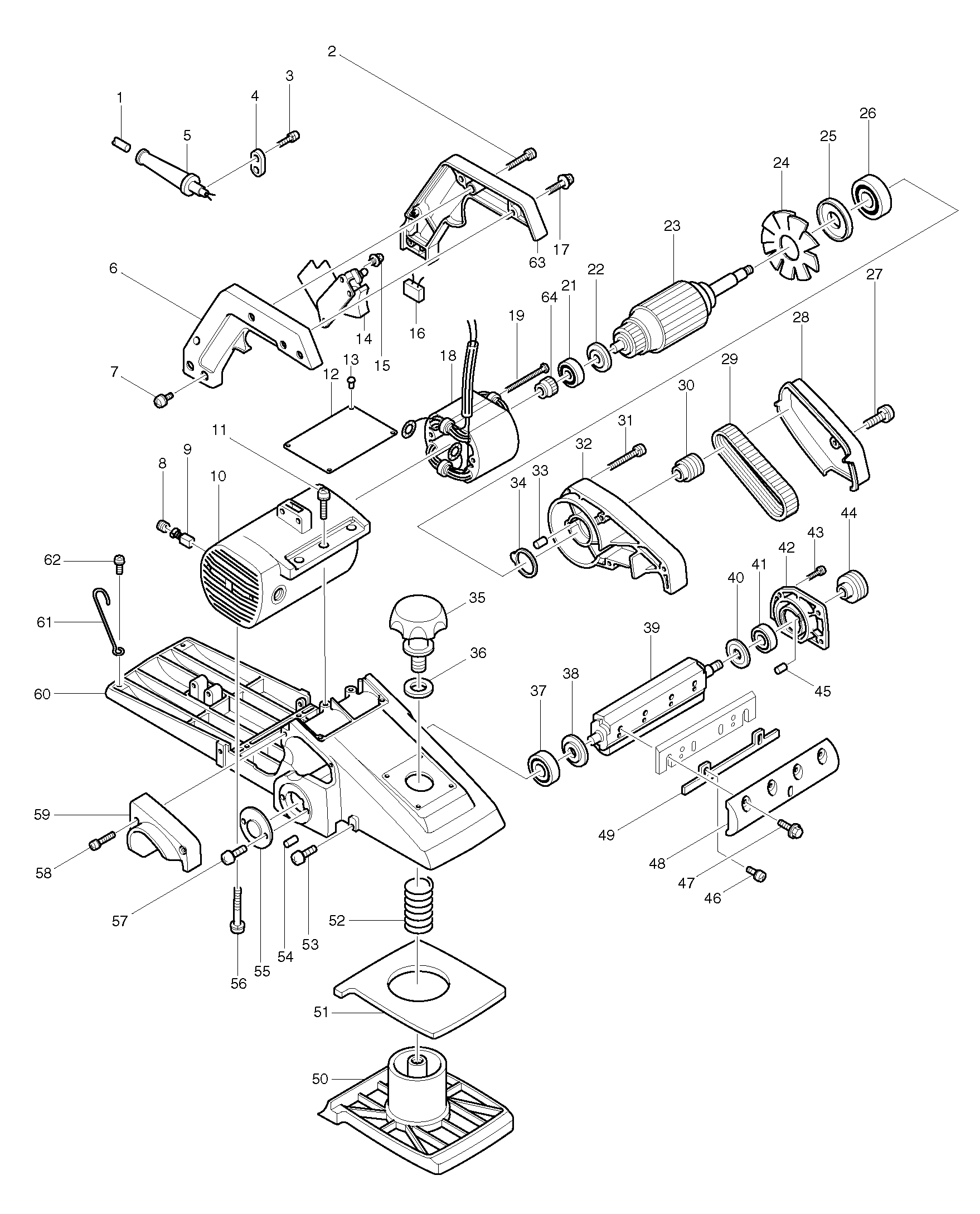

Sheet 1: Makita 1805B parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 665527-3 | Makita 665527-3 POWER SUPPLY CORD 1.00-2- |
| 2 | 911158-9 | Makita 911158-9 PAN HEAD SCREW M4*30, MT960 |
| 3 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 4 | 687001-1 | Makita 687001-1 STRAIN RELIEF B04510 |
| 5 | 682507-4 | Makita 682507-4 CORD GUARD 12-200 |
| 6 | 181151-9 | Makita 181151-9 HANDLE SET FOR 1805B |
| 7 | 911213-7 | Makita 911213-7 Pan Head Screw M5X12 for RP0900 LS1040 LS1013 |
| 8 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 9 | 181044-0 | Makita 181044-0 Carbon Brush CB-153 |
| 10 | 156414-2 | Makita 156414-2 MOTOR HOUSING |
| 11 | 911228-4 | Makita 911228-4 PAN HEAD SCREW M5*18, 5377MG |
| 12 | 815868-9 | |
| 13 | 953101-2 | Makita 953101-2 RIVET 0-3 |
| 14 | 651012-2 | Makita 651012-2 SWITCH HPAH2-3 |
| 15 | 911103-4 | Makita 911103-4 PAN HEAD SCREW M4*6, LC1230 |
| 16 | 645209-3 | Makita 645209-3 NOISE SUPPRESSOR |
| 17 | 911253-5 | Makita 911253-5 PANHEAD SCREW M5*30, EBH252L |
| 18 | 523025-2 | Makita 523025-2 FieldAss'y 220V 1805N |
| 19 | 911300-2 | Makita 911300-2 PAN HEAD SCREW M5X75 |
| 21 | 211063-3 | Makita 211063-3 BALL BEARING 6000LB |
| 22 | 681624-7 | Makita 681624-7 INSULATION WASHER |
| 23 | 513388-4 | Makita 513388-4 Armature Ass'y 220V for 1806B 1805B |
| 24 | 241013-4 | Makita 241013-4 FAN 80 |
| 25 | 213102-5 | Makita 213102-5 DUST SEAL 12, 5007NB |
| 26 | 211106-1 | Makita 211106-1 Ball Bearing 6201LLB, 9035 |
| 27 | 911206-4 | Makita 911206-4 Pan Head Screw M5*10 for 3612BR |
| 28 | 343301-6 | Makita 343301-6 BELT COVER 1806B |
| 29 | 225042-5 | Makita 225042-5 Drive V-Belt 6-304 |
| 30 | 222007-8 | Makita 222007-8 V-PULLEY 6-23L |
| 31 | 911263-2 | Makita 911263-2 PAN HEAD SCREW M5X40 WR, 4100NH |
| 32 | 152214-8 | Makita 152214-8 BRACKET COMPLETE |
| 33 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 34 | 341384-0 | Makita 341384-0 WASHER 26 |
| 35 | 271249-1 | Makita 271249-1 KNOB 64 |
| 36 | 253004-3 | Makita 253004-3 FLAT WASHER 13, LS1040 |
| 37 | 211067-5 | Makita 211067-5 BALL BEARING 6200ZZ |
| 38 | 341376-9 | Makita 341376-9 WASHER 10 |
| 39 | 161056-9 | Makita 161056-9 DRUM |
| 40 | 341377-7 | Makita 341377-7 WASHER 12 |
| 41 | 211107-9 | Makita 211107-9 BALL BEARING 6201ZZ |
| 42 | 157024-8 | Makita 157024-8 DRUM HOUSING |
| 43 | 911121-2 | Makita 911121-2 PAN HEAD SCREW M4*14, GA400D |
| 44 | 222006-0 | Makita 222006-0 V-PULLEY 6-30 |
| 45 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 46 | 251246-3 | Makita 251246-3 + PAN HEAD SCREW M4X5 |
| 47 | 251609-3 | Makita 251609-3 Flange Hex.Bolt M6X17 for 2012NB 1100 1125 |
| 48 | 345027-6 | Makita 345027-6 DRUM PLATE (2PCS/SET) |
| 49 | 342165-5 | |
| 50 | 312927-5 | Makita 312927-5 FRONT BASE |
| 51 | 421143-9 | |
| 52 | 231233-8 | Makita 231233-8 COMPRESSION SPRING 24 |
| 53 | 911206-4 | Makita 911206-4 Pan Head Screw M5*10 for 3612BR |
| 54 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 55 | 285011-8 | Makita 285011-8 BEARING COVER 38 |
| 56 | 911256-9 | Makita 911256-9 PAN HEAD SCREW M5*35, LS1440 |
| 57 | 911206-4 | Makita 911206-4 Pan Head Screw M5*10 for 3612BR |
| 58 | 911158-9 | Makita 911158-9 PAN HEAD SCREW M4*30, MT960 |
| 59 | 315371-5 | Makita 315371-5 CHIP COVER |
| 60 | 156400-3 | |
| 61 | 281007-7 | Makita 281007-7 HOLDER |
| 62 | 911324-8 | Makita 911324-8 PAN HEAD SCREW M6X16 |
| 63 | 181151-9 | Makita 181151-9 HANDLE SET FOR 1805B |
| 64 | 421417-8 |
