Bosch 1803 EVS

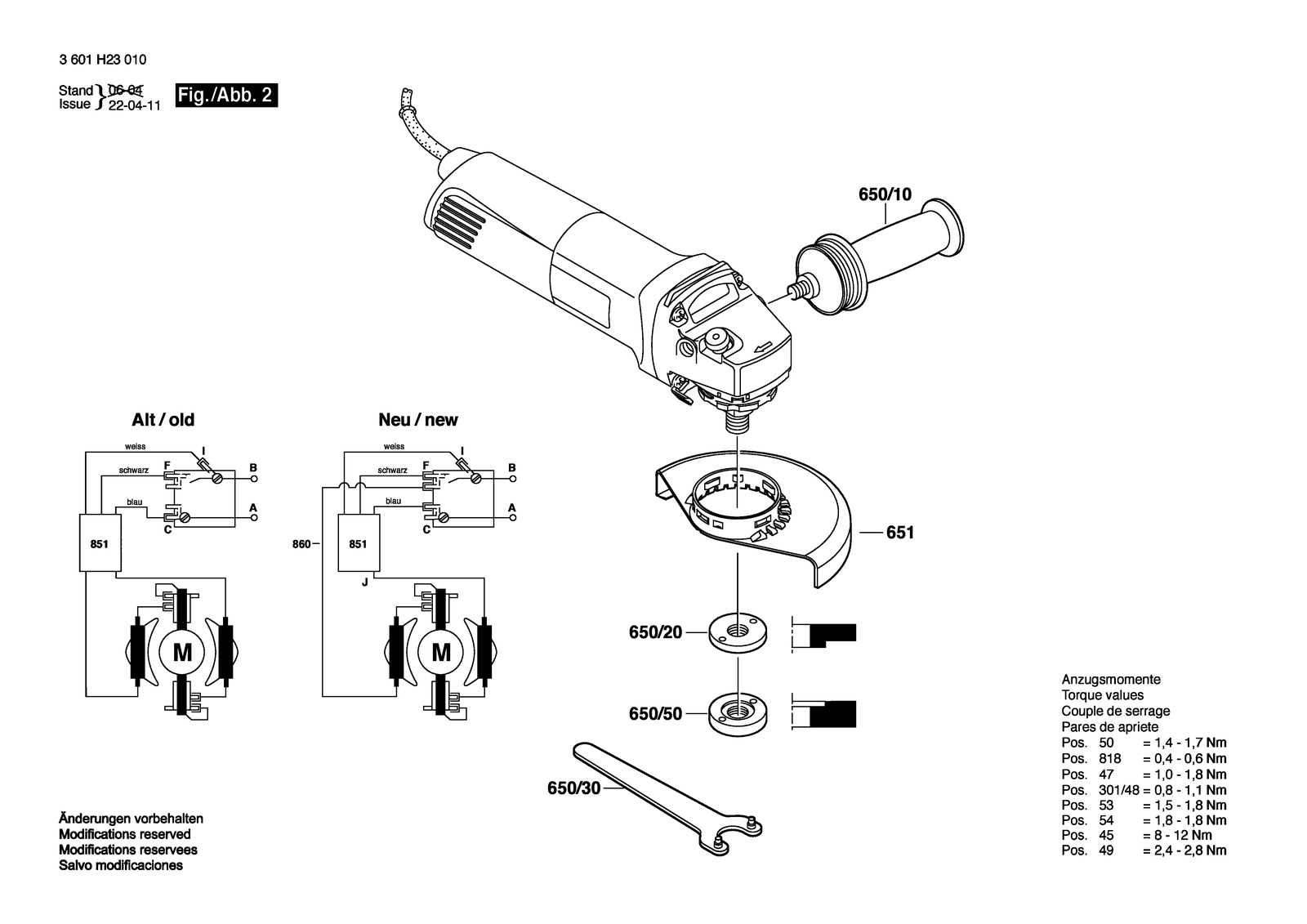

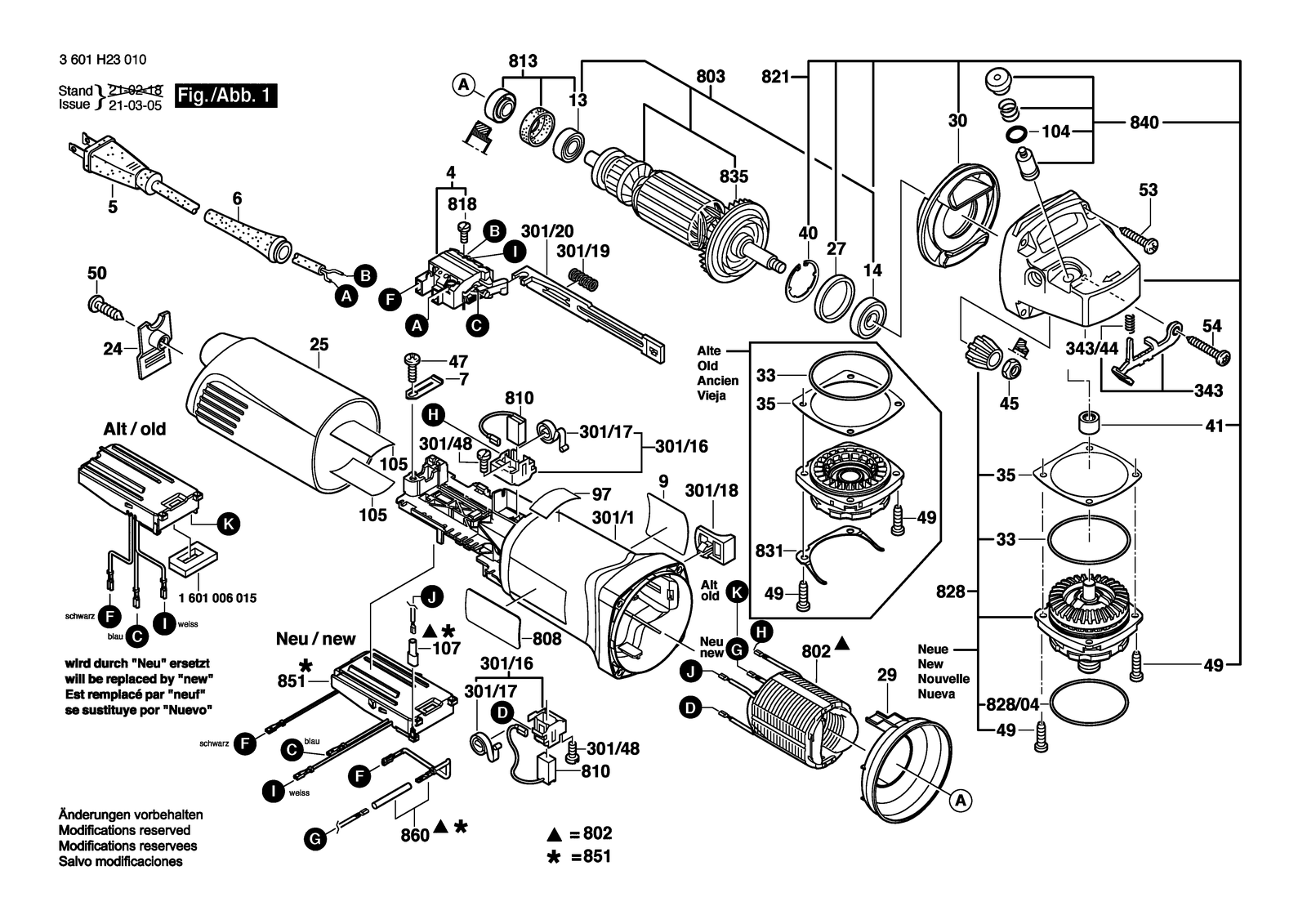

Bosch 1803 EVS angle grinder: exploded parts diagram, 2 sheets, 57 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1803 EVS: 57 positions on 2 sheets
Bosch 1803 EVS parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 105 | 1601008005 | Insulating Plate |
| 107 | 1600712030 | Insulating Part |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1600905032 | Groove ball bearing 8X22X7 |
| 24 | 1605500227 | Cover |
| 25 | 1605500251 | Housing Cover Dark Blue |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1600591025 | Air-Deflector Ring |
| 30 | 1600591014 | Air-Deflector Ring |
| 301/1 | 1605108250 | Motor Housing Blue |
| 301/16 | 1601323025 | Brush Holder |
| 301/17 | 1604652013 | Spiral Spring |
| 301/18 | 1602026086 | Switch Handle Black |
| 301/19 | 1604611026 | Compression Spring |
| 301/20 | 1602319010 | Adjusting Slide Black |
| 301/48 | 1613435034 | Lens Head Screw 3X10 St |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 343 | 1607000742 | Catch Lever |
| 343/44 | 1604611042 | Compression Spring |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 4 | 1607200200 | Switch |
| 40 | 1600119011 | Retaining clip |
| 41 | 1600200029 | Plain bearing |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 5 | 1604460336 | Power supply cord Usa/can/sma 2,68M 2 X 1,31MM SJ 16/2 |
| 50 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 53 | 1603435078 | Torx Oval-Head Screw |
| 54 | 1603414026 | Torx Oval-Head Screw 4X30 |
| 6 | 1600703040 | Grommet |
| 650/10 | 16020250A0 | Auxiliary Handle |
| 650/20 | 3603340501 | Clamping-Flange 5/8"-FL+B |
| 650/30 | 1607950052 | Pin-Type Face-Wrench |
| 650/50 | 3603340503 | Round Nut 5/8" |
| 651 | 1600A00XL5 | Protective Cover |
| 7 | 1601302017 | Fastening Clamp |
| 802 | 1607000396 | Field 127V |
| 803 | 1604010A45 | Armature With Fan 127V |
| 808 | 1601118K48 | Nameplate |
| 810 | 1607014176 | Carbon-Brush Set |
| 813 | 1607000378 | Parts Set |
| 818 | 2910110048 | Pan head screw DIN 85-AM3X6-CUZN |
| 821 | 16058065SC | Gear Housing |
| 828 | 1607000E1E | Bearing Flange |
| 828/04 | 3600210109 | O-Ring 47,0X1,5 MM |
| 831 | 1601290013 | Spring Element |
| 835 | 1606610129 | Fan |
| 840 | 1607000A71 | Push-Button |
| 851 | 1607233262 | Speed governor |
| 860 | 1604448023 | Connecting Cable |
| 9 | 1601118A56 | Manufacturer's nameplate |
| 97 | 1601118T27 | Warning Plate |
