Bosch 180 WATT-SERIE

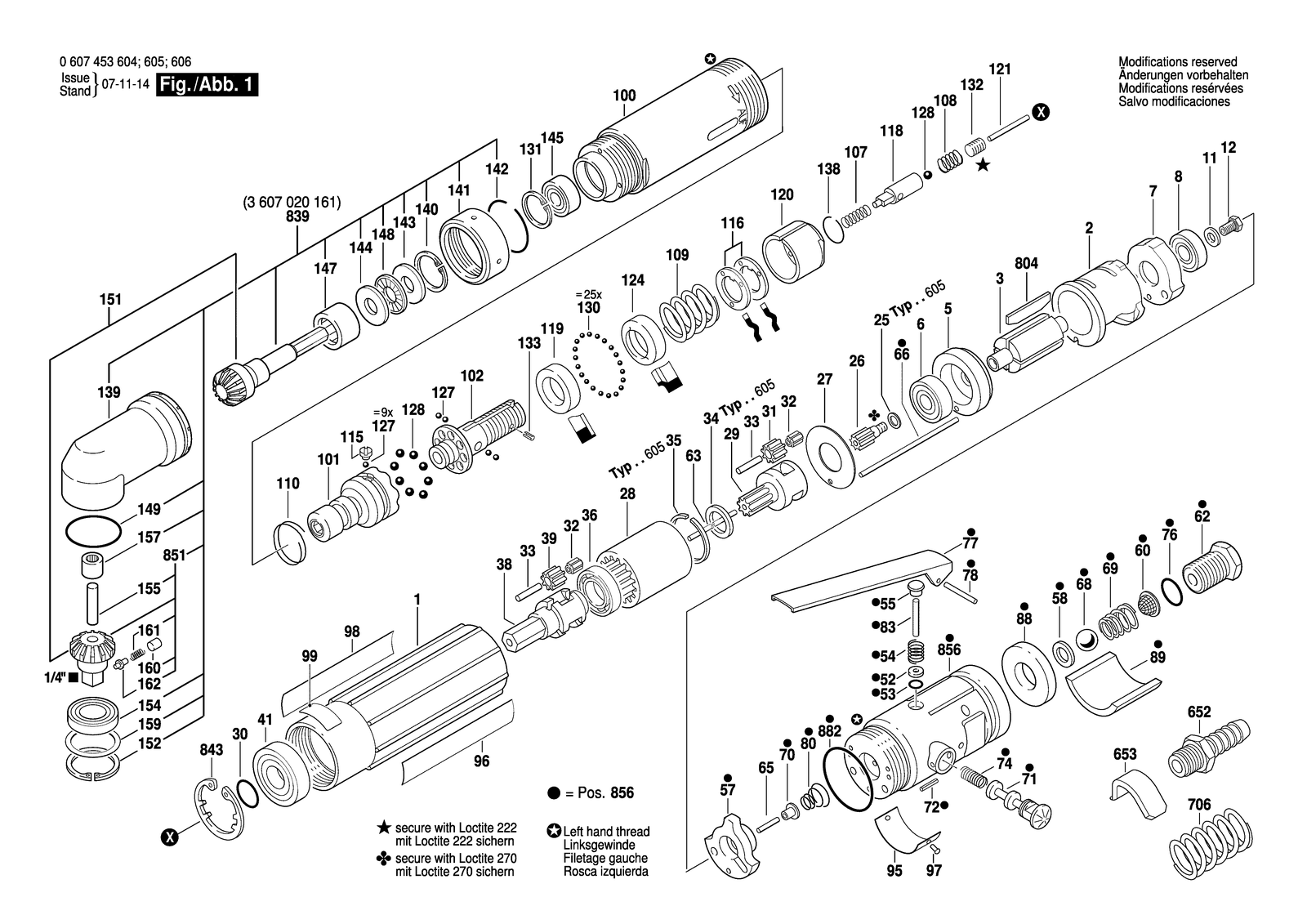

Bosch 180 WATT-SERIE pn-angle screwdriver ind.: exploded parts diagram, 1 sheet, 295 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 180 WATT-SERIE: 295 positions on 1 sheet
Bosch 180 WATT-SERIE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3600760020 | Motor Housing |
| 1 | 3600760020 | Motor Housing |
| 1 | 3600760020 | Motor Housing |
| 100 | 3605125026 | Housing |
| 100 | 3605125026 | Housing |
| 100 | 3605125026 | Housing |
| 101 | 3606432006 | Clutch Element |
| 101 | 3606432006 | Clutch Element |
| 101 | 3606432006 | Clutch Element |
| 102 | 3606122011 | Drive Shaft |
| 102 | 3606122011 | Drive Shaft |
| 102 | 3606122011 | Drive Shaft |
| 107 | 3604610003 | Compression Spring |
| 107 | 3604610003 | Compression Spring |
| 107 | 3604610003 | Compression Spring |
| 108 | 3604610002 | Compression Spring |
| 108 | 3604610002 | Compression Spring |
| 108 | 3604610002 | Compression Spring |
| 109 | 3604619003 | Compression Spring |
| 109 | 3604619003 | Compression Spring |
| 109 | 3604619003 | Compression Spring |
| 11 | 2916011011 | Plain Washer DIN 433-5,3-ST |
| 11 | 2916011011 | Plain Washer DIN 433-5,3-ST |
| 11 | 2916011011 | Plain Washer DIN 433-5,3-ST |
| 110 | 3604610002 | Compression Spring |
| 110 | 3604610002 | Compression Spring |
| 110 | 3604610002 | Compression Spring |
| 115 | 3600001002 | Sealing plate |
| 115 | 3600001002 | Sealing plate |
| 115 | 3600001002 | Sealing plate |
| 116 | 3600134003 | Adjusting Disc |
| 116 | 3600134003 | Adjusting Disc |
| 116 | 3600134003 | Adjusting Disc |
| 118 | 3603150203 | Locking Bolt |
| 118 | 3603150203 | Locking Bolt |
| 118 | 3603150203 | Locking Bolt |
| 119 | 3600114002 | Support Disc |
| 119 | 3600114002 | Support Disc |
| 119 | 3600114002 | Support Disc |
| 12 | 3603450002 | Hex Screw |
| 12 | 3603450002 | Hex Screw |
| 12 | 3603450002 | Hex Screw |
| 120 | 3603344009 | Round Nut |
| 120 | 3603344009 | Round Nut |
| 120 | 3603344009 | Round Nut |
| 121 | 3607031087 | Assembly Of Service Parts |
| 121 | 3607031087 | Assembly Of Service Parts |
| 121 | 3607031087 | Assembly Of Service Parts |
| 124 | 3600220001 | Coupling Plate |
| 124 | 3600220001 | Coupling Plate |
| 124 | 3600220001 | Coupling Plate |
| 127 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 127 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 127 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 128 | 1903230009 | Ball DIN 5401-5 G28 |
| 128 | 1903230009 | Ball DIN 5401-5 G28 |
| 128 | 1903230009 | Ball DIN 5401-5 G28 |
| 130 | 1903230003 | Ball DIN 5401-2,5MM-III-ST |
| 130 | 1903230003 | Ball DIN 5401-2,5MM-III-ST |
| 130 | 1903230003 | Ball DIN 5401-2,5MM-III-ST |
| 131 | 2916660003 | Spring retaining ring 16X1 Mm, DIN 472 |
| 131 | 2916660003 | Spring retaining ring 16X1 Mm, DIN 472 |
| 131 | 2916660003 | Spring retaining ring 16X1 Mm, DIN 472 |
| 132 | 3603400001 | Set screw |
| 132 | 3603400001 | Set screw |
| 132 | 3603400001 | Set screw |
| 133 | 2917800033 | Coiled Spring Pin DIN 7343-2X5 |
| 133 | 2917800033 | Coiled Spring Pin DIN 7343-2X5 |
| 133 | 2917800033 | Coiled Spring Pin DIN 7343-2X5 |
| 138 | 2916600008 | Retaining ring 14 DIN 9045 |
| 138 | 2916600008 | Retaining ring 14 DIN 9045 |
| 138 | 2916600008 | Retaining ring 14 DIN 9045 |
| 139 | 3605106071 | Spindle Housing |
| 139 | 3605106071 | Spindle Housing |
| 139 | 3605106071 | Spindle Housing |
| 140 | 2916660004 | Spring retaining ring 18X1MM, DIN 472 |
| 140 | 2916660004 | Spring retaining ring 18X1MM, DIN 472 |
| 140 | 2916660004 | Spring retaining ring 18X1MM, DIN 472 |
| 141 | 3603342002 | Union Nut |
| 141 | 3603342002 | Union Nut |
| 141 | 3603342002 | Union Nut |
| 142 | 1614601009 | Retaining ring DIN 9045-24 |
| 142 | 1614601009 | Retaining ring DIN 9045-24 |
| 142 | 1614601009 | Retaining ring DIN 9045-24 |
| 143 | 3600100094 | Support Disc |
| 143 | 3600100094 | Support Disc |
| 143 | 3600100094 | Support Disc |
| 144 | 3600100095 | Support Disc |
| 144 | 3600100095 | Support Disc |
| 144 | 3600100095 | Support Disc |
| 145 | 1280905004 | Groove ball bearing |
| 145 | 1280905004 | Groove ball bearing |
| 145 | 1280905004 | Groove ball bearing |
| 147 | 3600917019 | Needle bearing |
| 147 | 3600917019 | Needle bearing |
| 147 | 3600917019 | Needle bearing |
| 148 | 3600929003 | Roller Thrust Bearing |
| 148 | 3600929003 | Roller Thrust Bearing |
| 148 | 3600929003 | Roller Thrust Bearing |
| 152 | 2916660045 | Spring retaining ring DIN 472-21X1MM |
| 152 | 2916660045 | Spring retaining ring DIN 472-21X1MM |
| 152 | 2916660045 | Spring retaining ring DIN 472-21X1MM |
| 154 | 3600900018 | Groove ball bearing |
| 154 | 3600900018 | Groove ball bearing |
| 154 | 3600900018 | Groove ball bearing |
| 157 | 9001140359 | Needle bearing |
| 157 | 9001140359 | Needle bearing |
| 157 | 9001140359 | Needle bearing |
| 159 | 1600101648 | Shim Thick 0,1 MM |
| 159 | 1600101650 | Shim Thick 0,05 MM |
| 159 | 1600101648 | Shim Thick 0,1 MM |
| 159 | 1600101650 | Shim Thick 0,05 MM |
| 159 | 1600101648 | Shim Thick 0,1 MM |
| 159 | 1600101650 | Shim Thick 0,05 MM |
| 160 | 3600400014 | Guide Sleeve |
| 160 | 3600400014 | Guide Sleeve |
| 160 | 3600400014 | Guide Sleeve |
| 161 | 2604613003 | Compression Spring |
| 161 | 2604613003 | Compression Spring |
| 161 | 2604613003 | Compression Spring |
| 162 | 3603124015 | Detent Pin |
| 162 | 3603124015 | Detent Pin |
| 162 | 3603124015 | Detent Pin |
| 2 | 3604090010 | Stator 180W |
| 2 | 3604090010 | Stator 180W |
| 2 | 3604090010 | Stator 180W |
| 25 | 3600100007 | Shim washer |
| 25 | 3600100007 | Shim washer |
| 26 | 3606300046 | Pinion Z=9 |
| 26 | 3606300163 | Pinion |
| 26 | 3606300115 | Pinion Z=6 |
| 27 | 3600101047 | Stop Disc |
| 27 | 3600101047 | Stop Disc |
| 27 | 3600101047 | Stop Disc |
| 28 | 3606334005 | Ring Gear Z=42 |
| 28 | 3606334005 | Ring Gear Z=42 |
| 28 | 3606334005 | Ring Gear Z=42 |
| 29 | 3606337041 | Planetary-Gear Carrier |
| 29 | 3606337057 | Planetary-Gear Carrier |
| 29 | 3606337145 | Planetary-Gear Carrier |
| 3 | 3604220008 | Rotor |
| 3 | 3604220008 | Rotor |
| 3 | 3604220008 | Rotor |
| 30 | 1900210110 | O-Ring 12X2,5 MM |
| 30 | 1900210110 | O-Ring 12X2,5 MM |
| 30 | 1900210110 | O-Ring 12X2,5 MM |
| 31 | 3606316112 | Cylindrical Gear |
| 31 | 3606316093 | Cylindrical Gear Z=14 |
| 31 | 3606316104 | Cylindrical Gear |
| 32 | 3600913000 | Needle-Roller Assembly Ina K3X5X7 |
| 32 | 3600913000 | Needle-Roller Assembly Ina K3X5X7 |
| 32 | 3600913000 | Needle-Roller Assembly Ina K3X5X7 |
| 33 | 3603201000 | Needle Roller |
| 33 | 3603201000 | Needle Roller |
| 33 | 3603201000 | Needle Roller |
| 34 | 3600103003 | Stop Disc |
| 34 | 3600103003 | Stop Disc |
| 35 | 3600224002 | Retaining ring |
| 35 | 3600224002 | Retaining ring |
| 36 | 3600905002 | Groove ball bearing 12X21X5 |
| 36 | 3600905002 | Groove ball bearing 12X21X5 |
| 36 | 3600905002 | Groove ball bearing 12X21X5 |
| 38 | 3606337175 | Planetary-Gear Carrier |
| 38 | 3606337015 | Planetary-Gear Carrier |
| 38 | 3606337175 | Planetary-Gear Carrier |
| 39 | 3606316112 | Cylindrical Gear |
| 39 | 3606316114 | Cylindrical Gear |
| 39 | 3606316112 | Cylindrical Gear |
| 41 | 3600905015 | Groove ball bearing |
| 41 | 3600905015 | Groove ball bearing |
| 41 | 3600905015 | Groove ball bearing |
| 5 | 3605700015 | Bearing Flange |
| 5 | 3605700015 | Bearing Flange |
| 5 | 3605700015 | Bearing Flange |
| 52 | 2916011006 | Plain Washer DIN 125-A3,2-ST |
| 52 | 2916011006 | Plain Washer DIN 125-A3,2-ST |
| 52 | 2916011006 | Plain Washer DIN 125-A3,2-ST |
| 53 | 2600210007 | O-Ring 2,4X1,9 MM |
| 53 | 2600210007 | O-Ring 2,4X1,9 MM |
| 53 | 2600210007 | O-Ring 2,4X1,9 MM |
| 54 | 3604611017 | Compression Spring |
| 54 | 3604611017 | Compression Spring |
| 54 | 3604611017 | Compression Spring |
| 55 | 3603132000 | Valve Cone |
| 55 | 3603132000 | Valve Cone |
| 55 | 3603132000 | Valve Cone |
| 57 | 3605700102 | Intermediate Piece |
| 57 | 3605700102 | Intermediate Piece |
| 57 | 3605700102 | Intermediate Piece |
| 58 | 1600108059 | Valve Bushing |
| 58 | 1600108059 | Valve Bushing |
| 58 | 1600108059 | Valve Bushing |
| 6 | 2600905032 | Ball Bearing 7X19X6 |
| 6 | 2600905032 | Ball Bearing 7X19X6 |
| 6 | 2600905032 | Ball Bearing 7X19X6 |
| 60 | 3600002000 | Strainer |
| 60 | 3600002000 | Strainer |
| 60 | 3600002000 | Strainer |
| 62 | 3603458011 | Fitting |
| 62 | 3603458011 | Fitting |
| 62 | 3603458011 | Fitting |
| 63 | 3603201055 | Straight Pin |
| 63 | 3603201055 | Straight Pin |
| 63 | 3603201055 | Straight Pin |
| 65 | 3603201054 | Straight Pin |
| 65 | 3603201054 | Straight Pin |
| 65 | 3603201054 | Straight Pin |
| 652 | 3603386002 | Hose fitting |
| 652 | 3603386002 | Hose fitting |
| 652 | 3603386002 | Hose fitting |
| 653 | 3601329007 | Angle Piece |
| 653 | 3601329007 | Angle Piece |
| 653 | 3601329007 | Angle Piece |
| 66 | 3603201006 | Straight Pin 75 MM |
| 66 | 3603201006 | Straight Pin 75 MM |
| 66 | 3603201006 | Straight Pin 75 MM |
| 68 | 1903230014 | Ball DIN 5401-8 MM Iii-St |
| 68 | 1903230014 | Ball DIN 5401-8 MM Iii-St |
| 68 | 1903230014 | Ball DIN 5401-8 MM Iii-St |
| 69 | 3604611002 | Compression Spring |
| 69 | 3604611002 | Compression Spring |
| 69 | 3604611002 | Compression Spring |
| 7 | 3605700017 | Bearing Flange |
| 7 | 3605700017 | Bearing Flange |
| 7 | 3605700017 | Bearing Flange |
| 70 | 3600250001 | Valve Cone |
| 70 | 3600250001 | Valve Cone |
| 70 | 3600250001 | Valve Cone |
| 706 | 3604618003 | Compression Spring White |
| 706 | 3604618003 | Compression Spring White |
| 706 | 3604618003 | Compression Spring White |
| 71 | 3608750001 | Control Piston |
| 71 | 3608750001 | Control Piston |
| 71 | 3608750001 | Control Piston |
| 72 | 2917800016 | Coiled Spring Pin DIN 7343-1,5X10 |
| 72 | 2917800016 | Coiled Spring Pin DIN 7343-1,5X10 |
| 72 | 2917800016 | Coiled Spring Pin DIN 7343-1,5X10 |
| 74 | 3604611007 | Compression Spring |
| 74 | 3604611007 | Compression Spring |
| 74 | 3604611007 | Compression Spring |
| 76 | 3600210068 | O-Ring 12,0X1,0 MM |
| 76 | 3600210068 | O-Ring 12,0X1,0 MM |
| 76 | 3600210068 | O-Ring 12,0X1,0 MM |
| 77 | 3601902001 | Control Lever |
| 77 | 3601902001 | Control Lever |
| 77 | 3601902001 | Control Lever |
| 78 | 2917700040 | Grooved Pin DIN 1475-2X18-ST |
| 78 | 2917700040 | Grooved Pin DIN 1475-2X18-ST |
| 78 | 2917700040 | Grooved Pin DIN 1475-2X18-ST |
| 8 | 1900905028 | Groove ball bearing 7X17X5 |
| 8 | 1900905028 | Groove ball bearing 7X17X5 |
| 8 | 1900905028 | Groove ball bearing 7X17X5 |
| 80 | 3604643010 | Compression Spring |
| 80 | 3604643010 | Compression Spring |
| 80 | 3604643010 | Compression Spring |
| 804 | 3607030256 | Parts Set 5 Piece |
| 804 | 3607030256 | Parts Set 5 Piece |
| 804 | 3607030256 | Parts Set 5 Piece |
| 83 | 1903201025 | Needle Roller |
| 83 | 1903201025 | Needle Roller |
| 83 | 1903201025 | Needle Roller |
| 839 | 3607020161 | Angle Screwdriver Head 1/4" |
| 839 | 3607020161 | Angle Screwdriver Head 1/4" |
| 839 | 3607020161 | Angle Screwdriver Head 1/4" |
| 843 | 3607010010 | Parts Set 2 Piece |
| 843 | 3607010010 | Parts Set 2 Piece |
| 843 | 3607010010 | Parts Set 2 Piece |
| 851 | 3607030149 | Parts Set |
| 851 | 3607030149 | Parts Set |
| 851 | 3607030149 | Parts Set |
| 856 | 3605190132 | Valve Housing |
| 856 | 3607020162 | Valve gate module |
| 856 | 3605190132 | Valve Housing |
| 856 | 3605190132 | Valve Housing |
| 88 | 3600113016 | Silencer |
| 88 | 3600113016 | Silencer |
| 88 | 3600113016 | Silencer |
| 882 | 3607010006 | O-Ring 10 Piece |
| 882 | 3607010006 | O-Ring 10 Piece |
| 882 | 3607010006 | O-Ring 10 Piece |
| 89 | 3601010010 | Silencer |
| 89 | 3601010010 | Silencer |
| 89 | 3601010010 | Silencer |
| 95 | 160111A3HF | Nameplate |
| 95 | 160111A3HF | Nameplate |
| 95 | 160111A3HF | Nameplate |
| 96 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 96 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 96 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 97 | 3603133000 | Grooved Nail |
| 97 | 3603133000 | Grooved Nail |
| 98 | 3601110204 | Sticker |
| 99 | 3601119236 | Reference Plate |
| 99 | 3601119236 | Reference Plate |
| 99 | 3601119236 | Reference Plate |
Selected parts0
