Bosch 180 WATT-SERIE
Bosch 180 WATT-SERIE pn-screwdriver - ind.: exploded parts diagram, 1 sheet, 144 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

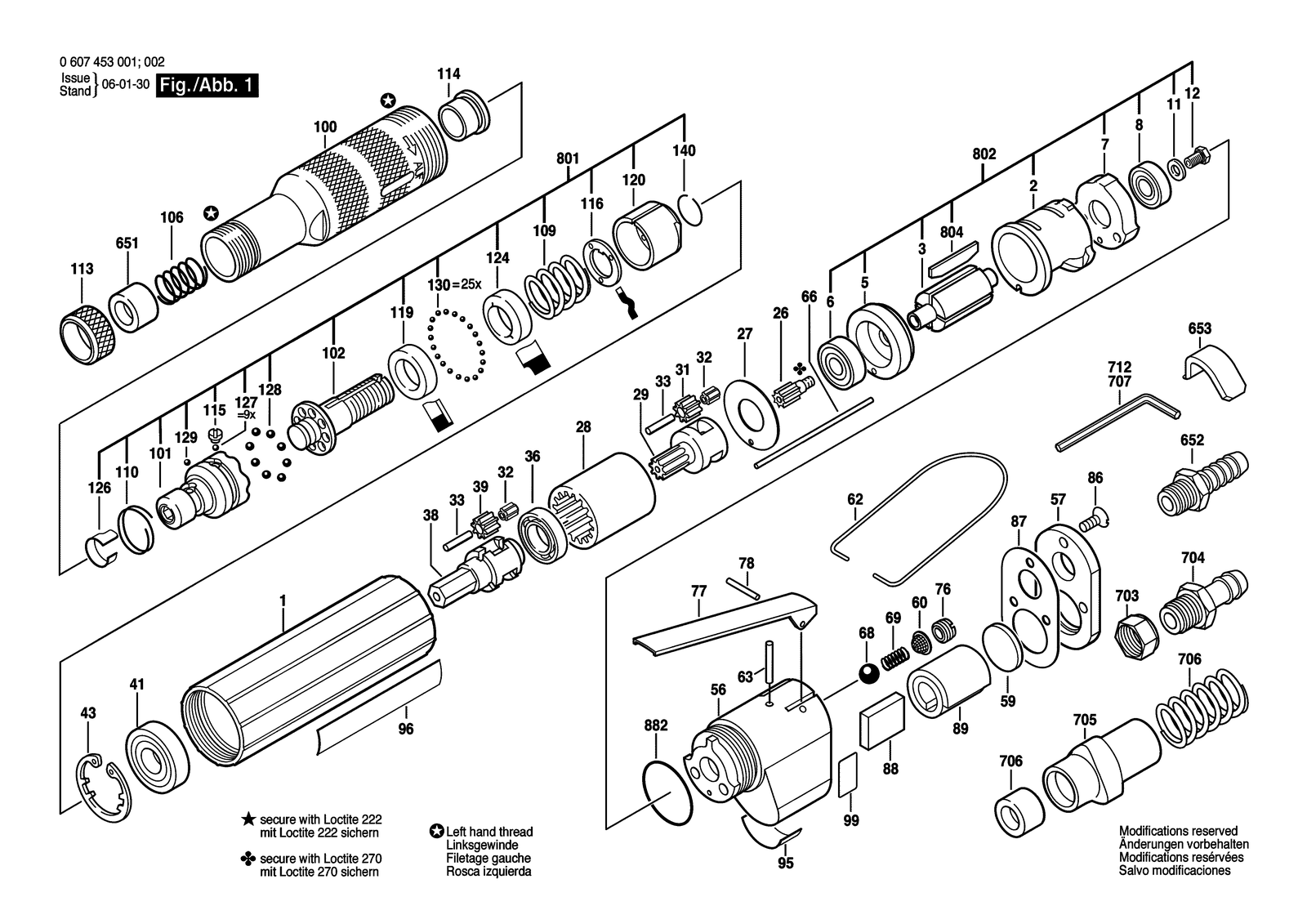

All parts of Bosch 180 WATT-SERIE: 144 positions on 1 sheet
Bosch 180 WATT-SERIE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3600760020 | Motor Housing |
| 1 | 3600760020 | Motor Housing |
| 100 | 3605125011 | Housing |
| 100 | 3605125011 | Housing |
| 101 | 3606432006 | Clutch Element |
| 101 | 3606432006 | Clutch Element |
| 102 | 3606122009 | Drive Shaft |
| 102 | 3606122009 | Drive Shaft |
| 106 | 3604615000 | Compression Spring |
| 106 | 3604615000 | Compression Spring |
| 109 | 3604619003 | Compression Spring |
| 109 | 3604619003 | Compression Spring |
| 11 | 2916011011 | Plain Washer DIN 433-5,3-ST |
| 11 | 2916011011 | Plain Washer DIN 433-5,3-ST |
| 110 | 3604601002 | Retaining ring |
| 110 | 3604601002 | Retaining ring |
| 113 | 3603340000 | Union Nut |
| 113 | 3603340000 | Union Nut |
| 114 | 3600322002 | Bushing |
| 114 | 3600322002 | Bushing |
| 115 | 3600001002 | Sealing plate |
| 115 | 3600001002 | Sealing plate |
| 116 | 3600134003 | Adjusting Disc |
| 116 | 3600134003 | Adjusting Disc |
| 119 | 3600114002 | Support Disc |
| 119 | 3600114002 | Support Disc |
| 12 | 2911061150 | Hex Screw DIN 933-M5X8-8.8 |
| 12 | 2911061150 | Hex Screw DIN 933-M5X8-8.8 |
| 120 | 3603344009 | Round Nut |
| 120 | 3603344009 | Round Nut |
| 124 | 3600220000 | Coupling Plate |
| 124 | 3600220000 | Coupling Plate |
| 126 | 2601250001 | Leaf Spring |
| 126 | 2601250001 | Leaf Spring |
| 127 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 127 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 128 | 1903230009 | Ball DIN 5401-5 G28 |
| 128 | 1903230009 | Ball DIN 5401-5 G28 |
| 129 | 1903230003 | Ball DIN 5401-2,5MM-III-ST |
| 129 | 1903230003 | Ball DIN 5401-2,5MM-III-ST |
| 130 | 1903230003 | Ball DIN 5401-2,5MM-III-ST |
| 130 | 1903230003 | Ball DIN 5401-2,5MM-III-ST |
| 140 | 2916600008 | Retaining ring 14 DIN 9045 |
| 140 | 2916600008 | Retaining ring 14 DIN 9045 |
| 2 | 3604090011 | Stator 180W |
| 2 | 3604090011 | Stator 180W |
| 26 | 3606300013 | Pinion |
| 26 | 3606300013 | Pinion |
| 27 | 3600101047 | Stop Disc |
| 27 | 3600101047 | Stop Disc |
| 28 | 3606334021 | Ring Gear Z=42/54 |
| 28 | 3606334021 | Ring Gear Z=42/54 |
| 29 | 3606337056 | Planetary-Gear Carrier |
| 29 | 3606337057 | Planetary-Gear Carrier |
| 3 | 3604220009 | Rotor |
| 3 | 3604220009 | Rotor |
| 31 | 3606316093 | Cylindrical Gear Z=14 |
| 31 | 3606316093 | Cylindrical Gear Z=14 |
| 32 | 3600913000 | Needle-Roller Assembly Ina K3X5X7 |
| 32 | 3600913000 | Needle-Roller Assembly Ina K3X5X7 |
| 33 | 3603201000 | Needle Roller |
| 33 | 3603201000 | Needle Roller |
| 36 | 3600905002 | Groove ball bearing 12X21X5 |
| 36 | 3600905002 | Groove ball bearing 12X21X5 |
| 38 | 3606337037 | Planetary-Gear Carrier |
| 38 | 3606337036 | Planetary-Gear Carrier |
| 39 | 3606316011 | Cylindrical Gear Z=14 |
| 39 | 3606316114 | Cylindrical Gear |
| 41 | 3600905015 | Groove ball bearing |
| 41 | 3600905015 | Groove ball bearing |
| 43 | 3607010010 | Parts Set 2 Piece |
| 43 | 3607010010 | Parts Set 2 Piece |
| 5 | 3605700015 | Bearing Flange |
| 5 | 3605700015 | Bearing Flange |
| 56 | 3605190024 | Valve Housing |
| 56 | 3605190024 | Valve Housing |
| 57 | 3605500003 | Housing Cover |
| 57 | 3605500003 | Housing Cover |
| 59 | 3600002002 | Silencer |
| 59 | 3600002002 | Silencer |
| 6 | 2600905032 | Ball Bearing 7X19X6 |
| 6 | 2600905032 | Ball Bearing 7X19X6 |
| 60 | 3600002001 | Strainer |
| 60 | 3600002001 | Strainer |
| 62 | 3604720004 | Suspension Loop |
| 62 | 3604720004 | Suspension Loop |
| 63 | 3603201024 | Needle Roller |
| 63 | 3603201024 | Needle Roller |
| 651 | 3600329000 | Guide Sleeve |
| 651 | 3600329000 | Guide Sleeve |
| 652 | 3603386002 | Hose fitting |
| 652 | 3603386002 | Hose fitting |
| 653 | 3601329007 | Angle Piece |
| 653 | 3601329007 | Angle Piece |
| 66 | 3603201009 | Straight Pin |
| 66 | 3603201009 | Straight Pin |
| 68 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 68 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 69 | 3604611006 | Compression Spring |
| 69 | 3604611006 | Compression Spring |
| 7 | 3605700016 | Bearing Flange |
| 7 | 3605700016 | Bearing Flange |
| 703 | 3603458003 | Hex Nut |
| 703 | 3603458003 | Hex Nut |
| 704 | 3607010011 | Hose fitting 2 Piece |
| 704 | 3607010011 | Hose fitting 2 Piece |
| 705 | 3600499001 | Handle |
| 705 | 3600499001 | Handle |
| 706 | 3604618003 | Compression Spring White |
| 706 | 3604618003 | Compression Spring White |
| 707 | 1907950009 | Offset Screwdriver DIN 911 SW10 |
| 707 | 1907950009 | Offset Screwdriver DIN 911 SW10 |
| 712 | 3607950001 | Hexagon-Socket Key |
| 712 | 3607950001 | Hexagon-Socket Key |
| 76 | 3603344003 | Threaded Ring |
| 76 | 3603344003 | Threaded Ring |
| 77 | 3601902001 | Control Lever |
| 77 | 3601902001 | Control Lever |
| 78 | 2917700040 | Grooved Pin DIN 1475-2X18-ST |
| 78 | 2917700040 | Grooved Pin DIN 1475-2X18-ST |
| 8 | 1900905028 | Groove ball bearing 7X17X5 |
| 8 | 1900905028 | Groove ball bearing 7X17X5 |
| 801 | 3607031118 | Overriding Clutch |
| 801 | 3607031118 | Overriding Clutch |
| 802 | 3607031048 | Assembly Of Service Parts |
| 802 | 3607031048 | Assembly Of Service Parts |
| 804 | 3607030256 | Parts Set 5 Piece |
| 804 | 3607030256 | Parts Set 5 Piece |
| 86 | 2910762120 | Countersunk-Head Screw M 4X10 DIN 963-4.8 |
| 86 | 2910762120 | Countersunk-Head Screw M 4X10 DIN 963-4.8 |
| 87 | 3600054001 | Sealing Plate |
| 87 | 3600054001 | Sealing Plate |
| 88 | 3601010003 | Silencer |
| 88 | 3601010003 | Silencer |
| 882 | 3607010006 | O-Ring 10 Piece |
| 882 | 3607010006 | O-Ring 10 Piece |
| 89 | 3601010010 | Silencer |
| 89 | 3601010010 | Silencer |
| 95 | 160111A3HF | Nameplate |
| 95 | 160111A3HF | Nameplate |
| 96 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 96 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 99 | 3601119236 | Reference Plate |
| 99 | 3601119236 | Reference Plate |
