Bosch 180 WATT-SERIE

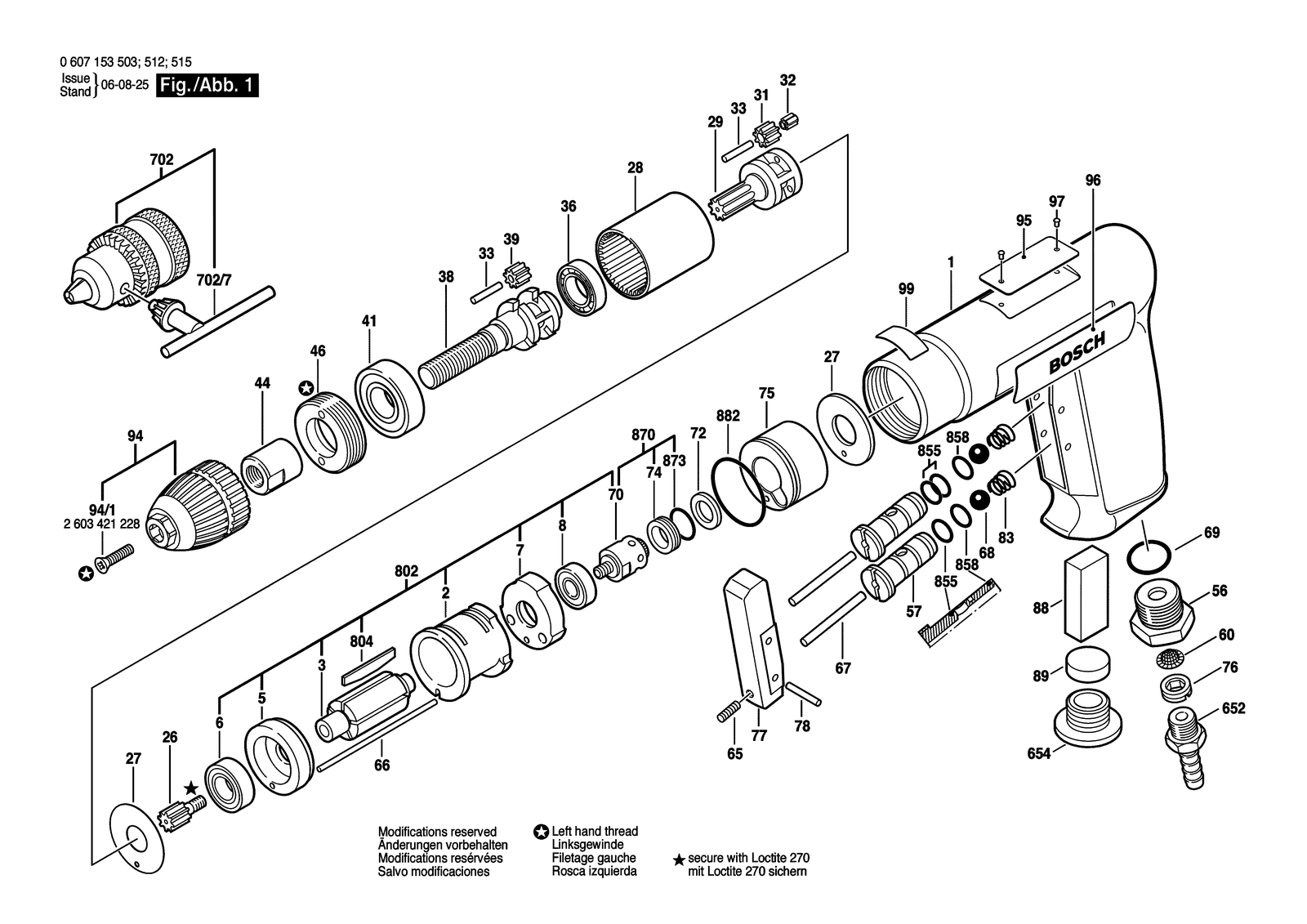

Bosch 180 WATT-SERIE pn-drill - (industr.): exploded parts diagram, 1 sheet, 55 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 180 WATT-SERIE: 55 positions on 1 sheet
Bosch 180 WATT-SERIE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108037 | Motor Housing |
| 2 | 3604090011 | Stator 180W |
| 26 | 3606300013 | Pinion |
| 27 | 3600101047 | Stop Disc |
| 28 | 3606334005 | Ring Gear Z=42 |
| 29 | 3606337057 | Planetary-Gear Carrier |
| 3 | 3604220009 | Rotor |
| 31 | 3606316093 | Cylindrical Gear Z=14 |
| 32 | 3600913000 | Needle-Roller Assembly Ina K3X5X7 |
| 33 | 3603201000 | Needle Roller |
| 36 | 3600905002 | Groove ball bearing 12X21X5 |
| 38 | 3606337018 | Planetary-Gear Carrier |
| 39 | 3606316114 | Cylindrical Gear |
| 41 | 3600905015 | Groove ball bearing |
| 44 | 3600390003 | Threaded Bushing |
| 46 | 3603344004 | Threaded Ring |
| 5 | 3605700015 | Bearing Flange |
| 56 | 3603458009 | Fitting |
| 57 | 3600364005 | Guide Sleeve |
| 6 | 2600905072 | Groove ball bearing 7X19X6 |
| 60 | 3600002001 | Strainer |
| 65 | 2912021052 | Set screw DIN 438-M3X10-5.8 |
| 652 | 3603386002 | Hose fitting |
| 654 | 3607000023 | Silencer |
| 66 | 3603201010 | Straight Pin |
| 67 | 3603201013 | Straight Pin |
| 68 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 69 | 1900210112 | O-Ring 15X2 MM |
| 7 | 3605700016 | Bearing Flange |
| 70 | 3607021007 | Centrifugal Governor |
| 702 | 1607000F3W | Key Chuck |
| 702/7 | 2607950007 | Chuck Wrench SG2 |
| 72 | 3600100012 | Stop Disc |
| 74 | 3600211001 | Retaining snap ring |
| 75 | 3600311002 | Guide Bushing |
| 76 | 3603344003 | Threaded Ring |
| 77 | 3602053002 | Control Lever |
| 78 | 2917610083 | Straight Pin 3M6X24 DIN en ISO 2338 |
| 8 | 1900905028 | Groove ball bearing 7X17X5 |
| 802 | 3607031044 | Assembly Of Service Parts |
| 804 | 3607030256 | Parts Set 5 Piece |
| 83 | 3604611006 | Compression Spring |
| 855 | 3607010000 | Parts Set 10 Piece |
| 858 | 3607010023 | Parts Set 10 Piece |
| 870 | 3607031038 | Assembly Of Service Parts |
| 873 | 3607010003 | O-Ring 10 Piece |
| 88 | 3601010004 | Silencer |
| 882 | 3607010006 | O-Ring 10 Piece |
| 89 | 3600009000 | Silencer |
| 94 | 2608572068 | Keyless Chuck Ø 1-10 MM,3/8" |
| 94/1 | 2609110721 | Countersunk-Head Screw M5X20 |
| 95 | 160111A3HF | Nameplate |
| 96 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 97 | 3603133000 | Grooved Nail |
| 99 | 3601119236 | Reference Plate |
