Bosch 1775 E
Bosch 1775 E grinder: exploded parts diagram, 2 sheets, 77 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

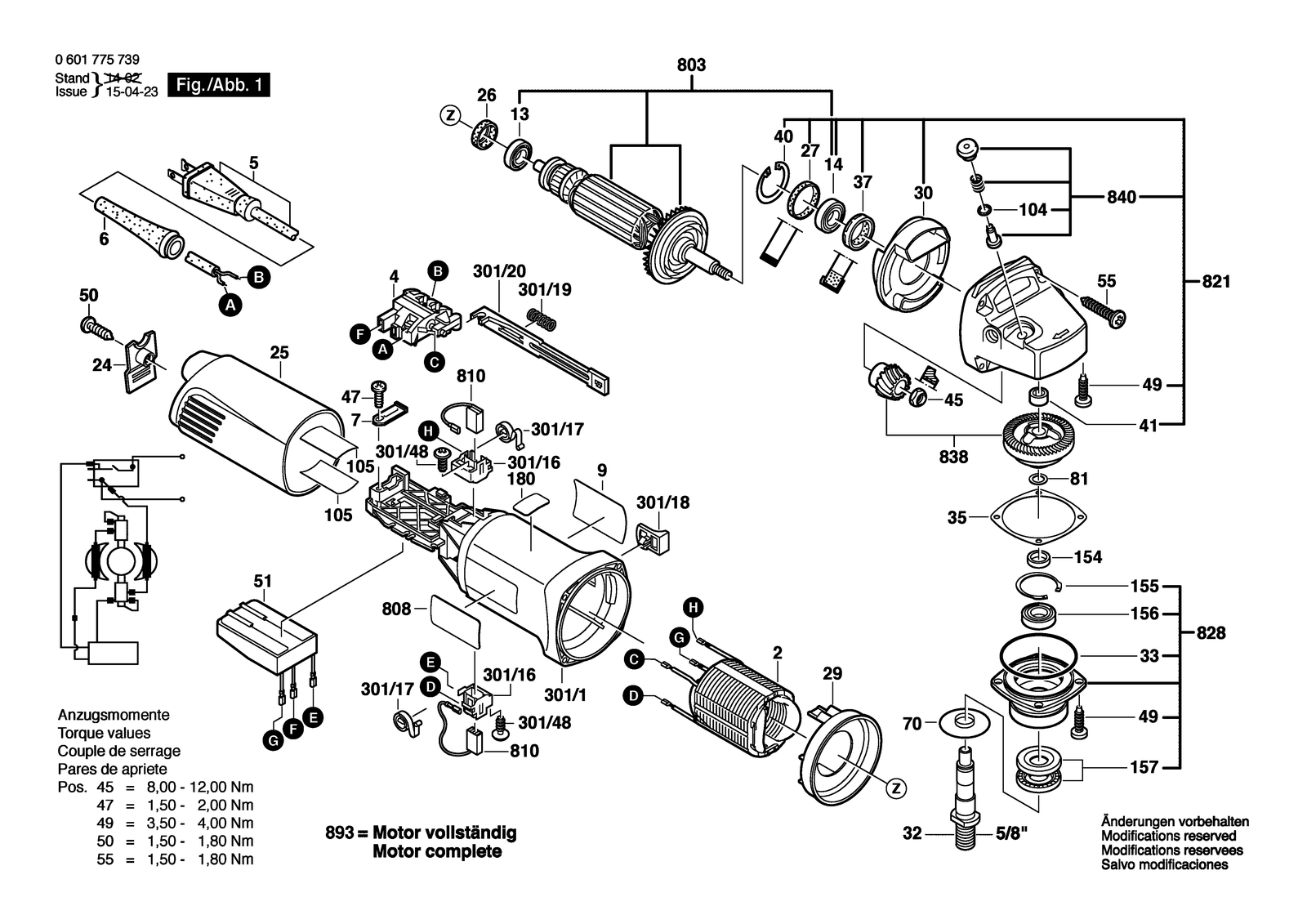

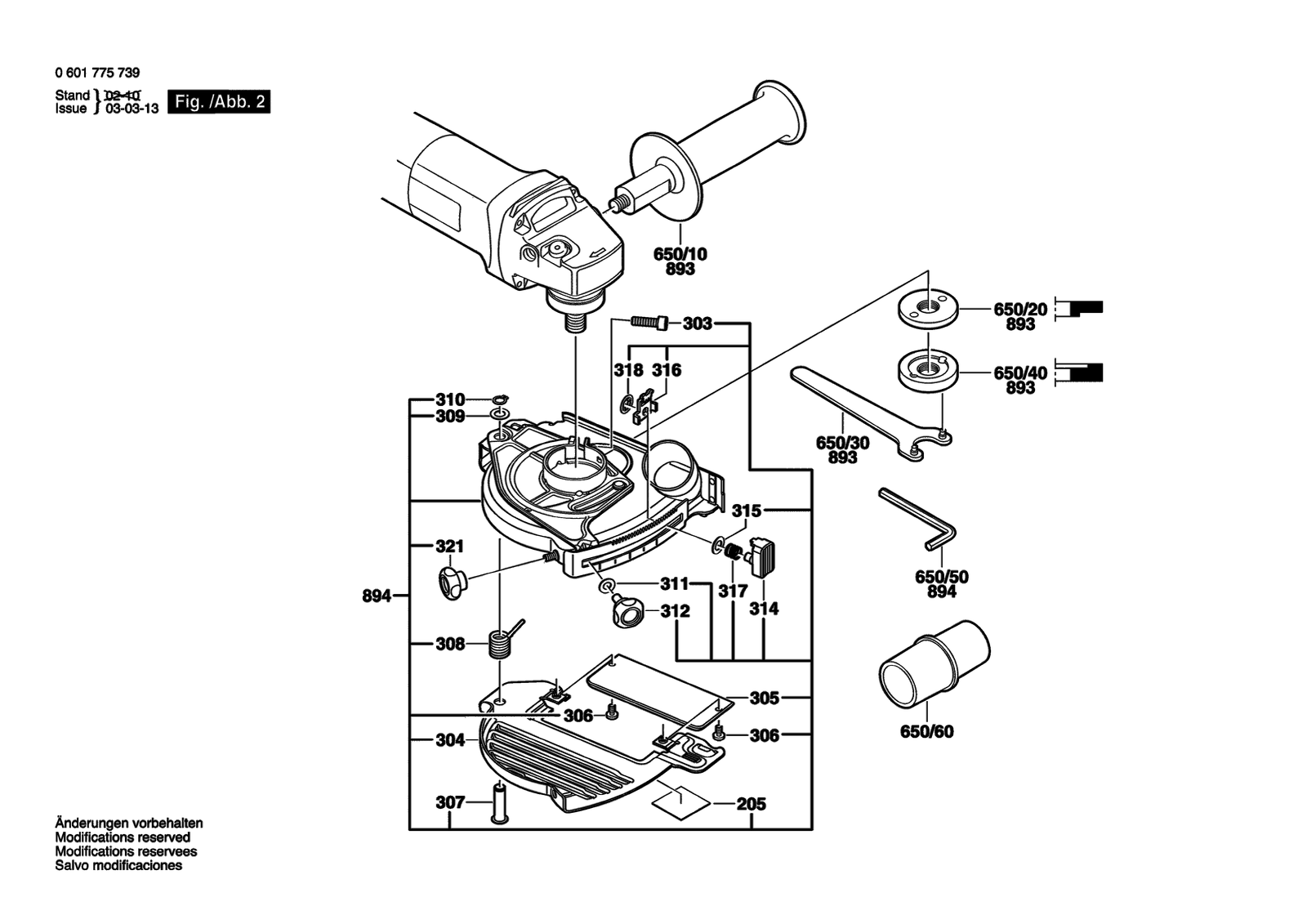

All parts of Bosch 1775 E: 77 positions on 2 sheets
Bosch 1775 E parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 105 | 1601008005 | Insulating Plate |
| 13 | 1610905025 | Groove ball bearing 7X19X6 |
| 14 | 1600905032 | Groove ball bearing 8X22X7 |
| 154 | 3600913010 | Distance Pipe |
| 155 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 156 | 160090003C | Groove ball bearing |
| 157 | 3600105009 | Seal Ring |
| 180 | 3601119288 | Warning Plate |
| 2 | 1604220311 | Field 100-120V |
| 205 | 3601119236 | Reference Plate |
| 24 | 1605500228 | Cover Blue |
| 25 | 1605500226 | Housing Cover Blue |
| 26 | 1600206036 | Rubber Ring |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1600591025 | Air-Deflector Ring |
| 30 | 1600591014 | Air-Deflector Ring |
| 301/1 | 1605108213 | Motor Housing Blue |
| 301/16 | 1601323025 | Brush Holder |
| 301/17 | 1604652013 | Spiral Spring |
| 301/18 | 1602026057 | Switch Handle Black |
| 301/19 | 1604611026 | Compression Spring |
| 301/20 | 1602319010 | Adjusting Slide Black |
| 301/48 | 2912401005 | Tapping Screw DIN7981-ST2,9X9,5C-Z |
| 303 | 2910141201 | Hex Socket Head Cap Screw DIN 912-M6X20-8.8 |
| 304 | 3605510047 | Cover |
| 305 | 3600150030 | Lens |
| 306 | 2914411412 | Thread-forming tap. Screw |
| 307 | 3600150032 | Bearing bolt |
| 308 | 3604611035 | Coiled Spring |
| 309 | 2916190019 | Shim ring |
| 310 | 2916649005 | Spring retaining ring DIN471-8 |
| 311 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 312 | 3603435030 | Tommy Screw M 6X13 |
| 314 | 3603239002 | Push-Button |
| 315 | 2916190019 | Shim ring |
| 316 | 3601023014 | Safety Catch |
| 317 | 3604611036 | Compression Spring |
| 318 | 3600240008 | Clamping Disc |
| 32 | 3603523045 | Grinding Spindle 5/8" |
| 321 | 3603435031 | Tommy Nut M5 |
| 33 | 3600210124 | O-Ring Red 46,0X1,1 MM |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 37 | 1600290016 | Rotary shaft lip seal |
| 4 | 1607200137 | Switch |
| 40 | 1600119011 | Retaining clip |
| 41 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 5 | 1604460138 | Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2 |
| 50 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 51 | 1607233118 | Speed governor 115-120V |
| 55 | 1603435078 | Torx Oval-Head Screw |
| 6 | 1600703031 | Grommet Ø7,3-Ø8,6X67 MM |
| 650/10 | 1602025027 | Auxiliary Handle M10 |
| 650/20 | 3603340501 | Clamping-Flange 5/8"-FL+B |
| 650/30 | 1607950052 | Pin-Type Face-Wrench |
| 650/40 | 3603340503 | Round Nut 5/8" |
| 650/50 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 650/60 | 2610907746 | Adapter |
| 7 | 1601302017 | Fastening Clamp |
| 70 | 3600150023 | Cover Disc |
| 803 | 3604010094 | Armature 120V |
| 808 | 3601119289 | Nameplate |
| 81 | 2600101022 | Shim 0,2 MM |
| 810 | 1607014176 | Carbon-Brush Set |
| 821 | 16058065B1 | Gear Housing |
| 828 | 3605805036 | Bearing Flange |
| 838 | 1607000D4Y | Gear Unit |
| 840 | 1607000253 | Push-Button Black |
| 893 | 0601775839 | Drive Unit |
| 894 | 3605510049 | Suction Hood |
| 9 | 3601119189 | Manufacturer's nameplate |
