Bosch 1772-6 angle grinder: exploded parts diagram, 3 sheets, 61 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1772-6: 61 positions on 3 sheets

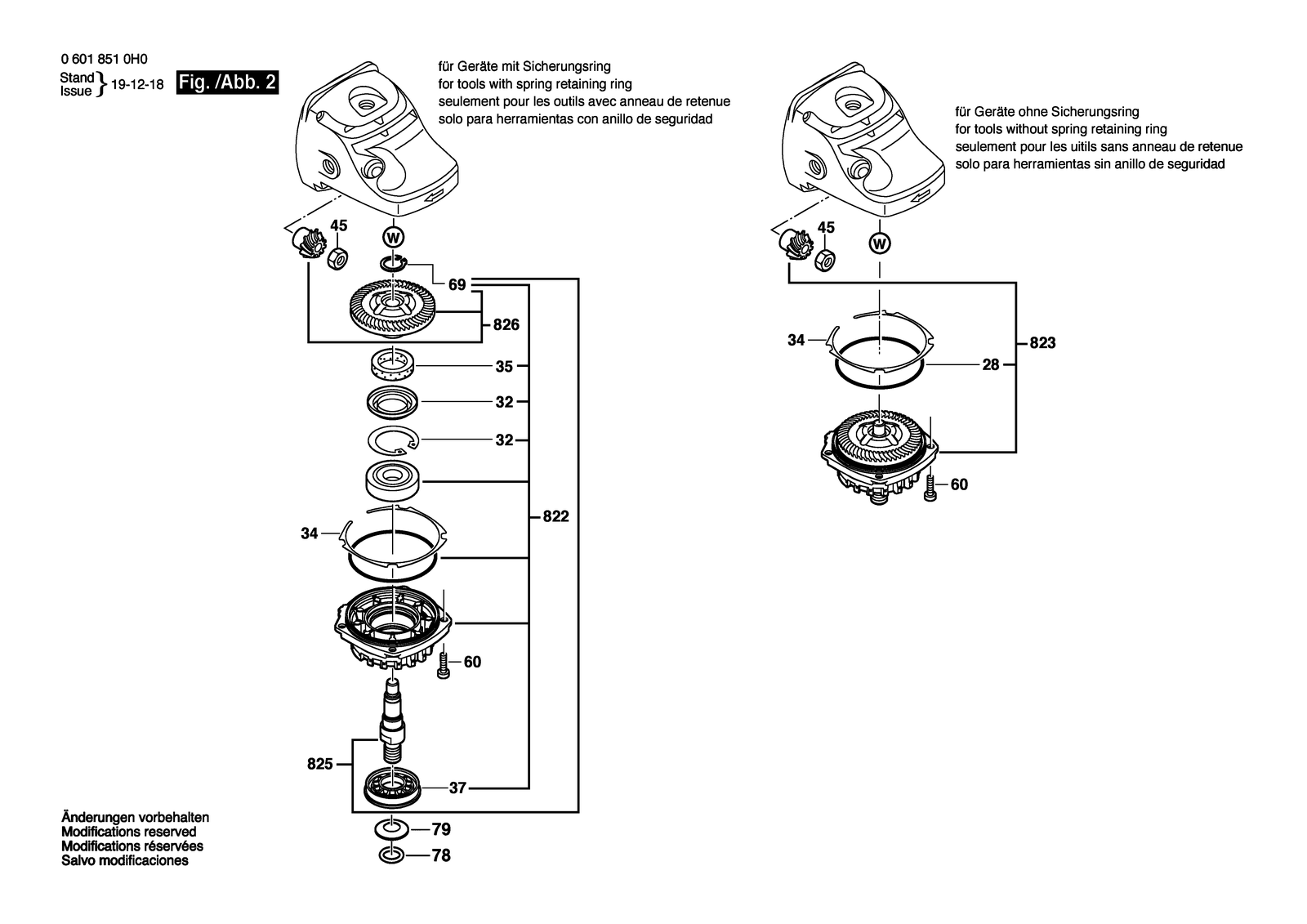

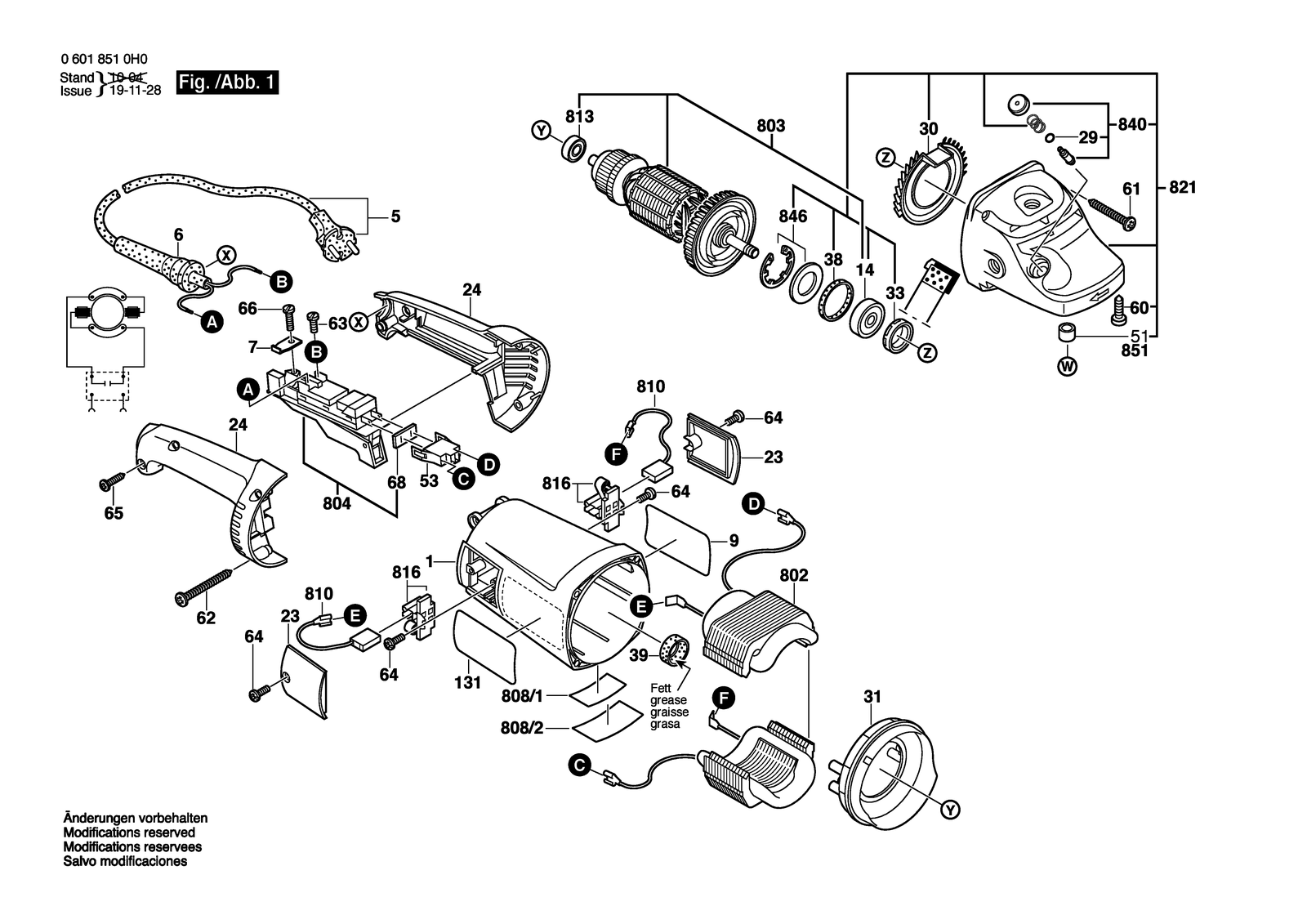

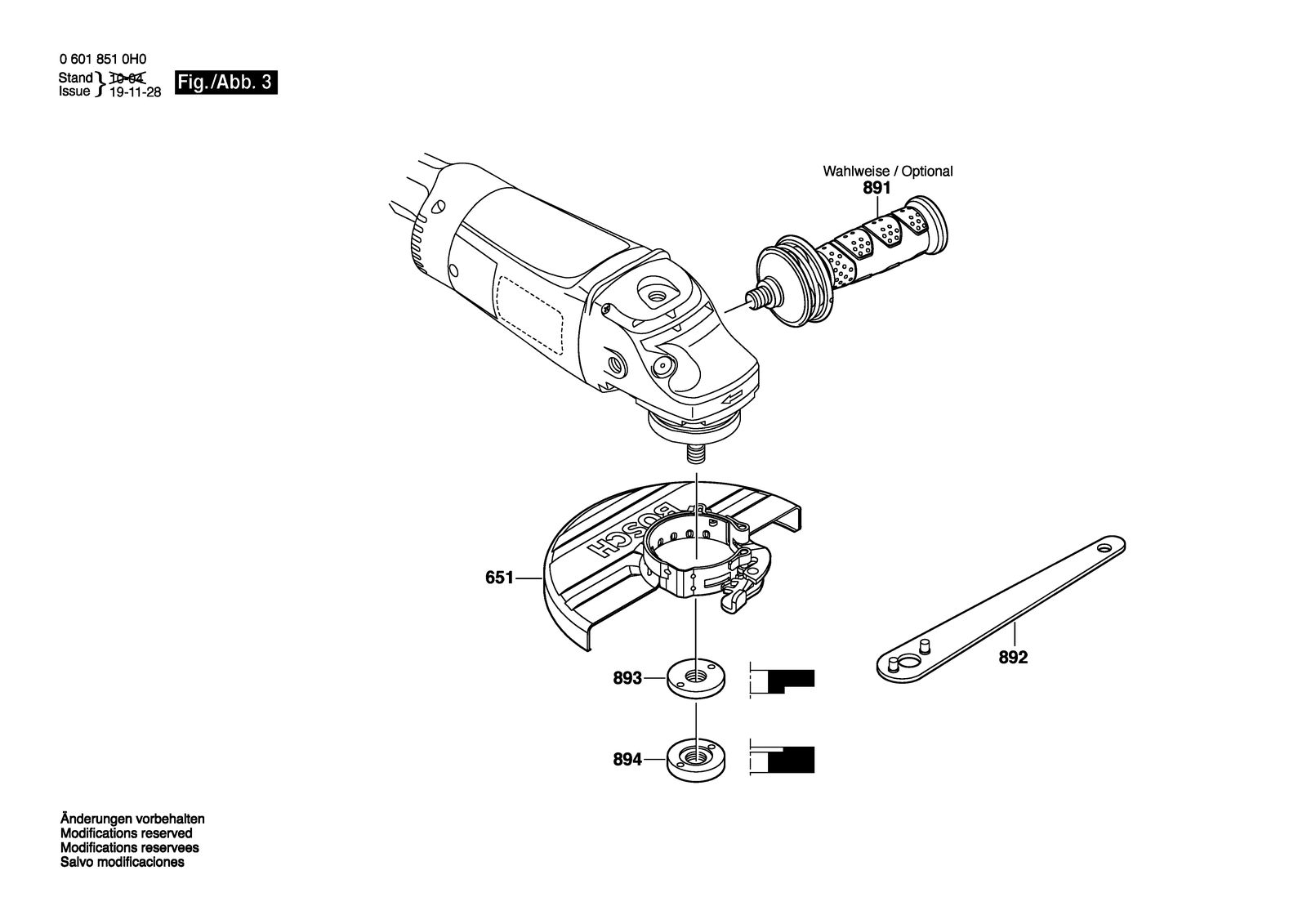

Bosch 1772-6 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108275 | Motor Housing |
| 131 | 1619P07341 | Reference Plate |
| 14 | 1600905028 | Groove ball bearing |
| 23 | 1619P14382 | Sealing cap |
| 24 | 1619P11545 | Handle |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 29 | 1600210045 | O-Ring 8,0X1,0 MM |
| 30 | 1600591029 | Air Distributor |
| 31 | 1600591075 | Air-Deflector Ring |
| 32 | 1600290019 | Retaining snap ring |
| 33 | 1600290013 | Rotary shaft lip seal Red 18,7 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190037 | Shim Thick 0,2 MM |
| 34 | 1600190038 | Shim Thick 0,25 MM |
| 34 | 1600190039 | Shim Thick 0,35 MM |
| 34 | 1600190040 | Shim Thick 0,4 MM |
| 35 | 1600205034 | Felt Washer |
| 37 | 1600290036 | Seal Ring Black |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 39 | 1600206030 | Rubber Ring |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 5 | 1604460133 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 51 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 53 | 1605190068 | Socket Housing |
| 6 | 1600703023 | Grommet Ø 10,5-Ø11,0X100 MM |
| 60 | 1603435023 | Thread-forming tap. Screw Tt M5X18 MM |
| 61 | 2912401038 | Tapping Screw DIN 7981-4,8X38-C-Z-ST |
| 62 | 1603435060 | Tapping Screw 4,8X55 |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 64 | 1603435042 | Plastic-Cutting Screw ST3,9X12 |
| 65 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 651 | 1605510410 | Protective Cover 7" |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 68 | 1601006011 | Sealing Plate |
| 69 | 2916650905 | Spring retaining ring |
| 7 | 1601302018 | Fastening Clamp |
| 78 | 1900210111 | O-Ring 12X3 MM |
| 79 | 1600A01KK9 | Locking washer |
| 802 | 160422057P | Field |
| 803 | 1604011178 | Armature 100-120V |
| 804 | 1607000704 | On-Off Switch |
| 808/1 | 1619P07027 | Nameplate |
| 808/2 | 1619P01490 | Transparent Cover |
| 810 | 1607014194 | Carbon-Brush Set |
| 813 | 1600905011 | Groove ball bearing 8X22X7 |
| 816 | 1604336048 | Brush Holder |
| 821 | 1607000C03 | Gear Housing |
| 822 | 1619P15389 | Bearing Flange |
| 823 | 1619P15687 | Bearing Flange Ø180 MM |
| 825 | 1619P15387 | Grinding Spindle |
| 826 | 1619P15388 | Bevel Gear Set Ø230 MM |
| 840 | 1607000354 | Push-Button |
| 846 | 1607000342 | Retaining Washer |
| 851 | 1600200031 | Plain bearing Ø14 MM |
| 891 | 1602025051 | Auxiliary Handle Black M14 |
| 892 | 1607950062 | Pin-Type Face-Wrench |
| 893 | 3603340501 | Clamping-Flange 5/8"-FL+B |
| 894 | 3603340503 | Round Nut 5/8" |
| 9 | 1601118F38 | Manufacturer's nameplate |
