Bosch 1752

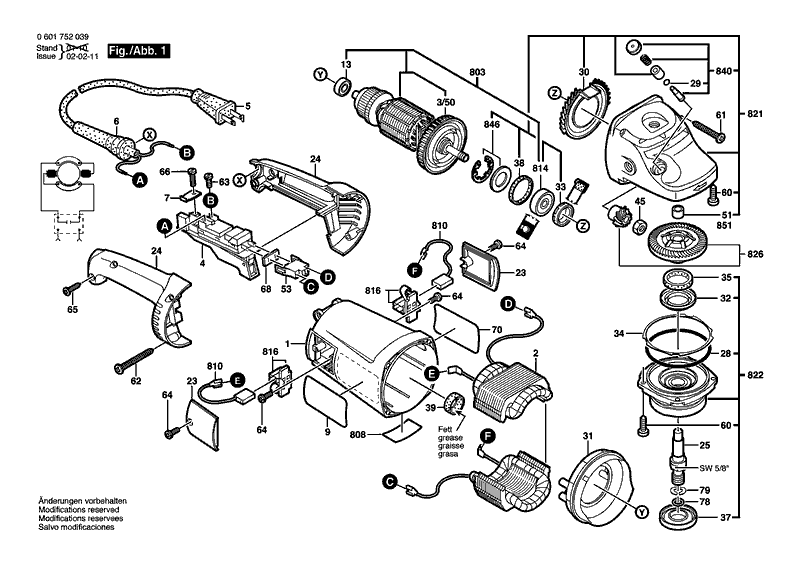

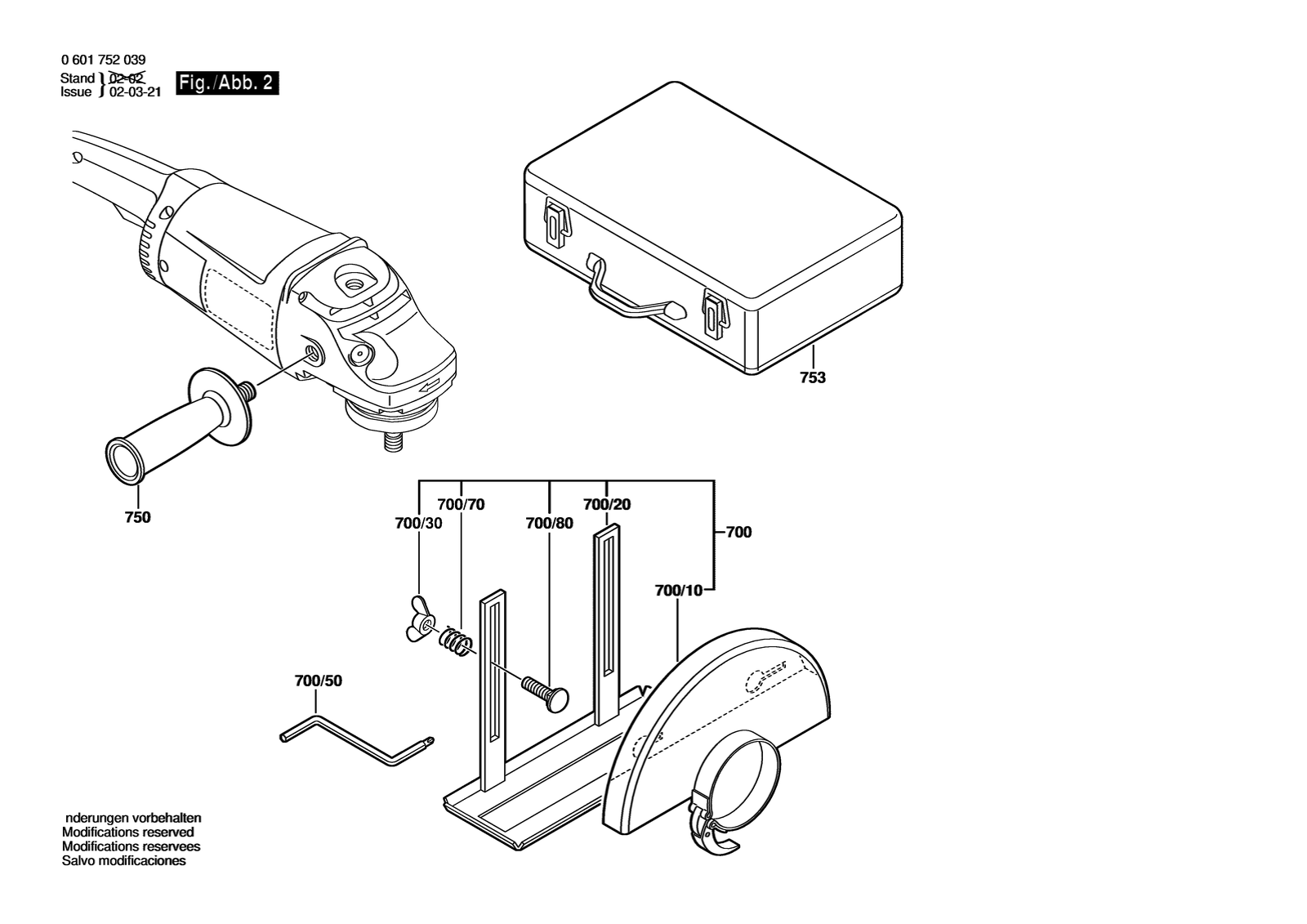

Bosch 1752 angle grinder: exploded parts diagram, 2 sheets, 60 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1752: 60 positions on 2 sheets
Bosch 1752 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108275 | Motor Housing |
| 13 | 1600905011 | Groove ball bearing 8X22X7 |
| 2 | 160422057P | Field |
| 23 | 1618B00802 | Sealing cap |
| 24 | 1619P11545 | Handle |
| 25 | 160312305Y | Grinding Spindle 5/8" |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 29 | 1600210034 | O-Ring 4,0X1,0 MM |
| 3/50 | 1600A00J93 | Fan |
| 30 | 1600591029 | Air Distributor |
| 31 | 1600591075 | Air-Deflector Ring |
| 32 | 1600290019 | Retaining snap ring |
| 33 | 1600290013 | Rotary shaft lip seal Red 18,7 MM |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 35 | 1600205034 | Felt Washer |
| 37 | 1600290036 | Seal Ring Black |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 39 | 1600206030 | Rubber Ring |
| 4 | 1607200147 | Switch |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 5 | 1604460133 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 53 | 1605190068 | Socket Housing |
| 6 | 1600703023 | Grommet Ø 10,5-Ø11,0X100 MM |
| 60 | 1603435023 | Thread-forming tap. Screw Tt M5X18 MM |
| 61 | 2912401038 | Tapping Screw DIN 7981-4,8X38-C-Z-ST |
| 62 | 1603435060 | Tapping Screw 4,8X55 |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 64 | 1603435042 | Plastic-Cutting Screw ST3,9X12 |
| 65 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 68 | 1601006011 | Sealing Plate |
| 7 | 1601302018 | Fastening Clamp |
| 70 | 2610994133 | Reference Plate |
| 700 | 1607000254 | Parts Set Ø230 MM |
| 700/10 | 1605510234 | Protective Cover Ø230 MM (9") |
| 700/20 | 1608135006 | Guide Block |
| 700/30 | 1605703103 | Clamping-Flange |
| 700/50 | 3607950013 | Offset Screwdriver 3/8", SW9 |
| 700/70 | 1605703104 | Conical Spring Washer |
| 700/80 | 1603340001 | Round Nut 5/8" |
| 750 | 2602025075 | Auxiliary Handle Black M14X1,5 MM |
| 753 | 1605438094 | Carrying Case |
| 78 | 1619P09476 | O-Ring |
| 79 | 1600A01KK9 | Locking washer |
| 803 | 1604011178 | Armature 100-120V |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1607014171 | Carbon-Brush Set |
| 814 | 1600905023 | Groove ball bearing 10X35X11 |
| 816 | 1604336048 | Brush Holder |
| 821 | 1607000968 | Gear Housing |
| 822 | 1607000985 | Bearing Flange Ø230 MM |
| 826 | 1607000384 | Bevel Gear Set |
| 840 | 1607000206 | Push-Button Black |
| 846 | 1607000C3E | Retaining Washer |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 9 | 2610994130 | Manufacturer's nameplate |
