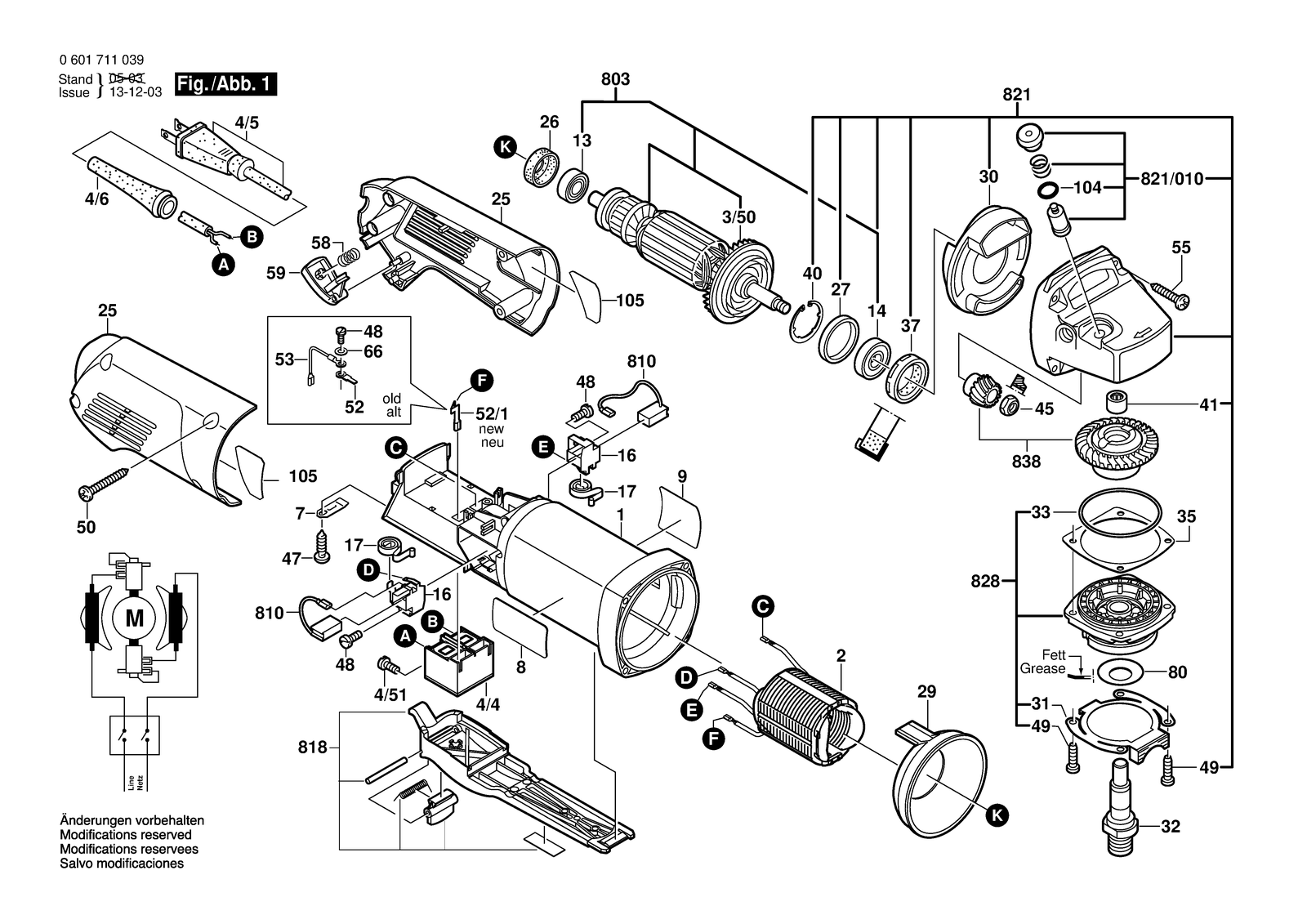

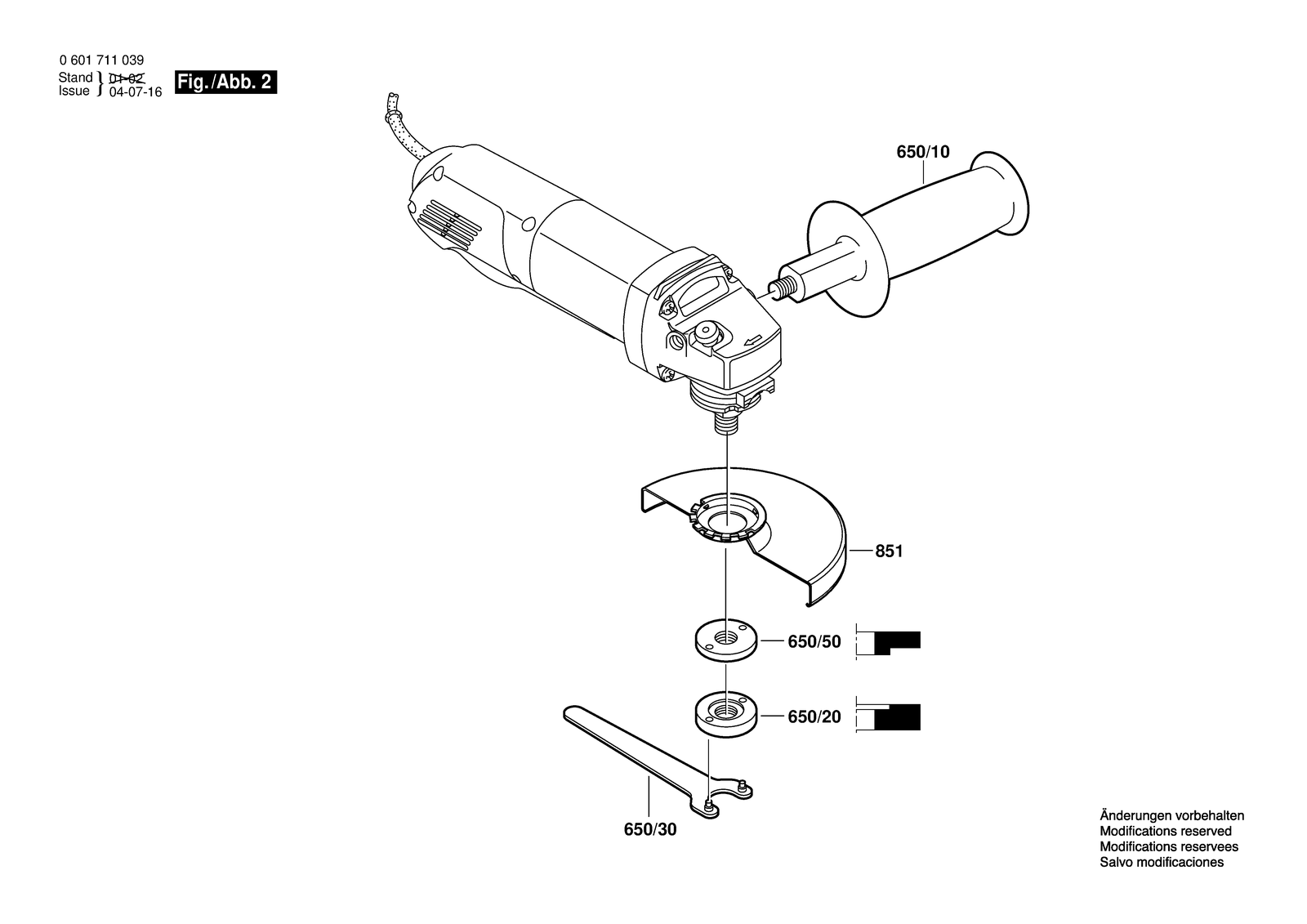

Bosch 1711 A angle grinder: exploded parts diagram, 2 sheets, 56 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1711 A: 56 positions on 2 sheets
Bosch 1711 A parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108221 | Motor Housing Blue |
| 104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 105 | 1601071000 | Insulating Plate |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1600905032 | Groove ball bearing 8X22X7 |
| 16 | 1601323023 | Brush Holder With Disconnecting Device |
| 17 | 1604652013 | Spiral Spring |
| 2 | 160422058C | Field |
| 25 | 1600508031 | Housing Cover Blue |
| 26 | 1600206036 | Rubber Ring |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1600591038 | Air-Deflector Ring |
| 3/50 | 1606610132 | Fan |
| 30 | 1600591014 | Air-Deflector Ring |
| 31 | 1601290007 | Clamping Spring |
| 32 | 1607000D6B | Grinding Spindle |
| 33 | 3600210124 | O-Ring Red 46,0X1,1 MM |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 37 | 1600290016 | Rotary shaft lip seal |
| 4/4 | 1607200155 | Switch |
| 4/5 | 2604460187 | Power supply cord Usa/cdn 2,68M 2 X 082MM SJ 18/2 |
| 4/51 | 1603415004 | Lens Head Screw |
| 4/6 | 1600703031 | Grommet Ø7,3-Ø8,6X67 MM |
| 40 | 1600119011 | Retaining clip |
| 41 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 2912401018 | Tapping Screw DIN7981-ST3,9X13-C-Z |
| 48 | 2912401005 | Tapping Screw DIN7981-ST2,9X9,5C-Z |
| 49 | 1603435026 | Thread-forming tap. Screw |
| 50 | 1603435051 | Tapping Screw Silver ST3,9X32 |
| 52 | 1601355003 | Blade terminal |
| 52/1 | 1604478015 | Connection Part |
| 53 | 1604448017 | Connecting Cable |
| 55 | 1603415005 | Oval-Head Screw |
| 58 | 1604617012 | Compression Spring |
| 59 | 1602026072 | Switch Button Red |
| 650/10 | 1602025027 | Auxiliary Handle M10 |
| 650/20 | 3603340501 | Clamping-Flange 5/8"-FL+B |
| 650/30 | 1607950052 | Pin-Type Face-Wrench |
| 650/50 | 3603340503 | Round Nut 5/8" |
| 66 | 1600550010 | Disc Spring |
| 7 | 1601302017 | Fastening Clamp |
| 8 | 1601118E88 | Nameplate |
| 80 | 1619P09390 | Cover Disc |
| 803 | 1604010661 | Armature With Fan 110-120V |
| 810 | 1607014176 | Carbon-Brush Set |
| 818 | 1607000729 | Switch-Pawl Black |
| 821 | 1605806504 | Gear Housing |
| 821/010 | 1607000253 | Push-Button Black |
| 828 | 1605805079 | Bearing Flange Black |
| 838 | 1607000D4Y | Gear Unit |
| 851 | 1605510359 | Protective Cover Ø 125 MM |
| 9 | 1601118C43 | Manufacturer's nameplate |
