Bosch 1706 EVS
Bosch 1706 EVS angle grinder: exploded parts diagram, 2 sheets, 54 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

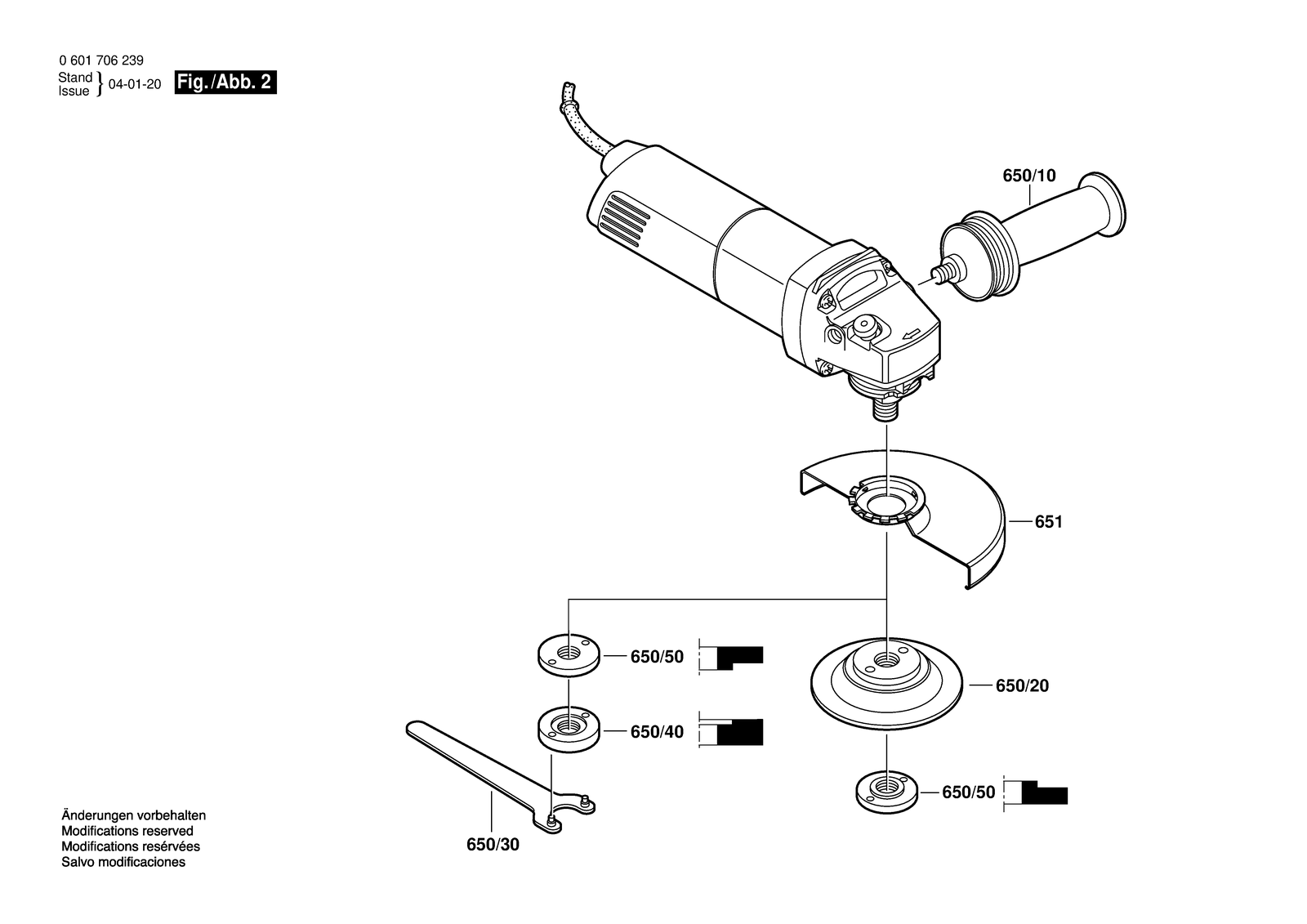

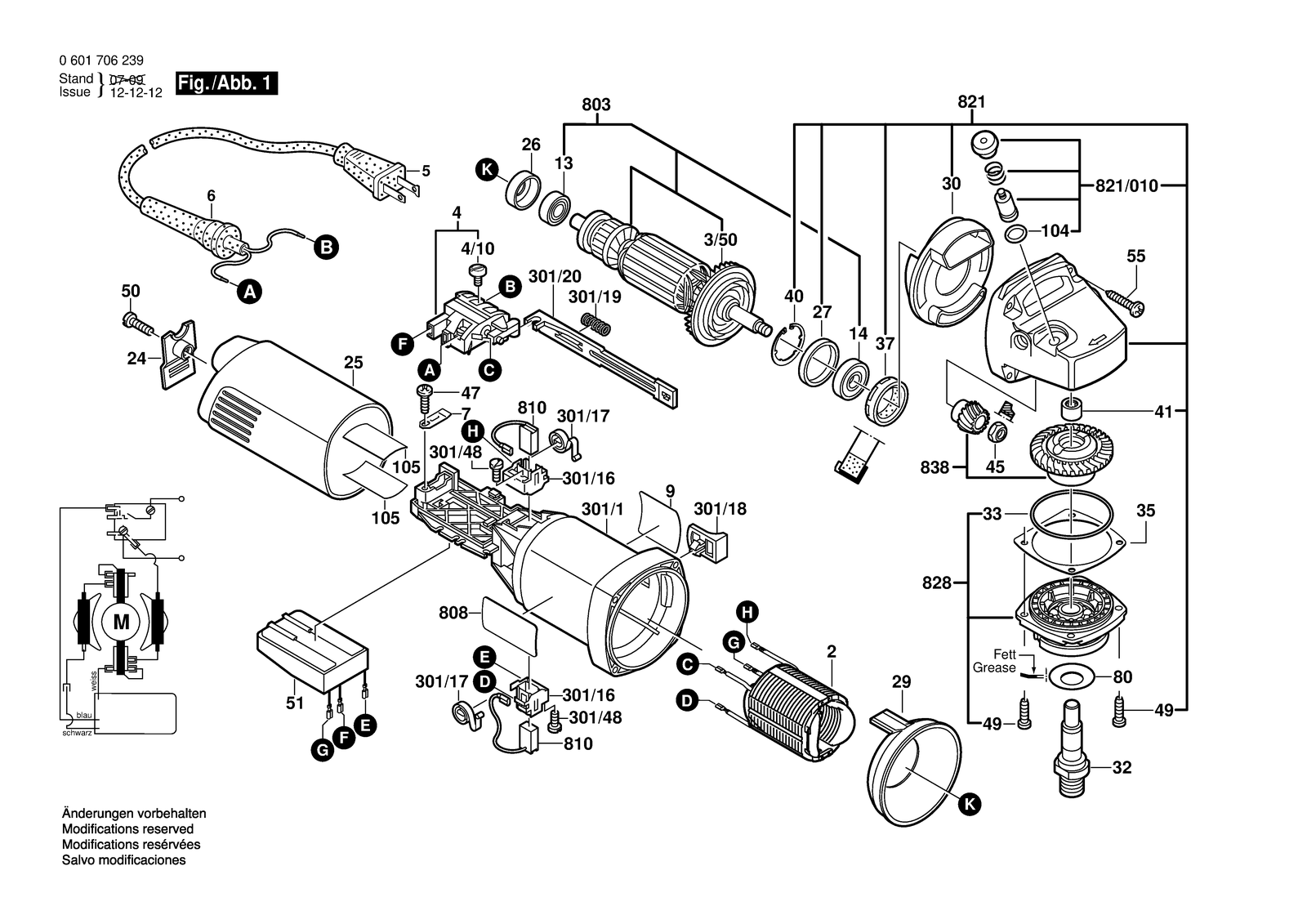

All parts of Bosch 1706 EVS: 54 positions on 2 sheets
Bosch 1706 EVS parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 105 | 1601008005 | Insulating Plate |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1600905032 | Groove ball bearing 8X22X7 |
| 2 | 1604220307 | Field 100-120V |
| 24 | 1605500228 | Cover Blue |
| 25 | 1605500226 | Housing Cover Blue |
| 26 | 1600206036 | Rubber Ring |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1600591025 | Air-Deflector Ring |
| 3/50 | 1606610132 | Fan |
| 30 | 1600591014 | Air-Deflector Ring |
| 301/1 | 1605108208 | Motor Housing Blue |
| 301/16 | 1601323025 | Brush Holder |
| 301/17 | 1604652013 | Spiral Spring |
| 301/18 | 1602026057 | Switch Handle Black |
| 301/19 | 1604611026 | Compression Spring |
| 301/20 | 1602319011 | Adjusting Slide |
| 301/48 | 2912401005 | Tapping Screw DIN7981-ST2,9X9,5C-Z |
| 32 | 1607000D6B | Grinding Spindle |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 37 | 1600290016 | Rotary shaft lip seal |
| 4 | 1607200137 | Switch |
| 4/10 | 2910110048 | Pan head screw DIN 85-AM3X6-CUZN |
| 40 | 1600119011 | Retaining clip |
| 41 | 1600200029 | Plain bearing |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 2912401018 | Tapping Screw DIN7981-ST3,9X13-C-Z |
| 49 | 1603435026 | Thread-forming tap. Screw |
| 5 | 2604460188 | Power supply cord Usa/cdn 2,68M 2 X 0,82MM SJ 18/2 |
| 50 | 2912401420 | Tapping Screw DIN7981-ST3,9X19-F-Z |
| 51 | 1607233108 | Speed governor 110-120V |
| 55 | 1603415005 | Oval-Head Screw |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 650/10 | 16020250A0 | Auxiliary Handle |
| 650/20 | 1605703127 | Clamping-Flange 5/8"-FL |
| 650/30 | 1607950052 | Pin-Type Face-Wrench |
| 650/40 | 3603340503 | Round Nut 5/8" |
| 650/50 | 3603340501 | Clamping-Flange 5/8"-FL+B |
| 651 | 1605510363 | Protective Cover Ø 150 MM |
| 7 | 1601302017 | Fastening Clamp |
| 80 | 1619P09390 | Cover Disc |
| 803 | 1604010656 | Armature With Fan 100-120V |
| 808 | 1601118F72 | Nameplate |
| 810 | 1607014173 | Carbon-Brush Set |
| 821 | 1605806451 | Gear Housing |
| 821/010 | 1607000253 | Push-Button Black |
| 828 | 1607000348 | Bearing Flange Ø 150 MM |
| 838 | 1607000D4Z | Gear Unit |
| 9 | 1601118C77 | Manufacturer's nameplate |
