Bosch 170 WATT-SERIE

Bosch 170 WATT-SERIE random orbital sander: exploded parts diagram, 1 sheet, 50 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 170 WATT-SERIE: 50 positions on 1 sheet

Bosch 170 WATT-SERIE parts list (1 sheet)

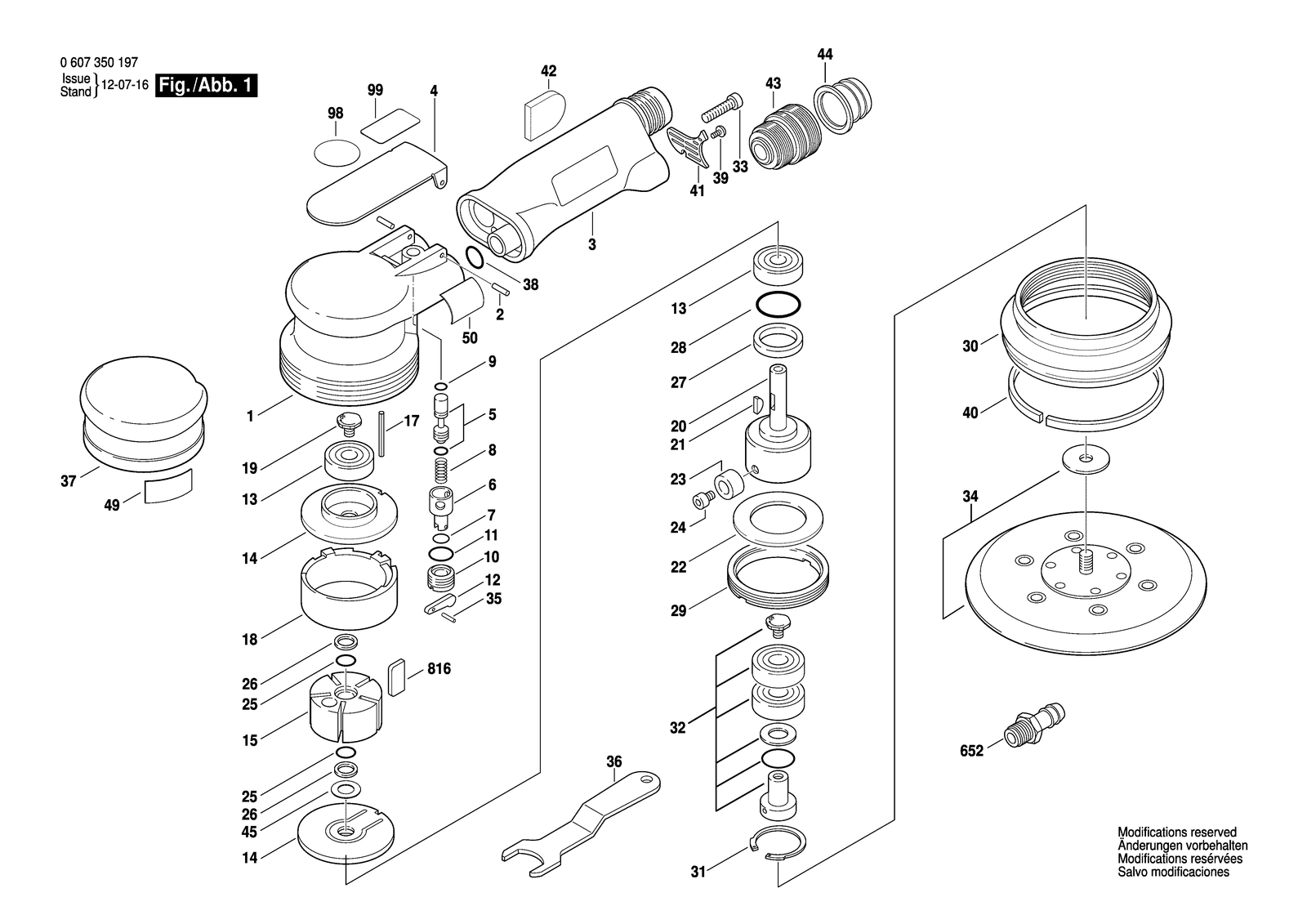

Bosch 170 WATT-SERIE parts diagram, sheet 1
No.Part numberPart name
13609202433Housing
103609202444Nut
113609202445O-Ring
123609202446Regulator
133609202447Groove ball bearing 10X30X9
143609202448Bearing Flange
153609202449Rotor
173609202451Straight Pin
183609202452Cylinder
193609202453Screw
23609202435Slotted Spring Pin
203609202454Spindle
213609202456Wedge
223609202457Shim washer
233609202459Counter Weight
243609202461Screw
253609202462O-Ring
263609202463Plain Washer
273609202464O-Ring
283609202465Shim washer
293609202466Threaded Ring
33609202805Handle
303609202467Cover
313609202469Spring retaining ring
323609202471Spindle
333609202472Screw
343609202475Backing Pad
353609202476Slotted Spring Pin
363609202800Single-Head Eng. Wrench
373609202480Protective Cap
383609202489Hose Clamp
393609202500Hose
43609202438On-Off Switch
403609202485Felt Washer
413609202502Deflector
423609202803Damper
433609202806Fitting
443609202807Hose fitting
453609202804Shim washer
493609202657Manufacturer's nameplate
53609202439Tappet
503609202667Nameplate
63609202440Valve Bushing
6523609202661Hose fitting
73609202441O-Ring
83609202442Compression Spring
8163609202A03Set Of Clutch Plates
93609202443O-Ring
983601119282Reference Plate
993601119236Reference Plate
