Bosch 1664

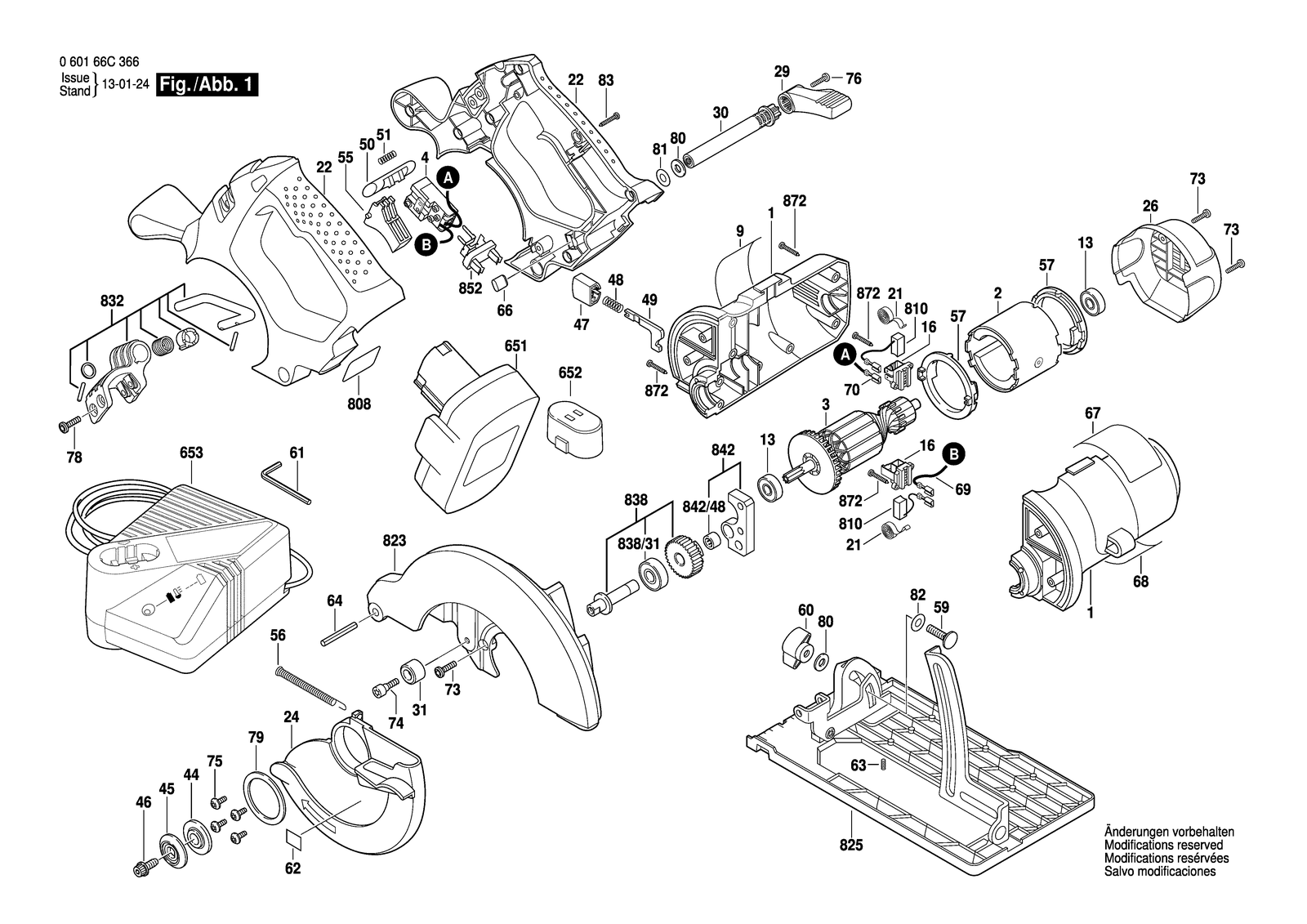

Bosch 1664 cordless circular saw: exploded parts diagram, 1 sheet, 60 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1664: 60 positions on 1 sheet
Bosch 1664 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610930648 | Motor Housing Blue |
| 13 | 2610351861 | Ball Bearing |
| 16 | 2610934990 | Brush Holder |
| 2 | 2610942109 | Pole housing 14;4-24V |
| 21 | 1619P14306 | Spiral Spring |
| 22 | 2610930649 | Handle |
| 24 | 2610930652 | Lower guard Black |
| 26 | 2610930667 | End cap Black |
| 29 | 2610935249 | Adjusting Lever |
| 3 | 2610941225 | Armature 7/35 DC 18V Right Rotation |
| 30 | 2610935248 | Adjustment rod |
| 31 | 1619P01532 | End stop |
| 4 | 2610936578 | Switch |
| 44 | 2610997473 | Inner Disc |
| 45 | 2610940969 | Special Washer |
| 46 | 2610935247 | Flange Bolt |
| 47 | 2610935245 | Push-Button |
| 48 | 2610936576 | Compression Spring |
| 49 | 2610935246 | Locking Pin |
| 50 | 2610935250 | Slide Button |
| 51 | 2610935251 | Compression Spring |
| 55 | 2610936570 | Trigger |
| 56 | 2610947075 | Extension Spring |
| 57 | 2610942931 | Locating Ring |
| 59 | 2910281203 | Round-Head Bolt DIN 603-M6X25 |
| 60 | 2610936575 | Knob Black |
| 61 | 2610937464 | Hexagon Socket Wrench |
| 62 | 2610997925 | Warning Plate |
| 63 | 2610001398 | Adjusting Screw |
| 64 | 2917761253 | Slotted Spring Pin ISO 8752-6X36-A-ST |
| 651 | 2607335717 | Accumulator package 18V,2,4AH, Hd |
| 652 | 2609100101 | Protective Cap |
| 653 | 2607225033 | Fast Charger USA 120/7,2-24V, 30 Min. |
| 66 | 2610937452 | Set ring |
| 67 | 2610936573 | Warning Label |
| 68 | 2610936574 | Warning Label |
| 69 | 2610937453 | Cable |
| 70 | 2610937454 | Cable |
| 73 | 2603490022 | Screw 4X16 |
| 74 | 2610937508 | Shoulder Screw |
| 75 | 2914201503 | Oval-Head Screw A 4X12-10,9-D |
| 76 | 2610937450 | Hex Socket Head Cap Screw |
| 78 | 2610937451 | Raised ctsk Tapping Screw |
| 79 | 2610386556 | Washer |
| 80 | 2916011111 | Plain Washer |
| 808 | 2610941224 | Nameplate |
| 81 | 2916190012 | Shim ring DIN 988-6X12X0,5 |
| 810 | 2610943623 | Carbon-Brush Set |
| 82 | 2610945804 | Washer |
| 823 | 2610941037 | Protective Cover |
| 825 | 2610941038 | Base Plate |
| 83 | 2610315386 | Screw ST3,9X19 |
| 832 | 2610941039 | Hook Mounting |
| 838 | 2610000765 | Spindle Assembly |
| 838/31 | 1900905173 | Groove ball bearing 6000-2RS DIN 625 |
| 842 | 2610997509 | Pivot Plate |
| 842/48 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 852 | 2610941040 | Battery Contact |
| 872 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 9 | 2610936568 | Warning Label |
