Bosch 1661

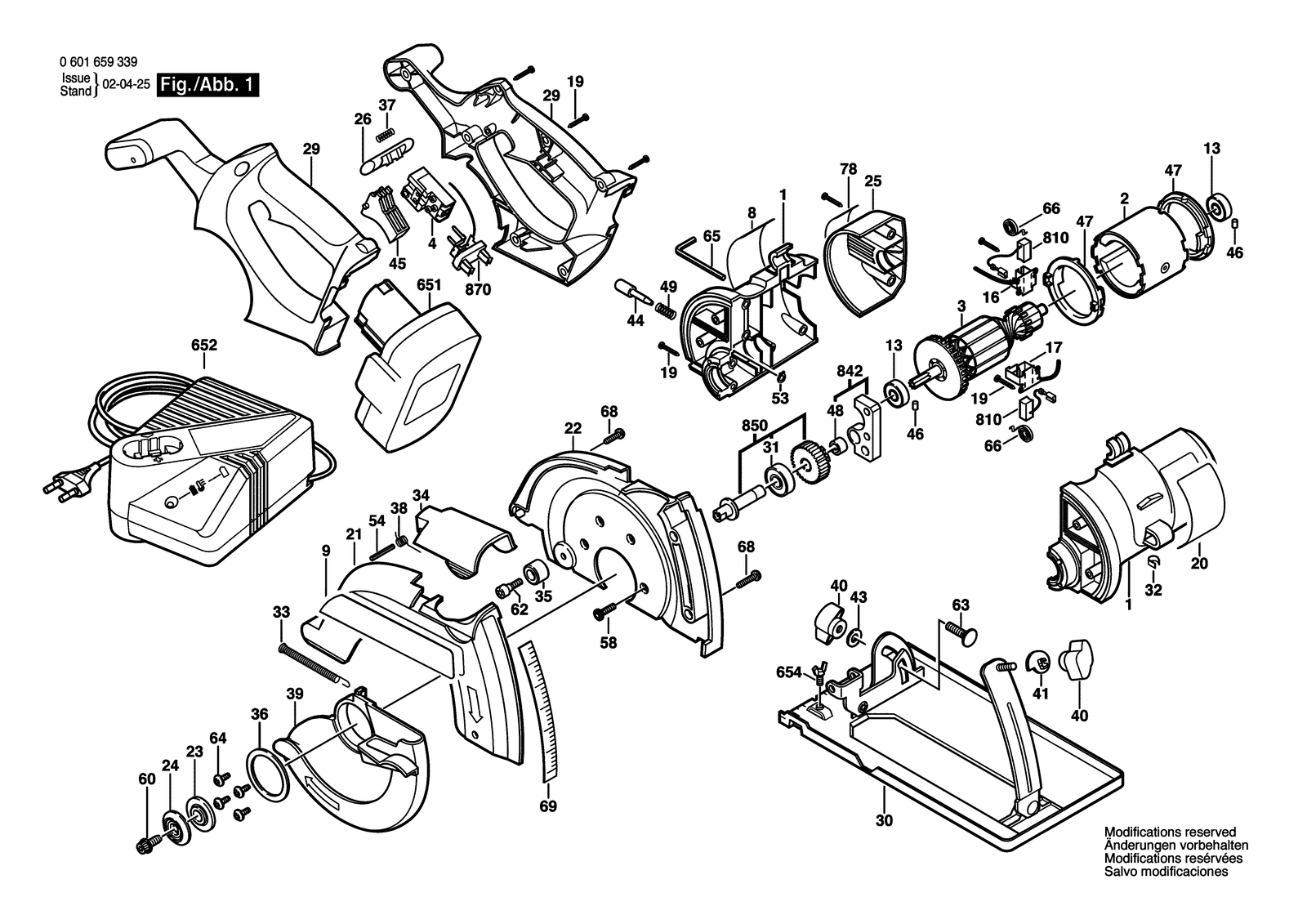

Bosch 1661 accu-portab circular saw: exploded parts diagram, 1 sheet, 112 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1661: 112 positions on 1 sheet
Bosch 1661 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610997458 | Motor Housing |
| 1 | 2610997458 | Motor Housing |
| 13 | 2610351861 | Ball Bearing |
| 13 | 2610351861 | Ball Bearing |
| 16 | 2610997519 | Brush Holder |
| 16 | 2610997519 | Brush Holder |
| 17 | 2610997518 | Brush Holder |
| 17 | 2610997518 | Brush Holder |
| 19 | 2610909719 | Screw Black |
| 19 | 2610909719 | Screw Black |
| 2 | 2610942109 | Pole housing 14;4-24V |
| 2 | 2610942109 | Pole housing 14;4-24V |
| 20 | 2610997933 | Warning Label |
| 20 | 2610997935 | Spring Clip |
| 21 | 2610997497 | Protection cover |
| 21 | 2610997497 | Protection cover |
| 22 | 2610997495 | Safety Cover |
| 22 | 2610997495 | Safety Cover |
| 23 | 2610997474 | Special Washer |
| 23 | 2610997474 | Special Washer |
| 24 | 2610997472 | Washer |
| 24 | 2610997472 | Washer |
| 25 | 2610997459 | End cap |
| 25 | 2610997459 | End cap |
| 26 | 2610997470 | Switch Button |
| 26 | 2610997470 | Switch Button |
| 29 | 2610997545 | Set Of Handles |
| 29 | 2610997927 | Dummy |
| 3 | 2610997547 | Armature |
| 3 | 2610909087 | Dummy 120V |
| 30 | 2610997903 | Base Plate |
| 30 | 2610997903 | Base Plate |
| 31 | 2610904891 | Ball Bearing |
| 31 | 2610904891 | Ball Bearing |
| 32 | 2610997508 | Spring |
| 32 | 2610997508 | Spring |
| 33 | 2610997489 | Extension Spring |
| 33 | 2610997489 | Extension Spring |
| 34 | 2610997501 | Dust Cap |
| 34 | 2610997501 | Dust Cap |
| 35 | 1619P01532 | End stop |
| 35 | 1619P01532 | End stop |
| 36 | 2610386556 | Washer |
| 36 | 2610386556 | Washer |
| 37 | 1619P01530 | Compression Spring |
| 37 | 1619P01530 | Compression Spring |
| 38 | 2610997507 | Compression Spring |
| 38 | 2610997507 | Compression Spring |
| 39 | 2610997499 | Pivoting Blade Guard |
| 39 | 2610997499 | Pivoting Blade Guard |
| 4 | 2610997469 | On-Off Switch |
| 4 | 2610997469 | On-Off Switch |
| 40 | 2610917567 | Knob |
| 40 | 2610917567 | Knob |
| 41 | 2610997457 | Depth-Gauge |
| 41 | 2610997457 | Depth-Gauge |
| 43 | 1619P01535 | Washer |
| 43 | 1619P01535 | Washer |
| 44 | 2610997464 | Locking Pin |
| 44 | 2610997464 | Locking Pin |
| 45 | 2610997461 | Trigger |
| 45 | 2610997461 | Trigger |
| 46 | 2610350103 | Pin |
| 46 | 2610350103 | Pin |
| 47 | 1610290043 | Locating Ring |
| 47 | 1610290043 | Locating Ring |
| 48 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 48 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 49 | 1619P01531 | Spring |
| 49 | 1619P01531 | Spring |
| 53 | 2610908255 | Retaining snap ring |
| 53 | 2610021862 | Retaining snap ring |
| 54 | 2610015968 | Roller Pin |
| 54 | 2610015968 | Roller Pin |
| 58 | 1619X00504 | Screw |
| 58 | 1619X00504 | Screw |
| 60 | 2610997475 | Flange Bolt |
| 60 | 2610997475 | Flange Bolt |
| 62 | 1619P01538 | Screw |
| 62 | 1619P01538 | Screw |
| 63 | 2610017262 | Round-Head Bolt |
| 63 | 2610017262 | Round-Head Bolt |
| 64 | 2610907295 | Screw |
| 64 | 2610907295 | Screw |
| 65 | 1619P01540 | Hexagon Socket Wrench |
| 65 | 1619P01540 | Hexagon Socket Wrench |
| 651 | 2607335671 | Accumulator package 18V/2,0 Ah , Nicd, Hd |
| 651 | 2607335669 | Accumulator package 14,4V,2.0AH,NICD |
| 652 | 2607225033 | Fast Charger USA 120/7,2-24V, 30 Min. |
| 652 | 2607225033 | Fast Charger USA 120/7,2-24V, 30 Min. |
| 654 | 2610018222 | Screw |
| 654 | 2610018222 | Screw |
| 66 | 1619P14306 | Spiral Spring |
| 66 | 1619P14306 | Spiral Spring |
| 68 | 1619P01491 | Screw |
| 68 | 1619P01491 | Screw |
| 69 | 2610997934 | Warning Label |
| 69 | 2610997934 | Warning Label |
| 78 | 2610997925 | Warning Plate |
| 78 | 2610997925 | Warning Plate |
| 8 | 2610997904 | Nameplate |
| 8 | 2610997929 | Tube |
| 810 | 1617014131 | Carbon-Brush Set |
| 810 | 1617014131 | Carbon-Brush Set |
| 842 | 2610997509 | Pivot Plate |
| 842 | 2610997509 | Pivot Plate |
| 850 | 2610912428 | Spindle |
| 850 | 2610912428 | Spindle |
| 870 | 2610997911 | Pickup Clip |
| 870 | 2610997911 | Pickup Clip |
| 9 | 2610997905 | Label |
| 9 | 2610997930 | Sleeve |
