Bosch 1654

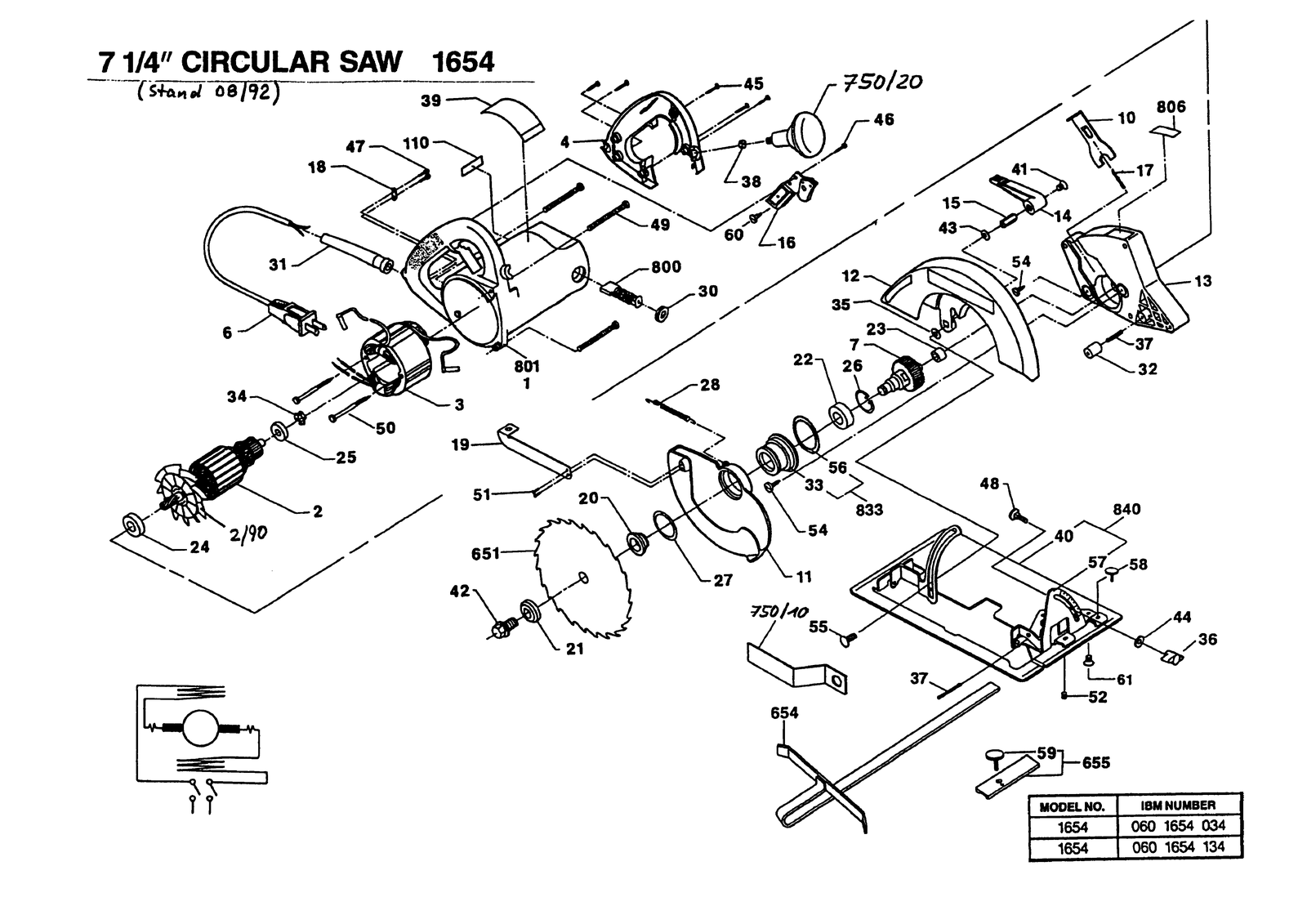

Bosch 1654 dummy forbidden: exploded parts diagram, 1 sheet, 70 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1654: 70 positions on 1 sheet
Bosch 1654 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108531 | Motor Housing |
| 10 | 3601961501 | Locking Device |
| 11 | 3605500591 | Pivoting Blade Guard |
| 13 | 3605806518 | Gear Housing |
| 14 | 3602000507 | Locking Lever |
| 15 | 3603300500 | Intermediate Piece |
| 17 | 3604613504 | Extension Spring |
| 18 | 3601032500 | Fastening Clamp |
| 19 | 3601923507 | Protecting Cover |
| 2 | 3604011554 | Armature 115V |
| 2/90 | 3606610515 | Fan |
| 20 | 3600101508 | Conical Spring Washer |
| 21 | 3600144500 | Conical Spring Washer |
| 22 | 3600900521 | Groove ball bearing |
| 23 | 3600910502 | Needle-Roller Bearing |
| 24 | 3600900520 | Groove ball bearing |
| 25 | 2610904891 | Ball Bearing |
| 26 | 3600119505 | Retaining snap ring |
| 27 | 3600119506 | Spring retaining ring |
| 28 | 3604648504 | Extension Spring |
| 3 | 3604220541 | Field 115V |
| 30 | 2610994437 | Screw Cap |
| 31 | 3600707503 | Grommet Ø 9,4 MM |
| 32 | 3600305501 | Stop Bushing |
| 34 | 3600150503 | Locating Washer |
| 35 | 3600102503 | Handle |
| 36 | 1603339006 | Wing Nut M6 |
| 37 | 2917765106 | Slotted Spring Pin DIN 1481-4X32 |
| 38 | 2915011065 | Hex Nut DIN 934-M8-M-8 |
| 39 | 3601119615 | Reference Plate |
| 39 | 3601119644 | Reference Plate |
| 4 | 3605133507 | Handle Cover |
| 4 | 3605133516 | Handle Cover Blue |
| 41 | 2910141197 | Hex Socket Head Cap Screw DIN 912-M6X16-8.8 |
| 42 | 3603450502 | Hex Screw |
| 43 | 2916201004 | Plain Washer DIN-6,4-ST |
| 44 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 45 | 2910211229 | Tapping Screw DIN 7971-BZ4,2X25 |
| 45 | 2910611029 | Tapping Screw DIN 7971-BZ4,2X25 |
| 46 | 2910211024 | Tapping Screw DIN 7971-BZ 4,2X9,5 |
| 46 | 2910611424 | Tapping Screw DIN 7981-ST4,2X9,5-F-H |
| 47 | 2910211212 | Tapping Screw DIN 7971-B3,5X16-A2 |
| 47 | 2910611012 | Tapping Screw DIN 7981-ST3,5X16-C-H |
| 48 | 2910281196 | Round-Head Bolt M6X15 DIN 603 |
| 49 | 3603415554 | Pan head screw |
| 49 | 3603415563 | Pan head screw |
| 50 | 1613435009 | Tapping Screw ST-4,8X57,5-TORX,T20 |
| 51 | 2603435042 | Thread-forming tap. Screw |
| 52 | 3603415566 | Set screw |
| 54 | 3603430502 | Thread-forming tap. Screw |
| 55 | 3603434501 | Bolt |
| 56 | 3601016507 | Seal Ring |
| 57 | 3601440514 | End stop |
| 58 | 2912510120 | Knurled Thumbscrew DIN 653-M4X10-ST |
| 59 | 2912510197 | Knurled Thumbscrew DIN 653 M6X16-ST |
| 6 | 3604460545 | Power supply cord |
| 60 | 3603433506 | Screw |
| 61 | 3603415553 | Countersunk-Head Screw |
| 651 | 3608640504 | Circular Saw Blade |
| 651 | 3608640506 | Circular Saw Blade |
| 654 | 3607000505 | Riving Knife |
| 655 | 3607000545 | Parts Set |
| 7 | 3606328505 | Spindle With Gear |
| 7 | 3606328509 | Spindle With Gear |
| 750/20 | 1603481001 | Handle Black |
| 800 | 3607014502 | Carbon-Brush Set |
| 801 | 3605108556 | Motor Housing Blue |
| 806 | 3601119595 | Nameplate |
| 833 | 3607000566 | Parts Set |
| 840 | 3601440515 | Assembly Of Service Parts |
