Bosch 1641 VSK

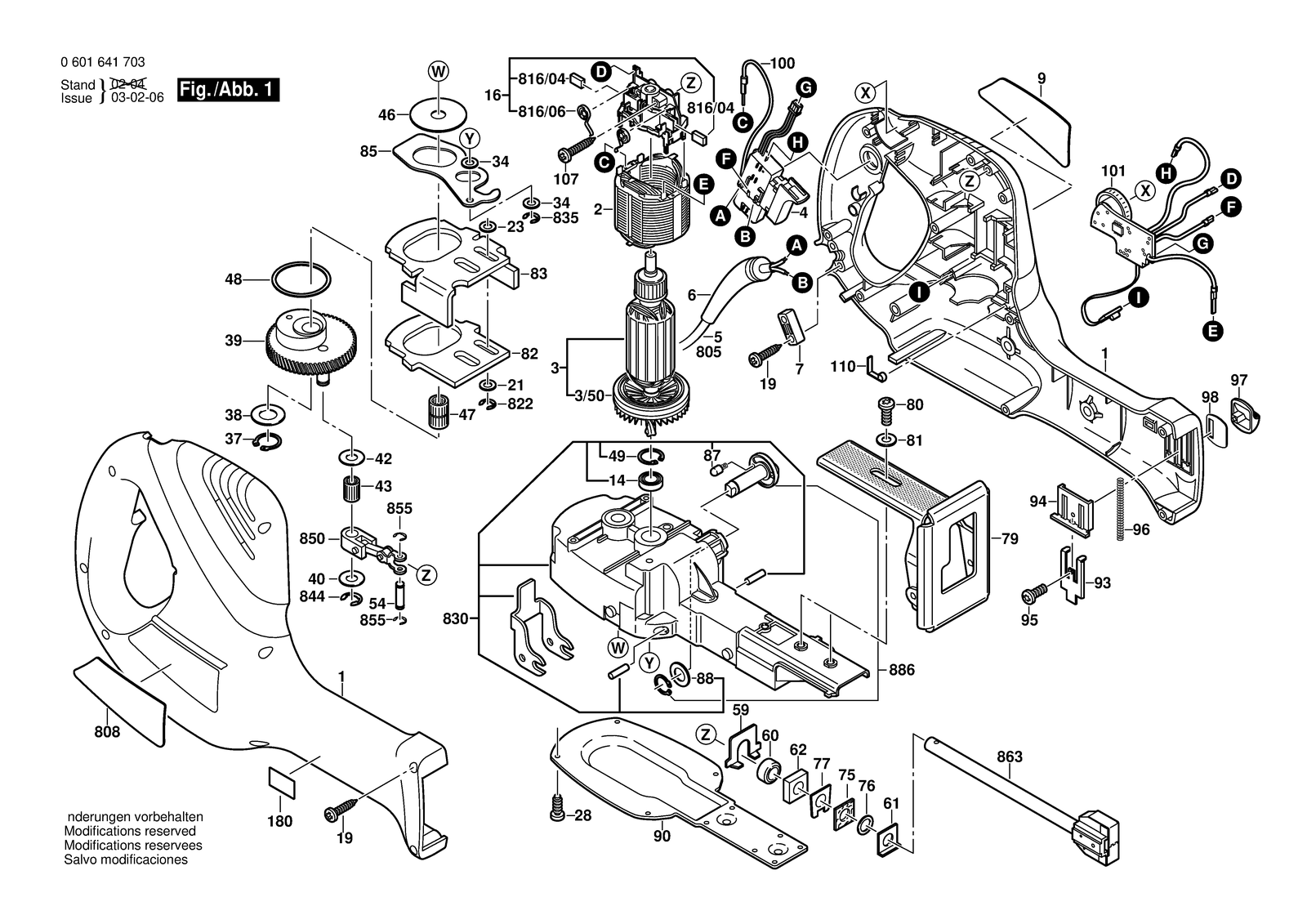

Bosch 1641 VSK reciprocating saw: exploded parts diagram, 1 sheet, 218 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1641 VSK: 218 positions on 1 sheet
Bosch 1641 VSK parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104602 | Housing Section Blue |
| 1 | 2605104602 | Housing Section Blue |
| 1 | 2605104722 | Housing Section Green |
| 100 | 2604448217 | Earth Conductor |
| 100 | 2604448217 | Earth Conductor |
| 100 | 2604448217 | Earth Conductor |
| 101 | 2607230058 | Speed governor 230-240V |
| 101 | 2607230061 | Speed governor 100-115V |
| 101 | 2607230061 | Speed governor 100-115V |
| 101 | 2607230058 | Speed governor 230-240V |
| 107 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 107 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 107 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 110 | 2601329057 | Contact Spring |
| 110 | 2601329057 | Contact Spring |
| 110 | 2601329057 | Contact Spring |
| 14 | 2600905095 | Ball Bearing 9X24X7 |
| 14 | 2600905095 | Ball Bearing 9X24X7 |
| 14 | 2600905095 | Ball Bearing 9X24X7 |
| 16 | 2605807082 | Brush Plate |
| 16 | 2605807083 | Brush Plate |
| 16 | 2605807083 | Brush Plate |
| 16 | 2605807082 | Brush Plate |
| 180 | 3601119137 | Warning Plate Caution |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220617 | Field 100-115V |
| 2 | 2604220692 | Field 220-240V |
| 2 | 2604220617 | Field 100-115V |
| 2 | 2604220692 | Field 220-240V |
| 21 | 2600100525 | Shim |
| 21 | 2600100525 | Shim |
| 21 | 2600100525 | Shim |
| 23 | 2600100103 | Shim |
| 23 | 2600100103 | Shim |
| 23 | 2600100103 | Shim |
| 28 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 28 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 28 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 3 | 2604011187 | Armature 100-115V |
| 3 | 2604011188 | Armature 230-240V |
| 3 | 2604011187 | Armature 100-115V |
| 3 | 2604011188 | Armature 230-240V |
| 3/50 | 2606610089 | Fan |
| 3/50 | 2606610089 | Fan |
| 3/50 | 2606610089 | Fan |
| 34 | 2600100040 | Shim |
| 34 | 2600100040 | Shim |
| 34 | 2600100040 | Shim |
| 37 | 2916650903 | Spring retaining ring DIN 471-12X1-FSTM |
| 37 | 2916650903 | Spring retaining ring DIN 471-12X1-FSTM |
| 37 | 2916650903 | Spring retaining ring DIN 471-12X1-FSTM |
| 38 | 2600105001 | Shim |
| 38 | 2600105001 | Shim |
| 38 | 2600105001 | Shim |
| 39 | 2606320061 | Eccentric Cog Wheel |
| 39 | 2606320061 | Eccentric Cog Wheel |
| 39 | 2606320061 | Eccentric Cog Wheel |
| 4 | 2607200529 | Switch |
| 4 | 2607200530 | Switch |
| 4 | 2607200541 | Switch |
| 4 | 2607200530 | Switch |
| 4 | 2607200541 | Switch |
| 40 | 2600100647 | Shim 1,0 MM |
| 40 | 2600100647 | Shim 1,0 MM |
| 40 | 2600100647 | Shim 1,0 MM |
| 42 | 2600101048 | Shim 0,5 MM |
| 42 | 2600101048 | Shim 0,5 MM |
| 42 | 2600101048 | Shim 0,5 MM |
| 43 | 2600913003 | Needle-Roller Assembly |
| 43 | 2600913003 | Needle-Roller Assembly |
| 43 | 2600913003 | Needle-Roller Assembly |
| 46 | 2600105003 | Shim |
| 46 | 2600105003 | Shim |
| 46 | 2600105003 | Shim |
| 47 | 2600913008 | Needle-Roller Assembly |
| 47 | 2600913008 | Needle-Roller Assembly |
| 47 | 2600913008 | Needle-Roller Assembly |
| 48 | 2600105004 | Shim |
| 48 | 2600105004 | Shim |
| 48 | 2600105004 | Shim |
| 49 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 49 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 49 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 5 | 1604460401 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460199 | Power supply cord AUS 240V 4,15M 2 X 1,0MM Pvc |
| 5 | 2604460204 | Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460242 | Power supply cord J 4,15M 2 X 1,25MM Pvc |
| 5 | 2604460244 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460287 | Power supply cord I/br 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460240 | Power supply cord Usa/can/ SMA 4,15M 2 X 0,82MM SJ 18/2 |
| 5 | 2604460289 | Power supply cord 140 MM |
| 54 | 2603105065 | Pivot Pin |
| 54 | 2603105065 | Pivot Pin |
| 54 | 2603105065 | Pivot Pin |
| 59 | 2601334010 | Guiding Plate |
| 59 | 2601334010 | Guiding Plate |
| 59 | 2601334010 | Guiding Plate |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 60 | 2600302017 | Sintered-Metal Bushing |
| 60 | 2600302017 | Sintered-Metal Bushing |
| 60 | 2600302017 | Sintered-Metal Bushing |
| 61 | 2601334011 | Sealing disk |
| 61 | 2601334011 | Sealing disk |
| 61 | 2601334011 | Sealing disk |
| 62 | 2600108078 | Felt Disc |
| 62 | 2600108078 | Felt Disc |
| 62 | 2600108078 | Felt Disc |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 7 | 1611035005 | Cable Clip |
| 75 | 2601015082 | Rubber Gasket 1 MM |
| 75 | 2601015082 | Rubber Gasket 1 MM |
| 75 | 2601015082 | Rubber Gasket 1 MM |
| 76 | 2600101038 | Scraper |
| 76 | 2600101038 | Scraper |
| 76 | 2600101038 | Scraper |
| 77 | 2601334012 | Guiding Plate |
| 77 | 2601334012 | Guiding Plate |
| 77 | 2601334012 | Guiding Plate |
| 79 | 2608000222 | Base Plate |
| 79 | 2608000222 | Base Plate |
| 79 | 2608000239 | Base Plate |
| 80 | 2603414007 | Oval-Head Screw M 5X10 |
| 80 | 2603414007 | Oval-Head Screw M 5X10 |
| 80 | 2603414007 | Oval-Head Screw M 5X10 |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 2601117078 | Marking Plate |
| 808 | 2601117079 | Marking Plate |
| 808 | 2601117080 | Marking Plate |
| 808 | 2601119821 | Marking Plate |
| 808 | 2601119822 | Marking Plate |
| 808 | 2601119824 | Marking Plate |
| 808 | 2601119825 | Marking Plate |
| 808 | 2601119826 | Marking Plate |
| 808 | 2601119823 | Marking Plate |
| 808 | 2601117337 | Marking Plate |
| 81 | 3600100002 | Plain Washer |
| 81 | 3600100002 | Plain Washer |
| 81 | 3600100002 | Plain Washer |
| 816/04 | 2604320914 | Carbon-Brush Set |
| 816/04 | 2604320914 | Carbon-Brush Set |
| 816/04 | 2604320914 | Carbon-Brush Set |
| 816/06 | 1604652013 | Spiral Spring |
| 816/06 | 1604652013 | Spiral Spring |
| 816/06 | 1604652013 | Spiral Spring |
| 82 | 2608012008 | Counterweight |
| 82 | 2608012008 | Counterweight |
| 82 | 2608012008 | Counterweight |
| 822 | 2916080909 | Locking washer DIN 6799-6-FST |
| 822 | 2916080909 | Locking washer DIN 6799-6-FST |
| 822 | 2916080909 | Locking washer DIN 6799-6-FST |
| 83 | 2608012009 | Counterweight |
| 83 | 2608012009 | Counterweight |
| 83 | 2608012009 | Counterweight |
| 830 | 2605806899 | Gear Housing |
| 830 | 2605806899 | Gear Housing |
| 830 | 2605806899 | Gear Housing |
| 835 | 2916080008 | Locking washer DIN 6799-5-FST |
| 835 | 2916080008 | Locking washer DIN 6799-5-FST |
| 835 | 2916080008 | Locking washer DIN 6799-5-FST |
| 844 | 2916080910 | Locking washer DIN 6799-7-FST |
| 844 | 2916080910 | Locking washer DIN 6799-7-FST |
| 844 | 2916080910 | Locking washer DIN 6799-7-FST |
| 85 | 2601923011 | Fork Lever |
| 85 | 2601923011 | Fork Lever |
| 85 | 2601923011 | Fork Lever |
| 850 | 2602130902 | Connecting Rod |
| 850 | 2602130902 | Connecting Rod |
| 850 | 2602130902 | Connecting Rod |
| 855 | 2916080007 | Locking washer DIN 6799-4-FST |
| 855 | 2916080007 | Locking washer DIN 6799-4-FST |
| 855 | 2916080007 | Locking washer DIN 6799-4-FST |
| 863 | 2600780907 | Lifting Rod |
| 863 | 2600780907 | Lifting Rod |
| 863 | 2600780907 | Lifting Rod |
| 87 | 2600590006 | Ratchet Cap |
| 87 | 2600590006 | Ratchet Cap |
| 87 | 2600590006 | Ratchet Cap |
| 88 | 2600100575 | Shim 0,2 MM |
| 88 | 2600100577 | Shim 0,5 MM |
| 88 | 2600100575 | Shim 0,2 MM |
| 88 | 2600100577 | Shim 0,5 MM |
| 88 | 2600100575 | Shim 0,2 MM |
| 88 | 2600100577 | Shim 0,5 MM |
| 886 | 2602026903 | Change-Over Switch |
| 886 | 2602026903 | Change-Over Switch |
| 886 | 2602026903 | Change-Over Switch |
| 9 | 2601119606 | Sticker |
| 9 | 2601119606 | Sticker |
| 9 | 2601119607 | Sticker |
| 90 | 2605500142 | Gear Cover |
| 90 | 2605500142 | Gear Cover |
| 90 | 2605500142 | Gear Cover |
| 93 | 2608005069 | Guide Plate |
| 93 | 2608005069 | Guide Plate |
| 93 | 2608005069 | Guide Plate |
| 94 | 2608005061 | Carrier |
| 94 | 2608005061 | Carrier |
| 94 | 2608005061 | Carrier |
| 95 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 95 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 95 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 96 | 2604610064 | Sealing disk |
| 96 | 2604610064 | Sealing disk |
| 96 | 2604610064 | Sealing disk |
| 97 | 2602026077 | Push-Button |
| 97 | 2602026077 | Push-Button |
| 97 | 2602026077 | Push-Button |
| 98 | 2601098069 | Slide Plate |
| 98 | 2601098069 | Slide Plate |
| 98 | 2601098068 | Slide Plate |
