Bosch 1640 VS

Bosch 1640 VS fine-cut saw: exploded parts diagram, 2 sheets, 51 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1640 VS: 51 positions on 2 sheets

Bosch 1640 VS parts list (2 sheets)

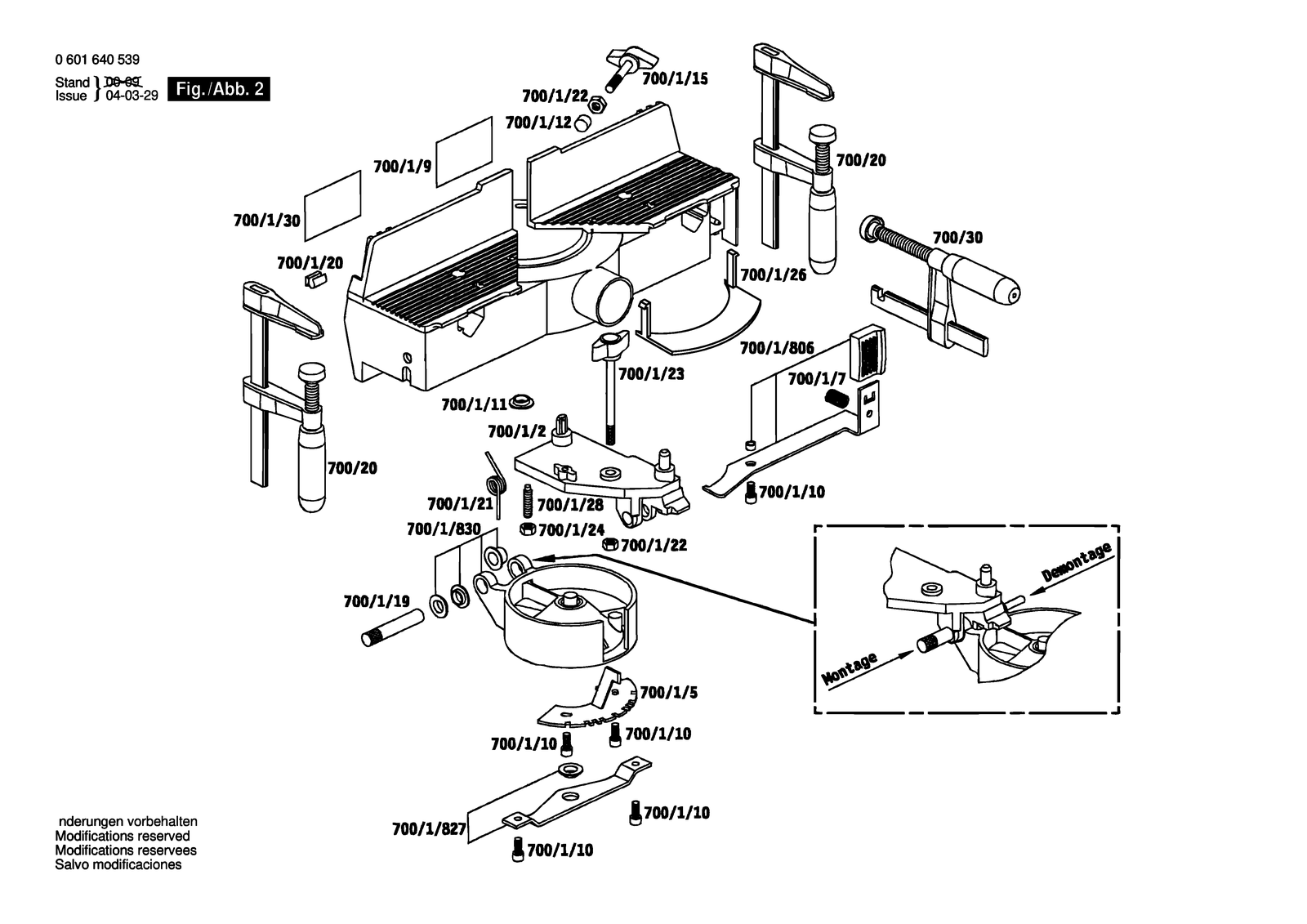

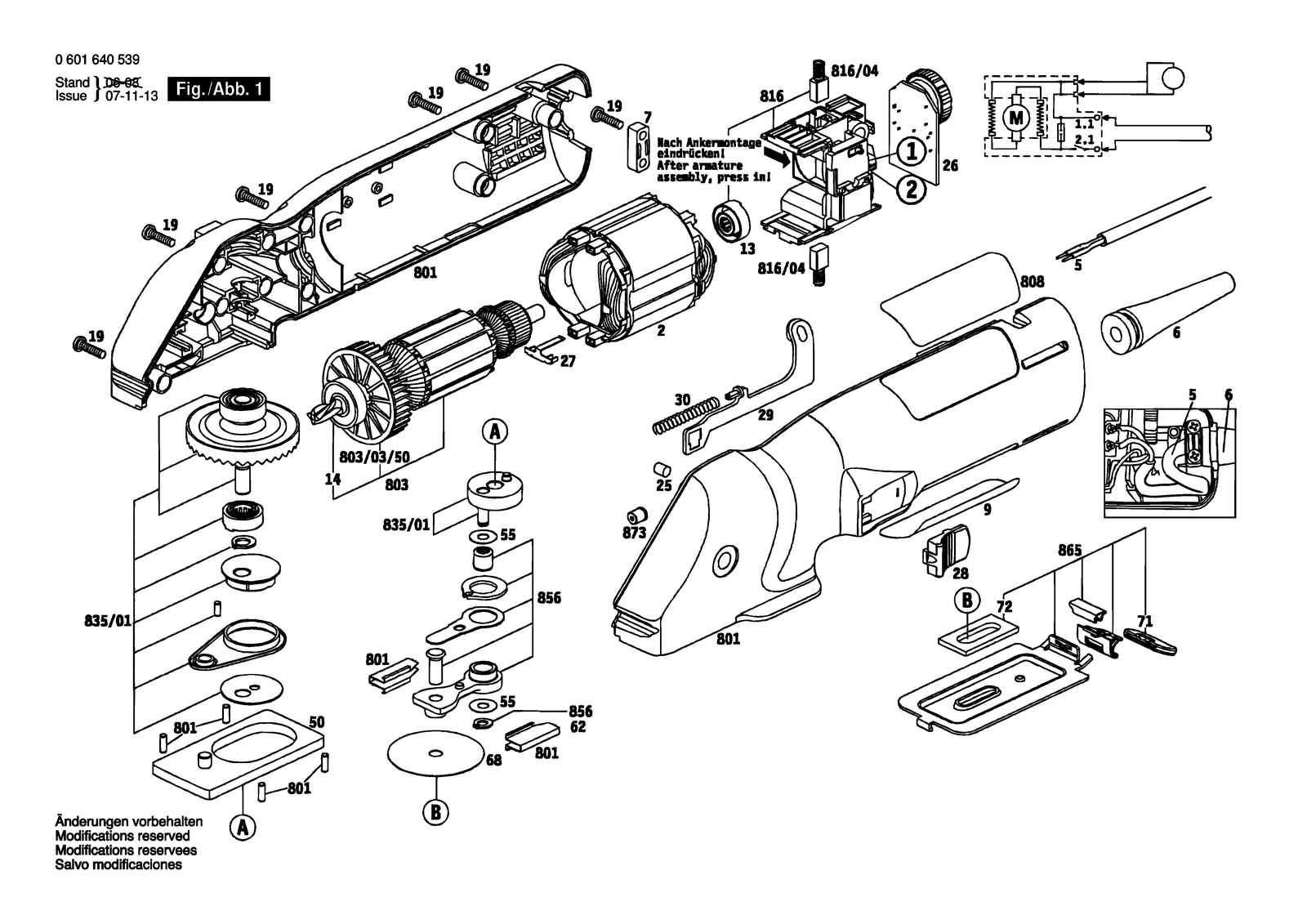

Bosch 1640 VS parts diagram, sheet 1Bosch 1640 VS parts diagram, sheet 2
No.Part numberPart name
132605805008Flanged Bearing
142600905065Groove ball bearing 9X24X7
192603490022Screw 4X16
22604220598Field 110-115V
252603100056Damping rubber
262607233028Rpm Actuator 115V
272601329037Contact Spring
281602026057Switch Handle Black
292602319017Adjusting Slide
301604611026Compression Spring
53604460045Power supply cord Usa/cdn 4,15M 2 X 082MM SJ 18/2
502601098047Counterweight
552600100064Friction Washer
62600703018Grommet Ø7,3-Ø8,6X76 MM
622600118010Clamping Ring
682600101094Sheet metal cover
72601035001Cable Clip
700/1/102603435075Thread-forming tap. Screw M 4X8 MM
700/1/112600311002Headed Bush
700/1/122600121010Ratchet Cap
700/1/152603480005Wing Screw M 6X42 MM
700/1/192603100068Bolt
700/1/22602123004Rocker
700/1/202601329081Spring Clip
700/1/212604651014Coiled Spring
700/1/222915011007Hex Nut DIN 934-M6-8-A
700/1/232603480010Wing Screw M 6X77 MM
700/1/242915011007Hex Nut DIN 934-M6-8-A
700/1/262601329075Cover Plate
700/1/282912631203Set screw DIN EN 27435-M6X25-14H
700/1/302610996470Warning Plate
700/1/52601389001Catch Disk
700/1/72604611074Compression Spring
700/1/8062601330900Catch Lever
700/1/8272601398900Holding Plate
700/1/92610996469Manufacturer's nameplate
700/202607960008Adjustable screw clamp
700/302607960010Adjustable screw clamp
712600591012Push-Button
722601005020Felt Seal
8012605104821Housing Section Blue
8032604010955Armature 110-115V
803/03/502606610090Fan
8082610996449Marking Plate
8162604337910Brush Plate
816/042604321922Carbon-Brush Set
835/012603100901Gear Shaft
8562602001902Connecting Rod
8652608000919Fixing Plate
8731600591019Thrust Member
92610996448Manufacturer's nameplate
