Bosch 1638

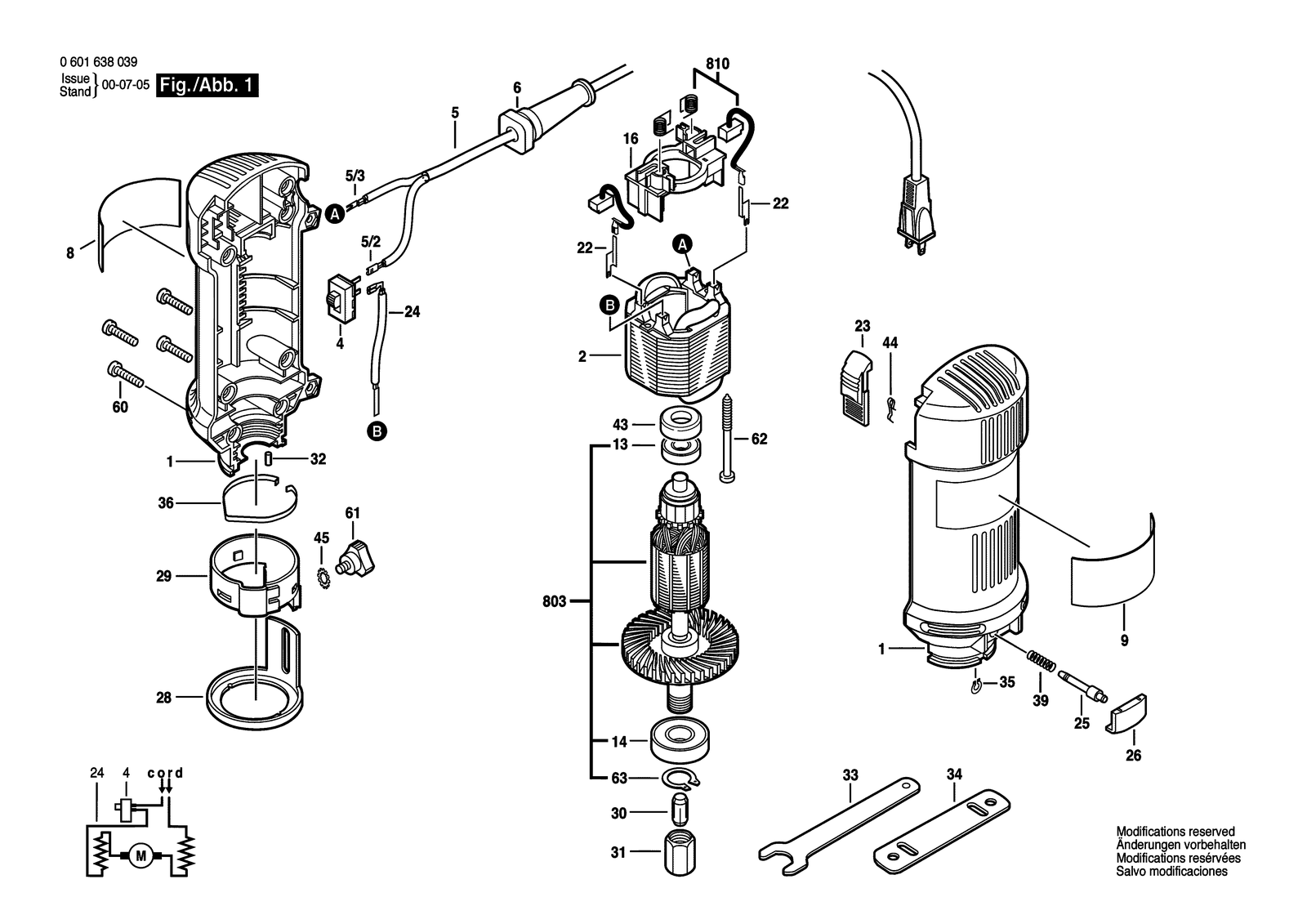

Bosch 1638 router: exploded parts diagram, 1 sheet, 39 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1638: 39 positions on 1 sheet
Bosch 1638 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610909220 | Housing |
| 13 | 2610351861 | Ball Bearing |
| 14 | 2610968044 | Ball Bearing |
| 16 | 2610909210 | Brush Holder |
| 2 | 2610910726 | Stator 120V |
| 22 | 2610909211 | Connecting terminal |
| 23 | 2610909204 | Switch Button |
| 24 | 2610038127 | Connecting Cable 65MM |
| 25 | 2610909200 | Detent Pin |
| 26 | 2610909249 | Push-Button |
| 28 | 2610905506 | Plate |
| 29 | 2610905507 | Bracket Holder |
| 30 | 2615295093 | Collet 1/8" |
| 31 | 2610909214 | Nut |
| 32 | 2610350103 | Pin |
| 33 | 2610909215 | Adjusting Wrench |
| 34 | 2610909216 | Holder |
| 35 | 2610909201 | Locating ring |
| 36 | 2610909219 | Spring |
| 39 | 2610909202 | Compression Spring |
| 4 | 2610996245 | On-Off Switch |
| 43 | 1619P01127 | Rubber Ring |
| 43 | 2610968477 | Sleeve |
| 44 | 2610968475 | Dummy |
| 45 | 2615308007 | Locking washer |
| 5 | 3604460555 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 5/2 | 2615306005 | Connecting terminal |
| 5/3 | 2610315756 | Dummy |
| 6 | 2610313327 | Grommet |
| 60 | 1619X00504 | Screw |
| 61 | 2610909218 | Knob |
| 62 | 1619P01446 | Screw |
| 63 | 2916650006 | Retaining clip DIN 471-15X1-FST |
| 8 | 2610909846 | Manufacturer's nameplate |
| 8 | 2610911747 | Nameplate |
| 803 | 2610909243 | Armature 120V |
| 810 | 2610353931 | Carbon-Brush Set |
| 9 | 2610909863 | Nameplate |
| 9 | 2610911746 | Sticker |
