Bosch 1617 EVS

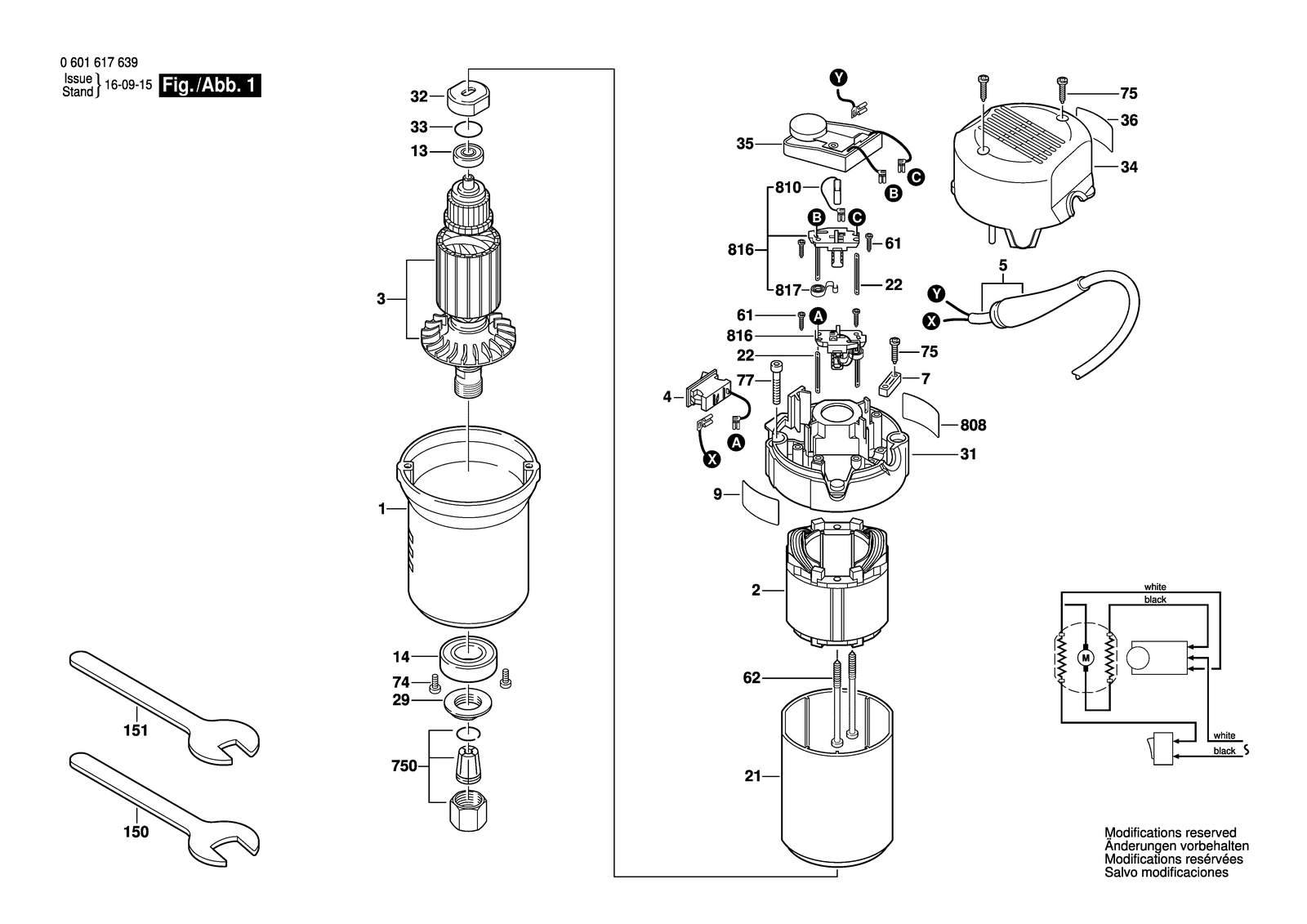

Bosch 1617 EVS router: exploded parts diagram, 1 sheet, 66 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1617 EVS: 66 positions on 1 sheet
Bosch 1617 EVS parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610922584 | Motor Housing |
| 1 | 2610922584 | Motor Housing |
| 13 | 3600905513 | Ball guide |
| 13 | 3600905513 | Ball guide |
| 14 | 1600900088 | Ball Bearing |
| 14 | 1600900088 | Ball Bearing |
| 150 | 2610992417 | Single-Head Eng. Wrench |
| 150 | 2610992417 | Single-Head Eng. Wrench |
| 151 | 2610991388 | Chuck Wrench |
| 151 | 2610991388 | Chuck Wrench |
| 2 | 1619P05316 | Field 120V |
| 2 | 1619P05316 | Field 120V |
| 21 | 2610009656 | Insulating Sleeve |
| 21 | 2610009656 | Insulating Sleeve |
| 22 | 1604477005 | Blade terminal |
| 22 | 1604477005 | Blade terminal |
| 29 | 2610993582 | Nut |
| 29 | 2610993582 | Nut |
| 3 | 1619P05216 | Armature 120V |
| 3 | 1619P05216 | Armature 120V |
| 31 | 2610941007 | Rear Housing Section |
| 31 | 2610941007 | Rear Housing Section |
| 32 | 2610991375 | Bearing Holder |
| 32 | 2610991375 | Bearing Holder |
| 33 | 1900210115 | O-Ring |
| 33 | 1900210115 | O-Ring |
| 34 | 2610941008 | Set Of Handles |
| 34 | 2610941008 | Set Of Handles |
| 35 | 1607233136 | Speed governor 120V |
| 35 | 1607233136 | Speed governor 120V |
| 36 | 2610994107 | Reference Plate |
| 36 | 2610994107 | Reference Plate |
| 4 | 2610016525 | On-Off Switch |
| 4 | 2610016525 | On-Off Switch |
| 5 | 2610994440 | Cord |
| 5 | 2610994440 | Cord |
| 61 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 61 | 2910611006 | Tapping Screw DIN 7981-ST2,9X13-C-H |
| 62 | 2610991306 | Tapping Screw |
| 62 | 2610991306 | Tapping Screw |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 74 | 2910641120 | Oval-Head Screw |
| 74 | 2910641120 | Oval-Head Screw |
| 75 | 2610910566 | Tapping Screw |
| 75 | 2610910566 | Tapping Screw |
| 750 | 2610001496 | Assembly 1/2" |
| 750 | 2610006911 | Collet 8 MM |
| 750 | 2610018974 | Collet 3/8" |
| 750 | 2610956672 | Quick-Change Collet Chuck 1/4" |
| 750 | 2610001496 | Assembly 1/2" |
| 750 | 2610006911 | Collet 8 MM |
| 750 | 2610018974 | Collet 3/8" |
| 750 | 2610956672 | Quick-Change Collet Chuck 1/4" |
| 77 | 2910141166 | Hex Socket Head Cap Screw DIN 912-M 5X30-8.8 |
| 77 | 2910141166 | Hex Socket Head Cap Screw DIN 912-M 5X30-8.8 |
| 808 | 2610907629 | Dummy |
| 808 | 2610009639 | Nameplate |
| 810 | 2610007957 | Carbon-Brush Set |
| 810 | 2610007957 | Carbon-Brush Set |
| 816 | 3604336506 | Brush Holder |
| 816 | 3604336506 | Brush Holder |
| 817 | 3604652501 | Spring |
| 817 | 3604652501 | Spring |
| 9 | 2610915243 | Nameplate |
| 9 | 2610915243 | Nameplate |
