Bosch 1617

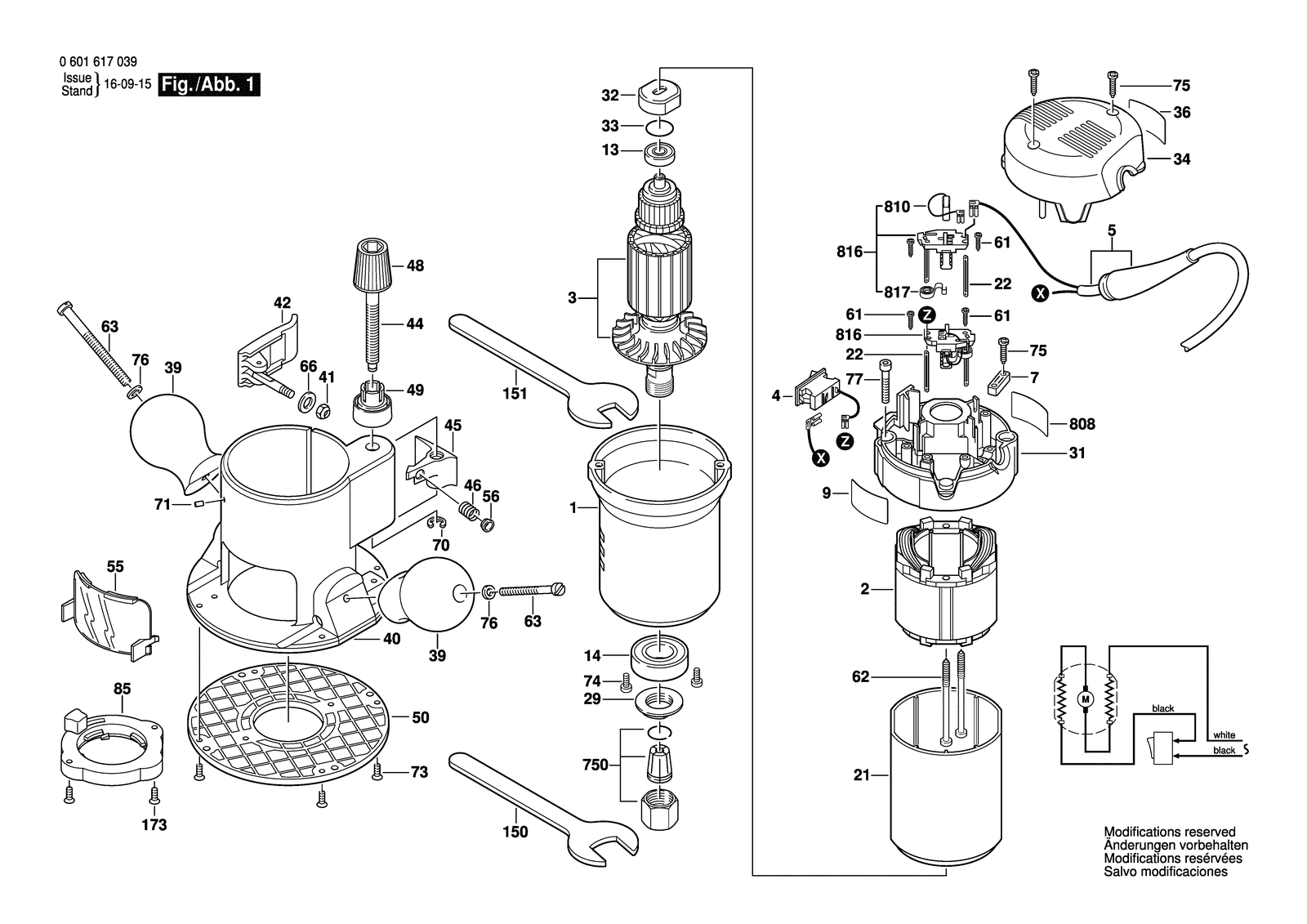

Bosch 1617 router: exploded parts diagram, 1 sheet, 56 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1617: 56 positions on 1 sheet
Bosch 1617 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610922584 | Motor Housing |
| 13 | 3600905513 | Ball guide |
| 14 | 1600900088 | Ball Bearing |
| 150 | 2610992417 | Single-Head Eng. Wrench |
| 151 | 2610991388 | Chuck Wrench |
| 173 | 2910871122 | Countersunk-Head Screw DIN 965-M4X12-8.8 |
| 2 | 2610022297 | Field 120V |
| 2 | 2610934200 | Field 230 V |
| 21 | 2610009656 | Insulating Sleeve |
| 22 | 1604477005 | Blade terminal |
| 29 | 2610993582 | Nut |
| 3 | 2610022298 | Armature With Fan 120V |
| 3 | 2610934198 | Armature 230 V |
| 31 | 2610941007 | Rear Housing Section |
| 32 | 2610991375 | Bearing Holder |
| 33 | 1900210115 | O-Ring |
| 34 | 2610927708 | Cover |
| 36 | 2610994107 | Reference Plate |
| 39 | 2610991387 | Handle |
| 4 | 2610016525 | On-Off Switch |
| 40 | 2610922551 | Base |
| 41 | 1613300006 | Hex Nut M6 |
| 42 | 2610915060 | Clamping Lever |
| 44 | 2610991384 | Adjusting Shaft |
| 45 | 2610991385 | Lever |
| 46 | 2610991371 | Spring |
| 48 | 2610993576 | Adjusting Device |
| 49 | 2610993577 | Ring |
| 5 | 2610994440 | Cord |
| 5 | 2610997063 | Dummy |
| 50 | 2610928164 | Cover Plate |
| 55 | 2610991389 | Chip Deflector |
| 56 | 2610991372 | Cover |
| 61 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 62 | 2610991306 | Tapping Screw |
| 63 | 2910011219 | Socket head cap screw DIN 84-BM6X70-5.8 |
| 66 | 2918660004 | Plain Washer DIN 126-9-A2 |
| 7 | 2601035001 | Cable Clip |
| 70 | 2610996054 | Retaining snap ring |
| 71 | 2610994492 | Pin |
| 73 | 2610915161 | Screw |
| 74 | 2910641120 | Oval-Head Screw |
| 75 | 2610910566 | Tapping Screw |
| 750 | 2610001496 | Assembly 1/2" |
| 750 | 2610006911 | Collet 8 MM |
| 750 | 2610018974 | Collet 3/8" |
| 750 | 2610956672 | Quick-Change Collet Chuck 1/4" |
| 76 | 2916011013 | Plain Washer DIN 433-6,4-ST 50 |
| 77 | 2910141166 | Hex Socket Head Cap Screw DIN 912-M 5X30-8.8 |
| 808 | 2610907627 | Dummy |
| 808 | 2610907628 | Nameplate |
| 810 | 2610007957 | Carbon-Brush Set |
| 816 | 3604336506 | Brush Holder |
| 817 | 3604652501 | Spring |
| 85 | 2610991370 | Guide Sleeve |
| 9 | 2610915243 | Nameplate |
