Bosch 1615
Bosch 1615 industrial router: exploded parts diagram, 2 sheets, 102 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

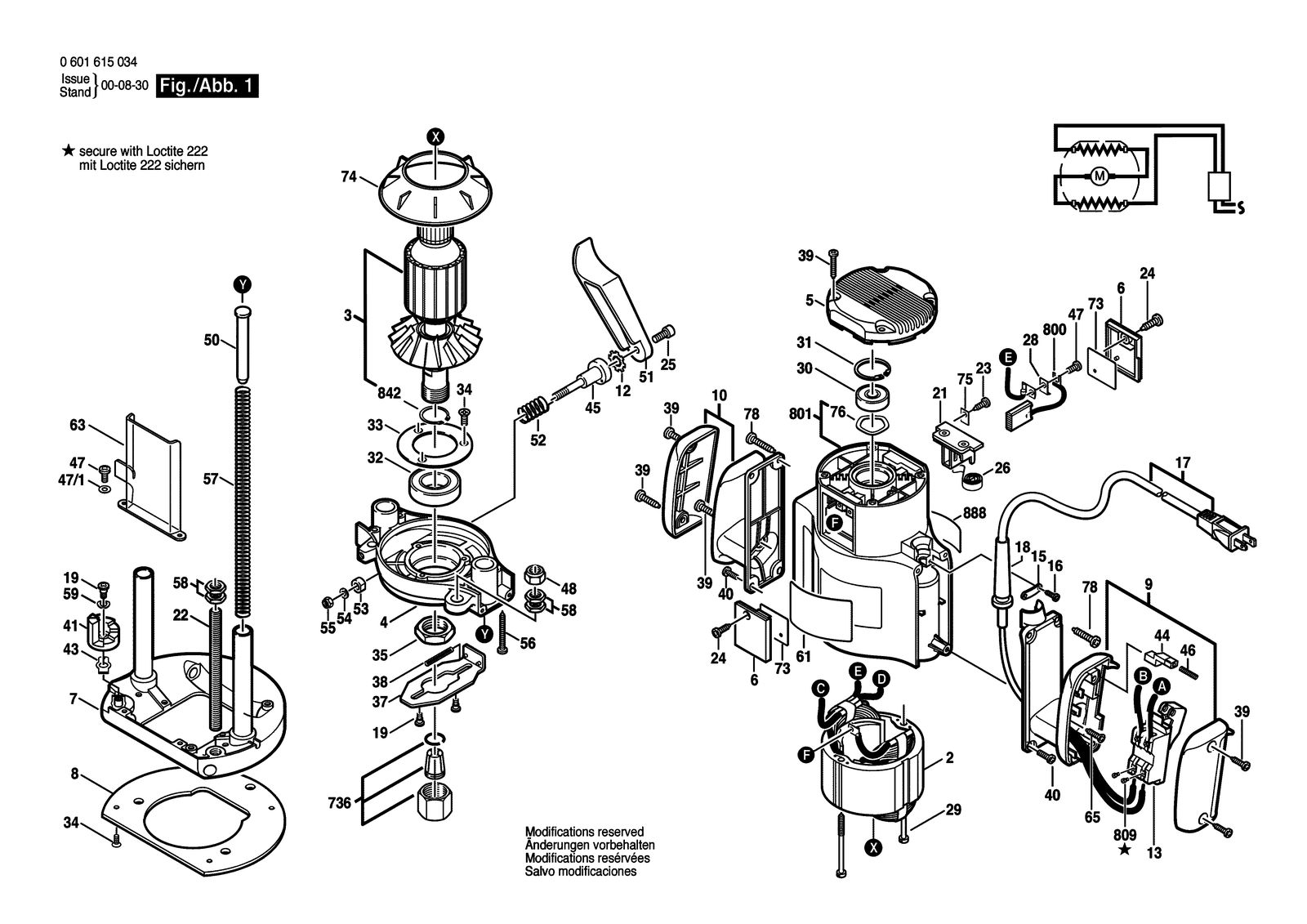

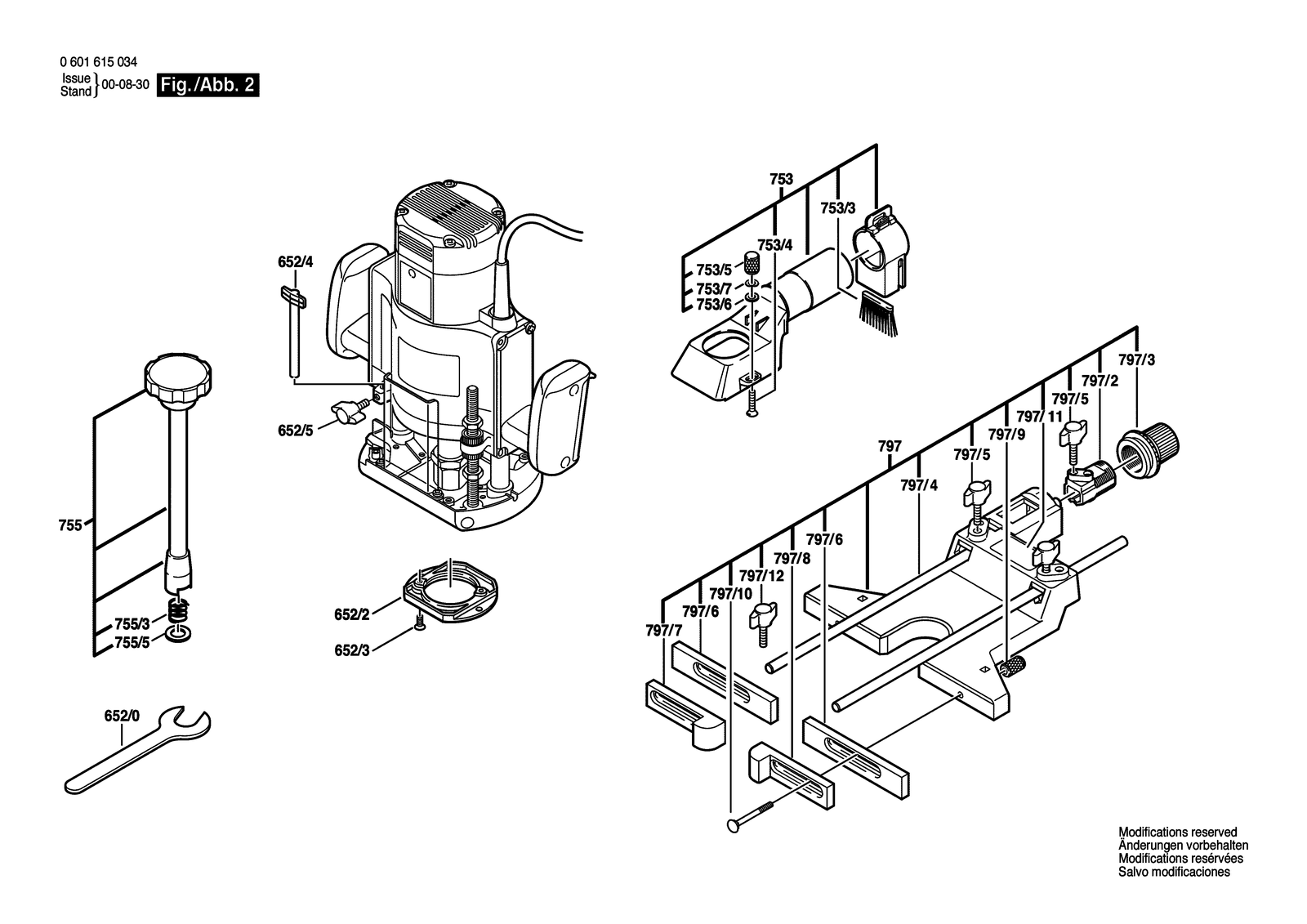

All parts of Bosch 1615: 102 positions on 2 sheets
Bosch 1615 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 3605133520 | Handle Blue |
| 12 | 3600190516 | Toothed lock washer |
| 13 | 3607200510 | Switch |
| 15 | 3601032500 | Fastening Clamp |
| 16 | 2910611011 | Tapping Screw DIN 7981-ST3,5X13-C-H |
| 17 | 3604460541 | Pvc-Insulated Cable CH 4,25M 2 X 1,0MM H07 Rn-F |
| 17 | 3604460564 | Power supply cord |
| 17 | 3604460639 | Power supply cord USA 3,048M 2 X 2,08MM SJT 14/2 |
| 18 | 3600707503 | Grommet Ø 9,4 MM |
| 19 | 3603415556 | Shoulder Screw M4 |
| 2 | 3604220530 | Field 115V |
| 2 | 3604220531 | Field 220V |
| 21 | 1604336008 | Brush Holder |
| 22 | 3603500500 | Set screw |
| 23 | 2910611018 | Tapping Screw DIN 7981-ST3,9X13-C-H |
| 24 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 25 | 2910141197 | Hex Socket Head Cap Screw DIN 912-M6X16-8.8 |
| 26 | 1614652001 | Spiral Spring |
| 28 | 1611331007 | Tab Washer |
| 29 | 1613412001 | Tapping Screw B 4,8X68 MM |
| 3 | 3604011626 | Armature 115V |
| 3 | 3604011628 | Armature 220V |
| 30 | 1900905276 | Groove ball bearing 6200-2 Rs/c 3 |
| 31 | 3600119507 | Spring retaining ring |
| 32 | 3600900526 | Groove ball bearing |
| 33 | 3600034503 | Fixing plate |
| 34 | 3603415559 | Rec ct-sunk tapping screw |
| 35 | 3603301522 | Hex Nut |
| 37 | 3601961500 | Retaining Bracket |
| 38 | 3604613502 | Compression Spring |
| 39 | 2910611034 | Tapping Screw DIN 7982-ST4,8X19 |
| 4 | 3605702592 | Fan Housing |
| 40 | 3603415540 | Screw 4X13 MM |
| 41 | 3600232503 | Depth-Gauge |
| 43 | 3601254501 | Leaf Spring |
| 44 | 3602033501 | Locking Lever |
| 45 | 3603053503 | Axle |
| 46 | 3604613503 | Compression Spring |
| 47 | 2910951118 | Oval-Head Screw DIN 7985-M4X8-8.8-H |
| 47/1 | 2916011010 | Plain Washer DIN 125-A4,3-ST |
| 48 | 2915065007 | Hex Nut DIN 985-M10-10 |
| 5 | 3605500575 | Housing Cover |
| 5 | 3605500603 | Housing Cover |
| 50 | 3603120501 | Guide Piece |
| 51 | 3602000511 | Catch Lever |
| 52 | 3604651501 | Clamping Spring |
| 53 | 3602202500 | Adjusting Eccentric |
| 54 | 2916011010 | Plain Washer DIN 125-A4,3-ST |
| 55 | 2915061002 | Hex Nut DIN 985-M4-8 |
| 56 | 2610908660 | Tapping Screw 19X2 MM |
| 57 | 3604619502 | Compression Spring |
| 58 | 2915055108 | Hex Nut DIN 439-BM10-04 |
| 59 | 3916060500 | Spring Washer |
| 6 | 3605500596 | Sealing cap |
| 61 | 2610907002 | Reference Plate |
| 61 | 2610907046 | Reference Plate |
| 61 | 3601119842 | Manufacturer's nameplate |
| 63 | 3605510526 | Protective Shield |
| 65 | 2910601433 | Tapping Screw DIN 7982-ST4,8X18-F-H |
| 652/0 | 1607950514 | Single-Head Eng. Wrench SW12 |
| 652/2 | 3605700511 | Intermediate Plate |
| 652/3 | 3603415553 | Countersunk-Head Screw |
| 652/4 | 3603029500 | Floating indicator |
| 652/5 | 1613480008 | Wing Screw M6X20 MM |
| 7 | 3605702595 | Base |
| 73 | 3601007502 | Insulating Tube |
| 73 | 3601007503 | Insulator |
| 736 | 2610906288 | Collet 1/4" |
| 736 | 2610906289 | Collet 1/2" |
| 736 | 2610906294 | Collet 3/8" |
| 74 | 3600590504 | Air-Deflector Ring |
| 75 | 1601030022 | Tab Washer |
| 753 | 3608939611 | Vacuum Adapter |
| 753/3 | 3607929500 | Brush Bar |
| 753/4 | 2910761164 | Countersunk-Head Screw DIN 963-M5X25-4.8 |
| 753/5 | 3603345509 | Knob |
| 753/6 | 2916011012 | Plain Washer DIN 125-A5,3-ST |
| 753/7 | 3600100520 | Spring Washer |
| 755 | 3608939661 | Vacuum Adapter |
| 755/3 | 3604619503 | Spring |
| 755/5 | 2916012018 | Plain Washer DIN 125-A10,5-ST |
| 76 | 3916060501 | Spring Washer |
| 78 | 2910611036 | Tapping Screw DIN 7981-ST4,8X25-C-H |
| 797 | 2610906286 | Parallel-Guide |
| 797/10 | 2910281176 | Round-Head Bolt DIN 603 - M5X55 |
| 797/11 | 3601119794 | Sticker |
| 797/12 | 1613480008 | Wing Screw M6X20 MM |
| 797/2 | 3600400508 | Locking Piece |
| 797/3 | 3600360508 | Adjustment Knob |
| 797/4 | 3603001518 | Guide Rod 10 MM |
| 797/5 | 1613480008 | Wing Screw M6X20 MM |
| 797/6 | 3602386507 | Guide Plate |
| 797/7 | 3602386508 | Curve Slide |
| 797/8 | 3602386509 | Curve Slide |
| 797/9 | 3603345509 | Knob |
| 8 | 3600190515 | Intermediate Plate |
| 800 | 1607014103 | Carbon-Brush Set |
| 801 | 3605108589 | Housing Blue |
| 809 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 842 | 2916650014 | Spring retaining ring DIN 471 25X1,2 |
| 888 | 3601119595 | Nameplate |
| 9 | 3605133519 | Handle Blue |
