Bosch 1609

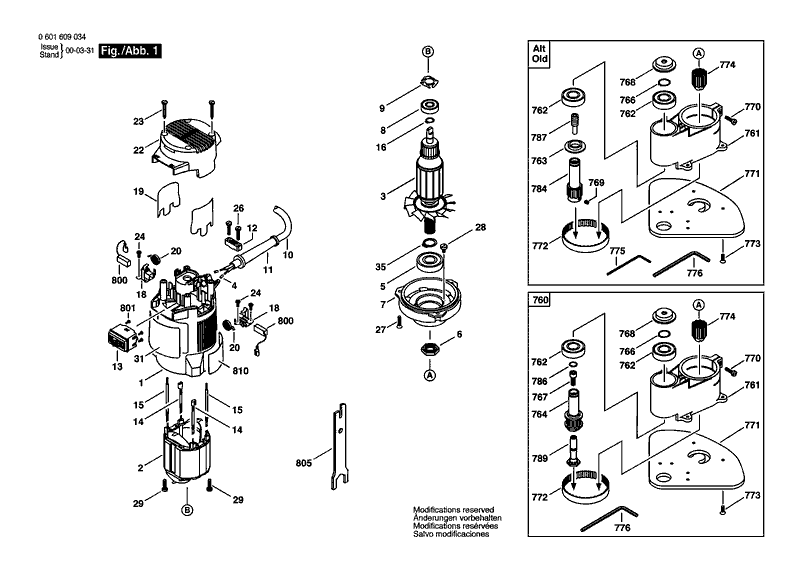

Bosch 1609 edging bit: exploded parts diagram, 1 sheet, 52 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1609: 52 positions on 1 sheet
Bosch 1609 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108573 | Motor Housing Blue |
| 10 | 3604460555 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 11 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 12 | 2601035001 | Cable Clip |
| 13 | 3607200511 | Switch |
| 14 | 3604441501 | Connecting Cable |
| 15 | 3604441509 | Connecting Cable |
| 16 | 2916640004 | Spring retaining ring DIN 471-7X0,8-FST |
| 18 | 1600A003G4 | Brush Holder |
| 19 | 3601033503 | Brush-Cover |
| 2 | 1604220196 | Field 110-115V |
| 20 | 1604652013 | Spiral Spring |
| 22 | 3605500580 | Housing Cover |
| 23 | 2910211214 | Tapping Screw DIN 7971-ST3,5X33-C |
| 24 | 2910611404 | Tapping Screw BZ 2,9X6,5DIN7981-A2 |
| 26 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 27 | 2910601412 | Tapping Screw DIN 7982-ST3,5X16-F-H |
| 28 | 2914461044 | Thread-forming tap. Screw DIN 7500-AM4X6-ST |
| 29 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 3 | 3604011579 | Armature 115V |
| 31 | 2610908885 | Nameplate |
| 35 | 2916650003 | Spring retaining ring DIN 471-12X1-FST |
| 4 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 5 | 2610908032 | Groove ball bearing |
| 6 | 3603311521 | Hex Nut |
| 7 | 3605702573 | Bearing Housing |
| 760 | 2610908884 | Base Plate |
| 761 | 3605702544 | Bracket Holder |
| 762 | 3600905038 | Groove ball bearing |
| 763 | 3600144506 | Flange |
| 764 | 2610909309 | Spindle Assembly |
| 766 | 3600119508 | Spring retaining ring |
| 767 | 2910141154 | Hex Socket Head Cap Screw DIN 912-M5X12-8.8 |
| 768 | 3605510542 | Dust-Protection Cover |
| 769 | 2912065114 | Dummy DIN 916-M4X4-45H |
| 770 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 771 | 3601071500 | Cover Plate |
| 772 | 3604736506 | Toothed Belt |
| 773 | 3603415562 | Screw |
| 774 | 3606625545 | Toothed Belt Wheel |
| 775 | 1907950002 | Offset Screwdriver DIN 911, SW2 |
| 776 | 2607950004 | Offset Screwdriver DIN 911-4 |
| 784 | 3606120529 | Spindle |
| 786 | 2916660042 | Retaining ring |
| 787 | 3603402500 | Set screw |
| 789 | 2610908877 | Dummy |
| 8 | 1900905018 | Ball Bearing 7X22X7 |
| 800 | 1607014116 | Carbon-Brush Set |
| 801 | 2603410023 | Socket head cap screw M3X10 MM |
| 805 | 9601497907 | Single-Head Eng. Wrench SW 4/14 |
| 810 | 3601119595 | Nameplate |
| 9 | 3600150501 | Spring Washer |
