Bosch 1604 A

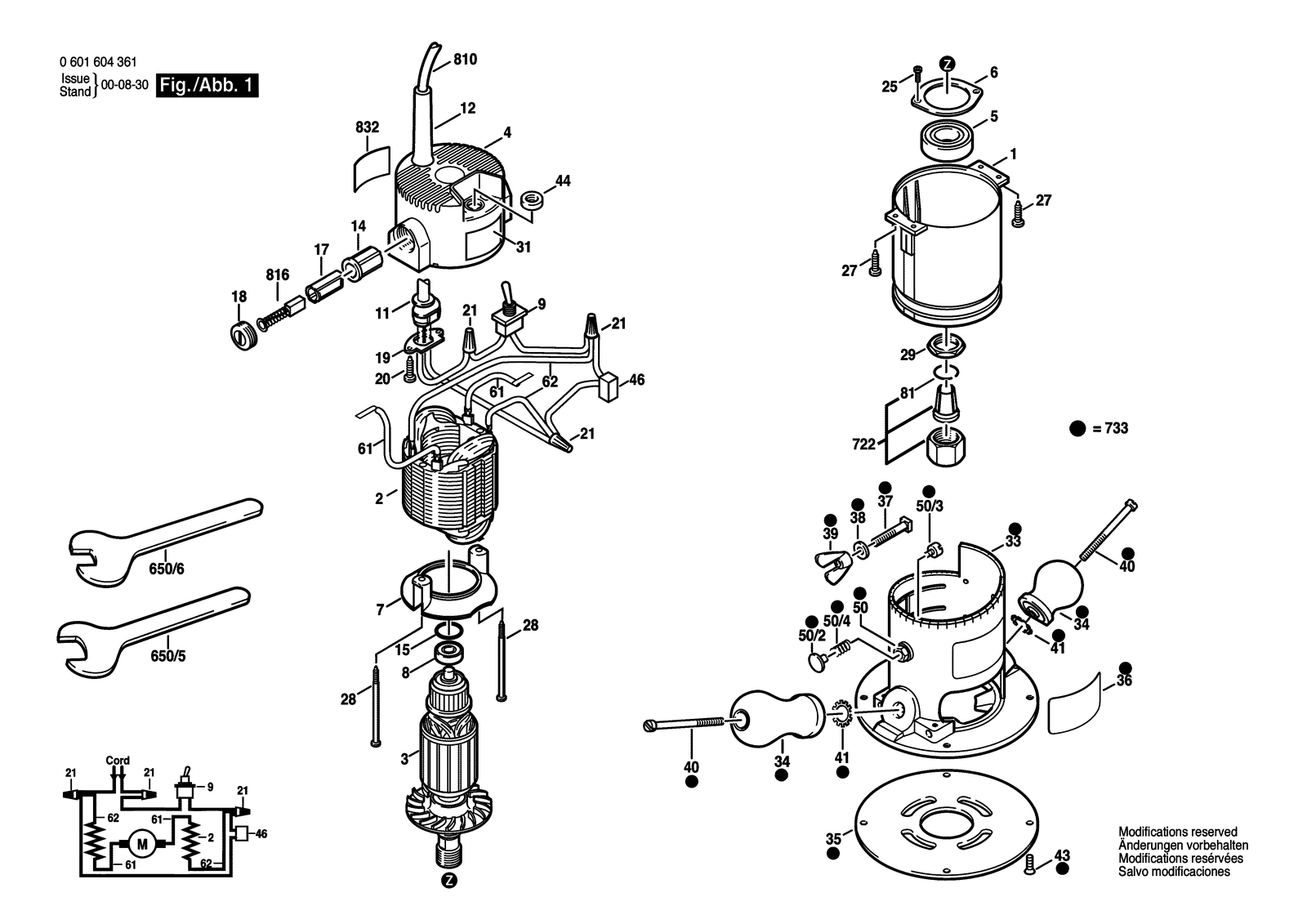

Bosch 1604 A industrial router: exploded parts diagram, 1 sheet, 112 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1604 A: 112 positions on 1 sheet
Bosch 1604 A parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108587 | Motor Housing Blue |
| 1 | 3605108585 | Motor Housing Blue |
| 11 | 3600390500 | Compression-Gland Fitting |
| 11 | 3600390501 | Compression-Gland Fitting |
| 11 | 3600390500 | Compression-Gland Fitting |
| 11 | 3600390501 | Compression-Gland Fitting |
| 12 | 3600703500 | Grommet |
| 12 | 3600703500 | Grommet |
| 14 | 3600329504 | Insulator |
| 14 | 3600329504 | Insulator |
| 15 | 1900210115 | O-Ring |
| 15 | 1900210115 | O-Ring |
| 17 | 3600492500 | Carbon Brush Holder |
| 17 | 3600492500 | Carbon Brush Holder |
| 18 | 2610994437 | Screw Cap |
| 18 | 2610994437 | Screw Cap |
| 19 | 3601023519 | Fixing plate |
| 19 | 3601023519 | Fixing plate |
| 2 | 3604220567 | Field 110-115V |
| 2 | 3604220568 | Field 240V |
| 2 | 2610934199 | Field 120V |
| 2 | 2610934200 | Field 230 V |
| 20 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 20 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 21 | 3608098501 | Nut |
| 21 | 3608098501 | Nut |
| 25 | 2910091120 | Pan head screw DIN 85-M4X10-4.8 |
| 25 | 2910641120 | Oval-Head Screw |
| 27 | 2910611028 | Tapping Screw DIN 7981-ST4,2X22-C-H |
| 27 | 2910611028 | Tapping Screw DIN 7981-ST4,2X22-C-H |
| 28 | 3603415563 | Pan head screw |
| 28 | 3603435509 | Thread-forming tap. Screw |
| 29 | 3603300502 | Hex Nut |
| 29 | 3603300502 | Hex Nut |
| 3 | 3604011632 | Armature 110-115V |
| 3 | 3604011633 | Armature 240V |
| 3 | 2610934197 | Armature 120V |
| 3 | 2610934198 | Armature 230 V |
| 31 | 1601110449 | Nameplate Caution |
| 33 | 3605702568 | Base |
| 33 | 3605702568 | Base |
| 34 | 3603231500 | Ball Knob |
| 34 | 3603231500 | Ball Knob |
| 35 | 3600190500 | Base Plate |
| 35 | 3600190500 | Base Plate |
| 36 | 2610906885 | Nameplate |
| 36 | 2610906887 | Hex Nut |
| 37 | 3603440500 | Square-Head Bolt |
| 37 | 3603440500 | Square-Head Bolt |
| 38 | 3600100500 | Washer |
| 38 | 3600100500 | Washer |
| 39 | 3603339500 | Wing Nut |
| 39 | 3603339500 | Wing Nut |
| 4 | 3605500599 | Rear Housing Section |
| 4 | 3605500599 | Rear Housing Section |
| 40 | 2910011219 | Socket head cap screw DIN 84-BM6X70-5.8 |
| 40 | 2910011219 | Socket head cap screw DIN 84-BM6X70-5.8 |
| 41 | 2916030013 | Toothed lock washer DIN 6797-A16,5-FST |
| 41 | 2916030013 | Toothed lock washer DIN 6797-A16,5-FST |
| 43 | 2610915162 | Screw |
| 43 | 2610915162 | Screw |
| 44 | 3603340500 | Socket head cap screw |
| 44 | 3603340500 | Socket head cap screw |
| 46 | 3607328518 | Motor Capacitor |
| 46 | 3607328518 | Motor Capacitor |
| 5 | 1600900088 | Ball Bearing |
| 5 | 1600900088 | Ball Bearing |
| 50 | 3603344504 | Latch |
| 50 | 3603344504 | Latch |
| 50/2 | 3603231509 | Latch |
| 50/2 | 3603231509 | Latch |
| 50/3 | 3603410500 | Socket head cap screw |
| 50/3 | 3603410500 | Socket head cap screw |
| 50/4 | 3604612500 | Compression Spring |
| 50/4 | 3604612500 | Compression Spring |
| 6 | 3600034506 | Retaining Plate |
| 6 | 3600034506 | Retaining Plate |
| 61 | 3604441511 | Connecting Cable |
| 61 | 3604441511 | Connecting Cable |
| 62 | 3604441513 | Switch |
| 62 | 3604441513 | Switch |
| 650/5 | 2610992417 | Single-Head Eng. Wrench |
| 650/6 | 9601497905 | Single-Head Eng. Wrench SW 6 |
| 7 | 3600133501 | Air-Deflector Ring |
| 7 | 3600133501 | Air-Deflector Ring |
| 722 | 2608570101 | Collet 1/4" |
| 722 | 2608507108 | Collet 1/2" |
| 722 | 2608570104 | Collet 1/4" |
| 722 | 2610001496 | Assembly 1/2" |
| 722 | 2610018974 | Collet 3/8" |
| 722 | 2610956672 | Quick-Change Collet Chuck 1/4" |
| 733 | 3605702600 | Base Plate |
| 733 | 3605702600 | Base Plate |
| 8 | 3600905513 | Ball guide |
| 8 | 3600905513 | Ball guide |
| 81 | 2916540007 | Retaining ring |
| 81 | 2916540010 | Retaining ring |
| 810 | 3604460632 | Power supply cord |
| 810 | 3604460662 | Power supply cord 4,25M 2 X 1,5MM H05RR-F |
| 810 | 3604460514 | Power supply cord Usa/cdn 3,275M 2 X 1,32MM SJ 16/2 |
| 810 | 3604460565 | Power supply cord EU 4,25M 2 X 1,0MM H07RN-F |
| 810 | 3604460632 | Power supply cord |
| 810 | 3604460662 | Power supply cord 4,25M 2 X 1,5MM H05RR-F |
| 816 | 3607014501 | Carbon-Brush Set |
| 816 | 3607014510 | Carbon-Brush Set |
| 816 | 3607014501 | Carbon-Brush Set |
| 816 | 3607014510 | Carbon-Brush Set |
| 832 | 3601119600 | Nameplate |
| 832 | 3601119600 | Nameplate |
| 9 | 3607200531 | Switch |
| 9 | 3607200528 | Switch |
| 9 | 3607200531 | Switch |
