Bosch 1603

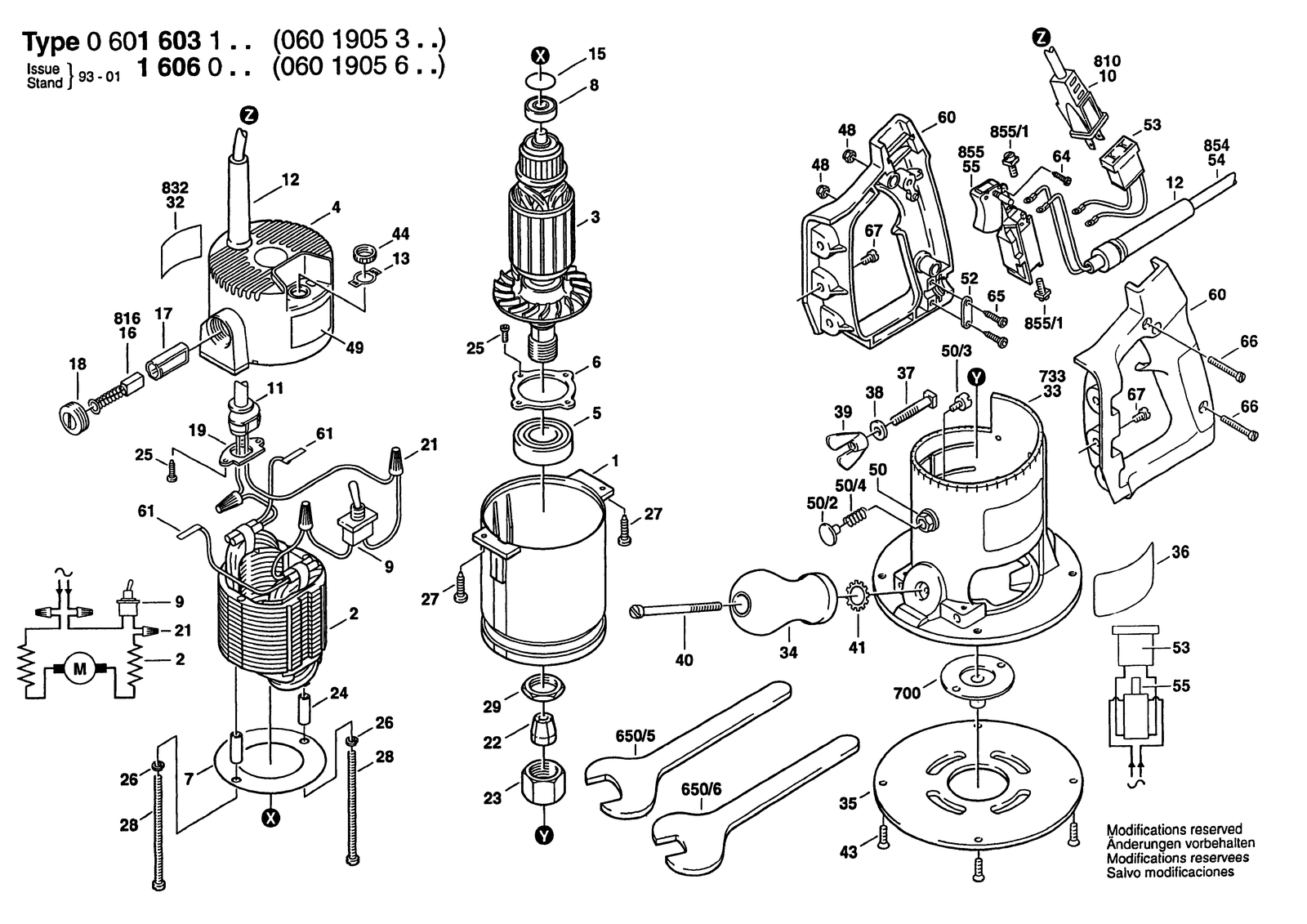

Bosch 1603 router: exploded parts diagram, 1 sheet, 61 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1603: 61 positions on 1 sheet
Bosch 1603 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108552 | Motor Housing Blue |
| 11 | 3600390501 | Compression-Gland Fitting |
| 12 | 3600703500 | Grommet |
| 13 | 3601023500 | Switch Plate |
| 15 | 3600210502 | O-Ring |
| 17 | 3600492500 | Carbon Brush Holder |
| 18 | 1619X01268 | Device cap |
| 19 | 3601023501 | Fixing plate |
| 2 | 3604220528 | Field 115V |
| 2 | 3604220529 | Field 240V |
| 21 | 3608098501 | Nut |
| 21 | 3608099501 | Cable Plug |
| 22 | 3600499507 | Collet 3/8" |
| 22 | 3600499508 | Collet 1/4" |
| 23 | 3603313502 | Union Nut |
| 24 | 3600410502 | Spacer |
| 25 | 3603429508 | Socket head cap screw |
| 26 | 2916680006 | Spring Lock Washer DIN 127-B 5 |
| 27 | 3603410501 | Socket head cap screw |
| 28 | 3603415537 | Socket head cap screw |
| 29 | 3603301514 | Hex Nut |
| 3 | 3604011512 | Armature 115V |
| 3 | 3604011536 | Armature 240V |
| 33 | 3605702571 | Base |
| 34 | 3603231500 | Ball Knob |
| 35 | 3600190500 | Base Plate |
| 36 | 3601119694 | Nameplate |
| 37 | 3603440500 | Square-Head Bolt |
| 38 | 3600100500 | Washer |
| 39 | 3603339500 | Wing Nut |
| 4 | 3605500583 | Sealing cap |
| 40 | 2910011219 | Socket head cap screw DIN 84-BM6X70-5.8 |
| 41 | 2916030013 | Toothed lock washer DIN 6797-A16,5-FST |
| 43 | 2610915162 | Screw |
| 44 | 3603340500 | Socket head cap screw |
| 48 | 2915061002 | Hex Nut DIN 985-M4-8 |
| 49 | 1601110449 | Nameplate Caution |
| 5 | 3600900516 | Groove ball bearing |
| 50 | 3603344504 | Latch |
| 50/2 | 3603231509 | Latch |
| 50/3 | 3603410500 | Socket head cap screw |
| 50/4 | 3604612500 | Compression Spring |
| 52 | 3601032500 | Fastening Clamp |
| 53 | 3604484501 | Socket |
| 6 | 3600034500 | Front Panel |
| 60 | 3605133523 | Handle Blue |
| 61 | 3601355500 | Plugin Contact |
| 64 | 2910611424 | Tapping Screw DIN 7981-ST4,2X9,5-F-H |
| 65 | 2910611011 | Tapping Screw DIN 7981-ST3,5X13-C-H |
| 650/5 | 9601497902 | Single-Head Eng. Wrench SW 13/19 |
| 66 | 2910641134 | Oval-Head Screw DIN 7985-M4X30-4.8H |
| 67 | 2910011150 | Socket head cap screw DIN 84-AM5X8-5.8 |
| 7 | 3600133500 | Protective Washer |
| 733 | 3605702604 | Base Plate |
| 8 | 3600900515 | Groove ball bearing |
| 810 | 3604460528 | Power supply cord |
| 816 | 3607014501 | Carbon-Brush Set |
| 832 | 3601119600 | Nameplate |
| 854 | 3604460514 | Power supply cord Usa/cdn 3,275M 2 X 1,32MM SJ 16/2 |
| 855 | 3607000677 | Toggle Switch |
| 9 | 3607200505 | Switch |
