Bosch 1594

Bosch 1594 portable planer: exploded parts diagram, 1 sheet, 52 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1594: 52 positions on 1 sheet

Bosch 1594 parts list (1 sheet)

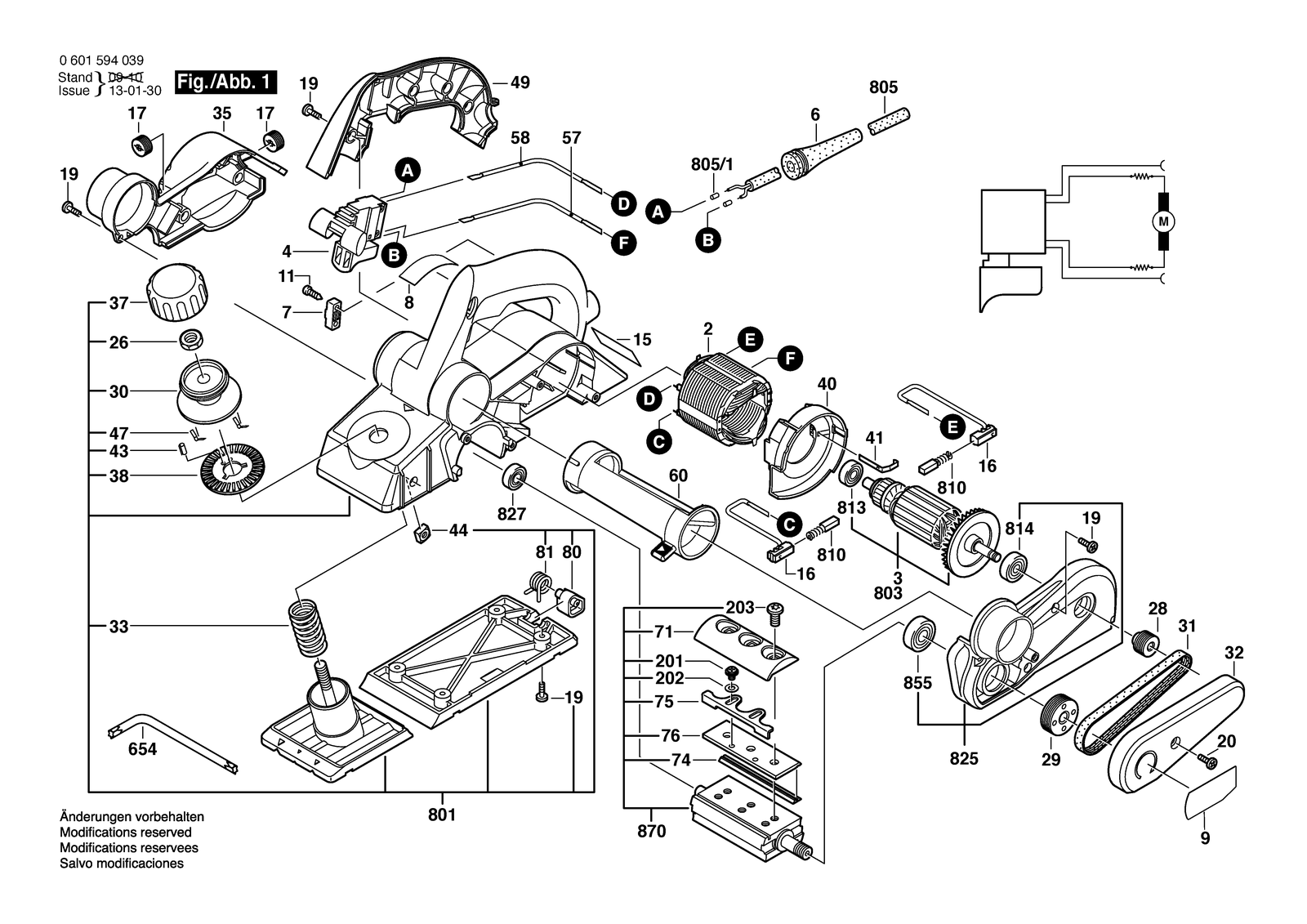

Bosch 1594 parts diagram, sheet 1
No.Part numberPart name
112910611020Tapping Screw DIN 7981-ST3,9X19-C-H
152609130372Reference Plate
162604449055Carbon Brush Holder
172609100087Cover
192910611020Tapping Screw DIN 7981-ST3,9X19-C-H
22609120464Field 120V
202609110155Screw
2012603433001Torx Oval-Head Screw
2022916069088Spring Washer
2032609110084Straining Screw
262609110131Adjusting Nut
282609110268Pulley
292609110267Pulley
32609199270Armature 110-120V
302609100139Rotary Handle
312609100410V-Belt
322609100024Gear Cover
332609110077Compression Spring
352609100023Brush-Cover Blue
372609100140Cap-Handle
382609110162Ratchet Disc
41607200158Switch
402609100028Air-Deflector Ring
412601329053Contact Strap
432917800053Coiled Spring Pin DIN 7343-5X2,5
442603320004Square Nut M6
472601254000Ratchet Spring
492609100022Handle Cover Blue
572604448181Connecting Cable White L=233 MM
582604448118Connecting Cable Blue L=213 MM
62600703018Grommet Ø7,3-Ø8,6X76 MM
602609100148Deflector Pipe Black
6542607950025Hexagon-Socket Key
72601035001Cable Clip
712609110064Clamping jaws
742608635341Planing knife
752602316001Stop Holding Device
762609110107Blade Holder
82609130762Type Label
802609100088Knife Guard
8012609199613Motor Housing
8051604460246Power supply cord Usa/cdn 3,20MM 2 X 0,82MM SJ 18/2
805/11900452012End Splice DIN 46 228-A1-6
812609110109Spring
8102609120064Carbon-Brush Set
8132600905051Groove ball bearing 7X19X6
8142600905052Groove ball bearing 8X22X7
8252609110175Bearing Flange
8272600905051Groove ball bearing 7X19X6
8552600905064Groove ball bearing 10X26X8
8702609110161Cutting Head
92609130203Manufacturer's nameplate
