Bosch 1591 EVS

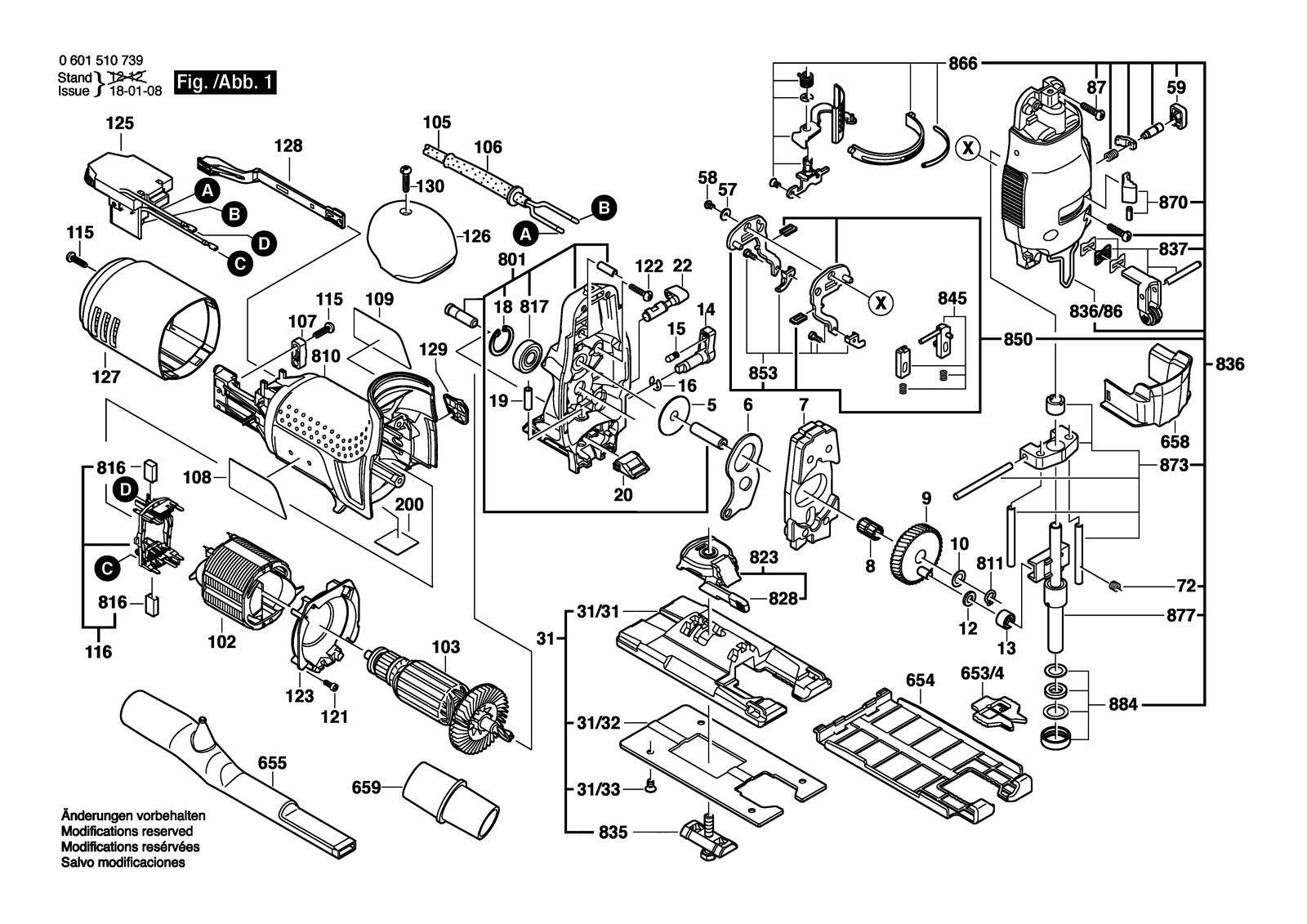

Bosch 1591 EVS orbital jigsaw: exploded parts diagram, 1 sheet, 67 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1591 EVS: 67 positions on 1 sheet
Bosch 1591 EVS parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 2600101047 | Shim 0,3 MM |
| 102 | 2604220591 | Field 100-120V |
| 103 | 2604011326 | Armature 100-120V |
| 105 | 2604460303 | Power supply cord US 4,15M 2X0,82MM SJ 18/2 |
| 106 | 2600703068 | Grommet |
| 107 | 2601035001 | Cable Clip |
| 108 | 2601116537 | Warning Plate |
| 109 | 2601116538 | Manufacturer's nameplate |
| 115 | 2603490022 | Screw 4X16 |
| 116 | 2605807110 | Brush Plate |
| 12 | 2600200038 | Intermediate Ring |
| 121 | 2603435086 | Tapping Screw |
| 122 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 123 | 2601328073 | Cover Disc |
| 125 | 2607230078 | Speed governor 100-120V |
| 126 | 2605190442 | Mushroom Handle |
| 127 | 2600508050 | Housing Cover |
| 128 | 2601099111 | Adjusting Slide |
| 129 | 2602026107 | Switch Handle |
| 13 | 2600917900 | Needle bearing |
| 130 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 14 | 2602026116 | Rotary Knob Black |
| 15 | 2600590006 | Ratchet Cap |
| 16 | 2916080908 | Locking washer 5 DIN 6799 |
| 18 | 2600118013 | Spring retaining ring |
| 19 | 2603105104 | Bearing bolt |
| 20 | 2602305023 | Air Eliminator |
| 200 | 2601116534 | Nameplate |
| 22 | 2602026109 | Rotary Knob Black |
| 31 | 2608000925 | Base Plate |
| 31/31 | 2608000305 | Base Plate |
| 31/32 | 2601098099 | Work Board |
| 31/33 | 2603421014 | Thread-forming tap. Screw |
| 5 | 2600101048 | Shim 0,5 MM |
| 57 | 2600100123 | Shim |
| 58 | 2603413037 | Socket head cap screw |
| 59 | 2603231041 | Push-Button Light Grey |
| 6 | 2601923010 | Fork Lever |
| 653/4 | 2601016087 | Splintering Protector |
| 654 | 2608000309 | Pad |
| 655 | 2605730040 | Suction Nozzle |
| 658 | 2605510205 | Covering hood |
| 659 | 2610907746 | Adapter |
| 7 | 2601098087 | Counterweight |
| 72 | 2604610042 | Compression Spring |
| 8 | 2600913040 | Needle-Roller Assembly |
| 801 | 2605806889 | Gear Housing Black |
| 810 | 2605108912 | Motor Housing |
| 811 | 2600916900 | Locking washer |
| 816 | 2604320913 | Carbon-Brush Set |
| 817 | 2600905095 | Ball Bearing 9X24X7 |
| 823 | 2601990907 | Fan Cover |
| 828 | 2601990042 | Tensioning Lever |
| 835 | 2602317900 | Clamping Piece |
| 836 | 2605808928 | Gear Cover |
| 836/86 | 2603101046 | Protecting Cover Black |
| 837 | 2601321907 | Roller Lever |
| 845 | 2601098905 | Slider |
| 850 | 2601990908 | Guide Lever |
| 853 | 2602180009 | Guide Unit |
| 866 | 2601990911 | Control Unit |
| 87 | 2603410051 | Thread-forming tap. Screw |
| 870 | 2600591900 | Cap-Handle |
| 873 | 2601322901 | Carrier |
| 877 | 2600780911 | Lifting Rod |
| 884 | 2600290903 | Seal Kit |
| 9 | 2606320101 | Eccentric Cog Wheel |
