Bosch 1565

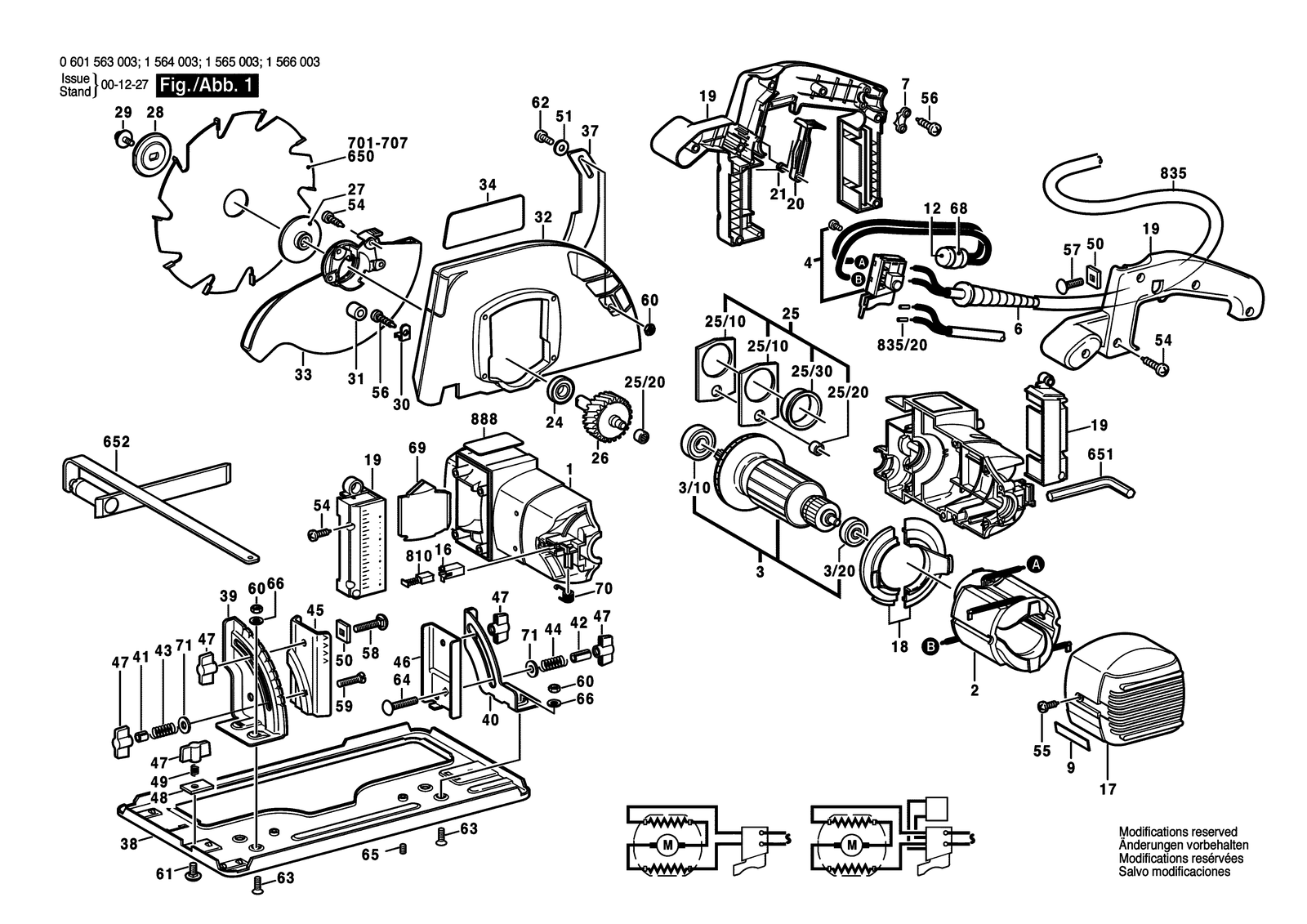

Bosch 1565 circular hand saw: exploded parts diagram, 1 sheet, 292 positions. Spare parts with part numbers, availability and prices.

—

Scroll to zoom · drag to move

All parts on this sheet0 Only available

All parts of Bosch 1565: 292 positions on 1 sheet

Bosch 1565 parts list (1 sheet)

No.	Part number	Part name
1	1609201133	Motor Housing
1	1609201133	Motor Housing
1	1609201186	Motor Housing
1	1609201186	Motor Housing
12	1609200750	Suppression Filter
12	1609200750	Suppression Filter
12	1609200750	Suppression Filter
12	1609200750	Suppression Filter
16	1609201140	Brush Holder
16	1609201140	Brush Holder
16	1609201140	Brush Holder
16	1609201140	Brush Holder
17	1609201141	Covering hood
17	1609201141	Covering hood
17	1609201189	Covering hood
17	1609201189	Covering hood
18	1609201142	Air-Deflector Ring
18	1609201142	Air-Deflector Ring
18	1609201142	Air-Deflector Ring
18	1609201142	Air-Deflector Ring
19	1609201143	Handle
19	1609201143	Handle
19	1609201143	Handle
19	1609201143	Handle
2	1609201134	Field 220V
2	1609201178	Field 240V
2	1609201184	Field 110-115V
2	1609201181	Field 220V
2	1609201184	Field 110-115V
2	1609201211	Field 240V
2	1609201187	Field 220-230V
2	1609201194	Field 110-115V
2	1609201196	Field 240V
2	1609201187	Field 220-230V
2	1609201194	Field 110-115V
2	1609201196	Field 240V
20	1602099003	Locking Lever
20	1602099003	Locking Lever
20	1602099003	Locking Lever
20	1602099003	Locking Lever
21	1604651008	Coiled Spring
21	1604651008	Coiled Spring
21	1604651008	Coiled Spring
21	1604651008	Coiled Spring
24	1900905161	Groove ball bearing 12X28X8
24	1900905161	Groove ball bearing 12X28X8
24	1900905161	Groove ball bearing 12X28X8
24	1900905161	Groove ball bearing 12X28X8
25	1609201213	Bearing Bracket
25	1609201213	Bearing Bracket
25	1609201213	Bearing Bracket
25	1609201213	Bearing Bracket
25/20	1600910018	Needle bearing Ø8XØ12X8 MM
25/20	1600910018	Needle bearing Ø8XØ12X8 MM
25/20	1600910018	Needle bearing Ø8XØ12X8 MM
25/20	1600910018	Needle bearing Ø8XØ12X8 MM
25/30	1609201214	Bushing
25/30	1609201214	Bushing
25/30	1609201214	Bushing
25/30	1609201214	Bushing
26	1609201149	Spindle With Gear Z=43
26	1609201149	Spindle With Gear Z=43
26	1609201149	Spindle With Gear Z=43
26	1609201149	Spindle With Gear Z=43
27	1609201150	Intermediate Flange
27	1609201177	Intermediate Flange
27	1609201150	Intermediate Flange
27	1609201177	Intermediate Flange
27	1609201150	Intermediate Flange
27	1609201177	Intermediate Flange
27	1609201150	Intermediate Flange
27	1609201177	Intermediate Flange
28	1609201151	Conical Spring Washer
28	1609201151	Conical Spring Washer
28	1609201151	Conical Spring Washer
28	1609201151	Conical Spring Washer
29	1609201152	Hex Socket Head Cap Screw
29	1609201152	Hex Socket Head Cap Screw
29	1609201152	Hex Socket Head Cap Screw
29	1609201152	Hex Socket Head Cap Screw
3	1609201135	Armature 220V
3	1609201179	Armature 240V
3	1609201185	Armature 110-115V
3	1609201135	Armature 220V
3	1609201185	Armature 110-115V
3	1609201212	Armature 240V
3	1609201188	Armature 220-230V
3	1609201195	Armature
3	1609201188	Armature 220-230V
3	1609201195	Armature
3/10	1609201136	Groove ball bearing
3/10	1609201136	Groove ball bearing
3/10	1609201136	Groove ball bearing
3/10	1609201136	Groove ball bearing
3/20	1609201137	Groove ball bearing
3/20	1609201137	Groove ball bearing
3/20	1609201137	Groove ball bearing
3/20	1609201137	Groove ball bearing
30	1609201153	Stop Bracket
30	1609201153	Stop Bracket
30	1609201153	Stop Bracket
30	1609201153	Stop Bracket
31	1609201154	Rubber Buffer
31	1609201154	Rubber Buffer
31	1609201154	Rubber Buffer
31	1609201154	Rubber Buffer
32	1609201155	Protective Cover
32	1609201155	Protective Cover
32	1609201190	Protective Cover
32	1609201190	Protective Cover
33	1609201156	Pivoting Blade Guard
33	1609201156	Pivoting Blade Guard
33	1609201191	Pivoting Blade Guard
33	1609201191	Pivoting Blade Guard
34	1601110186	Sticker
34	1601110187	Sticker
34	1601110188	Sticker
34	1601110189	Sticker
37	1609201157	Riving Knife L=55 MM
37	1609201180	Riving Knife
37	1609201192	Riving Knife
37	1609201198	Riving Knife
38	1609201158	Base Plate 396X202,5X2 MM
38	1609201158	Base Plate 396X202,5X2 MM
38	1609201158	Base Plate 396X202,5X2 MM
38	1609201158	Base Plate 396X202,5X2 MM
39	1609201159	Dial
39	1609201159	Dial
39	1609201159	Dial
39	1609201159	Dial
4	1609201397	On-Off Switch
4	1609201397	On-Off Switch
4	1609201397	On-Off Switch
4	1609201397	On-Off Switch
40	1609201160	Slide Plate
40	1609201160	Slide Plate
40	1609201160	Slide Plate
40	1609201160	Slide Plate
41	1609201161	Clamp Bushing
41	1609201161	Clamp Bushing
41	1609201161	Clamp Bushing
41	1609201161	Clamp Bushing
42	1609201162	Clamp Bushing
42	1609201162	Clamp Bushing
42	1609201162	Clamp Bushing
42	1609201162	Clamp Bushing
43	1609201163	Compression Spring Ø13,1XØ10,9X20 MM
43	1609201163	Compression Spring Ø13,1XØ10,9X20 MM
43	1609201163	Compression Spring Ø13,1XØ10,9X20 MM
43	1609201163	Compression Spring Ø13,1XØ10,9X20 MM
44	1609201164	Compression Spring Ø13,5XØ10,5X30 MM
44	1609201164	Compression Spring Ø13,5XØ10,5X30 MM
44	1609201164	Compression Spring Ø13,5XØ10,5X30 MM
44	1609201164	Compression Spring Ø13,5XØ10,5X30 MM
45	1609201165	Dial
45	1609201165	Dial
45	1609201165	Dial
45	1609201165	Dial
46	1609201166	Guide Rail
46	1609201166	Guide Rail
46	1609201166	Guide Rail
46	1609201166	Guide Rail
47	1609233000	Wing Nut M6
47	1609233000	Wing Nut M6
47	1609233000	Wing Nut M6
47	1609233000	Wing Nut M6
48	1601030024	Clamping Piece
48	1601030024	Clamping Piece
48	1601030024	Clamping Piece
48	1601030024	Clamping Piece
49	1609201167	Compression Spring
49	1609201167	Compression Spring
49	1609201167	Compression Spring
49	1609201167	Compression Spring
50	1609201168	Plain Washer
50	1609201168	Plain Washer
50	1609201168	Plain Washer
50	1609201168	Plain Washer
51	1609201082	Plain Washer Ø6,4XØ16X2 MM
51	1609201082	Plain Washer Ø6,4XØ16X2 MM
51	1609201082	Plain Washer Ø6,4XØ16X2 MM
51	1609201082	Plain Washer Ø6,4XØ16X2 MM
54	2912401020	Tapping Screw DIN 7981-3,9X19-C-Z-ST
54	2912401020	Tapping Screw DIN 7981-3,9X19-C-Z-ST
54	2912401020	Tapping Screw DIN 7981-3,9X19-C-Z-ST
54	2912401020	Tapping Screw DIN 7981-3,9X19-C-Z-ST
55	2910611018	Tapping Screw DIN 7981-ST3,9X13-C-H
55	2910611018	Tapping Screw DIN 7981-ST3,9X13-C-H
55	2910611018	Tapping Screw DIN 7981-ST3,9X13-C-H
55	2910611018	Tapping Screw DIN 7981-ST3,9X13-C-H
56	2910611082	Tapping Screw B 3,9X32 DIN 7981
56	2910611082	Tapping Screw B 3,9X32 DIN 7981
56	2910611082	Tapping Screw B 3,9X32 DIN 7981
56	2910611082	Tapping Screw B 3,9X32 DIN 7981
57	2910281203	Round-Head Bolt DIN 603-M6X25
57	2910281203	Round-Head Bolt DIN 603-M6X25
57	2910281203	Round-Head Bolt DIN 603-M6X25
57	2910281203	Round-Head Bolt DIN 603-M6X25
58	2910281209	Round-Head Bolt DIN 603-M6X40
58	2910281209	Round-Head Bolt DIN 603-M6X40
58	2910281209	Round-Head Bolt DIN 603-M6X40
58	2910281209	Round-Head Bolt DIN 603-M6X40
59	2910281207	Round-Head Bolt DIN 603-M6X35
59	2910281207	Round-Head Bolt DIN 603-M6X35
59	2910281207	Round-Head Bolt DIN 603-M6X35
59	2910281207	Round-Head Bolt DIN 603-M6X35
6	1609207001	Grommet Ø9X90 MM
6	1609207001	Grommet Ø9X90 MM
6	1609207001	Grommet Ø9X90 MM
6	1609207001	Grommet Ø9X90 MM
60	2915011007	Hex Nut DIN 934-M6-8-A
60	2915011007	Hex Nut DIN 934-M6-8-A
60	2915011007	Hex Nut DIN 934-M6-8-A
60	2915011007	Hex Nut DIN 934-M6-8-A
61	2910281196	Round-Head Bolt M6X15 DIN 603
61	2910281196	Round-Head Bolt M6X15 DIN 603
61	2910281196	Round-Head Bolt M6X15 DIN 603
61	2910281196	Round-Head Bolt M6X15 DIN 603
62	2910375193	Hex Socket Head Cap Screw DIN 6912 M6X12-8.8
62	2910375193	Hex Socket Head Cap Screw DIN 6912 M6X12-8.8
62	2910375193	Hex Socket Head Cap Screw DIN 6912 M6X12-8.8
62	2910375193	Hex Socket Head Cap Screw DIN 6912 M6X12-8.8
63	2910781193	Countersunk-Head Screw DIN 963-M6X12-8.8
63	2910781193	Countersunk-Head Screw DIN 963-M6X12-8.8
63	2910781193	Countersunk-Head Screw DIN 963-M6X12-8.8
63	2910781193	Countersunk-Head Screw DIN 963-M6X12-8.8
64	1609201170	Countersunk-Head Screw
64	1609201170	Countersunk-Head Screw
64	1609201170	Countersunk-Head Screw
64	1609201170	Countersunk-Head Screw
65	2912041147	Set screw M 5X5-DIN 913-45H
65	2912041147	Set screw M 5X5-DIN 913-45H
65	2912041147	Set screw M 5X5-DIN 913-45H
65	2912041147	Set screw M 5X5-DIN 913-45H
651	2610364015	Hexagon Socket Screw Key 5 MM
651	2610364015	Hexagon Socket Screw Key 5 MM
651	2610364015	Hexagon Socket Screw Key 5 MM
651	2610364015	Hexagon Socket Screw Key 5 MM
652	1609201118	Edge Guide
652	1609201118	Edge Guide
652	1609201118	Edge Guide
652	1609201118	Edge Guide
66	2916060007	Spring Washer DIN 137-A 6-ST
66	2916060007	Spring Washer DIN 137-A 6-ST
66	2916060007	Spring Washer DIN 137-A 6-ST
66	2916060007	Spring Washer DIN 137-A 6-ST
68	1609200550	Adhesive Tape
68	1609200550	Adhesive Tape
68	1609200550	Adhesive Tape
68	1609200550	Adhesive Tape
69	1609201216	Guide Plate
69	1609201216	Guide Plate
69	1609201216	Guide Plate
69	1609201216	Guide Plate
7	1609213000	Fastening Clamp
7	1609213000	Fastening Clamp
7	1609213000	Fastening Clamp
7	1609213000	Fastening Clamp
70	1609201210	Torsion Spring
70	1609201210	Torsion Spring
70	1609201210	Torsion Spring
70	1609201210	Torsion Spring
701	1609286022	Circular Saw Blade Ø 170X30 Mm, Z=64
701	1609286008	Circular Saw Blade Ø 190X30 Mm, Z=72
71	1609201466	Plain Washer
71	1609201466	Plain Washer
71	1609201466	Plain Washer
71	1609201466	Plain Washer
810	1609201459	Carbon-Brush Set
810	1609201460	Carbon-Brush Set
810	1609201459	Carbon-Brush Set
810	1609201460	Carbon-Brush Set
810	1609201459	Carbon-Brush Set
810	1609201460	Carbon-Brush Set
810	1609201459	Carbon-Brush Set
810	1609201460	Carbon-Brush Set
835	1607000228	Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F
835	1607000228	Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F
835	1607000228	Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F
835	1607000228	Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F
835/20	3604477009	End Splice
835/20	3604477009	End Splice
835/20	3604477009	End Splice
835/20	3604477009	End Splice
888	160111A3H3	Nameplate
888	160111A3H3	Nameplate
888	160111A3H3	Nameplate
888	160111A3H3	Nameplate
9	1609201139	Manufacturer's nameplate
9	1609201139	Manufacturer's nameplate
9	1601110190	Manufacturer's nameplate
9	1601110190	Manufacturer's nameplate
