Bosch 1533

Bosch 1533 nibbler: exploded parts diagram, 1 sheet, 85 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1533: 85 positions on 1 sheet

Bosch 1533 parts list (1 sheet)

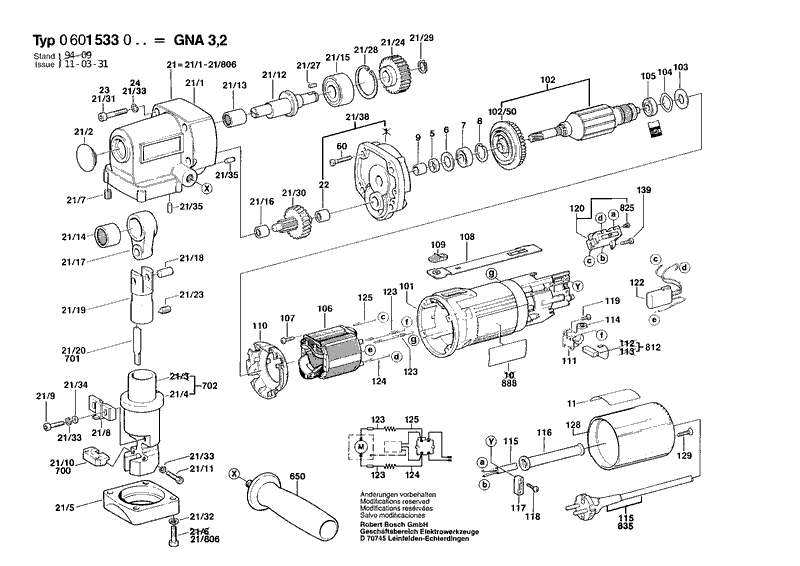

Bosch 1533 parts diagram, sheet 1
No.Part numberPart name
1012605108051Motor Housing Blue
1022604010657Armature 115V
1022604010704Armature 110V
1023604010030Armature 240V
1023604010040Armature 220-230V
102/502606610050Fan
1032600101023Shim 0,3 MM
1042600150004Shim
1051900905018Ball Bearing 7X22X7
1062604220443Field 110-120V
1062604220445Field 220-230V
1062604220462Field 240V
1072603435015Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F
1082602319005Adjusting Slide Blue
1092602026015Switch Handle Black
113601110061Sticker
1102601328045Cover Disc
1111600A003G4Brush Holder
1112601323022Brush Holder
1141604652013Spiral Spring
1151604460427Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F
1152604460109Parts Set
1152604460205Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F
1162600703011Grommet Ø8,3-Ø9,4X95 MM
1162600703013Grommet Ø7,6-Ø8,2X95 MM
1172601035001Cable Clip
1182910211011Tapping Screw DIN 7971-BZ3,5X13
1192910211005Tapping Screw DIN 7971-ST2,9X9,5-F
1202607200674Switch
1221607328034Suppression Filter
1232604448034Connecting Cable White L=88 MM
1242604448044Connecting Cable White L=86MM
1252604448056Connecting Cable White L=136MM
1282605500073Housing Cover Blue
1292603490023Torx Oval-Head Screw 4X20
1392603490017Torx Oval-Head Screw 3X10
213607030022Nibbler-Head
21/13609201156Gear Housing
21/102608639026Lower Die
21/112910151164Hex Socket Head Cap Screw M5X25 DIN 912-10.9
21/123609201160Eccentric Shaft
21/133609201161Needle bearing
21/143609201162Needle bearing
21/153609201163Ang. Contact Ball Bearing
21/161610910057Needle bearing Ø8XØ12X10 MM
21/173609201164Connecting Rod
21/183609201165Piston Pin
21/193609201166Piston
21/23609201157Protective Cap
21/203607031197Nibbling Punch
21/233609201167Die
21/243609201168Cylindrical Gear Z=45
21/273609201169Wedge
21/282916660018Spring retaining ring 40X1,75 Mm, DIN 472
21/292916650903Spring retaining ring DIN 471-12X1-FSTM
21/303609201170Spindle With Gear Z=12/48
21/312910141170Hex Socket Head Cap Screw DIN 912-M5X40-8.8
21/322916690005Spring Lock Washer M6
21/332916680006Spring Lock Washer DIN 127-B 5
21/342916011011Plain Washer DIN 433-5,3-ST
21/352917500119Straight Pin DIN 7-5H8X14
21/383609201171Flange
21/43607031195Lower Die Ring
21/53609201158Retaining snap ring
21/83609201159Guide Piece
21/8063607031200Parts Set
21/93603414028Hex Socket Head Cap Screw
222610063817Needle-Roller Bearing
232910141170Hex Socket Head Cap Screw DIN 912-M5X40-8.8
242916690004Spring Lock Washer DIN 128-A5-FST
52600108077Felt Washer
62600500002Cupped Washer
602603490023Torx Oval-Head Screw 4X20
602603490024Torx Oval-Head Screw 4X25
650160202509TAuxiliary Handle
72600905039Groove ball bearing 9X24X7
7002608639026Lower Die
7013607031197Nibbling Punch
7023607031195Lower Die Ring
82916660008Spring retaining ring DIN 472-24X1,2 MM
8121607014116Carbon-Brush Set
8252603410001Socket head cap screw M3X6,5-4.8
8351607000227Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F
888160111A3H3Nameplate
92600400008Receptacle
