Bosch 1531

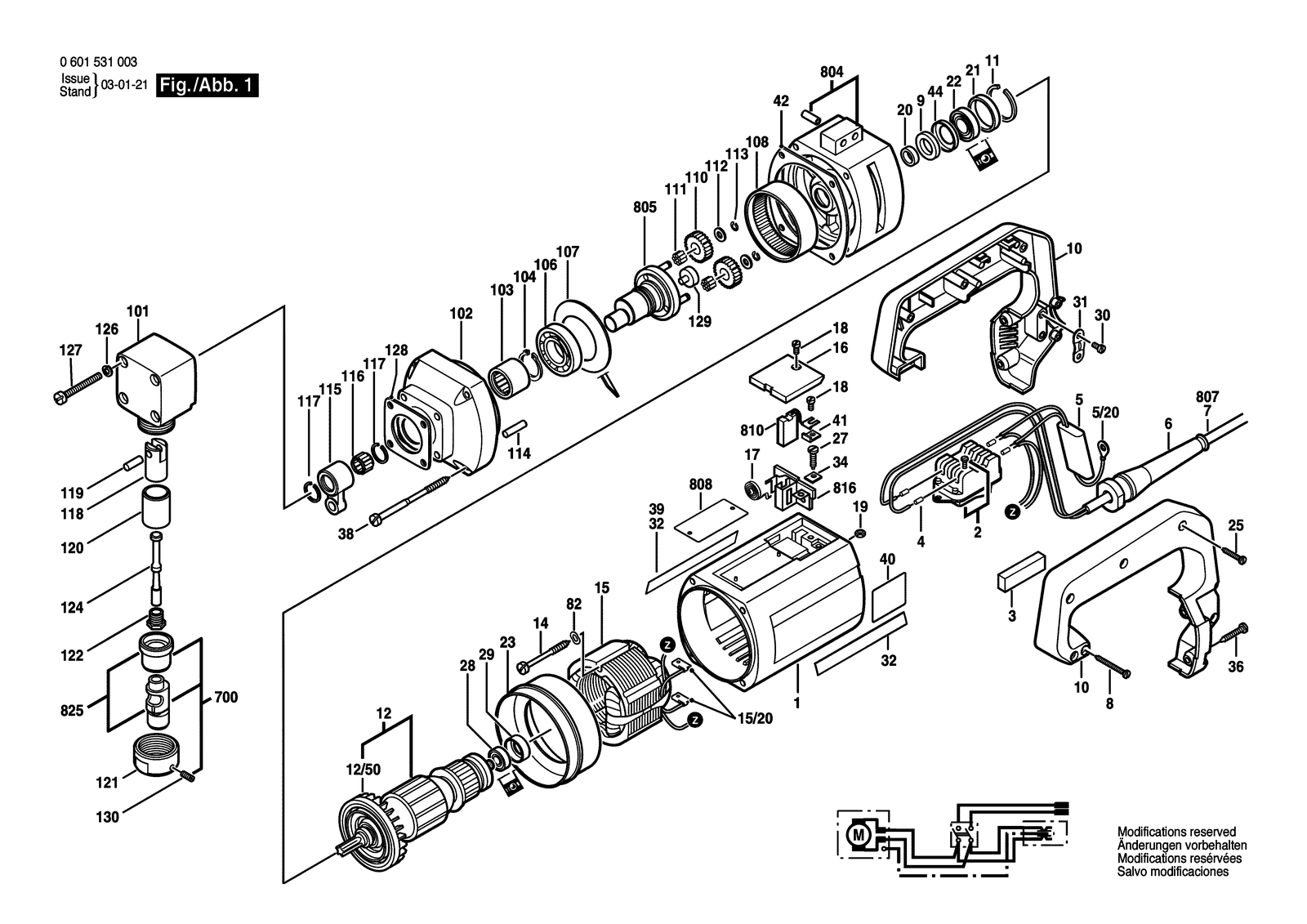

Bosch 1531 nibbler: exploded parts diagram, 1 sheet, 94 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1531: 94 positions on 1 sheet
Bosch 1531 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108145 | Motor Housing Blue |
| 10 | 1605133029 | Handle Black |
| 101 | 3605806009 | Gear Cover |
| 101 | 3605806030 | Gear Cover |
| 102 | 3605110024 | Gear Housing |
| 103 | 3600910001 | Needle-Roller Bearing |
| 104 | 2916650014 | Spring retaining ring DIN 471 25X1,2 |
| 106 | 3600905011 | Groove ball bearing |
| 107 | 3600550000 | Disc Spring |
| 108 | 3606334009 | Ring Gear Z=75 |
| 11 | 2916600018 | Retaining ring 35 DIN 9045 |
| 110 | 3606316015 | Cylindrical Gear Z=35 |
| 111 | 1903201021 | Needle Roller A 2,5X9,8 G2 DIN 5402 |
| 112 | 1600100611 | Shim Thick 1,2 MM |
| 113 | 2916080908 | Locking washer 5 DIN 6799 |
| 114 | 1903201044 | Needle Roller A 3X15,8G2DIN5402 |
| 115 | 3602001001 | Connecting Rod |
| 116 | 3600913001 | Needle-Roller Assembly |
| 117 | 3600224005 | Retaining ring |
| 118 | 3608750006 | Power piston |
| 119 | 3603100000 | Straight Pin |
| 12 | 1604010175 | Armature 220-230V |
| 12 | 1604010176 | Armature 100-110V |
| 12 | 1604010177 | Armature 115-120V |
| 12 | 1604010178 | Armature 240V |
| 12/50 | 1606610107 | Fan |
| 120 | 3600400002 | Bearing Sleeve |
| 121 | 3603343001 | Union Nut |
| 122 | 3603457000 | Hollow Bolt |
| 124 | 3608639001 | Nibbling Punch |
| 126 | 2916690005 | Spring Lock Washer M6 |
| 127 | 2910021213 | Socket head cap screw DIN 84-BM 6X50-8.8 |
| 128 | 3601015003 | Seal |
| 129 | 3603120000 | Counterweight |
| 130 | 2912031191 | Set screw M 6X10-DIN 551-5.8 |
| 14 | 1603435012 | Tapping Screw B4,8X50 MM |
| 15 | 1604220159 | Field 220-230V |
| 15 | 1604220160 | Field 100-110V |
| 15 | 1604220161 | Field 115-120V |
| 15 | 1604220162 | Field 240V |
| 15/20 | 1901350003 | Terminal lug 1,5-4X4 |
| 16 | 1605500089 | Sealing cap Blue |
| 16 | 1605500129 | Sealing cap |
| 17 | 1604652006 | Spiral Spring |
| 18 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 19 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 2 | 1607200065 | Switch |
| 20 | 1600202036 | Intermediate Ring |
| 21 | 1600206018 | Intermediate Ring |
| 22 | 1900905019 | Groove ball bearing 6X19X6 |
| 23 | 1600502015 | Air-Deflector Ring |
| 25 | 2910211022 | Tapping Screw DIN 7971-BZ3,9X25 |
| 27 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 28 | 2600905032 | Ball Bearing 7X19X6 |
| 29 | 1600502020 | Rubber Bushing |
| 3 | 1602381001 | Insulating Strip 33X10X6 MM |
| 30 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 30 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 31 | 1601302014 | Fastening Clamp |
| 32 | 1601110046 | Sticker |
| 34 | 1601030022 | Tab Washer |
| 36 | 2914201529 | Torx Oval-Head Screw |
| 38 | 2603435012 | Tapping Screw 79 MM |
| 39 | 1601110074 | Sticker Double Insulation |
| 4 | 1900452003 | End Splice DIN 46 228-A2,5-7 |
| 40 | 1601110058 | Reference Plate Double Insulation |
| 41 | 1611331007 | Tab Washer |
| 42 | 1601015013 | Sealing Plate |
| 44 | 1610500004 | Retaining snap ring |
| 5 | 1607328012 | Suppression Filter |
| 5 | 1607328022 | Suppression Capacitor |
| 5/20 | 1601353003 | Terminal lug |
| 6 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 7 | 1604460084 | Elec. Cable W/Connection |
| 7 | 1604460087 | Power supply cord |
| 7 | 1604460097 | Elec. Cable W/Connection |
| 7 | 1604460119 | Elec. Cable W/Connection |
| 7 | 1614460023 | Power supply cord J 5M 2 X 1,25MM Pvc |
| 7 | 3604460082 | Power supply cord |
| 7 | 3604461001 | Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2 |
| 7 | 3607030489 | Power supply cord |
| 700 | 3607000014 | Parts Set |
| 8 | 2910215093 | Tapping Screw DIN 7971-3,9X38 |
| 804 | 3607031160 | Assembly Of Service Parts |
| 805 | 3606110003 | Eccentric Shaft |
| 807 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1607014126 | Carbon-Brush Set |
| 816 | 1604336017 | Brush Holder |
| 82 | 2916060006 | Spring Washer DIN 137-A5-FST |
| 825 | 2608639006 | Lower Die |
| 825 | 3608639005 | Lower Die |
| 9 | 1600108003 | Felt Disc |
