Bosch 1506

Bosch 1506 shears: exploded parts diagram, 1 sheet, 103 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1506: 103 positions on 1 sheet

Bosch 1506 parts list (1 sheet)

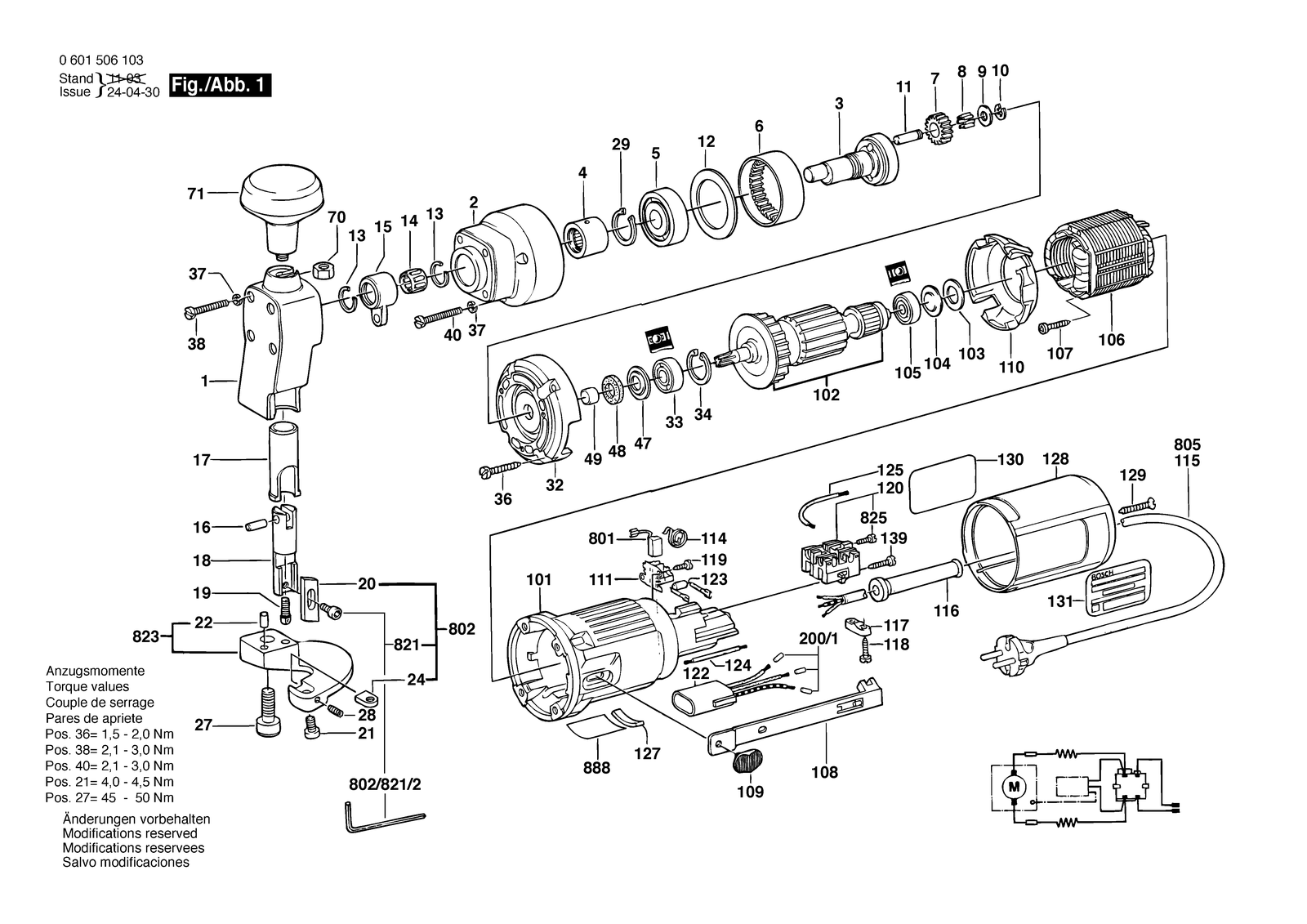

Bosch 1506 parts diagram, sheet 1
No.Part numberPart name
12605500054Gear Cover
102916080908Locking washer 5 DIN 6799
1012605108051Motor Housing Blue
1022604010606Armature 100V
1022604010607Armature 115V
1022604010608Armature 220-230V
1022604010609Armature 240V
1032600101020Shim 0,5 MM
1032600101022Shim 0,2 MM
1032600101023Shim 0,3 MM
1042600150004Shim
1051900905018Ball Bearing 7X22X7
1062604220427Field 100V
1062604220428Field 110-120V
1062604220445Field 220-230V
1062604220462Field 240V
1062604220470Field 110-115V
1072603435015Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F
1082602319005Adjusting Slide Blue
1092602026015Switch Handle Black
112603105021Bearing bolt
1102601328045Cover Disc
1111600A003G4Brush Holder
1141604652013Spiral Spring
1151604460283Elec. Cable W/Connection BR 2,65M 2 X 1,0MM H07RN-F
1151604460427Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F
115160446071BPower supply cord
1152604460074Power supply cord AUS 2,6M 2 X 0,75MM Pvc
1152604460095Power supply cord J 2,5M 2 X 0,75MM Pvc
1152604460168Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
1152604460205Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F
1152604460277Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F
1153604460049Power supply cord
1162600703011Grommet Ø8,3-Ø9,4X95 MM
1162600703012Grommet Ø6,5-Ø6,9X95 MM
1162600703013Grommet Ø7,6-Ø8,2X95 MM
1171611035005Cable Clip
1172601035001Cable Clip
1182603490022Screw 4X16
1191613435034Lens Head Screw 3X10 St
122600550017Disc Spring
1202607200674Switch
1222607329104Suppression Filter
1232604448034Connecting Cable White L=88 MM
1232604465068Suppression Filter
1233604465000Suppression Filter
1242604448039Connecting Cable White L=68MM
1252604448040Connecting Cable White L=125MM
1282600508036Housing Cover Blue
1282605500073Housing Cover Blue
1292910601321Tapping Screw DIN 7982-ST3,9X22C-H
132600224009Retaining ring
1302601118528Sticker Shadow Side
1303601110354Sticker
1311619P06404Manufacturer's nameplate
1312610906998Sticker
1313601110384Sticker
1392910211007Tapping Screw DIN 7971-BZ2,9X16
142600913035Needle-Roller Cage
152602001001Connecting Rod
162603100003Bearing bolt
172600400001Bearing Sleeve
182603070008Lifting Rod
192603480001Adjusting Screw
22605806312Gear Housing
202608635065Upper Blade
200/13604477009End Splice
200/13604477011End Splice
213603414029Hex Socket Head Cap Screw
223603100040Straight Pin
242608635042Lower Blade
272910141290Hex Socket Head Cap Screw M 10X22 DIN 912-8.8
282603400011Set screw
292916650011Spring retaining ring DIN 471 20X1,2
32606122003Eccentric Shaft
323605700042Intermediate Flange
332600905021Groove ball bearing 9X24X7
342916660008Spring retaining ring DIN 472-24X1,2 MM
362914201508Torx Oval-Head Screw
372916690003Spring Lock Washer DIN 128-A4-FST
382910021138Socket head cap screw DIN 84-BM4X40-8.8
42600914011Needle bearing
402910021134Socket head cap screw DIN 84-BM4X30-8.8
472600500002Cupped Washer
482600108002Felt Washer
492600400008Receptacle
51900900274Groove ball bearing 20X42X12
62606334040Ring Gear Z=66
73606316057Cylindrical Gear Z=30
702915011009Hex Nut DIN 934-M8-8-A
712602026001Handle Black
81903201520Needle Roller
8012604320910Carbon-Brush Set
8013607031630Carbon-Brush Set
8022607010025Set of knives
802/821/21907950004Offset Screwdriver DIN 911, SW3
8053604460192Power supply cord
8053607030489Power supply cord
8213607031645Set of screws
8232608042003Blade Holder
8252603410001Socket head cap screw M3X6,5-4.8
888160111A3H3Nameplate
91600100611Shim Thick 1,2 MM
