Bosch 1423 VSR

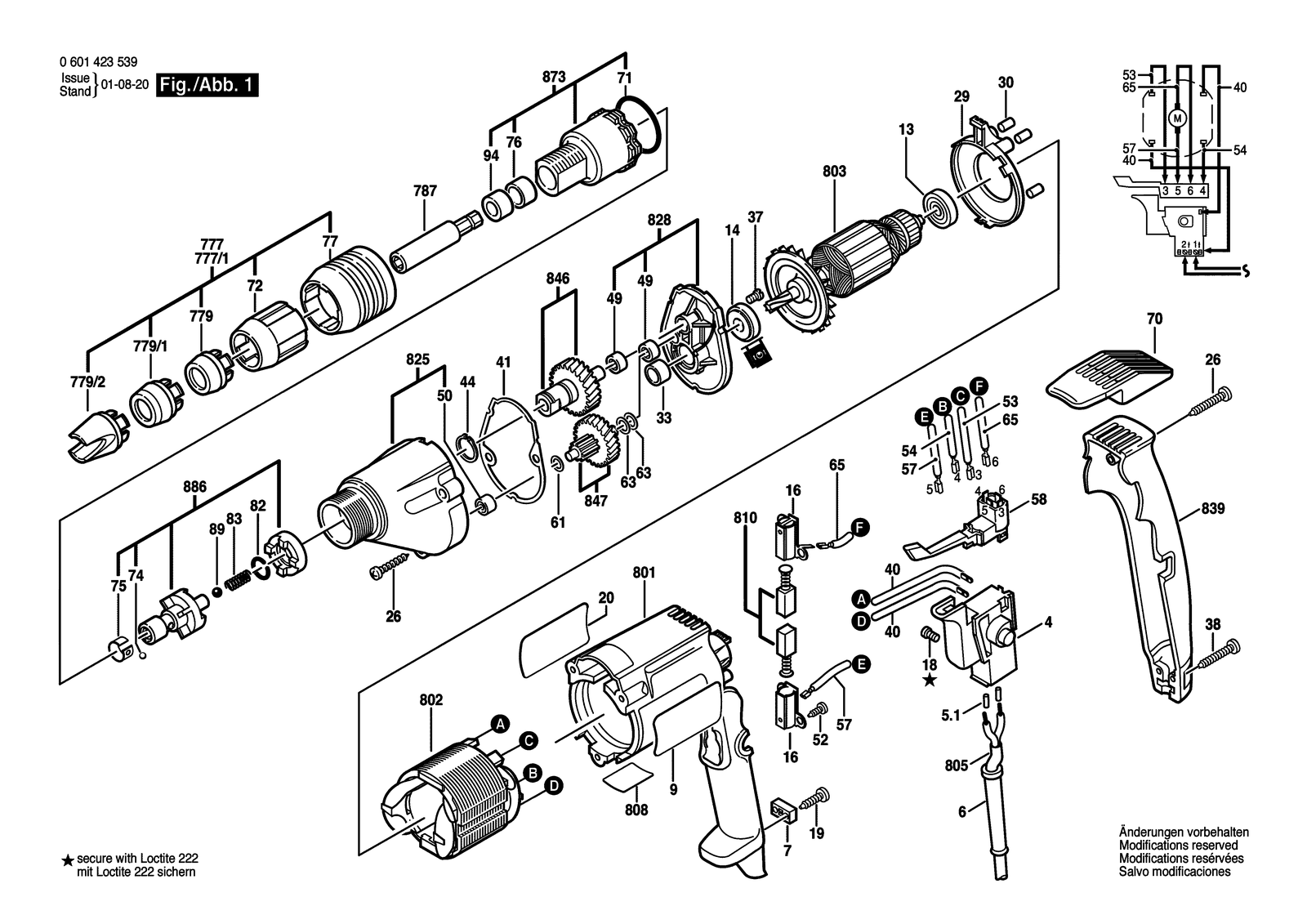

Bosch 1423 VSR dummy: exploded parts diagram, 1 sheet, 59 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1423 VSR: 59 positions on 1 sheet
Bosch 1423 VSR parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | 1900905018 | Ball Bearing 7X22X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 16 | 2604337003 | Brush Holder |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 20 | 2610906869 | Warning Plate Sunny Side |
| 26 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 29 | 2601328046 | Cover Disc |
| 30 | 3602391503 | Rubber Buffer |
| 33 | 2600400008 | Receptacle |
| 37 | 2610914380 | Tapping Screw |
| 38 | 2910615022 | Tapping Screw DIN 7981-ST3,9X25C-H |
| 4 | 2607200203 | Switch |
| 40 | 2604448005 | Cable White L=130 MM |
| 41 | 3601016502 | Flat Seal Ring |
| 44 | 2916650003 | Spring retaining ring DIN 471-12X1-FST |
| 49 | 3600910505 | Nozzle Socket |
| 50 | 2600914017 | Needle bearing Ø6/12 MM |
| 52 | 2610914920 | Tapping Screw |
| 53 | 2604448074 | Connecting Cable Black L=98 MM |
| 54 | 2604448100 | Connecting Cable White L=68 MM |
| 57 | 2604448104 | Connecting Cable White L=63 MM |
| 58 | 2607200231 | Change-Over Switch |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 61 | 2600100607 | Shim 0,3 MM |
| 63 | 2600100628 | Shim 0,5 MM |
| 65 | 2604448102 | Connecting Cable L=100MM |
| 7 | 2601035001 | Cable Clip |
| 70 | 3600690505 | Holder |
| 71 | 3600210506 | O-Ring |
| 72 | 3600360505 | Spacer Sleeve Black |
| 74 | 1903230006 | Ball DIN 5401-3,5 Mm-Iii-St |
| 75 | 3600034504 | Ball Support |
| 76 | 3600900527 | Bushing |
| 77 | 3600390502 | Locking Ring Black |
| 777 | 3600552510 | Sleeve Black |
| 777/1 | 3600552512 | Sleeve |
| 779 | 3600552507 | Depth-Gauge Black |
| 779/1 | 3600552506 | Depth-Gauge Silver |
| 779/2 | 3600552511 | Depth-Gauge Black |
| 787 | 3608550504 | Hexagon Socket Wrench |
| 801 | 2605104332 | Motor Housing Blue |
| 802 | 2604220482 | Field 100-115V |
| 803 | 2604010793 | Armature 110-115V |
| 805 | 3604460555 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 808 | 3601119718 | Nameplate |
| 810 | 2604321914 | Carbon-Brush Set |
| 82 | 3600200516 | Retaining ring |
| 825 | 3605190526 | Gear Housing |
| 828 | 3605806537 | Bearing Bracket |
| 83 | 3604613507 | Spring |
| 839 | 2605132050 | Housing Cover Blue |
| 846 | 3606120567 | Drive Shaft Z=32 |
| 847 | 3606319525 | Toothed Shaft Z=14/31 |
| 873 | 3605190521 | Housing |
| 886 | 3606441502 | Sticker |
| 89 | 1903230011 | Ball DIN 5401-6 G28 |
| 9 | 2610906968 | Sticker |
| 94 | 3600900529 | Bushing |
