Bosch 1420 VSR

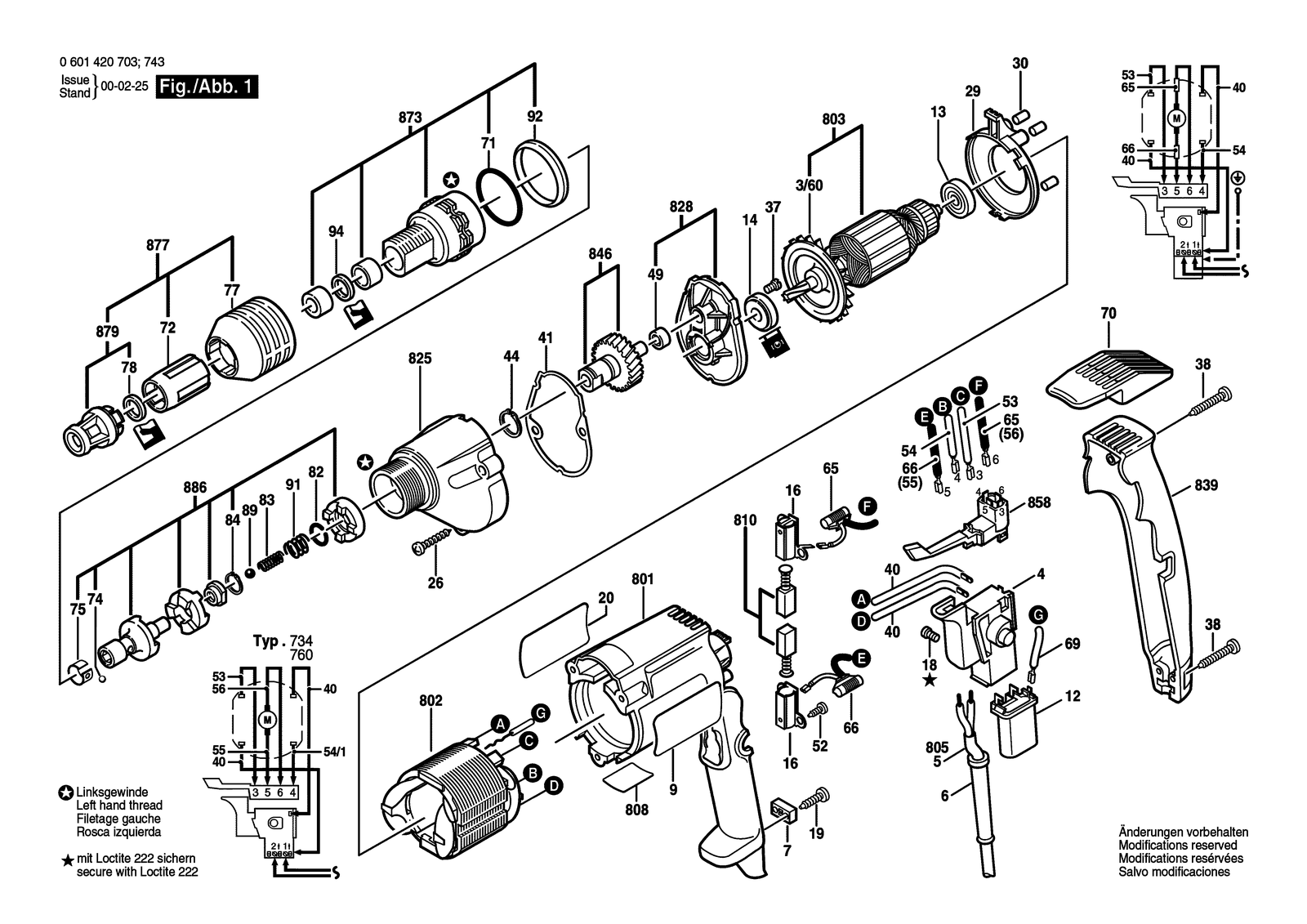

Bosch 1420 VSR drill screwdriver: exploded parts diagram, 1 sheet, 76 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1420 VSR: 76 positions on 1 sheet
Bosch 1420 VSR parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 12 | 2607329114 | Suppression Filter |
| 13 | 1900905018 | Ball Bearing 7X22X7 |
| 14 | 2600905095 | Ball Bearing 9X24X7 |
| 16 | 2604337003 | Brush Holder |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490022 | Screw 4X16 |
| 20 | 9920490130 | Reference Plate |
| 26 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 29 | 3600590505 | Cover Disc |
| 3/60 | 1619P11262 | Fan |
| 30 | 3602391503 | Rubber Buffer |
| 37 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 38 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 4 | 2607200202 | Switch |
| 4 | 2607200203 | Switch |
| 40 | 2604448005 | Cable White L=130 MM |
| 41 | 3601016504 | Sealing disk |
| 44 | 2916650003 | Spring retaining ring DIN 471-12X1-FST |
| 49 | 2600917004 | Needle bearing |
| 5 | 1604460236 | Power supply cord AR 2,7M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460432 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460147 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460153 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460157 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460207 | Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460249 | Power supply cord SAM 2,7M 2 X 0,82MM SJ 18/2 |
| 5 | 2604460283 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 3604460623 | Power supply cord USA 1,524M 2 X 1,32MM SJ 16/2 |
| 52 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 53 | 2604448074 | Connecting Cable Black L=98 MM |
| 54 | 2604448100 | Connecting Cable White L=68 MM |
| 54/1 | 2604448104 | Connecting Cable White L=63 MM |
| 55 | 2604448100 | Connecting Cable White L=68 MM |
| 56 | 1614448014 | Connecting Cable L=80 MM |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 65 | 2604465086 | Suppression Filter Black L=148 MM |
| 66 | 2604465097 | Suppression Filter White L=126 MM |
| 69 | 2604448097 | Earth Conductor |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 70 | 3600690503 | Clip Black |
| 71 | 2600210043 | O-Ring |
| 72 | 3600360505 | Spacer Sleeve Black |
| 74 | 1903230006 | Ball DIN 5401-3,5 Mm-Iii-St |
| 75 | 3600034504 | Ball Support |
| 77 | 3600390502 | Locking Ring Black |
| 78 | 3600290502 | Seal Ring |
| 801 | 3605108557 | Motor Housing Dark Blue |
| 802 | 2604220446 | Field 100V |
| 802 | 2604220526 | Field 230-240V |
| 803 | 3604011584 | Armature 115V |
| 803 | 3604011585 | Armature 100V |
| 803 | 3604011587 | Armature 240V |
| 805 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 808 | 160111A3H3 | Nameplate |
| 810 | 2604321905 | Carbon-Brush Set |
| 82 | 3600200516 | Retaining ring |
| 825 | 3605190512 | Gear Housing Black |
| 828 | 3605806541 | Bearing Bracket |
| 83 | 3604613507 | Spring |
| 839 | 3605133521 | Housing Cover Dark Blue |
| 84 | 3600118502 | Spring retaining ring |
| 846 | 3606120565 | Drive Shaft Z=17 |
| 858 | 2607200231 | Change-Over Switch |
| 873 | 3605190520 | Drive Clutch |
| 877 | 3600552509 | Depth-Gauge |
| 879 | 2610906321 | Depth-Gauge |
| 886 | 3606441503 | Drive Clutch |
| 89 | 1903230011 | Ball DIN 5401-6 G28 |
| 9 | 2601116668 | Manufacturer's nameplate |
| 9 | 3601119766 | Manufacturer's nameplate |
| 91 | 3604613506 | Spring |
| 92 | 3600113506 | Insulating Sleeve Gray |
| 94 | 3600290503 | Seal Ring |
