Bosch 1365
Bosch 1365 angle grinder: exploded parts diagram, 2 sheets, 140 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

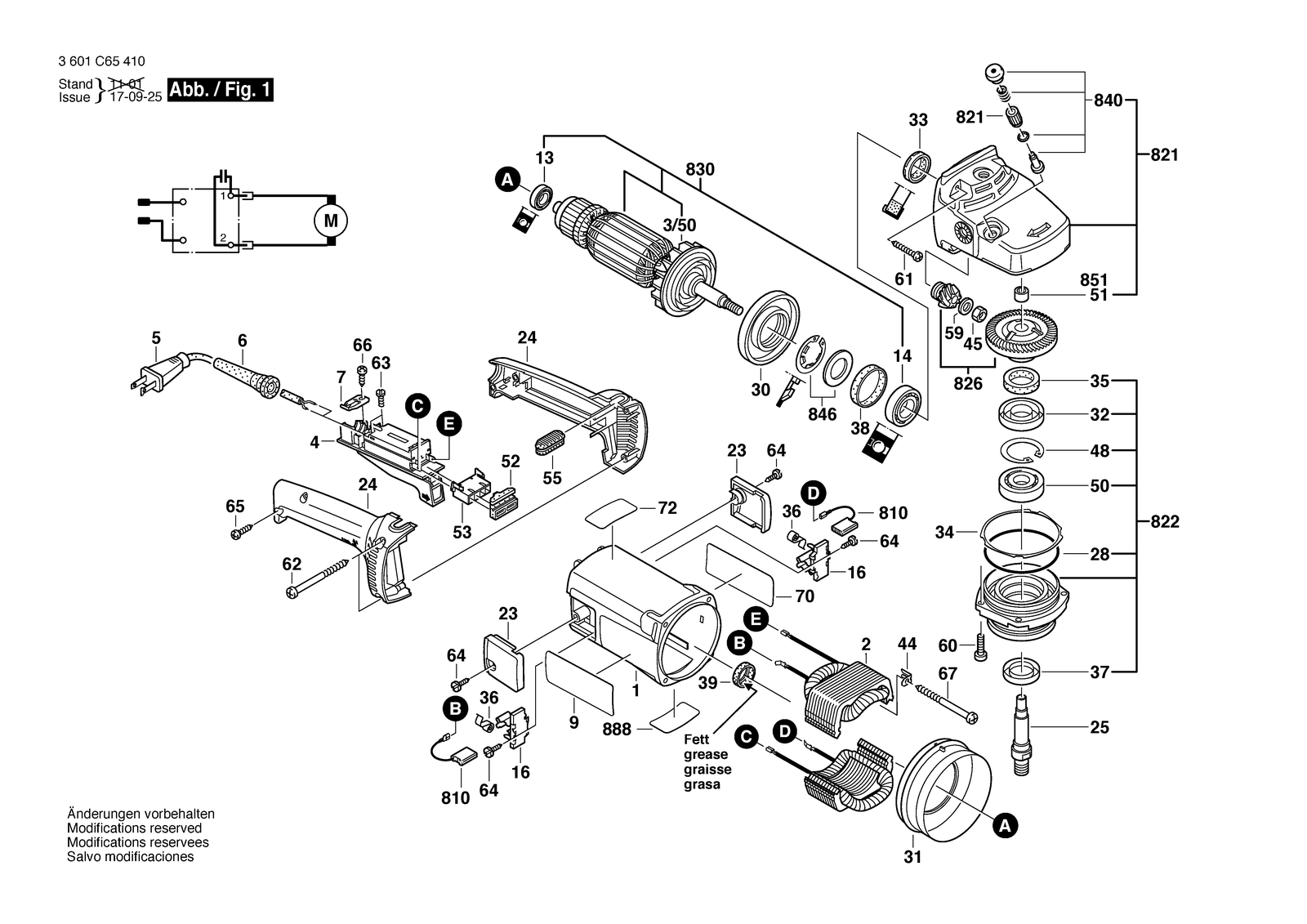

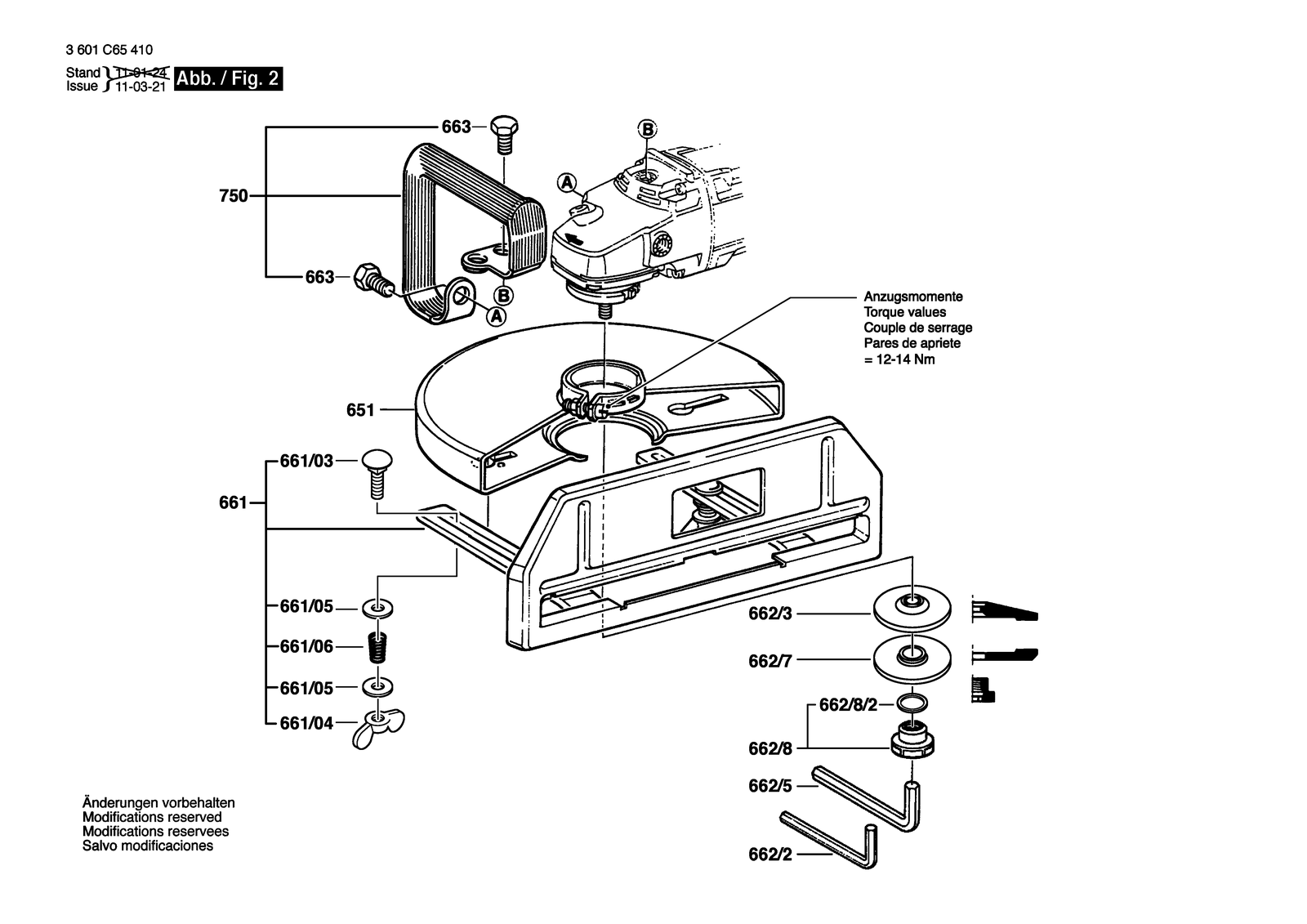

All parts of Bosch 1365: 140 positions on 2 sheets
Bosch 1365 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108145 | Motor Housing Black |
| 1 | 1605108145 | Motor Housing Black |
| 13 | 1600905011 | Groove ball bearing 8X22X7 |
| 13 | 1600905011 | Groove ball bearing 8X22X7 |
| 14 | 1600905023 | Groove ball bearing 10X35X11 |
| 14 | 1600905023 | Groove ball bearing 10X35X11 |
| 16 | 1604336021 | Brush Holder |
| 16 | 1604336021 | Brush Holder |
| 2 | 1604220387 | Field 100-120V |
| 2 | 1604220438 | Field 127V |
| 23 | 1605500165 | Sealing cap Blue |
| 23 | 1605500165 | Sealing cap Blue |
| 24 | 1605132121 | Handle Black |
| 24 | 1605132121 | Handle Black |
| 25 | 1603523106 | Grinding Spindle 5/8", SW17 |
| 25 | 1603523106 | Grinding Spindle 5/8", SW17 |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 3/50 | 1606610127 | Fan |
| 3/50 | 1606610127 | Fan |
| 30 | 1600591010 | Air-Deflector Ring |
| 30 | 1600591010 | Air-Deflector Ring |
| 31 | 1600591011 | Air-Deflector Ring |
| 31 | 1600591011 | Air-Deflector Ring |
| 32 | 1600290019 | Retaining snap ring |
| 32 | 1600290019 | Retaining snap ring |
| 33 | 1600290013 | Rotary shaft lip seal Red 18,7 MM |
| 33 | 1600290013 | Rotary shaft lip seal Red 18,7 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190037 | Shim Thick 0,2 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190037 | Shim Thick 0,2 MM |
| 35 | 1600205034 | Felt Washer |
| 35 | 1600205034 | Felt Washer |
| 36 | 1604652015 | Spiral Spring |
| 36 | 1604652015 | Spiral Spring |
| 37 | 1600290020 | Seal Ring |
| 37 | 1600290020 | Seal Ring |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 39 | 1600206030 | Rubber Ring |
| 39 | 1600206030 | Rubber Ring |
| 4 | 1607200104 | Switch |
| 4 | 1607200104 | Switch |
| 44 | 1601334008 | Holding Bracket |
| 44 | 1601334008 | Holding Bracket |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 48 | 1600119010 | Spring retaining ring |
| 48 | 1600119010 | Spring retaining ring |
| 5 | 1604460133 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 5 | 1604460133 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 50 | 3600905134 | Groove ball bearing |
| 50 | 3600905134 | Groove ball bearing |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 52 | 1602388027 | Cable routing |
| 52 | 1602388027 | Cable routing |
| 53 | 1605190038 | Socket Housing |
| 53 | 1605190038 | Socket Housing |
| 55 | 1602388029 | Storage Ledge Black |
| 55 | 1602388029 | Storage Ledge Black |
| 59 | 1600101655 | Plain Washer Thick 1,8 MM |
| 59 | 1600101655 | Plain Washer Thick 1,8 MM |
| 6 | 1600703023 | Grommet Ø 10,5-Ø11,0X100 MM |
| 6 | 1600703023 | Grommet Ø 10,5-Ø11,0X100 MM |
| 60 | 1603435076 | Thread-forming tap. Screw |
| 60 | 1603435076 | Thread-forming tap. Screw |
| 61 | 2912401038 | Tapping Screw DIN 7981-4,8X38-C-Z-ST |
| 61 | 2912401038 | Tapping Screw DIN 7981-4,8X38-C-Z-ST |
| 62 | 1603435024 | Tapping Screw C4,8X63 MM |
| 62 | 1603435024 | Tapping Screw C4,8X63 MM |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 64 | 2914201503 | Oval-Head Screw A 4X12-10,9-D |
| 64 | 2914201503 | Oval-Head Screw A 4X12-10,9-D |
| 65 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 65 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 651 | 1605510214 | Protective Cover Ø350 MM (14") |
| 651 | 1605510214 | Protective Cover Ø350 MM (14") |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 661 | 1608190014 | Guide Block Ø300 MM |
| 661 | 1608190014 | Guide Block Ø300 MM |
| 661/03 | 2910281246 | Round-Head Bolt M 8X30 DIN 603 |
| 661/03 | 2910281246 | Round-Head Bolt M 8X30 DIN 603 |
| 661/04 | 2915191007 | Wing Nut DIN 315-M8-GT-C |
| 661/04 | 2915191007 | Wing Nut DIN 315-M8-GT-C |
| 661/05 | 2600100041 | Plain Washer DIN 315-M8-GT-C |
| 661/05 | 2600100041 | Plain Washer DIN 315-M8-GT-C |
| 661/06 | 1604643003 | Compression Spring |
| 661/06 | 1604643003 | Compression Spring |
| 662/2 | 1907950007 | Offset Screwdriver DIN 911;SW6 |
| 662/2 | 1907950007 | Offset Screwdriver DIN 911;SW6 |
| 662/3 | 1605703143 | Clamping-Flange |
| 662/3 | 1605703143 | Clamping-Flange |
| 662/5 | 3607950013 | Offset Screwdriver 3/8", SW9 |
| 662/5 | 3607950013 | Offset Screwdriver 3/8", SW9 |
| 662/7 | 1605703144 | Conical Spring Washer |
| 662/7 | 1605703144 | Conical Spring Washer |
| 662/8 | 1600A000NX | Round Nut |
| 662/8 | 1600A000NX | Round Nut |
| 662/8/2 | 1610210234 | O-Ring 23,52X1,78 MM |
| 662/8/2 | 1610210234 | O-Ring 23,52X1,78 MM |
| 663 | 2603450007 | Hex Screw M14X16X1,5 MM |
| 663 | 2603450007 | Hex Screw M14X16X1,5 MM |
| 67 | 1603435019 | Tapping Screw BZ 4,8X78 MM |
| 67 | 1603435019 | Tapping Screw BZ 4,8X78 MM |
| 7 | 1601302018 | Fastening Clamp |
| 7 | 1601302018 | Fastening Clamp |
| 70 | 2610906872 | Manufacturer's nameplate |
| 70 | 2610906872 | Manufacturer's nameplate |
| 72 | 1601110449 | Nameplate Caution |
| 72 | 1601110449 | Nameplate Caution |
| 750 | 1607000247 | Strap-Shaped Handle |
| 750 | 1607000247 | Strap-Shaped Handle |
| 810 | 1607014194 | Carbon-Brush Set |
| 810 | 1607014194 | Carbon-Brush Set |
| 821 | 1605805592 | Gear Housing |
| 821 | 1605805592 | Gear Housing |
| 822 | 1607000951 | Parts Set |
| 822 | 1607000951 | Parts Set |
| 826 | 1600A003DA | Bevel Gear Set |
| 826 | 1600A003DA | Bevel Gear Set |
| 830 | 1604011155 | Armature 110-115V |
| 830 | 1604010B3G | Armature 115V |
| 840 | 1607000206 | Push-Button Black |
| 840 | 1607000206 | Push-Button Black |
| 846 | 1607000342 | Retaining Washer |
| 846 | 1607000342 | Retaining Washer |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 888 | 160111A3H3 | Nameplate |
| 888 | 160111A3H3 | Nameplate |
| 9 | 2610906993 | Manufacturer's nameplate |
| 9 | 2610906993 | Manufacturer's nameplate |
