Bosch 13618

Bosch 13618 cordless impact drill: exploded parts diagram, 1 sheet, 48 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 13618: 48 positions on 1 sheet

Bosch 13618 parts list (1 sheet)

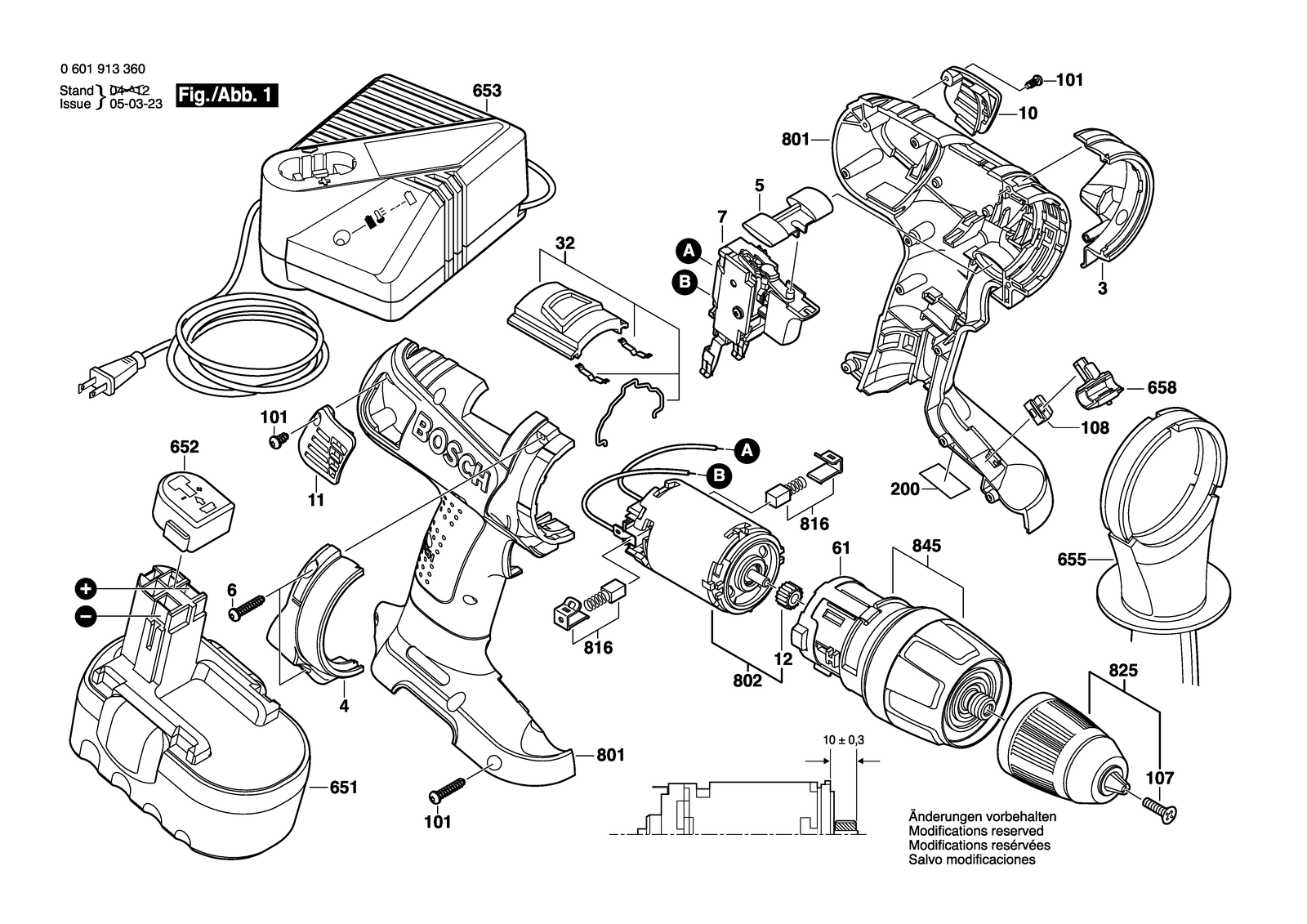

Bosch 13618 parts diagram, sheet 1
No.Part numberPart name
102600508051Cover Black
102600508051Cover Black
1012603490018Torx Oval-Head Screw 3X18
1012603490018Torx Oval-Head Screw 3X18
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1082604690027Spring Element
1082604690027Spring Element
112600508052Cover Black
112600508052Cover Black
122606316222Pinion
122606316222Pinion
2002601116214Reference Plate
2002601116995Reference Plate
32605500168Protective Cap
32605500168Protective Cap
322601099127Adjusting Slide
322601099127Adjusting Slide
42605500169Protective Cap
42605500169Protective Cap
52601099112Adjusting Slide Red
52601099112Adjusting Slide Red
62603410052Thread-forming tap. Screw M3X20
62603410052Thread-forming tap. Screw M3X20
612608040190Support
612608040190Support
6512607335717Accumulator package 18V,2,4AH, Hd
6512607335717Accumulator package 18V,2,4AH, Hd
6522609100101Protective Cap
6522609100101Protective Cap
6532607225033Fast Charger USA 120/7,2-24V, 30 Min.
6532607225033Fast Charger USA 120/7,2-24V, 30 Min.
6552602025135Auxiliary Handle
6552602025135Auxiliary Handle
6582608040208Auxiliary Support
6582608040208Auxiliary Support
72607200457On-Off Switch
72607200457On-Off Switch
8012605105920Housing Section Blue
8012605105920Housing Section Blue
8022607022858DC motor 18V
8022607022858DC motor 18V
8162607034904Carbon-Brush Set
8162607034904Carbon-Brush Set
8252608572900Keyless Chuck
8252608572900Keyless Chuck
8452606200933Planetary Gear Train
8452606200937Planetary Gear Train
