Bosch 1347A
Bosch 1347A angle grinder: exploded parts diagram, 2 sheets, 58 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

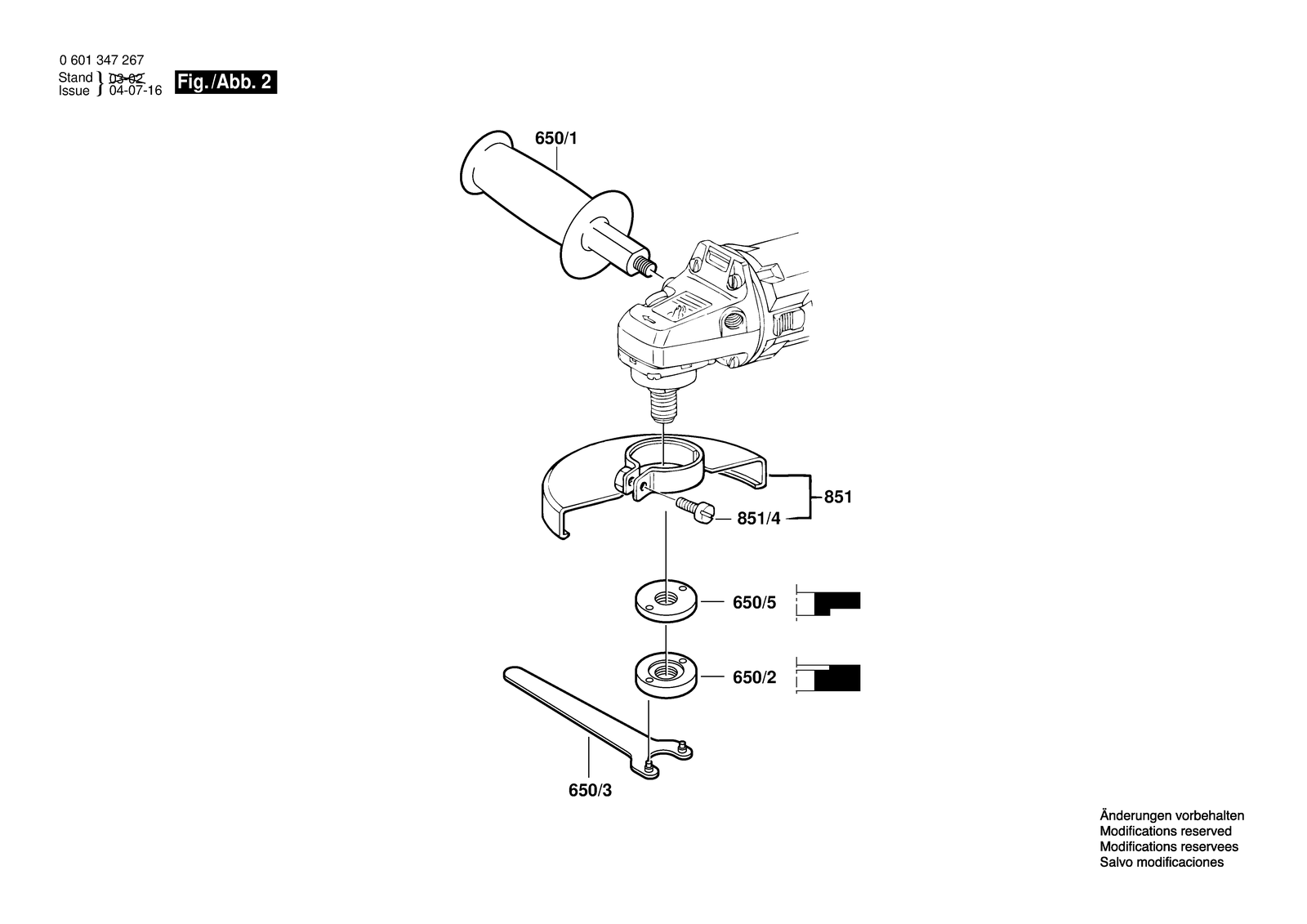

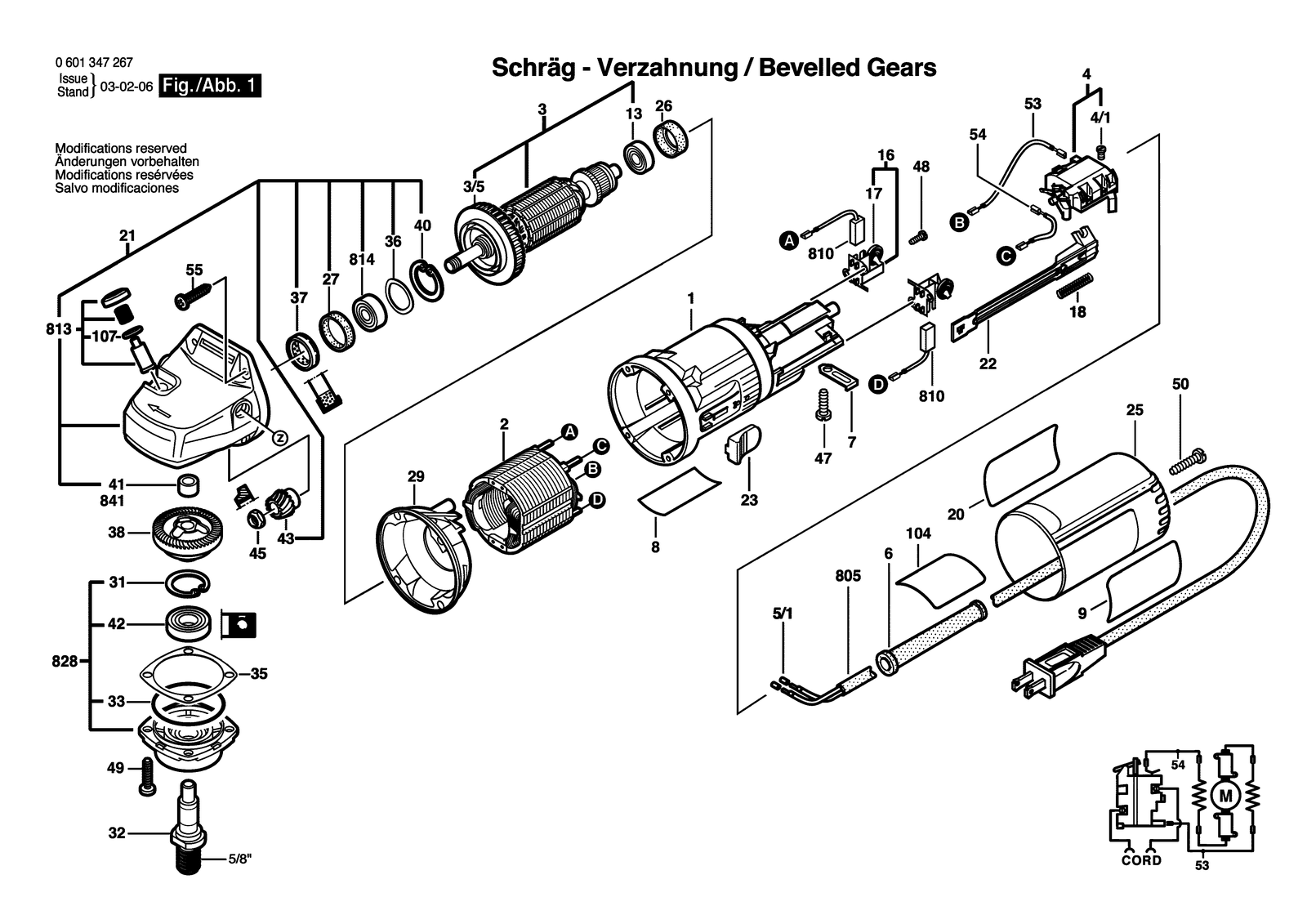

All parts of Bosch 1347A: 58 positions on 2 sheets
Bosch 1347A parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 16051082CC | Motor Housing |
| 104 | 1601008003 | Insulating Plate |
| 107 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 16 | F000612048 | Brush Holder |
| 17 | 1604652013 | Spiral Spring |
| 18 | 1604611026 | Compression Spring |
| 2 | 1604220226 | Field 110-120V |
| 20 | 1601118A54 | Warning Plate |
| 21 | 1607000873 | Gear Housing |
| 22 | 1602319002 | Adjusting Slide |
| 23 | 1602026057 | Switch Handle Black |
| 25 | 1600508010 | Housing Cover Blue |
| 26 | 1600502020 | Rubber Bushing |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1601328005 | Air-Deflector Ring |
| 3 | 1604010261 | Armature With Fan 115-120V |
| 3/5 | 1606610121 | Fan |
| 31 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 32 | 1607000D6B | Grinding Spindle |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 35 | 1600136010 | Shim Thick 0,2 MM |
| 35 | 1600136011 | Shim Thick 0,3 MM |
| 35 | 1600136012 | Shim Thick 0,1 MM |
| 36 | 1600150011 | Spring Washer |
| 37 | 1600290016 | Rotary shaft lip seal |
| 38 | 1606333601 | Crown Gear Z=36 |
| 4 | 1607200086 | On-Off Switch |
| 4/1 | 2910110048 | Pan head screw DIN 85-AM3X6-CUZN |
| 40 | 2916660009 | Spring retaining ring DIN 472-25X1,2MM |
| 41 | 1600200029 | Plain bearing |
| 42 | 1600905006 | Groove ball bearing 12X32X10 |
| 43 | 1606333242 | Bevel Gear Z=11 |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 2910211018 | Tapping Screw DIN 7971-ST3,9X13-F |
| 48 | 2910211005 | Tapping Screw DIN 7971-ST2,9X9,5-F |
| 49 | 1603435026 | Thread-forming tap. Screw |
| 5/1 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 50 | 2912401420 | Tapping Screw DIN7981-ST3,9X19-F-Z |
| 53 | 1604448005 | Connecting Cable White L=95 MM |
| 54 | 1604448006 | Connecting Cable White L=40 MM |
| 55 | 2912401420 | Tapping Screw DIN7981-ST3,9X19-F-Z |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 650/1 | 1602025027 | Auxiliary Handle M10 |
| 650/2 | 3603340501 | Clamping-Flange 5/8"-FL+B |
| 650/3 | 1607950052 | Pin-Type Face-Wrench |
| 650/5 | 3603340503 | Round Nut 5/8" |
| 7 | 1601302017 | Fastening Clamp |
| 8 | 1611104074 | Nameplate |
| 805 | 3604460555 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 810 | 1607014116 | Carbon-Brush Set |
| 813 | 1607000253 | Push-Button Black |
| 814 | 1600905032 | Groove ball bearing 8X22X7 |
| 828 | 1607000936 | Bearing Flange |
| 841 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 851 | 1605510367 | Protective Cover Ø 115 MM (4 1/2") |
| 851/4 | 2910022197 | Socket head cap screw DIN 84-M 6X16-8.8 |
| 9 | 2610906844 | Manufacturer's nameplate |
