Bosch 1347 angle grinder: exploded parts diagram, 2 sheets, 97 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1347: 97 positions on 2 sheets

Bosch 1347 parts list (2 sheets)

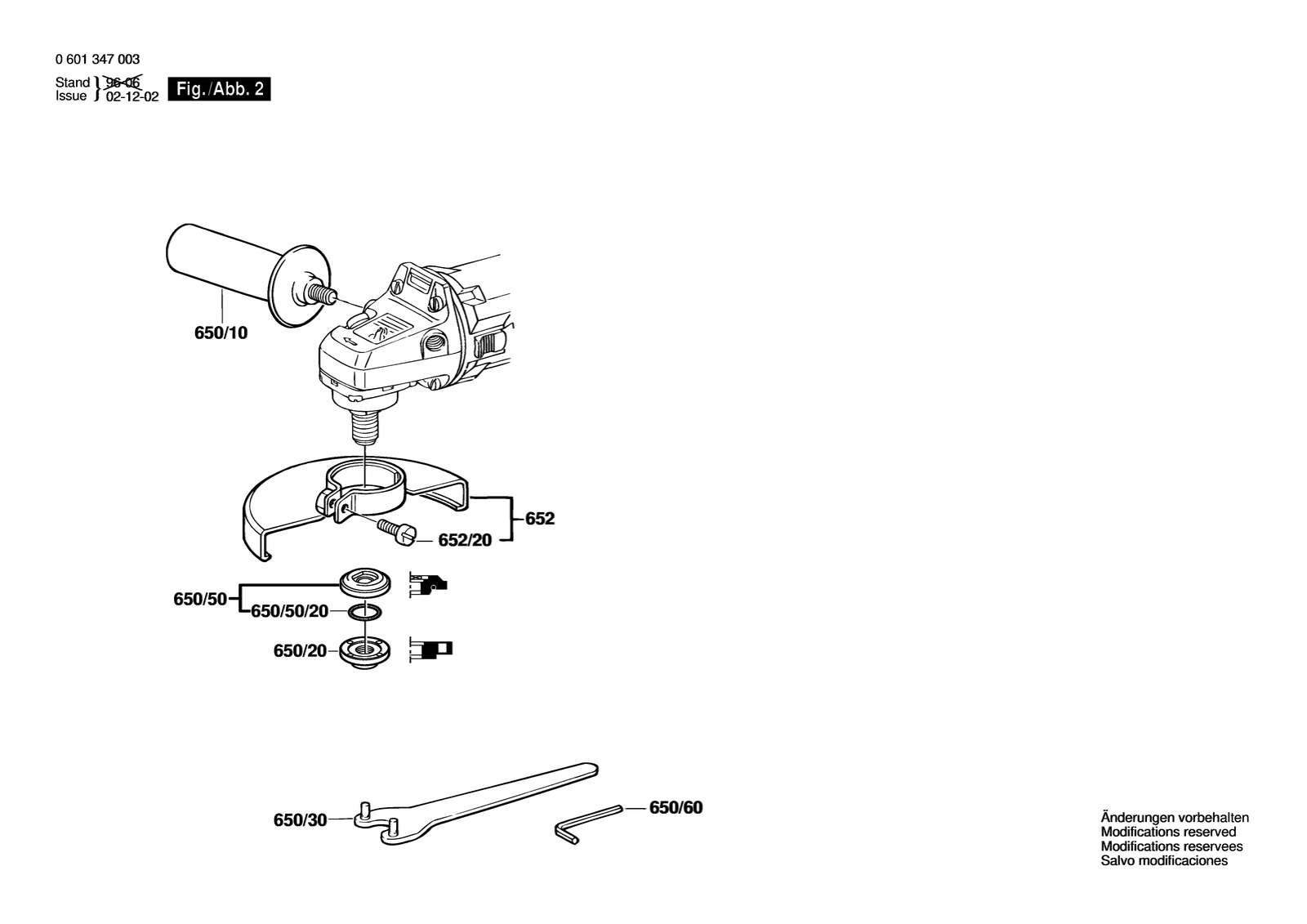

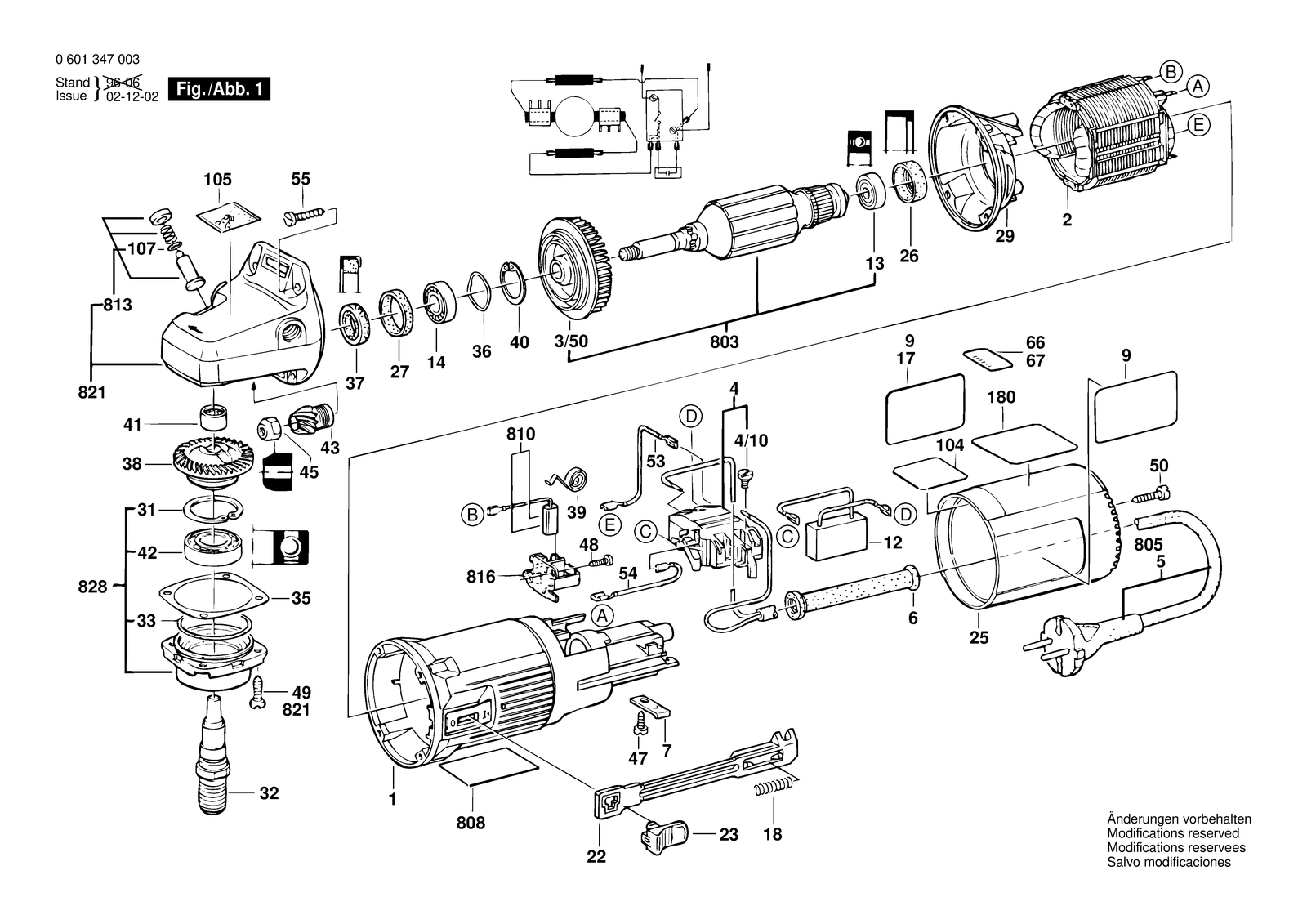

Bosch 1347 parts diagram, sheet 1Bosch 1347 parts diagram, sheet 2
No.Part numberPart name
116051082CCMotor Housing
1041601008003Insulating Plate
1051601110470Reference Plate
1071600210044O-Ring Blue 4,5X1,0 MM
121607328029Suppression Filter
132600905032Ball Bearing 7X19X6
141600905011Groove ball bearing 8X22X7
171601110231Manufacturer's nameplate Double Insulation
171601110613Manufacturer's nameplate
171601110641Manufacturer's nameplate
181604611026Compression Spring
1803601119137Warning Plate Caution
21604220224Field 230-240V
21604220225Field 100V
21604220226Field 110-120V
21604220227Field 240V
221602319002Adjusting Slide
231602026057Switch Handle Black
251600508010Housing Cover Blue
261600502020Rubber Bushing
271600206025Rubber Ring
291601328005Air-Deflector Ring
3/501606610121Fan
312916660013Retaining clip DIN 472-32X1,2 MM
321607000D6AGrinding Spindle
333600210124O-Ring Red 46,0X1,1 MM
351600136010Shim Thick 0,2 MM
351600136011Shim Thick 0,3 MM
351600136012Shim Thick 0,1 MM
361600150011Spring Washer
371600290016Rotary shaft lip seal
381606333601Crown Gear Z=36
391604652013Spiral Spring
41607200086On-Off Switch
4/102910110048Pan head screw DIN 85-AM3X6-CUZN
402916660009Spring retaining ring DIN 472-25X1,2MM
411600910018Needle bearing Ø8XØ12X8 MM
421600905006Groove ball bearing 12X32X10
431606333242Bevel Gear Z=11
451603300016Hex Nut M7, SW10
472910211018Tapping Screw DIN 7971-ST3,9X13-F
482910211005Tapping Screw DIN 7971-ST2,9X9,5-F
491603435026Thread-forming tap. Screw
51604460034Power supply cord AUS 2,65M 2 X 1,0MM Pvc
51604460110Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F
51604460149Power supply cord J 2,5M 2 X 1,25MM Pvc
51604460190Power supply cord GB 240V 2,65M 2 X 1,0MM H05RN-F
51604460205Power supply cord GB 110V 2,65M 2 X 1,0MM H07 Rn-F
52604460187Power supply cord Usa/cdn 2,68M 2 X 082MM SJ 18/2
52604460277Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F
53604460057Power supply cord SAM 4,15M 2 X 0,82MM SJ 18/2
53607030489Power supply cord
502910211021Tapping Screw DIN 7971-ST3,9X22-F
531604448005Connecting Cable White L=95 MM
541604448006Connecting Cable White L=40 MM
552912401021Tapping Screw DIN7981-ST3,9X22-C-Z
62600703011Grommet Ø8,3-Ø9,4X95 MM
62600703012Grommet Ø6,5-Ø6,9X95 MM
62600703013Grommet Ø7,6-Ø8,2X95 MM
650/101602025027Auxiliary Handle M10
650/10160202509TAuxiliary Handle
650/201603340014Round Nut M10
650/201603340016Round Nut M10
650/201603345043Round Nut M14
650/301607950052Pin-Type Face-Wrench
650/302607950510Pin-Type Face-Wrench
650/501600501067Clamping-Flange Ø10,1XØ3 MM
650/502605703014Clamping Flange Ø22,3XØ42 MM
650/50/201600210039O-Ring 20,35X1,78 MM
650/602610364015Hexagon Socket Screw Key 5 MM
6521600A0136PProtective Cover
6521605510201Protective Cover Ø 115 MM
6522605510062Protective Cover Ø 100 MM
652/202910022197Socket head cap screw DIN 84-M 6X16-8.8
652/202910141197Hex Socket Head Cap Screw DIN 912-M6X16-8.8
661601110449Nameplate Caution
671601110358Reference Plate Caution
673601119137Warning Plate Caution
71601302017Fastening Clamp
8031604010259Armature With Fan 230-240V
8031604010260Armature With Fan 100V
8031604010261Armature With Fan 115-120V
8031604010262Armature With Fan 240V
8051607000227Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F
808160111A3H3Nameplate
8101607014116Carbon-Brush Set
8101607014128Carbon Brush
8131607000253Push-Button Black
8161600A003G4Brush Holder
8162601323022Brush Holder
8211605806480Gear Housing
8281607000936Bearing Flange
91601110353Manufacturer's nameplate
91601110612Manufacturer's nameplate
91601110640Manufacturer's nameplate
91601110706Manufacturer's nameplate
92610906842Manufacturer's nameplate
